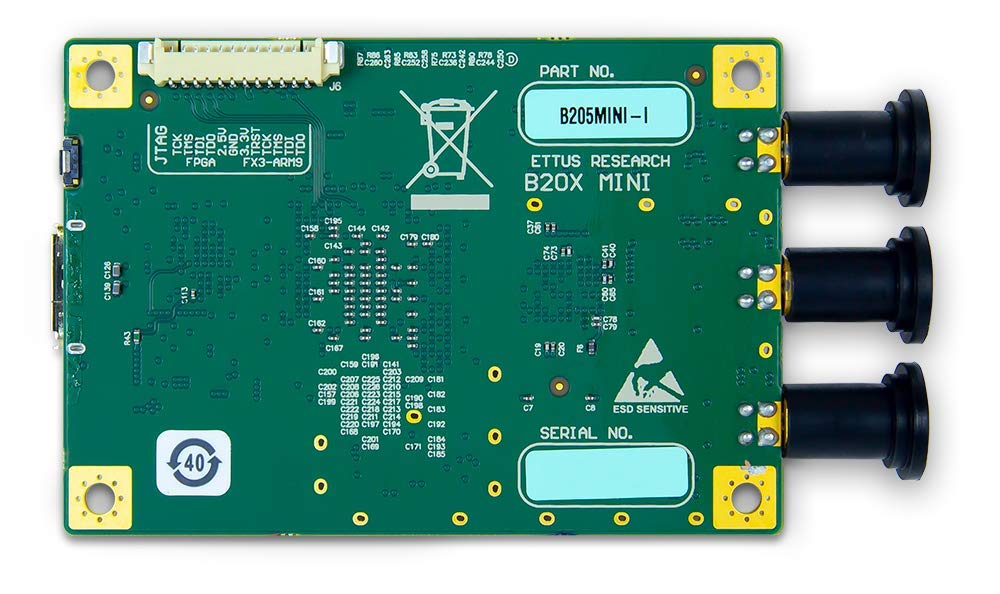

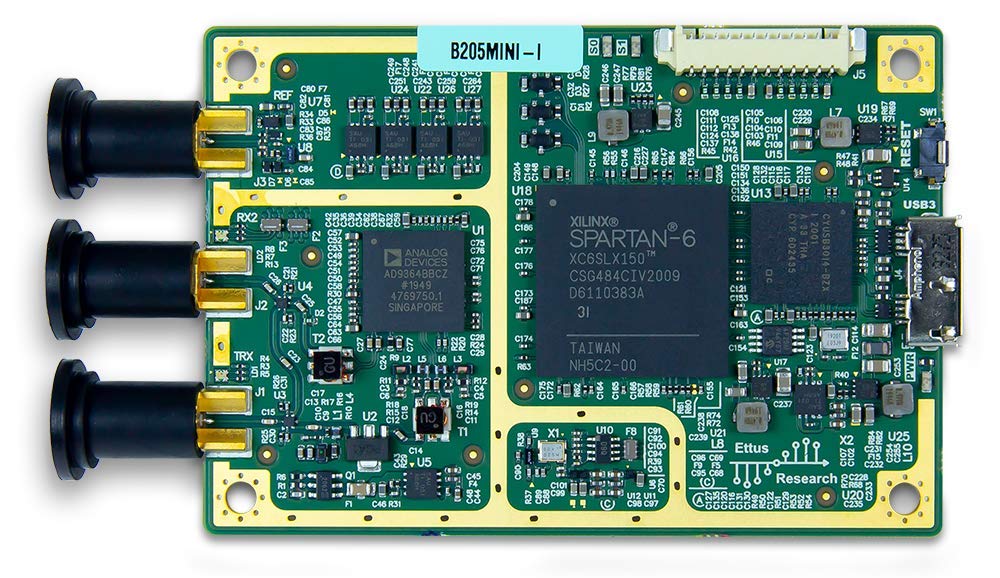

USRP B205mini-i: 1x1 USB Software-Defined Radio Platform

60+ customers visited this product in the past 30 days

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•RF Specifications: Channels: 1 TX, 1 RX; Frequency range: 70 MHz to 6 GHz; Instantaneous Bandwidth: Up to 56 MHz; IIP3 (at typical NF): -20 dBm; Power Output: >10 dBm; Receive Noise Figure: <8 dB
•Conversion Performance and Clocks: ADC Sample Rate (Max.): 61.44 MS/s; ADC Resolution: 12 bits; DAC Sample Rate (Max.): 61.44 MS/s; DAC Resolution: 12 bits; Host Sample Rate (16b): 61.44 MS/s; Frequency Accuracy: +/-2.0 ppm
•Environment: Operating Temp. Range: 0 - 45 °C USRP; Hardware Driver 3.9.2 (or later); GNU Radio
•Synchronization: 10 MHz clock reference; PPS time reference
•Power: USB Power 5V

USRP B205mini-i: 1x1 USB Software-Defined Radio Platform

USRP B205mini-i: 1x1 USB Software-Defined Radio Platform
