USB to RS485 Adapter, USB to 2CH RS485 Bidirectional Converter Industrial Grade Isolated, Onboard Original FT2232HL Chip, Stable and Reliable Communication, Support Win11/10/8.1/8/7 Linux Android

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

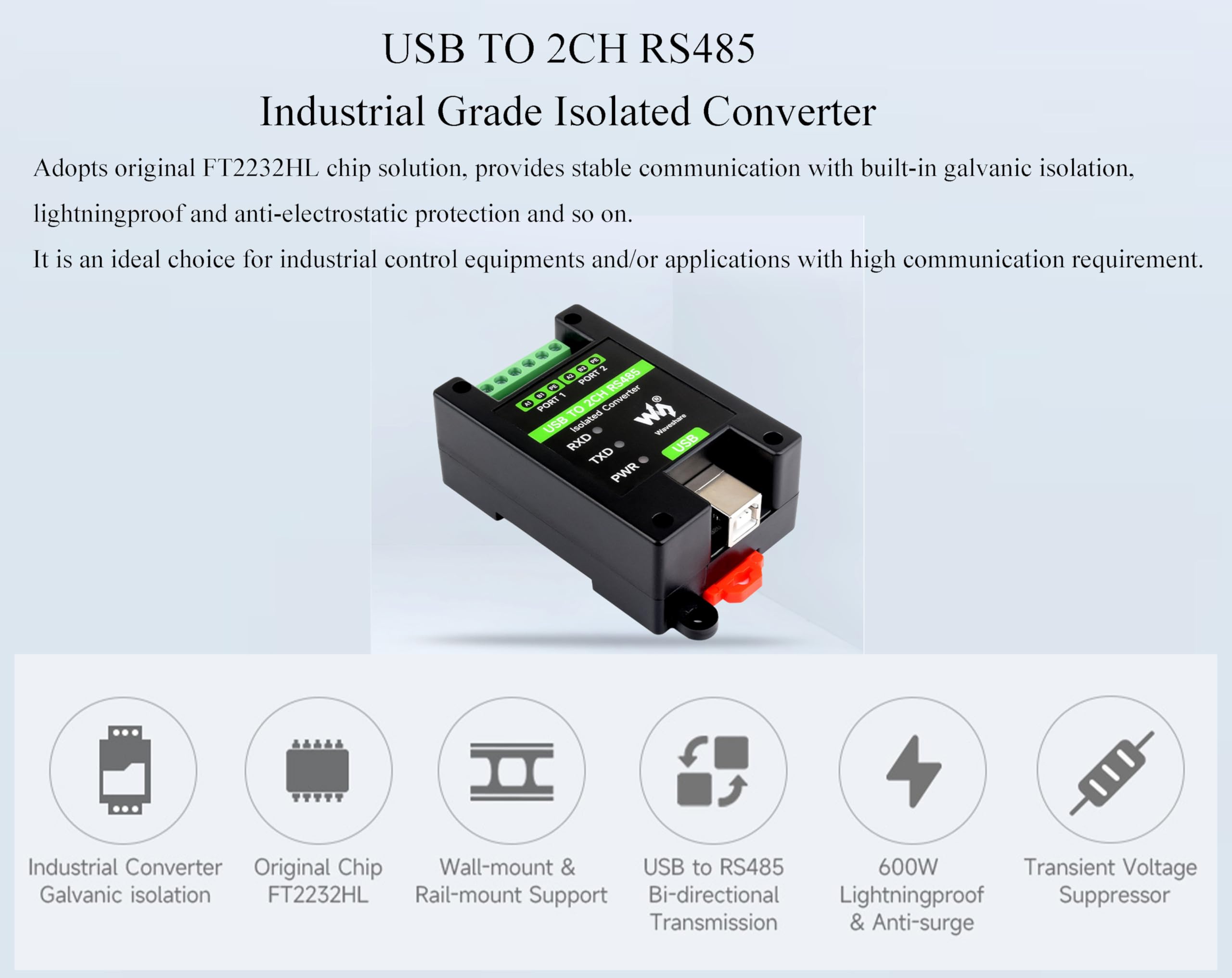

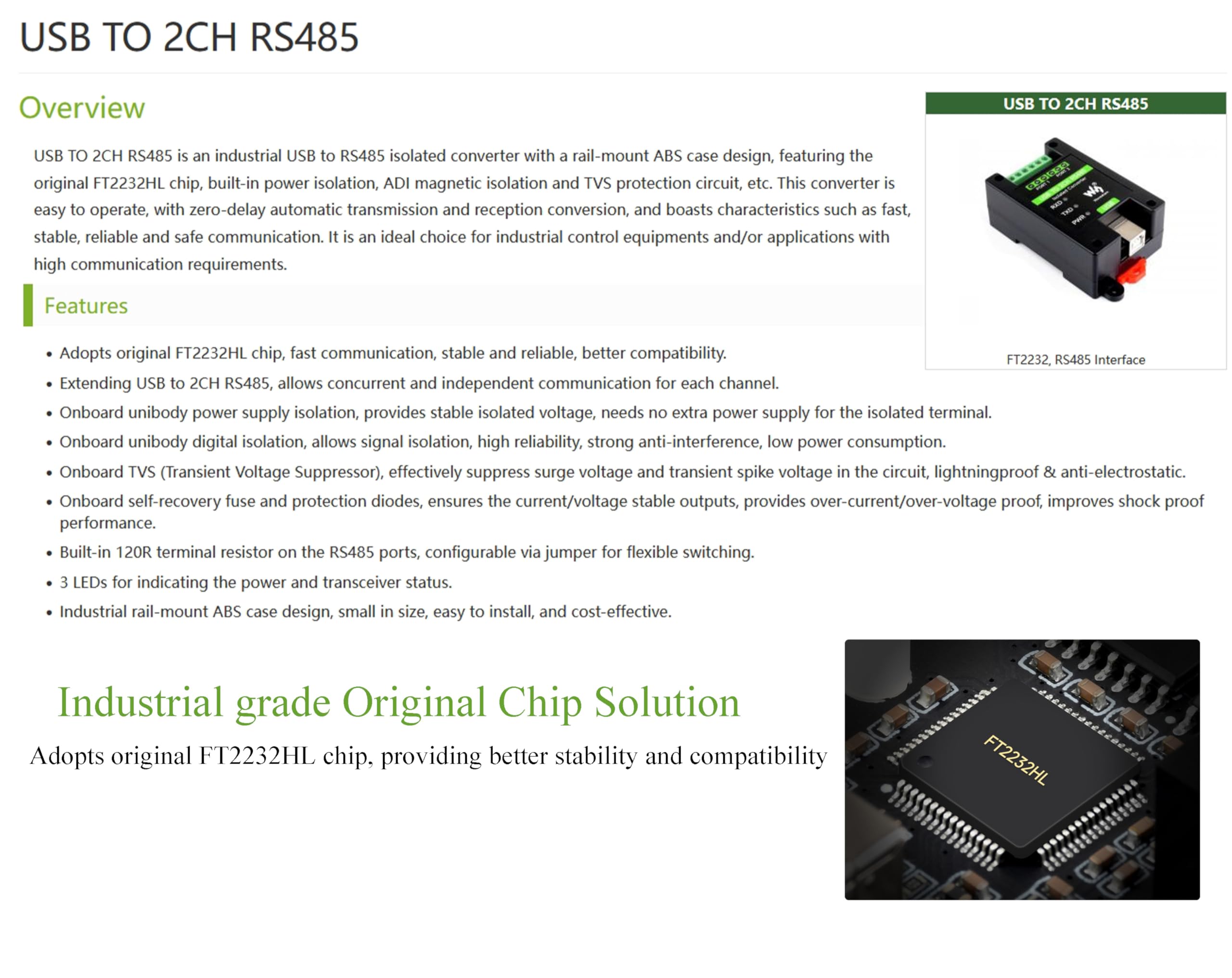

•USB TO 2CH RS485 Bidirectional Converter, Adopts original FT2232HL chip solution, provides stable communication with built-in galvanic isolation, light-ning-proof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
•Extending USB to 2CH RS485, allows concurrent and independent communication for each channel. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective.

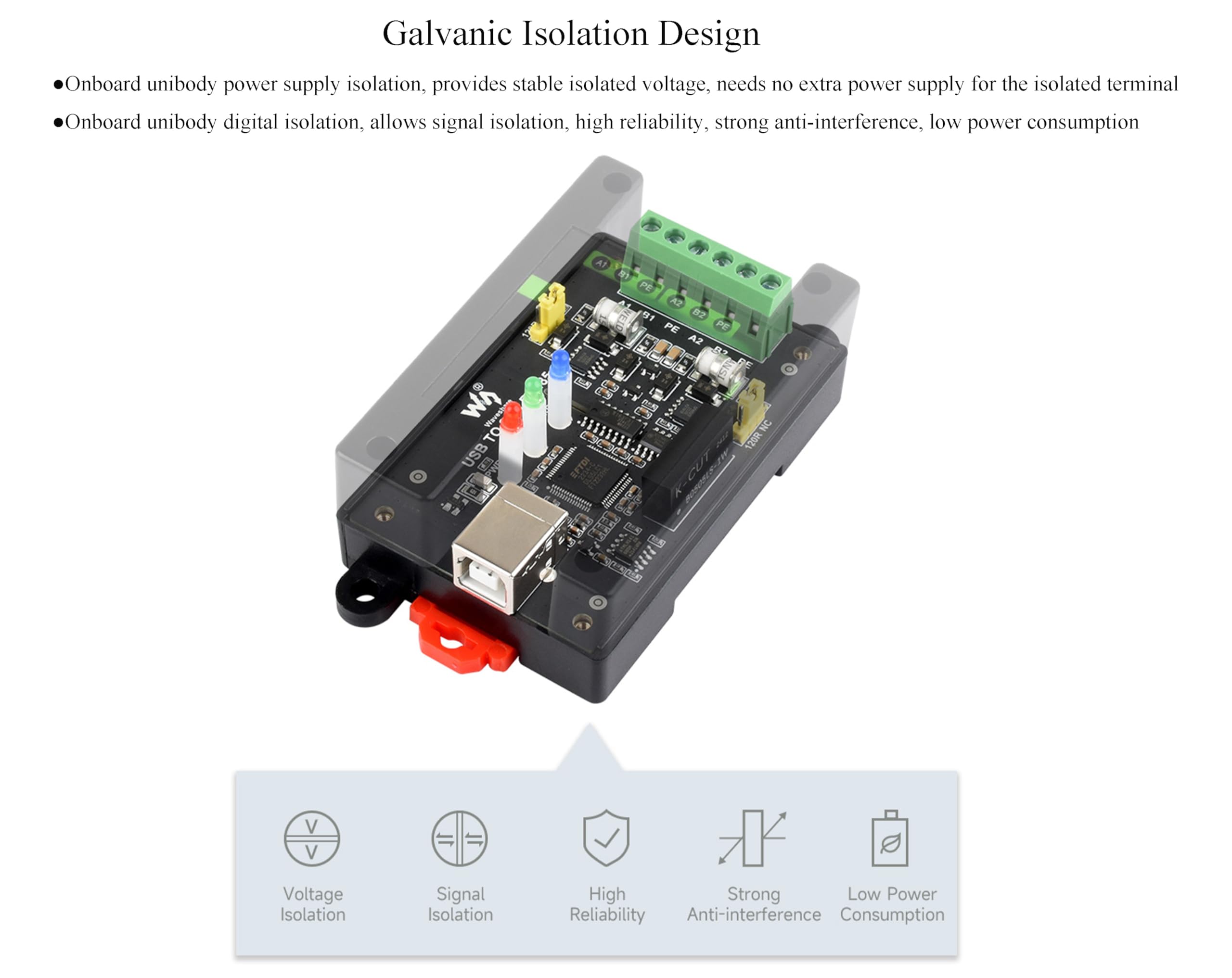

•Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.
•Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, light-ning-proof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
•Transmission distance up to 1.2km-- The USB signal can be converted into 2 balanced differential RS485 signals and the transmission rate is stable. The transmission distance is about 1.2km for RS485, and about 5 meters for USB.

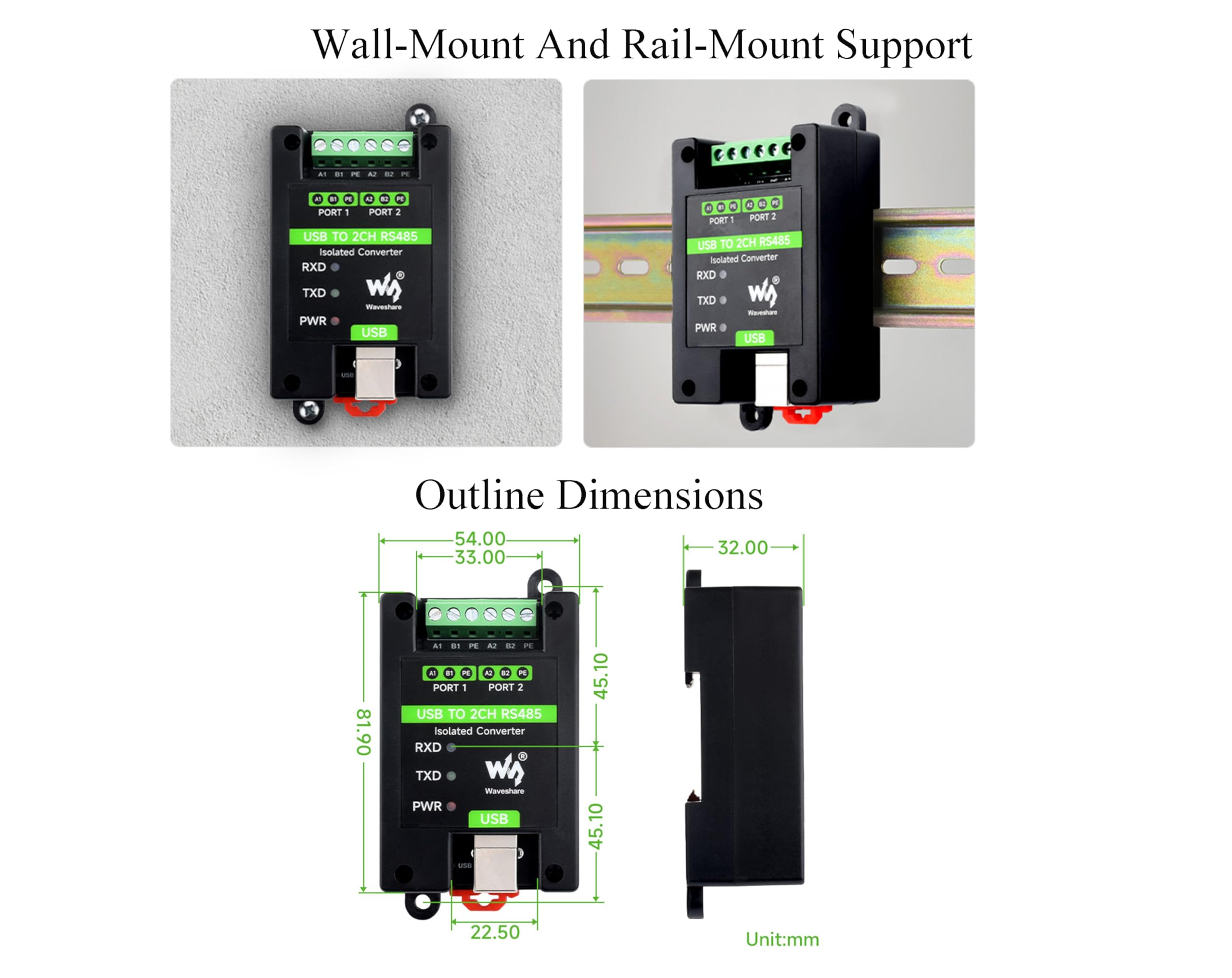

•Support Wall-Mount and Rail-Mount. Rail-mount ABS case, suitable for 35mm DIN rail. Dimensions : 81.9 x 54.0 x 32.0mm
•Multi system Support---Supports Win11/10/8.1/8/7, macOS, Linux, Android, etc. Comes with Online Tutorial and Online Development Resource, Please check: n9.cl/7ahzy
