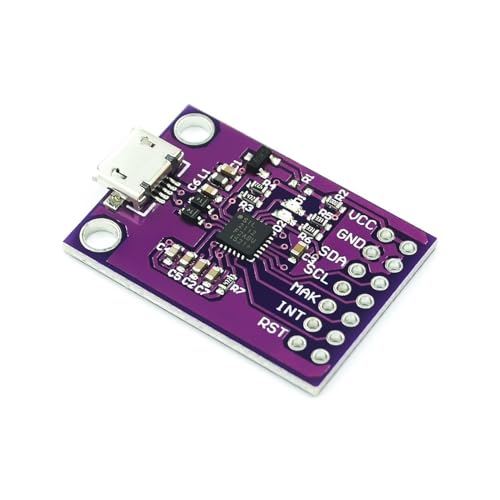

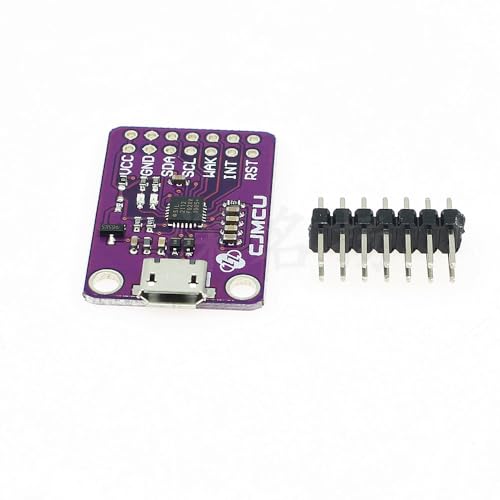

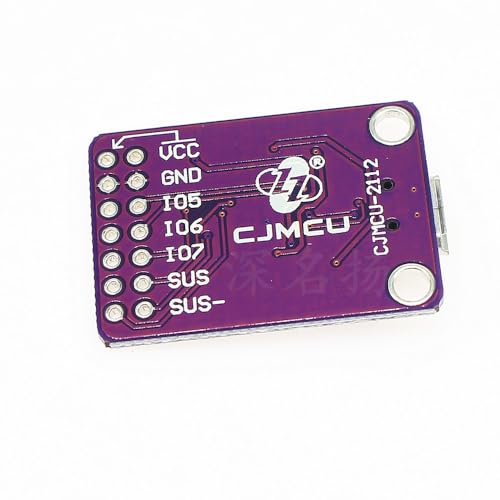

USB to I2C MCU-2112 CP2112 debug Board Communication Module CP2112
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•The CP2112 devices have the following features: Single-Chip HID USB to SMBus Master Bridge Integrated USB transceiver; no external resistors or crystal required SMBus master device GPIO can be configured as Input/Output and Open-Drain/ Push-Pull 512 Byte SMBus data buffer Integrated 194 Byte One-Time Programmable ROM for storing customizable product information On-chip power-on reset circuit On-chip voltage regulator: 3.45 V output
•USB Peripheral Function Controller USB Specification 2.0 compliant; full-speed (12 Mbps) USB Suspend states supported via SUSPEND and /SUSPEND pins
•HID Interface Standard USB class device requires no custom driver Supported on Windows, Mac, and Linux Open access to interface specification
•GPIO Interface Features 8 GPIO pins with configurable options Usable as inputs, open-drain or push-pull outputs Configurable clock output for external devices 48 MHz to 94 kHz Toggle LED during SMBus reads Toggle LED during SMBus writes
•SMBus Configuration Options Configurable Clock Speed Device Address: 7-bit value that is the slave address of the CP2112. The device will only ACK this address, but will not respond to any read/write requests Read/Write Timeouts SCL Low Timeout Retry Counter Timeout
•To download the GUI software at the following link: https://drive.google.com/file/d/1kM8XQtsV4LkhVfDbWP3qEHTyZdP2ZqVh/view?usp=share_link
