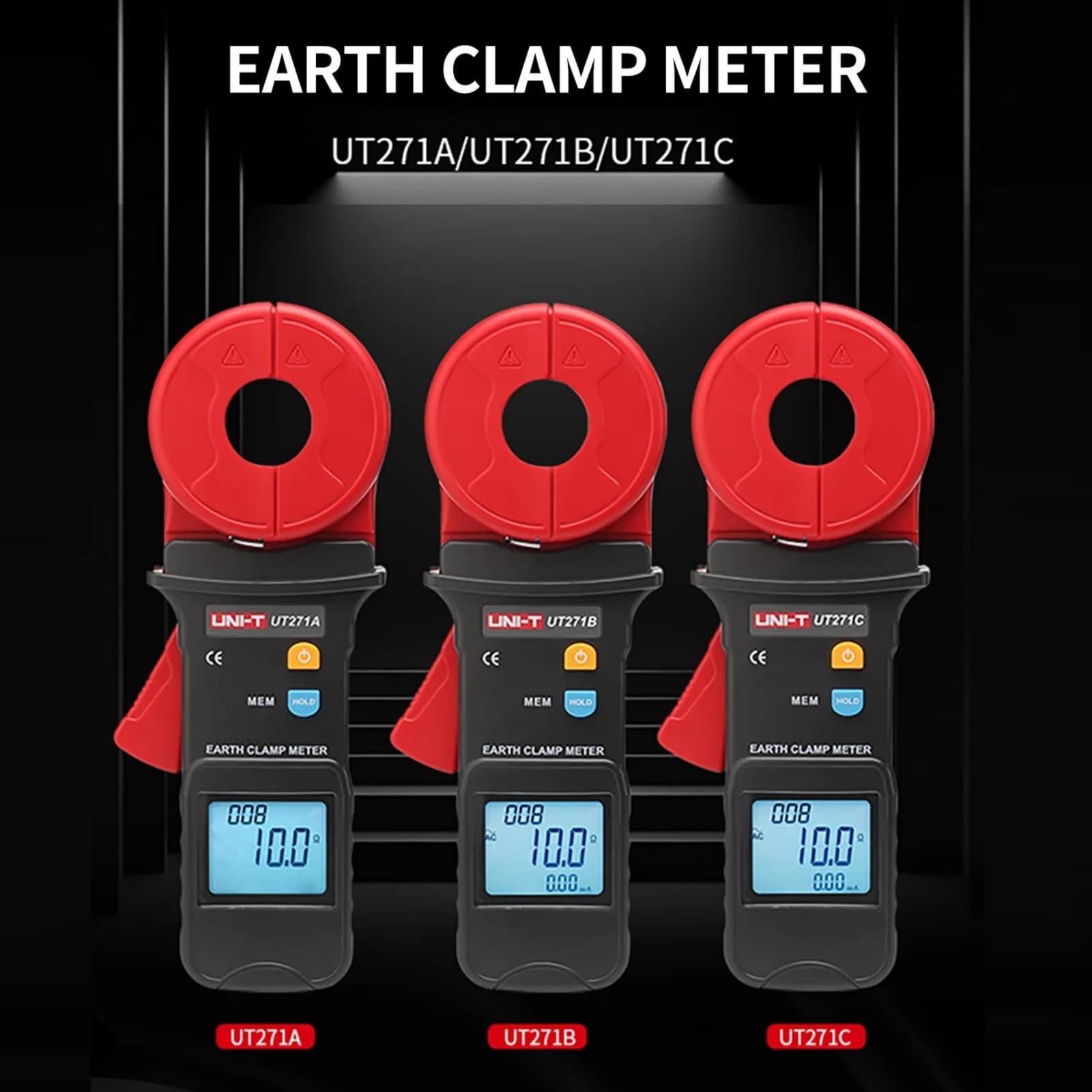

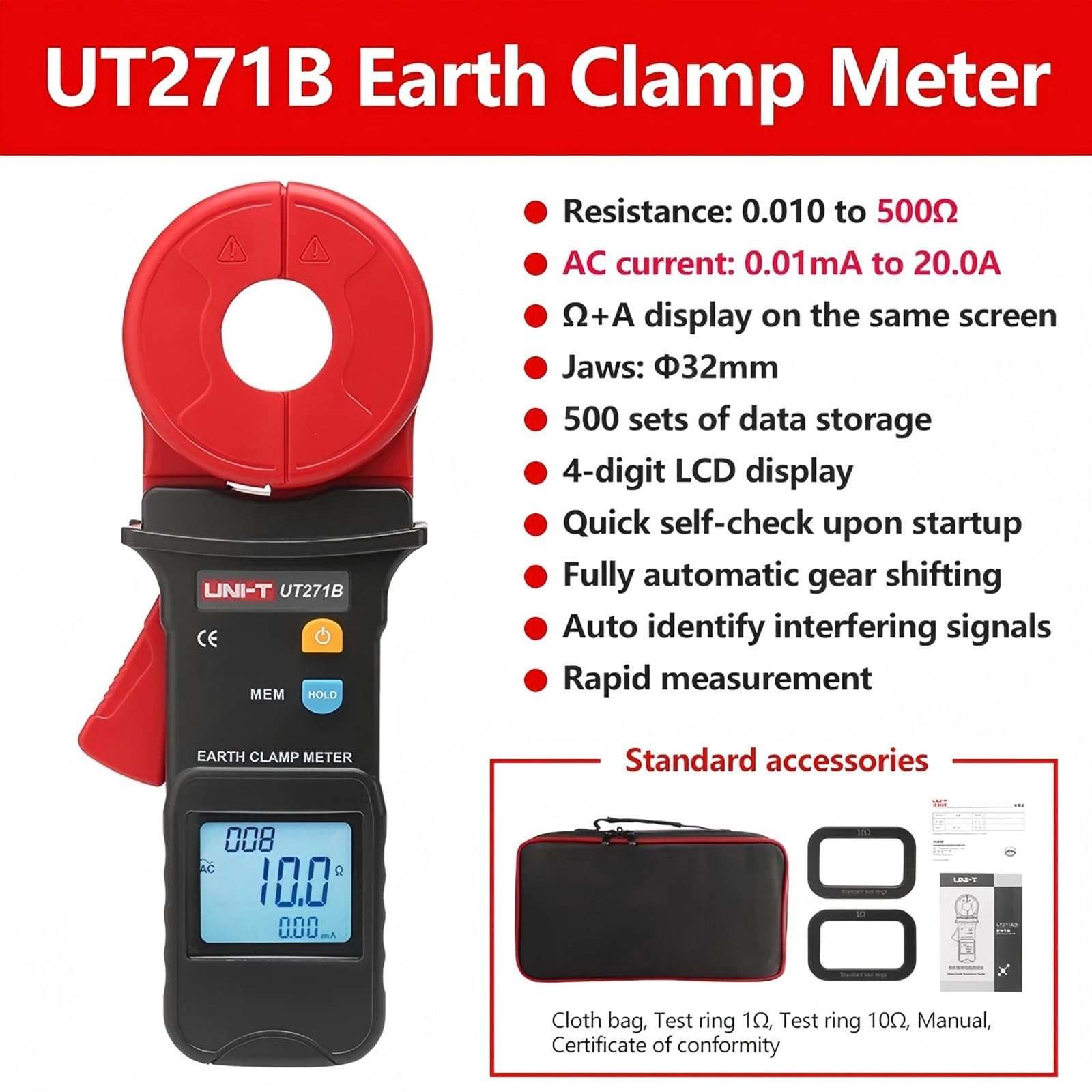

UNI-T UT271A UT271B UT271C Digital Clamp Ground Earth Resistance Meter, 0.01-1000Ω,Clamp Ammeter AC Leakage Current Clamp Meter Data Storage (UT271B)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

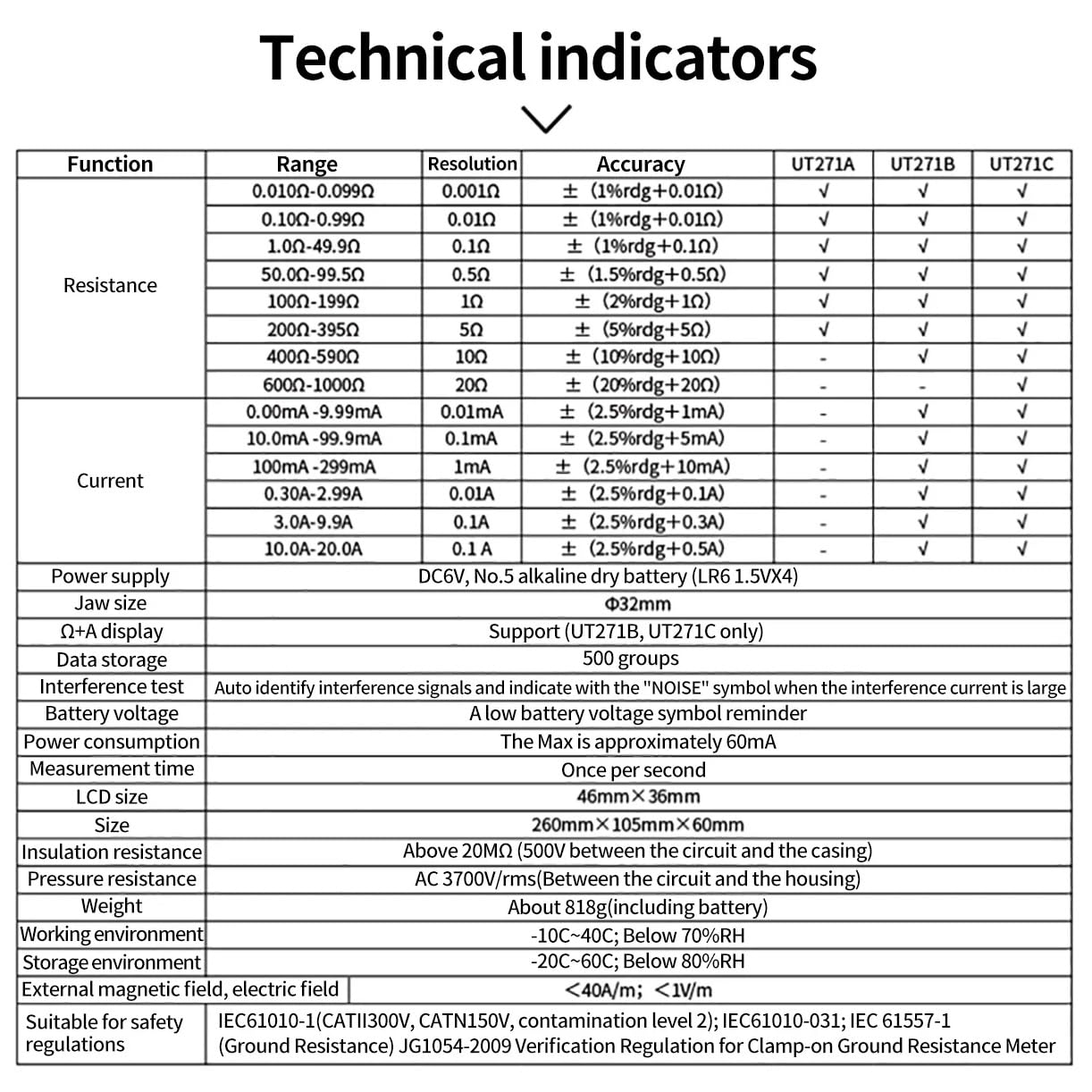

•【Measurement Range】UT271 series clamp type grounding resistance tester, also known as loop resistance tester, is used for testing grounding resistance.UT271A (0.01-300Ω) UT271B(0.01-500Ω) UT271C(0.01-1000Ω) Current resolution: 0.01mA. The jaws are designed in a circular shape and have a size of 32mm, suitable for applications in various measurement environments.

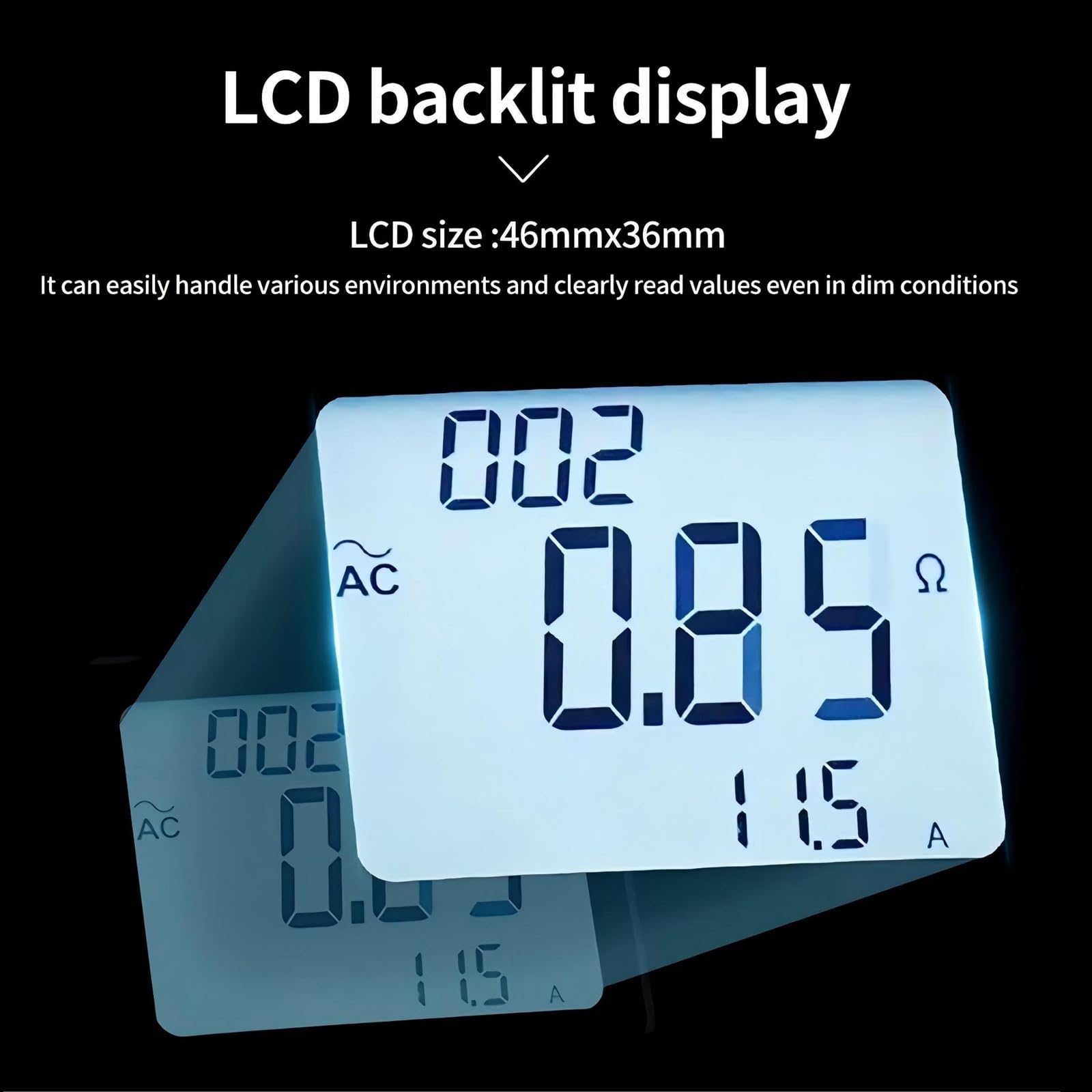

•【LCD Backlight Display】The UT271 series clamp type grounding resistance tester has an LCD display screen size of 45mm * 36mm for high-definition large screen display, which can easily cope with various environments and read values clearly even in dim environments.
•【Self inspection】Before testing, users can use the standard testing ring to check whether the equipment is working accurately. The testing rings are 1 Ω and 10 Ω, respectively.
•【Data storage】UT271 series clamp type grounding resistance tester It can store 500 sets of measurement data, meeting the storage requirements for daily measurements. If the storage is full, the screen will flash the "MEM" symbol.
•【Scope of application】 UNI-T UT271series clamp type grounding resistance tester Ideal for measuring grounding resistance in power, meteorology, oilfields, construction, and industrial electrical equipment. No need to break down grounding leads or use auxiliary electrodes for loop system measurements.
