Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

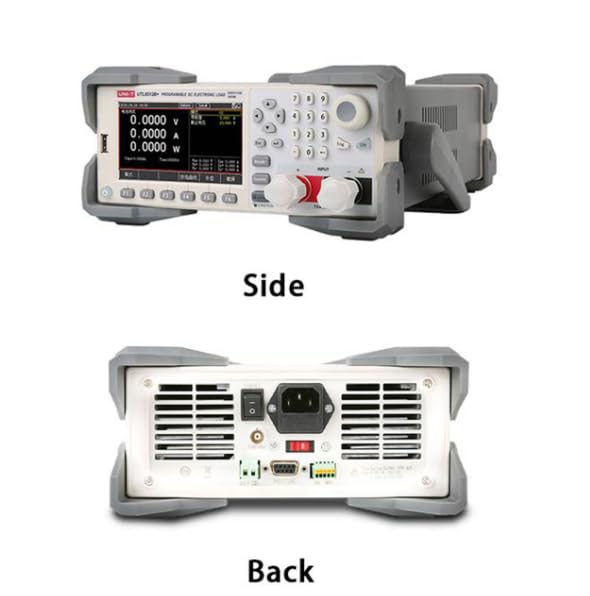

•The UTL8500 Series is a cost-effective programmable DC electronic load series with high performance. With a resolution of 0.1mV and 0.1mA, multiple protection mechanisms significantly improve the reliability of the equipment. The Series has a variety of testing functions and modes,

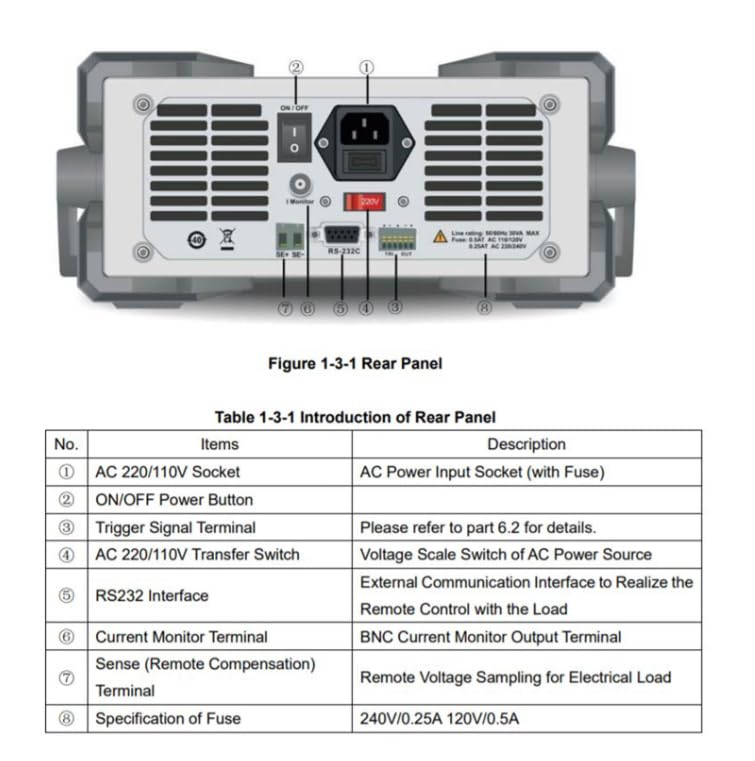

•equipped with RS-232 communication interface, and can be equipped with other communication interfaces according to design and testing requirements. The Series provides a flexible, fast and effective solution. Meet different customers' needs from Education, Scientific Research and Manufacturing 150V/500V VOLTAGE 15A/30A/120A CURRENT 150W/300W/600W TOTAL POWER 0.1mV/0.1mA RESOLUTION ½ 2U SIZE

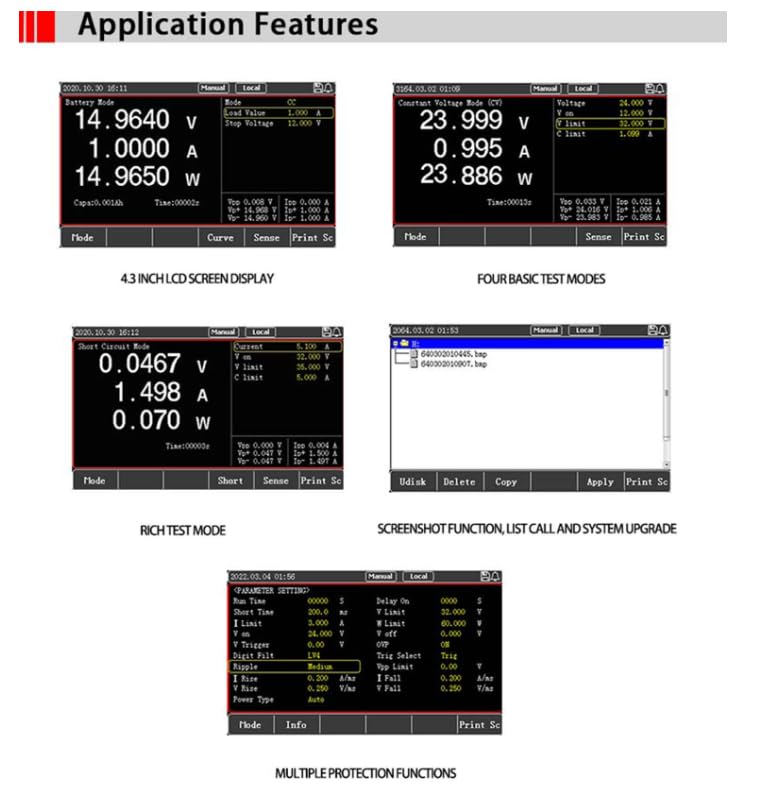

•4.3 inch LCD screen display 4.3 inch LCD screen display Resolution: 0.1mV/0.1mA Voltage test range: 0~150V/500V Current test range: 0~15A/30A/120A Power test range: 0~150W/300W/600W
•Four basic test modes Four basic working modes: CC/CV/CR/CP Rich test mode In order to meet diversified test requirements, UTL8500 series electronic loads provide more test modes for users to choose, including dynamic test, list test, combination test, OCP/OPP test, CR-LED test, battery test, load effect, OVP test , Short circuit, time test and other modes.
•Screenshot function, list call and system upgrade Press the [Screenshot] button to save the current screen image to the USB flash drive,or save the frequently used list test files in Flash or USB flash drive, so that they can be called when needed next time, and the system can be upgraded quickly through the USB flash drive. Multiple protection functions Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection, etc.
From USA
