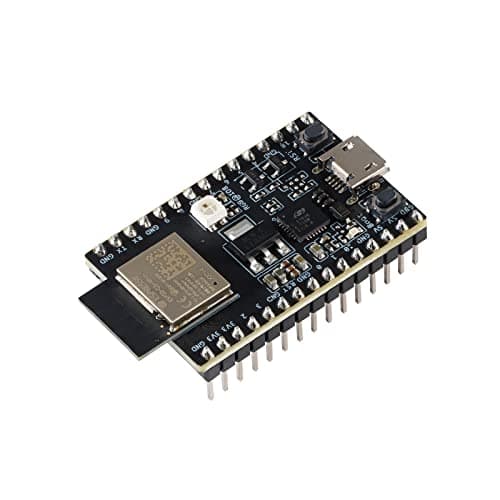

new | 000 ESP32-C3-DevKitM-1 Development Board Module, Embedded RISC-V 32-Bit Single-Core Microprocessor, ESP32 Chip Integrated 2.4GHz WiFi+ Bluetooth Module Wireless Module I2S I2C Suitable
Brand : EC Buying
new | 000 ESP32-C3-DevKitM-1 Development Board Module, Embedded RISC-V 32-Bit Single-Core Microprocessor, ESP32 Chip Integrated 2.4GHz WiFi+ Bluetooth Module Wireless Module I2S I2C Suitable
Brand : EC Buying

₹ 4,543.00
M.R.P :₹ 7,571.00

40% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 4,543.00
M.R.P : ₹ 7,571.00

40% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB0B63M5J37
CategoryElectronics
SubcategorySingle Board Computers
LeafcategorySINGLE_BOARD_COMPUTER
CPU ManufacturerEC Buying
CPU Speed160
Processor Count1
OriginUSA
BrandnameEC Buying
Height0.65
Length1.53
Width0.98
Weight1
Operating SystemFreeRTOS
Warranty DescriptionNO
RAM Memory Installed Size408 KB
RAM Memory TechnologySRAM
Product Details
✔Product Features: ✭ Equipped with ESP32-C3-MINI-1 module ✭Easy to use and flexible to expand ✭Most of the pins of the module on the board have been led out to the pin headers on both sides ✭ Easily connect a variety of peripherals via jumpers ✭ Very low power SoC with RISC-V 32-bit single-core processor ✭Supports IEEE 802.11b/g/n (2.4 GHz Wi-Fi) and Bluetooth 5 (LE) ✭The ESP32-C3 series chips with ultra-low power consumption are designed for Internet of Things (IoT) devices
✔Wi-Fi Features: .Support IEEE 802.11 b/g/n protocol .Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz band .Support 1T1R mode, data rate up to 150 Mbps .4x virtual Wi-Fi interface .Support Infrastructure BSS Station mode, SoftAP mode, Station + SoftAP mode, and Promiscuous mode at the same time Please note that when the ESP32-C3 series chip scans in Station mode, the SoftAP channel will change at the same time .Antenna Diversity .802.11 mc FTM .Support external power amplifier
✔Application areas include: Smart Home: Smart Lighting Industrial automation: industrial robots, mesh networking, human-machine interface, industrial bus applications Consumer electronics: smart watches, smart bracelets, OTT TV boxes, set-top box devices Wi-Fi speaker Smart agriculture: smart greenhouses, smart irrigation, agricultural robots Retail catering: POS systems Audio equipment: Network music player Universal low-power IoT sensor hub Universal low-power IoT data logger
✔Power Options: You can choose one of the following three power supply methods to power the ESP32-C3-DevKitM-1: ①Micro-USB interface power supply (default) ②5V and GND pin header power supply. ③3V3 and GND pin header power supply It is recommended to choose the first power supply method: Micro-USB interface power supply.
✔Required Hardware: ESP32-C3-DevKitM-1 development board USB 2.0 data cable (standard type A to Micro-B type) Computer (Windows, Linux, or macOS)
What's Inside The Box ?
Jumpers, USB 2.0 data cable (standard type A to Micro-B type)
Product Ranking
#8403 in Single Board Computers (Computers & Accessories)
Product Description

♥Product introduction:

ESP32-C3 series chips are extremely low-power, highly-integrated MCU system-on-chip (SoC), integrating 2.4 GHz Wi-Fi and Bluetooth low energy(Bluetooth LE) dual-mode wireless communication.

♥Product Features:

①Wi-Fi:

Support IEEE 802.11 b/g/n protocol

Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz band

Supports 1T1R mode with data rates up to 150 Mbps

Wireless Multimedia (WMM)

Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)

Immediate Block ACK

Fragmentation and Reassembly defragmentation)

transmit opportunity (TXOP)

Beacon automatic monitoring (hardware TSF)

4 × virtual Wi-Fi ports

Also supports infrastructure-based networks (Infrastructure BSS)
Station Mode, SoftAP Mode, Station + SoftAP Mode mode and promiscuous mode

Please note that ESP32-C3 series chips scan in Station mode. During scanning, the SoftAP channel will change at the same time

Antenna diversity

802.11mc FTM

Support for external power amplifier

②Bluetooth:

Bluetooth Low Energy (Bluetooth LE): Bluetooth 5, Bluetooth mesh

High power mode (18 dBm)

Rates support 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

Advertising Extensions

Multiple Advertisement Sets

Channel Selection Algorithm #2

Wi-Fi and Bluetooth coexist and share the same antenna

③CPU and storage:

32-bit RISC-V single-core processor up to 160 MHz

CoreMark Score: Single Core 160 MHz: 407.22 CoreMark; 2.55 CoreMark/MHz

384KB ROM

400 KB SRAM (of which 16 KB is dedicated to cache)

8 KB RTC SRAM

Embedded flash (different models vary)

SPI, Dual SPI, Quad SPI, QPI interface to connect multiple flash

Speed ​​up flash access via cache

Supports flash in-circuit programming (ICP)
Product Description

♥Product introduction:

ESP32-C3 series chips are extremely low-power, highly-integrated MCU system-on-chip (SoC), integrating 2.4 GHz Wi-Fi and Bluetooth low energy(Bluetooth LE) dual-mode wireless communication.

♥Product Features:

①Wi-Fi:

Support IEEE 802.11 b/g/n protocol

Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz band

Supports 1T1R mode with data rates up to 150 Mbps

Wireless Multimedia (WMM)

Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)

Immediate Block ACK

Fragmentation and Reassembly defragmentation)

transmit opportunity (TXOP)

Beacon automatic monitoring (hardware TSF)

4 × virtual Wi-Fi ports

Also supports infrastructure-based networks (Infrastructure BSS)
Station Mode, SoftAP Mode, Station + SoftAP Mode mode and promiscuous mode

Please note that ESP32-C3 series chips scan in Station mode. During scanning, the SoftAP channel will change at the same time

Antenna diversity

802.11mc FTM

Support for external power amplifier

②Bluetooth:

Bluetooth Low Energy (Bluetooth LE): Bluetooth 5, Bluetooth mesh

High power mode (18 dBm)

Rates support 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

Advertising Extensions

Multiple Advertisement Sets

Channel Selection Algorithm #2

Wi-Fi and Bluetooth coexist and share the same antenna

③CPU and storage:

32-bit RISC-V single-core processor up to 160 MHz

CoreMark Score: Single Core 160 MHz: 407.22 CoreMark; 2.55 CoreMark/MHz

384KB ROM

400 KB SRAM (of which 16 KB is dedicated to cache)

8 KB RTC SRAM

Embedded flash (different models vary)

SPI, Dual SPI, Quad SPI, QPI interface to connect multiple flash

Speed ​​up flash access via cache

Supports flash in-circuit programming (ICP)
