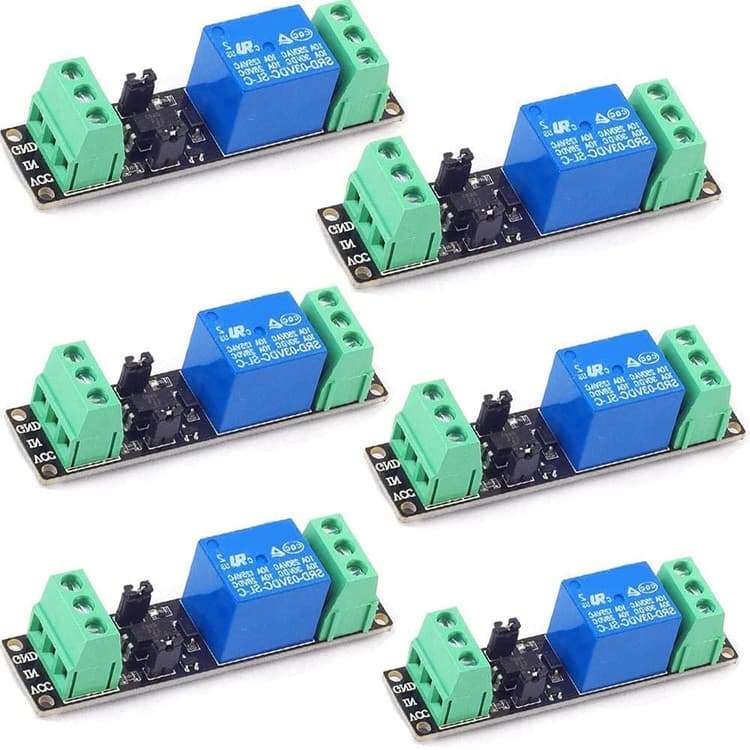

new | 3v Relay Board for Raspberry Pi Arduino Relay Module 1 Channel Opto-Isolate High Level Trigger for IOT ESP8266 Microcontrollers Development Board
Brand : AZKO
new | 3v Relay Board for Raspberry Pi Arduino Relay Module 1 Channel Opto-Isolate High Level Trigger for IOT ESP8266 Microcontrollers Development Board
Brand : AZKO

₹ 3,064.00
M.R.P :₹ 5,106.00

40% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 3,064.00
M.R.P : ₹ 5,106.00

40% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB09G65YFZ6
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryRELAY
Colorgreen
Connector TypeScrew, Through Hole
OriginUSA
BrandnameAZKO
Weight1
Product Details
【1 Channel Relay Module】- This Relay Board provides a single relay that can be controlled by any 3V/3.3V digital input from your microcontroller IO.
【Main Specification】- The 3v Relay 1 Channel power switch module compatible with 10A 250VAC and 10A 30VDC load.4pcs * 2.5 mm Fixed Bolt Hole.
【Adopted Optocoupler Isolation】- 3V/3.3V power relay module supports photocoupler isolation control and dual power supply input ensure high anti-interference ability. Fast response time less than 20ms and long life time up to 100,000 times snap action with diode freewheel protection.
【Jumper Caps】You can select whether the relay and the signal use the same power supply or not by removing the jumper caps on the pins. And It is better to share the same power supply, because that is more convenient for using.
【Wide Application】- These 3v relay board works well with Arduino/ ARM /PIC /AVR /MCU/Raspberry/CNC machine/ PS4/3.3V /NodeMCU/IOT/ ESP8266 module etc.
Product Ranking
#3027 in Single Board Computers (Computers & Accessories)
Product Description
Specification:
Channel: 1 channel
Material: Circuit board
Control signal: TTL
Work voltage: DC 3V/3.3V
Main chip: EL817, SRD-DC03V-SL-C
Compatible Load:10A 250VAC, 10A 30VDC
Response time :Less than 20 milliseconds
Single Socket Length: 7.5:mm
Relay Size: 70mm X17mm X20mm (LxWxH)

Power interface:
1. VCC: positive pole of power supply (3v/3.3v)
2. GND: connect to the negative pole of the power supply
3, IN: high level control relay suction
Load interface:
1. NO: normally open interface of the relay. The relay is suspended before suction and shorted with COM after suction
2. COM: common interface of relay
3. NC: normally closed interface of relay, short connection between relay and COM before suction and suspension after suction

Note:
If you're switching high voltages, be very careful handling this device. The terminal block screws, in particular, are at full controlled voltages. Turn off all power off before making changes.

100% Satisfaction Guarantee:
12-Month Warranty; No satisfied, Free reason for return; Quality problem, please contact us, we will resend your FREE Replacements or make you FULL Refund.



Package include:
2pcs x1 Channel 3v Relay Board
