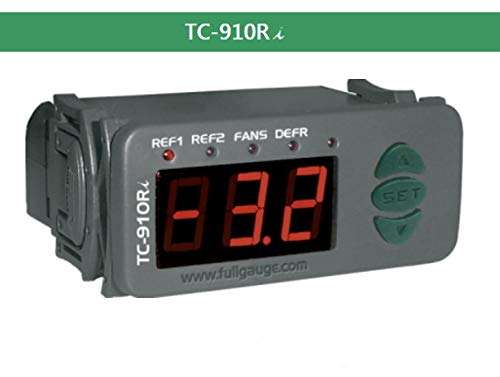

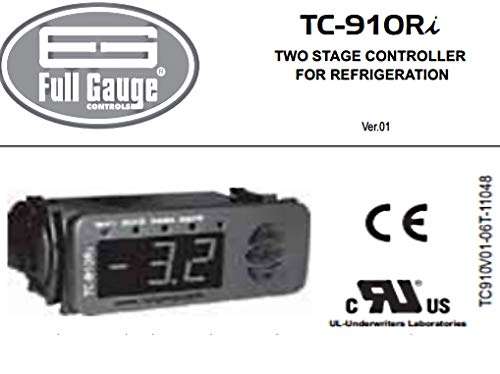

Two Stage Temperature Controller for Refrigeration - TC-910Ri

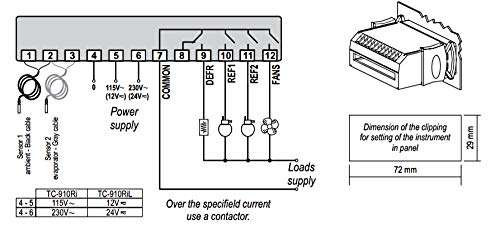

1. DESCRIPTION The is a temperature controller for freezing goods with two stages for freezing. It also commands the evaporator fans and manages the defrosting cycles. It includes two independent hourmeters for counting the refrigeration output operation time. When the programmed amount of hours before maintenance is reached (ex: compressors) a display indication is given. In order to increase the system efficiency, the allows the adjustment of a pre-defrosting time, which enables the collection of remaining gas before starting the defrosting cycle. Product complies with CE (European Union) and ULInc. (United States and Canada). 3. TECHNICAL SPECIFICATIONS - Power supply: TC910Ri - 115 or 230Vac ±10%(50/60Hz - Control temperature:50 to 75° C / -58 to 167°F - Operating temperature: 0 to 50°C / 32 to 122°F - Operating humidity: 10 to 90% RH (without condensation) - Resolution: 0.1°C from -10 to 75°C and 1°C outside this range 1°F in all range - Load current (outputs):REF1: 5(3)A/ 250Vac 1/8HP (compressor, solenoid valve or contactor) REF2: 5(3)A/ 250Vac 1/8HP (compressor, solenoid valve or contactor) FANS: 5(3)A/ 250Vac 1/8HP (evaporator fans) DEFR: 5(3)A/ 250Vac (defrost - resistance or hot gas) - Dimensions: 71 x 28 x 71mm - Sensors: S1: Room sensor - Black cable S2: evaporator sensor - Gray cable 2. APPLICATION Counters Refrigerating balconies
