TIER IV GMSL2 USB 3.0 Converter for Autonomous Driving, Remote Monitoring, Autoware, GMSL2, IP69K, Compatible with C1 and C2 Cameras for Autonomous Vehicles
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•The factory setting is C1 freerun mode (30fps). A firmware update is required in order to use this product with the C2 Camera. The firmware can be downloaded from the support page on the official website.

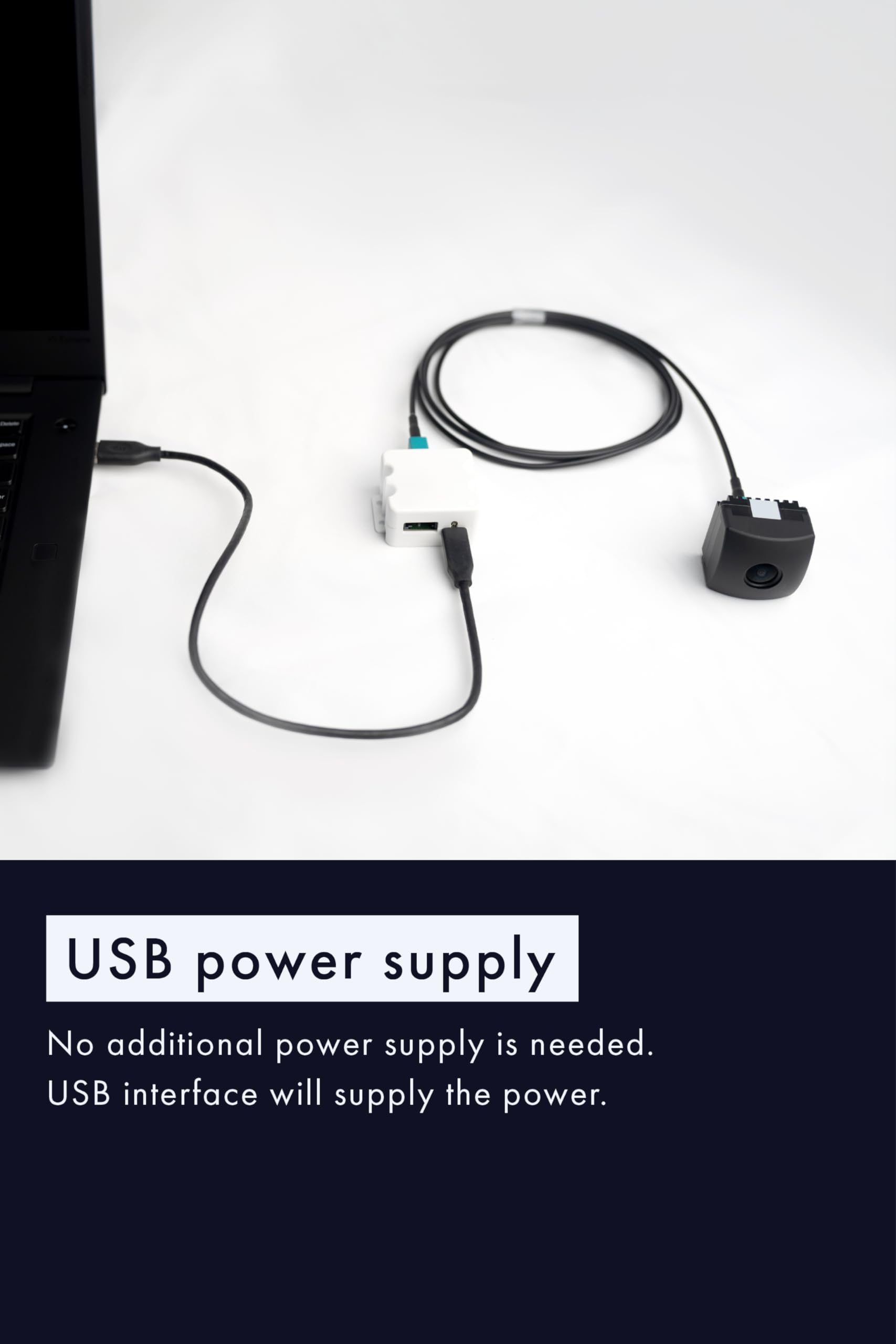

•USB power supply: No additional power supply is needed, the USB interface will supply the power.

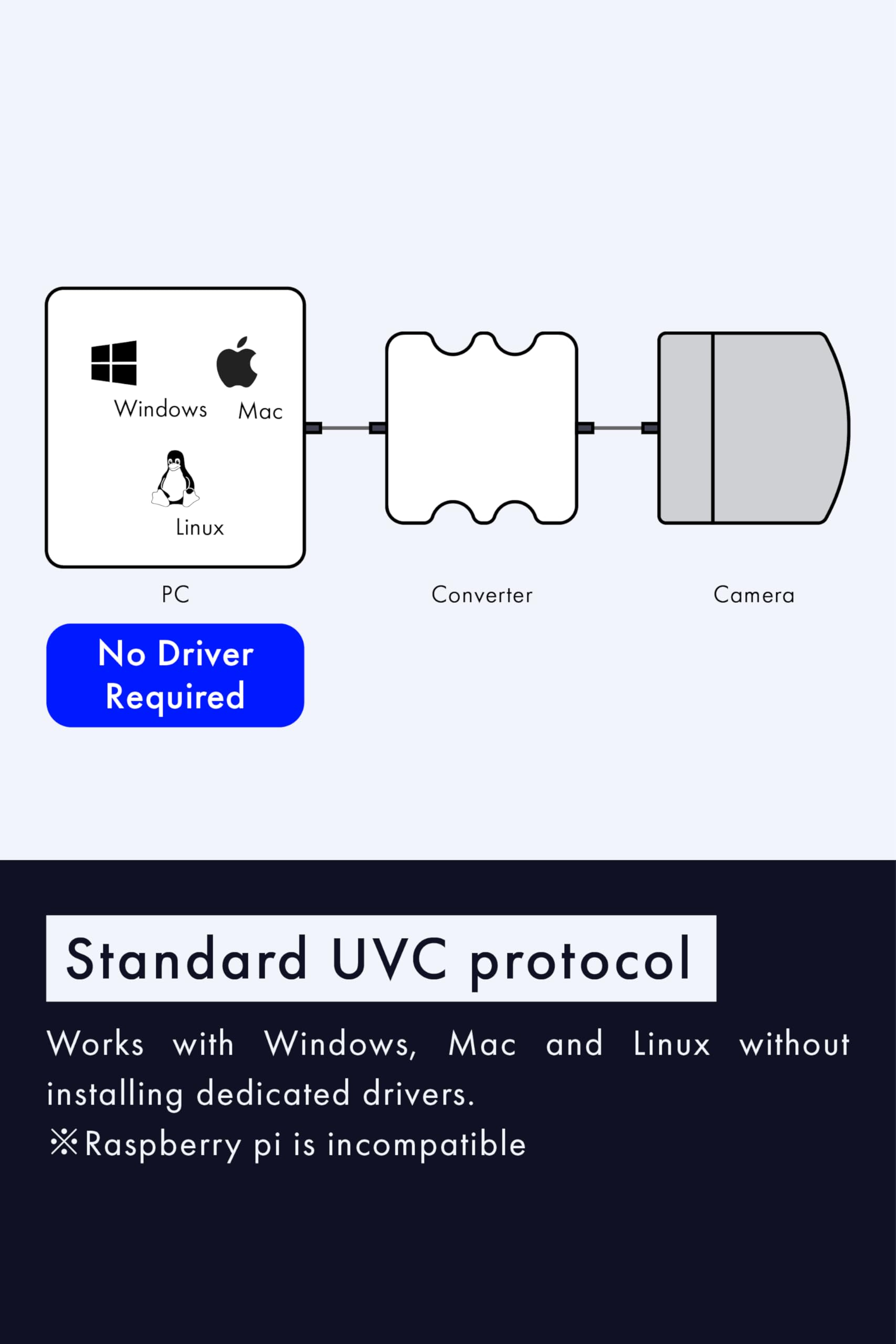

•Standard UVC protocol: Works with Windows, Mac and Linux without the need to install dedicated drivers. Note: This product is incompatible with Raspberry Pi.
•External synchronization: The camera exposure can be controlled by an external trigger pulse, enabling users to synchronize with another camera or LiDAR.
•Cables are not included.
•Compatibility: The converter is compatible with C1 and C2 cameras. Other GMSL2 cameras are incompatible.
•Image tuning: Not supported
•Please use a USB cable that is USB 3.0 (data transfer speed 5Gbps) or higher.
•Supplied in C1 free run mode (free run, 30 fps). Firmware must be updated in order to use this product and C2 camera (free run, 10fps). Firmware can be downloaded from the official website support page. Please be sure to check the official website for details such as the frame rate that each camera can operate.
