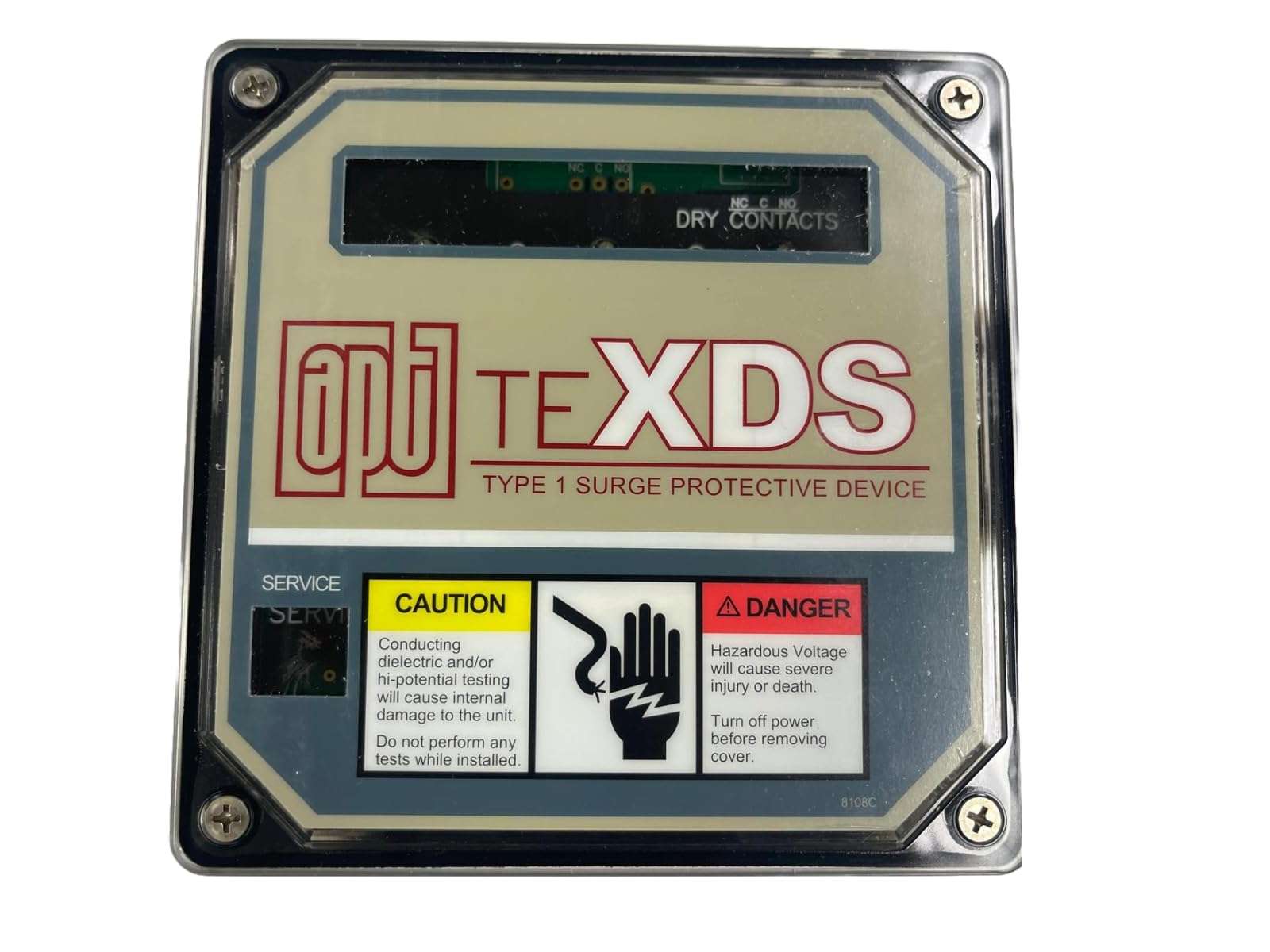

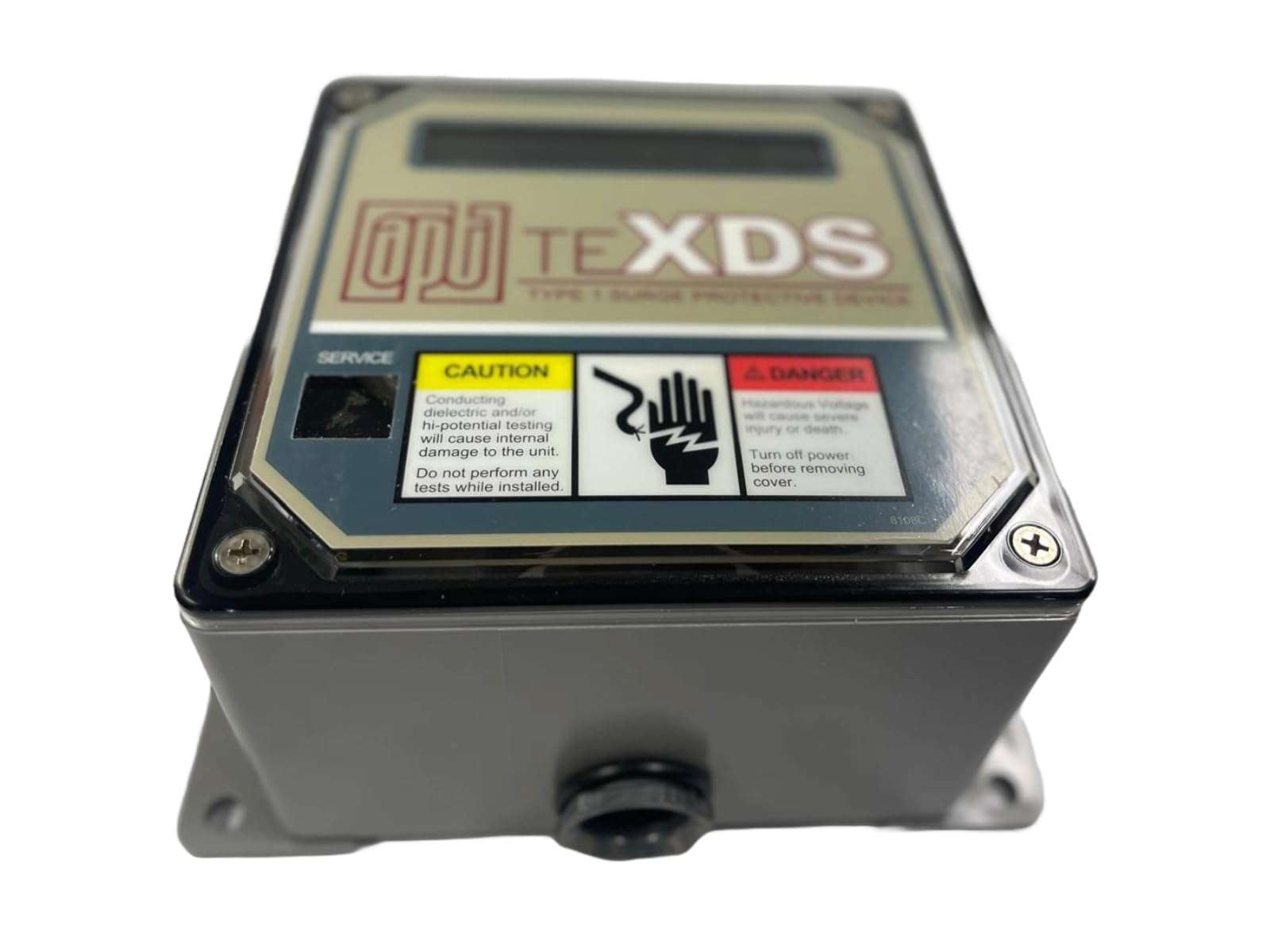

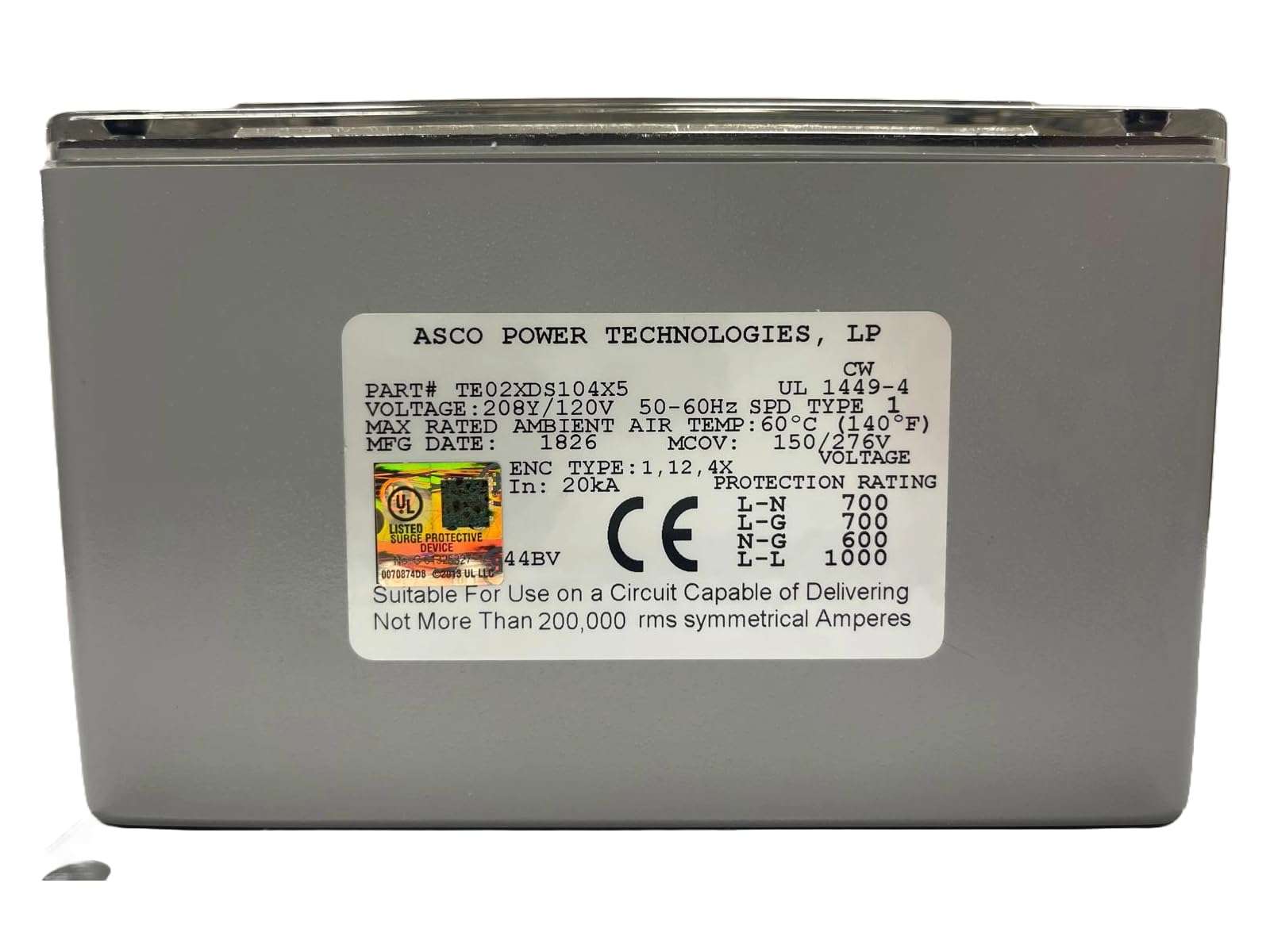

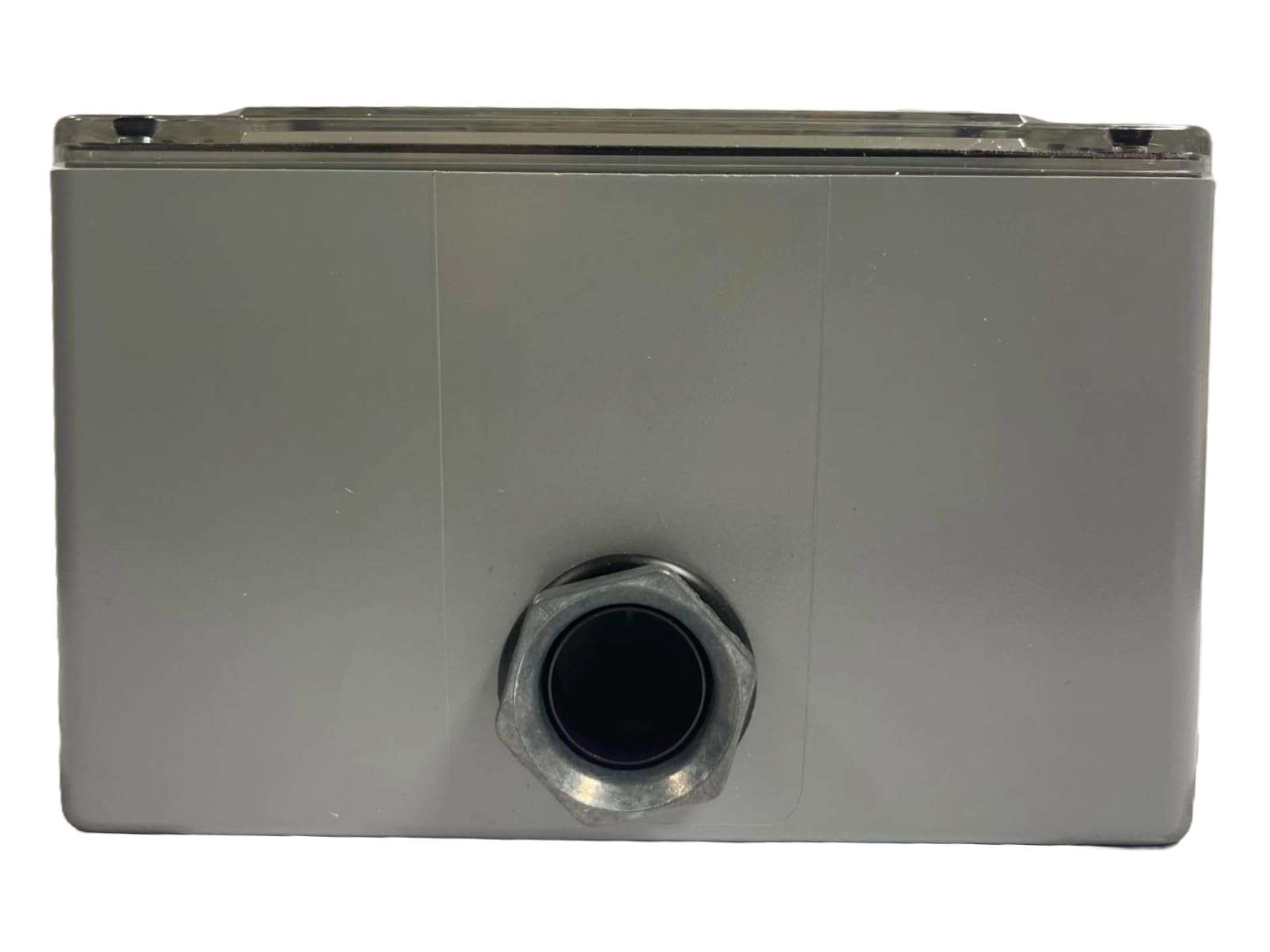

TE02XDS104X5 – Advanced Surge Protection for Three-Phase Power Systems
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
Safe and trusted checkout with major payment methods
4.5/5 · 379 reviewsTrustpilot
•VOLTAGE RATING: Operates at 208Y/120V 50-60Hz with SPD Type 1 protection, suitable for three-phase power systems
•High Surge Capacity: Handles surge currents of 100kA, 150kA, and 200kA per phase with thermally protected 50kA MOVs (metal oxide varistors).
•Versatile Installation: Suitable for mounting on the line or load side of the main disconnect, adaptable to multiple system configurations. Standards Compliant: UL 1449 Third Edition certified and compatible with UL 96A lightning protection master label requirements.
•Noise Filtering: Includes sine wave tracking filter to reduce EMI/RFI interference. Phase Monitoring: Detects phase loss and provides visual indication via LED and dry contact signaling. Durable Enclosure: Standard NEMA 4X non-metallic enclosure ideal for harsh environments. Reliable Warranty: Backed by a 10-year standard warranty with optional extended coverage.
•OPERATING CONDITIONS: Rated for maximum ambient air temperature of 140°F (60°C) with MCOV of 150/276V voltage protection. Ideal Applications: Main service entrances Distribution and subpanels Industrial and commercial electrical protection
