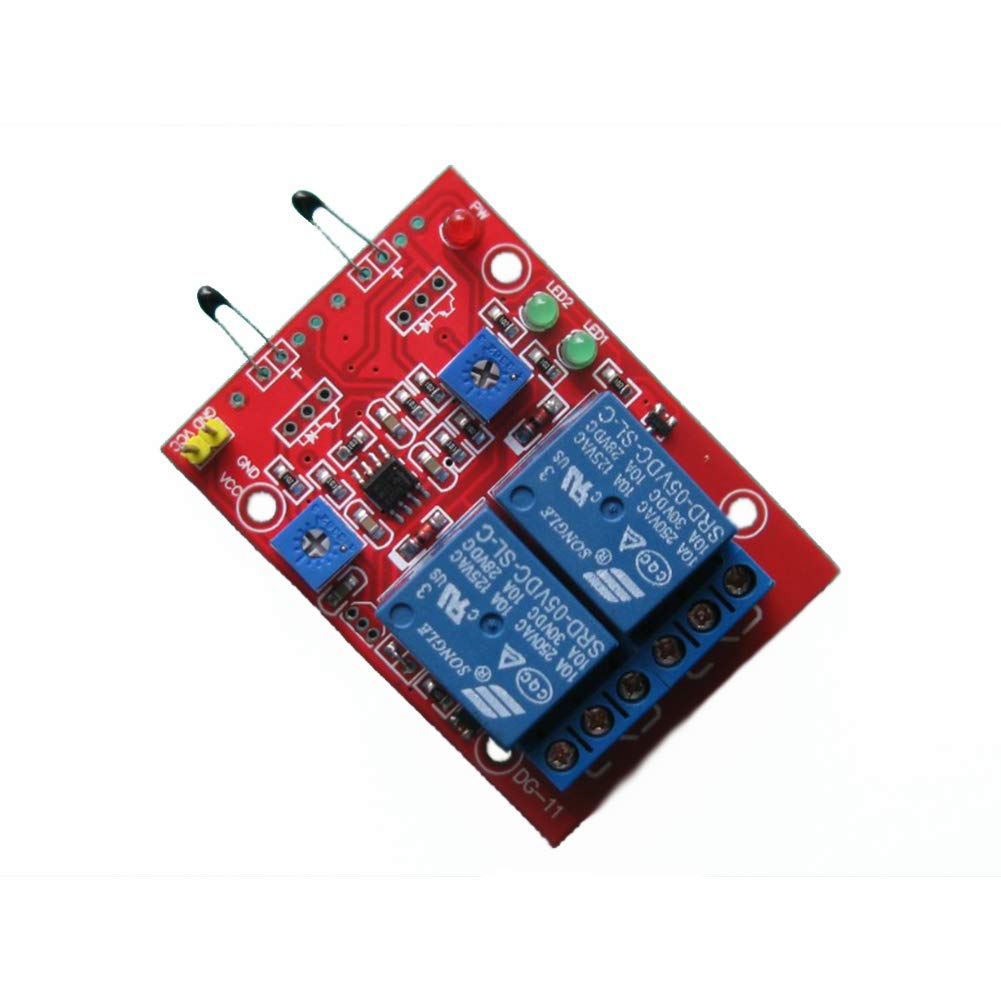

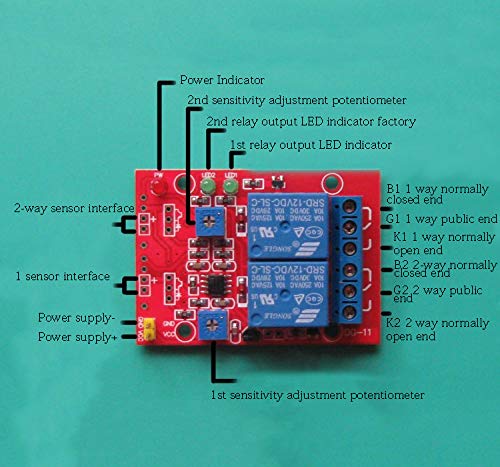

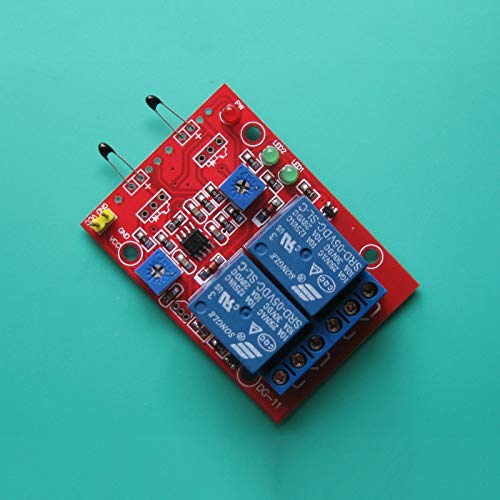

Taidacent 2-Way 5V Thermal Resistor Sensor Plus Relay Two-in-one Module Electr Thermal Relay Thermistor Temperature Sensor
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Supply voltage:5VDC
•Current:greater than 150mA
•Load:250V 10A AC or 30V 10A DC
•When the ambient temperature exceeds the set threshold, the relay is closed, and the common end is connected to the normally open end.
•When the ambient temperature is lower than the set threshold, the relay is disconnected, and the common end is connected to the normally closed end;
