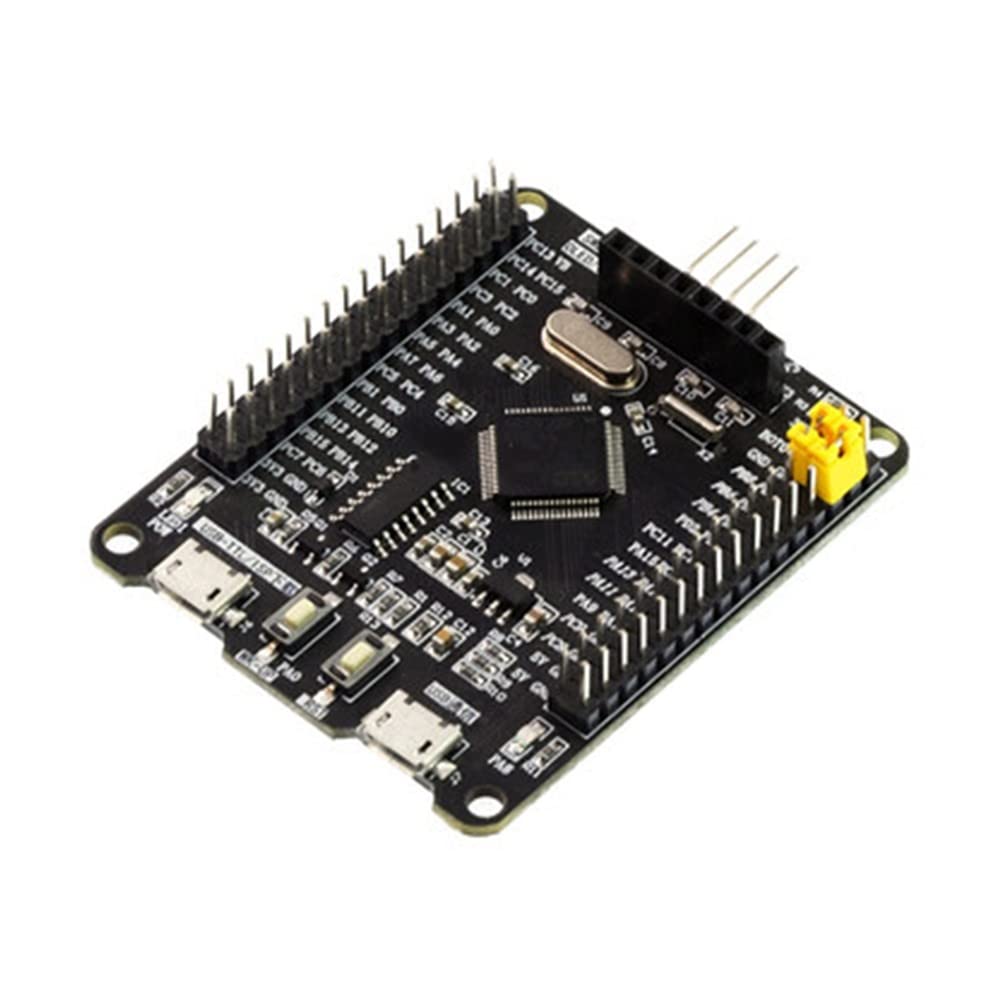

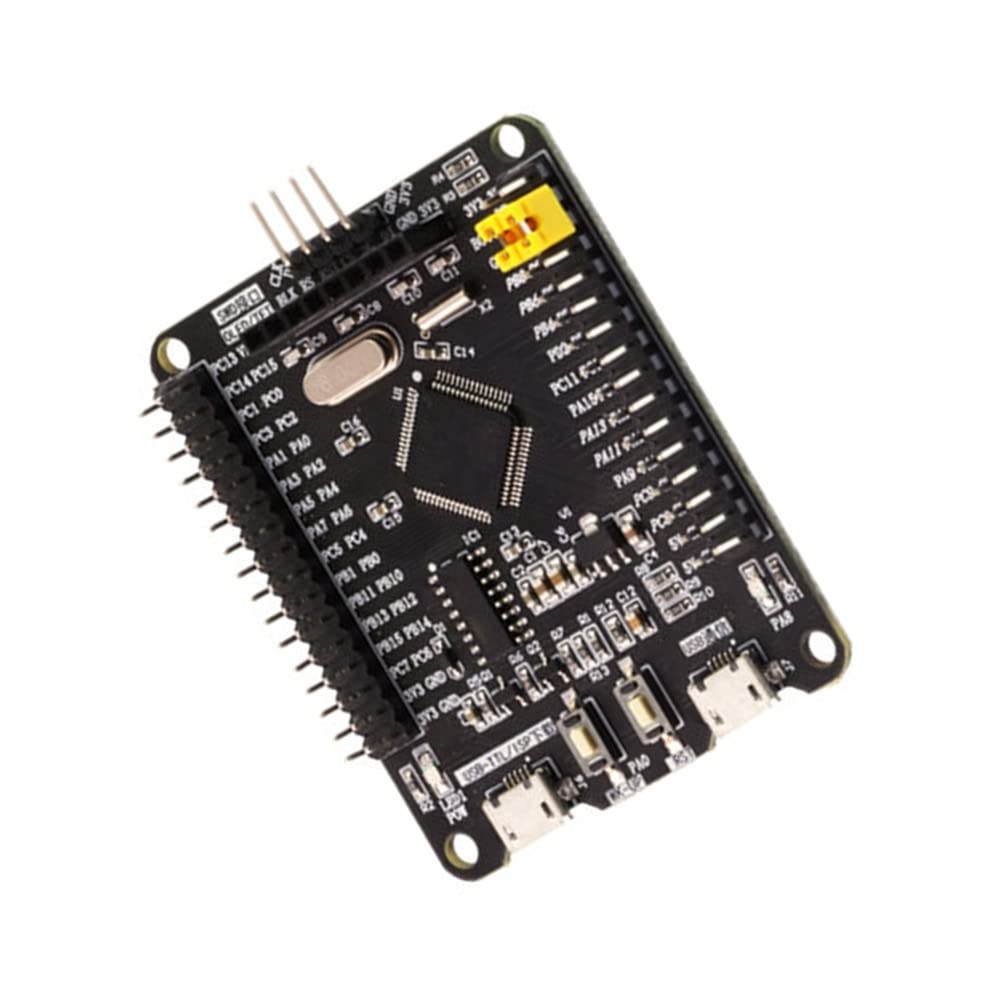

STM32F103RCT6 Development Board, DC 2V-3.6V STM32 Learning Board 1.44 "LCD Display Screen with USB Cable
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

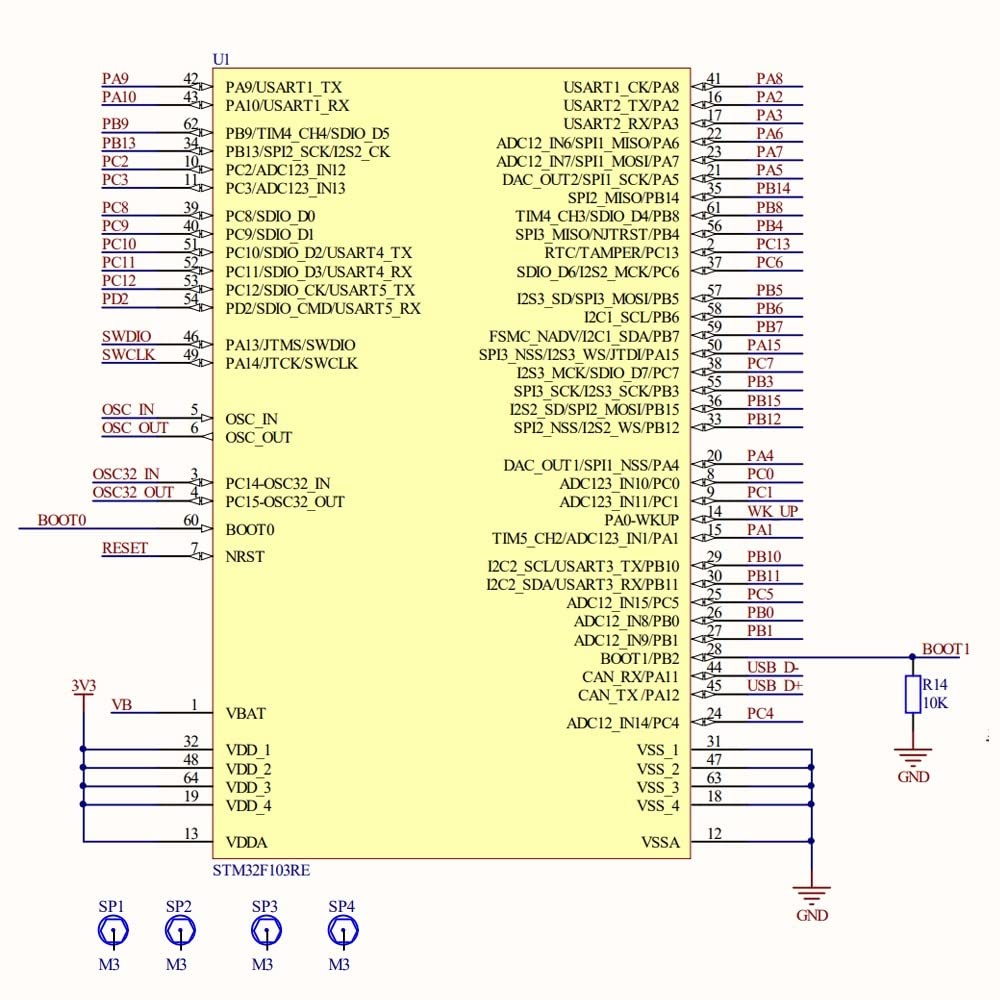

•The STM32F103RCT6 microcontroller has IIC, SPI, CAN, UART, USB and other interfaces and peripherals such as DAC, ADC, and DMA. The main frequency of the development board is 72M, the flash 256K, and the SRAM 48K.

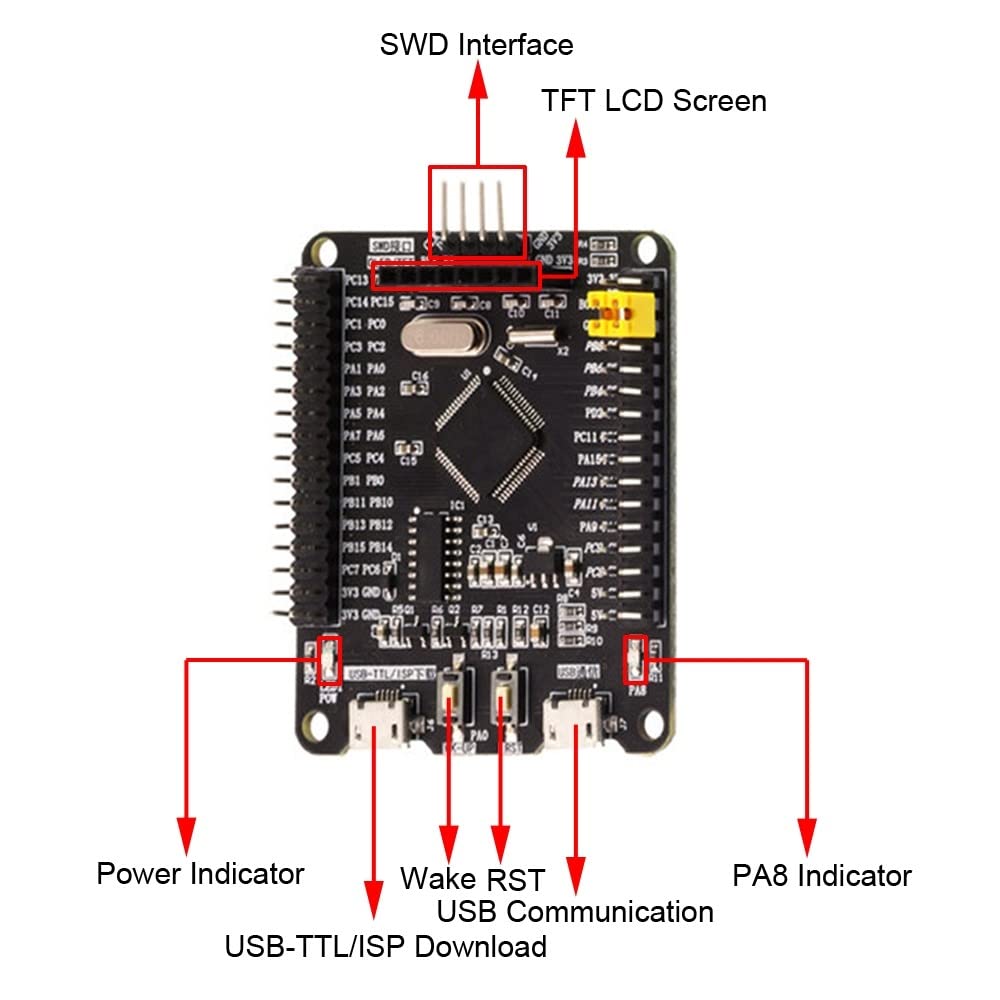

•The development board has dual USB interfaces, one is the ISP download interface for downloading programs, and the other is the USB communication interface. TFT LCD interface, only 6 I/0 ports are used, which can be used with TFT LCD screen with font library.
•The SWD emulation interface can be emulated or programmed, and emulators that support M3 cores such as JLINK, JLINKOB, STLINK (all of the above have copyright risks) and DAPLINK can be used.
•Each channel leads to 3.3V and 5V two-way power supply, which can be connected to any channel of power supply or USB power line development board to work. Connect to 5V power supply, the board can output 3.3V power supply or USB power supply.
