Stepper Motor Hat Series Motherboards, 6 Different Step Resolutions, Two Onboard HR8825 Motor Driver Chips, Drive Two Stepper Motors Use for 3D Printer
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

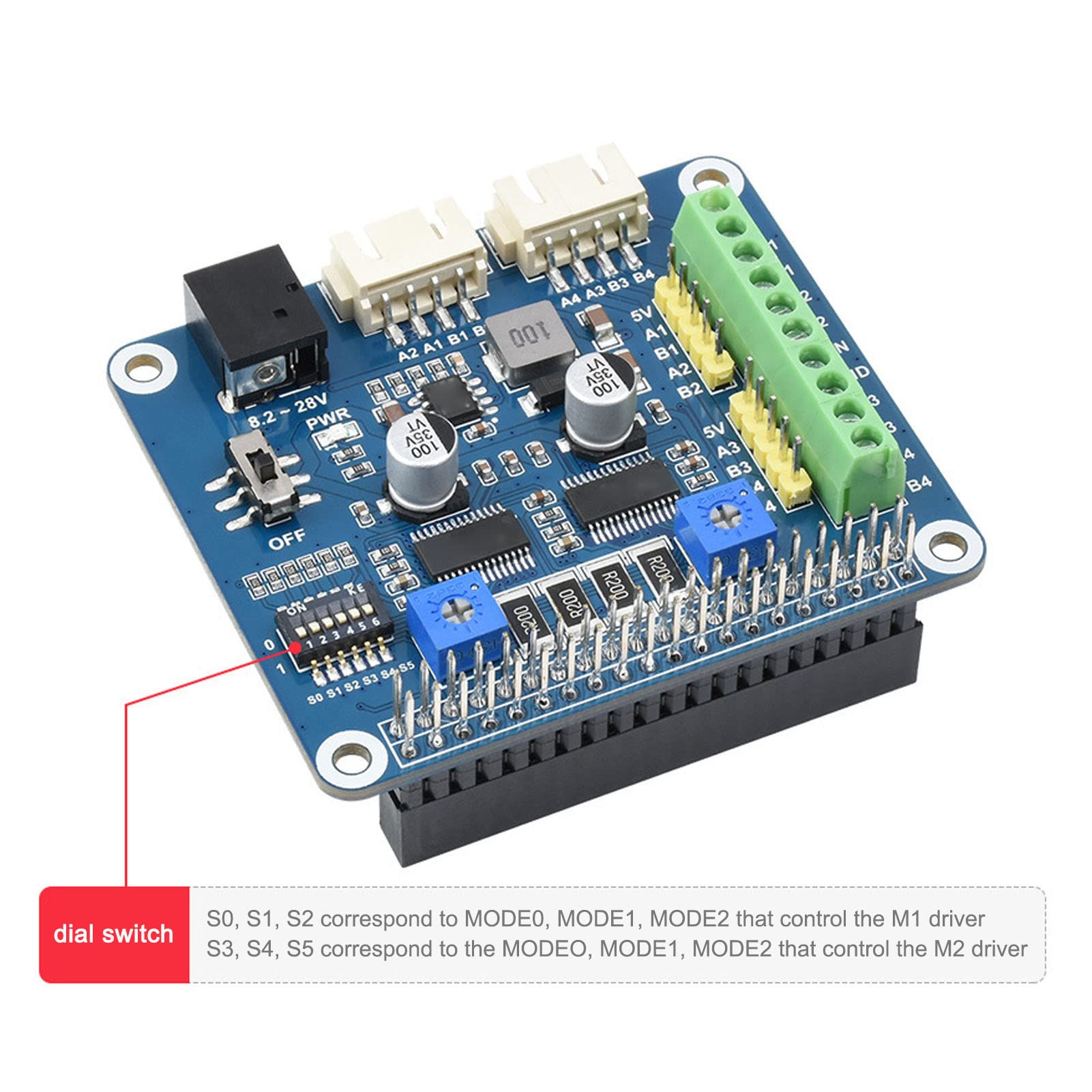

•6 DIFFERENT STEP RESOLUTIONS: Stepper motor driver board supports 6 different step resolutions selected by DIP switch: full step, half step, 14 step, 1/8 step, 1/16 step and 1/32 step.

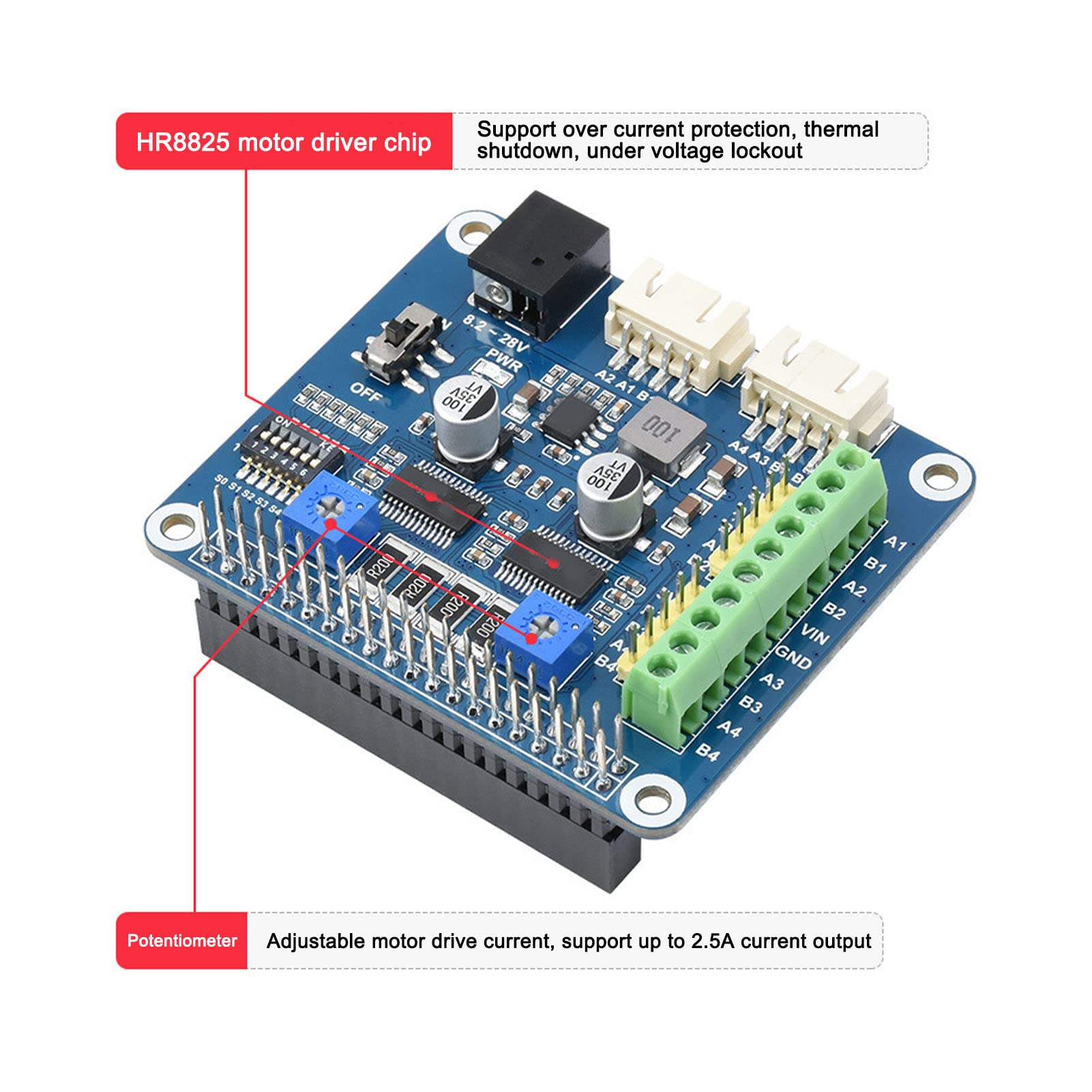

•HR8825 MOTOR DRIVER CHIP: There are two onboard HR8825 motor driver chips, built in converter, easy to control, and can drive two stepper motors.

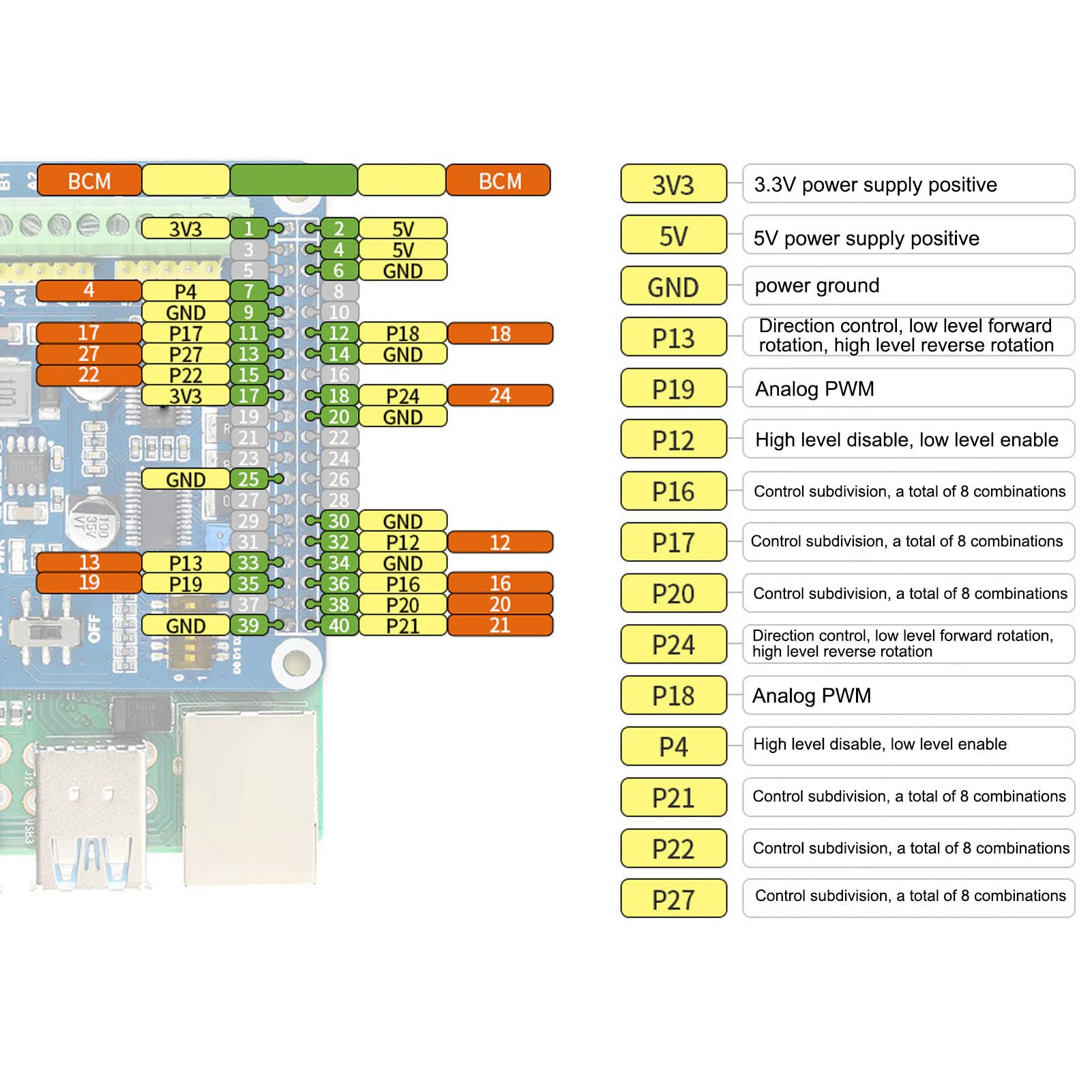

•GPIO INTERFACE DESIGN: Based on40 PIN GPIO interface design, suitable series motherboards
•25A CURRENT OUTPUT: Motor controller drives support to adjust the motor drive current through the potentiometer, support up to 25A current output.
•OVERCURRENT PROTECTION: Motor controller drives support overcurrent protection, thermal shutdown, and undervoltage lockout. The on board 5V voltage regulator chip can directly supply power to the for Raspberry Pi. There are various on board stepper motor interfaces for easy access to different specifications. stepper motor.
