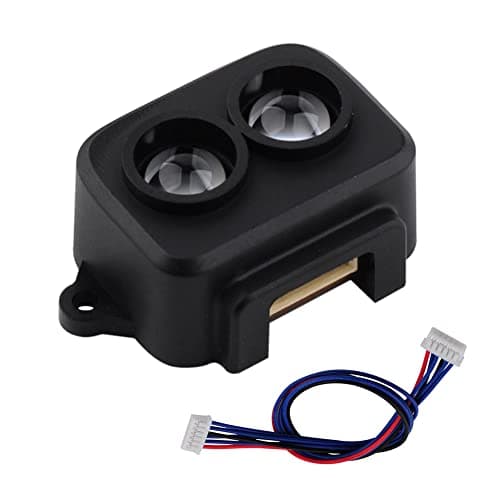

new | Stemedu TF Luna 0.2-8m Lidar Sensor Laser Range Finder Module Single-Point Micro Range Measurement Module Sensor with UART I2C Communication Interface for Ar duino Rasppbarry Pi Pixhawk
Brand : Stemedu
new | Stemedu TF Luna 0.2-8m Lidar Sensor Laser Range Finder Module Single-Point Micro Range Measurement Module Sensor with UART I2C Communication Interface for Ar duino Rasppbarry Pi Pixhawk
Brand : Stemedu
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Condition
New
Asin
B097T2HFQ2
Category
Electronics
Subcategory
Motion Detectors
Leafcategory
SURVEILANCE_SYSTEMS
MPN
ST-TF0004-M
Color
Black
Origin
USA
Brandname
Stemedu
Weight
1
Product Details
🚩 Operating range: 0.2m~8m, TF-Luna module comes with UART and I2C interface, the default is UART, IIC can be realized by wiring pins, if you need to use I2C interface, please set it yourself.
🚩 Lidar Range Finder Sensor Module TF-Luna is a single-point ranging LiDAR, based on TOF principle. With unique optical and electrical design, it can achieve stable, accurate and highly sensitive range measurement. Low-cost ranging LiDAR module with 0.2-8m operating range. Light weight, 5g, suitable for scenarios with strict load requirements. Low power consumption, 0.35W, suitable for battery-powered or low power consumption scenarios. Small Size, 35*21.25*13.5mm easy to install.
🚩 TF-Luna is using Time of Flight (ToF) principle to measure the distance and it periodically emits near infrared modulated waves. TF-Luna calculates the time by measuring the phase difference between the original wave and the reflection wave and uses that time to get relative distance.
🚩Main Applications: Auxiliany focus, Elevator projection, Intrusion detection, Level measurement
🚩 You will get English product manual by the link in the product guide and document. If any question, how to email us? Please click "Stemedu" (you can find "Sold by Stemedu" under Buy Now button), in the new page, click "Ask a question" to email us
Product Description
Description:
The tf luna lidar sensor is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
Operating range: 0.2m~8m
Measurement unit:cm
Range resolution: 1cm
FOV: 2°
Data bit: 8
Stop bit: 1
Frame rate: 1~250Hz( adjustable )4
Supply voltage: 5V±0.1V
Average current: ≤70mA
Peak current: 150mA
Average power: 350mW
Communication level: LVTTL(3.3V)
Communication interface: UART/IIC
Default baud rate: 115200
Parity check: None
Light source: VCSEL
Wavelength: 850nm
Operating temperature : -20°C~75°C
Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m)
Smart Trash detection and trigger
TF Series Lidar achieves intelligent and touch-free garbage recycling. It provides two solutions for monitoring a trash bin – detecting if lid is open, and measuring the height of garbage within.
Benewake Lidars have already been applied on smart trash in many cities.
Robot Obstacle Avoidance
Industrial robots, service robots, inspection robots, epidemic robots and so on, they do bring convenience to our lives. If the robot cannot perceive and measure the environment quickly and accurately in the process of moving, the robot will collide with obstacles or people, causing economic losses or personal safety accidents.
Fall detection/Anti-Fall
In the process of moving, the robot may encounter the situation that the road surface has downward steps or the ground sag. If the robot can’t sense them and take action, it risks falling.
Package Includes:
1 X TF-Luna LiDAR Module
The tf luna lidar sensor is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
Operating range: 0.2m~8m
Measurement unit:cm
Range resolution: 1cm
FOV: 2°
Data bit: 8
Stop bit: 1
Frame rate: 1~250Hz( adjustable )4
Supply voltage: 5V±0.1V
Average current: ≤70mA
Peak current: 150mA
Average power: 350mW
Communication level: LVTTL(3.3V)
Communication interface: UART/IIC
Default baud rate: 115200
Parity check: None
Light source: VCSEL
Wavelength: 850nm
Operating temperature : -20°C~75°C
Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m)
Smart Trash detection and trigger
TF Series Lidar achieves intelligent and touch-free garbage recycling. It provides two solutions for monitoring a trash bin – detecting if lid is open, and measuring the height of garbage within.
Benewake Lidars have already been applied on smart trash in many cities.
Robot Obstacle Avoidance
Industrial robots, service robots, inspection robots, epidemic robots and so on, they do bring convenience to our lives. If the robot cannot perceive and measure the environment quickly and accurately in the process of moving, the robot will collide with obstacles or people, causing economic losses or personal safety accidents.
Fall detection/Anti-Fall
In the process of moving, the robot may encounter the situation that the road surface has downward steps or the ground sag. If the robot can’t sense them and take action, it risks falling.
Package Includes:
1 X TF-Luna LiDAR Module
