Description:

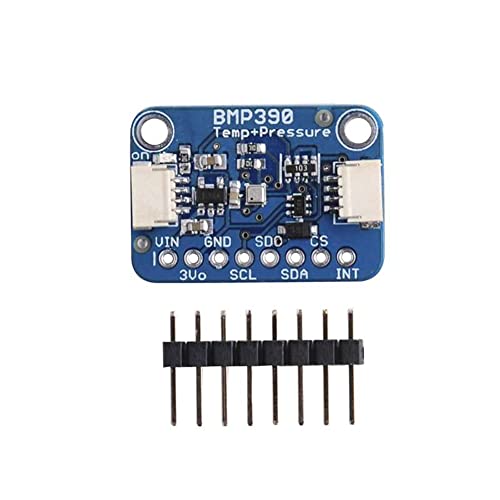

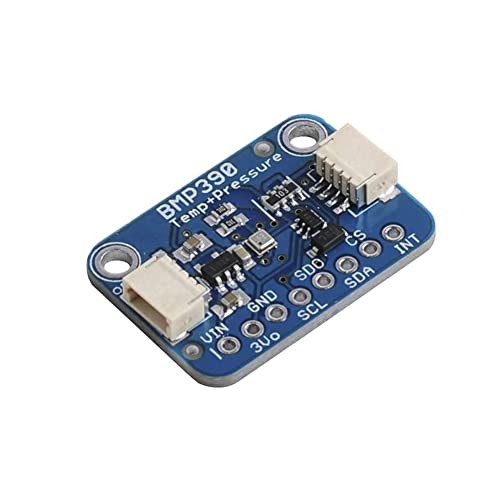

This is a BMP390 Precision Barometric Pressure and Altimeter Sensor.
The BMP390 is the next-generation of sensors from Bosch and is the upgrade to the BMP280 and BMP388 - with a low-altitude noise as low as 0.1m and the same fast conversion time.
And like the previous BMP280, you can use I2C or SPI. For simple easy wiring, go with I2C.
If you want to connect a bunch of sensors without worrying about I2C address collisions, go with SPI.

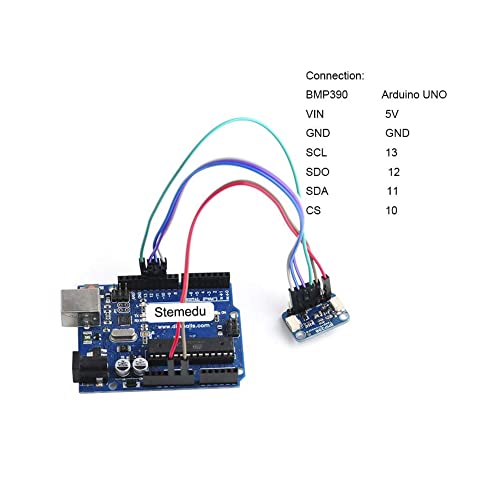

Connection:
BMP390 Arduino UNO
VIN 5V
GND GND
SCL 13
SDO 12
SDA 11
CS 10
Wire specifications: 1571#28AWG
Number of cores: 7*0.11mm
Single wire outer diameter: 0.9mm
Package included:
1 X MP390 Precision Barometric Pressure and Altimeter Sensor

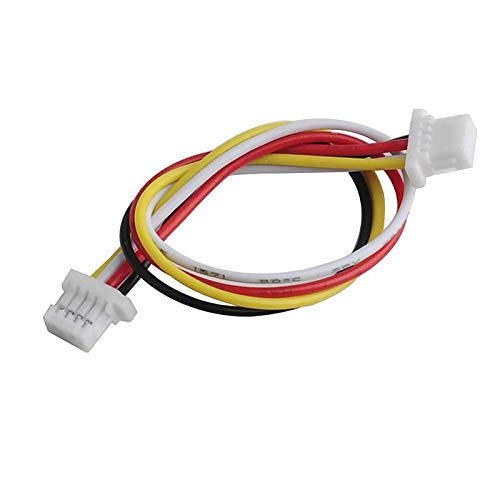

1 X SH1.0mm 4P Cable
