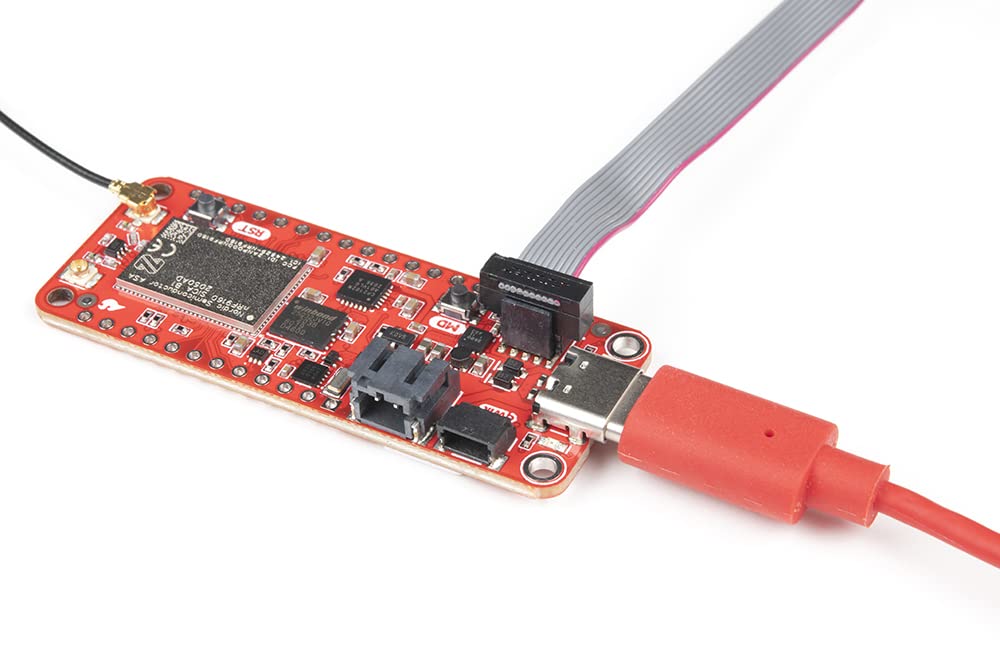

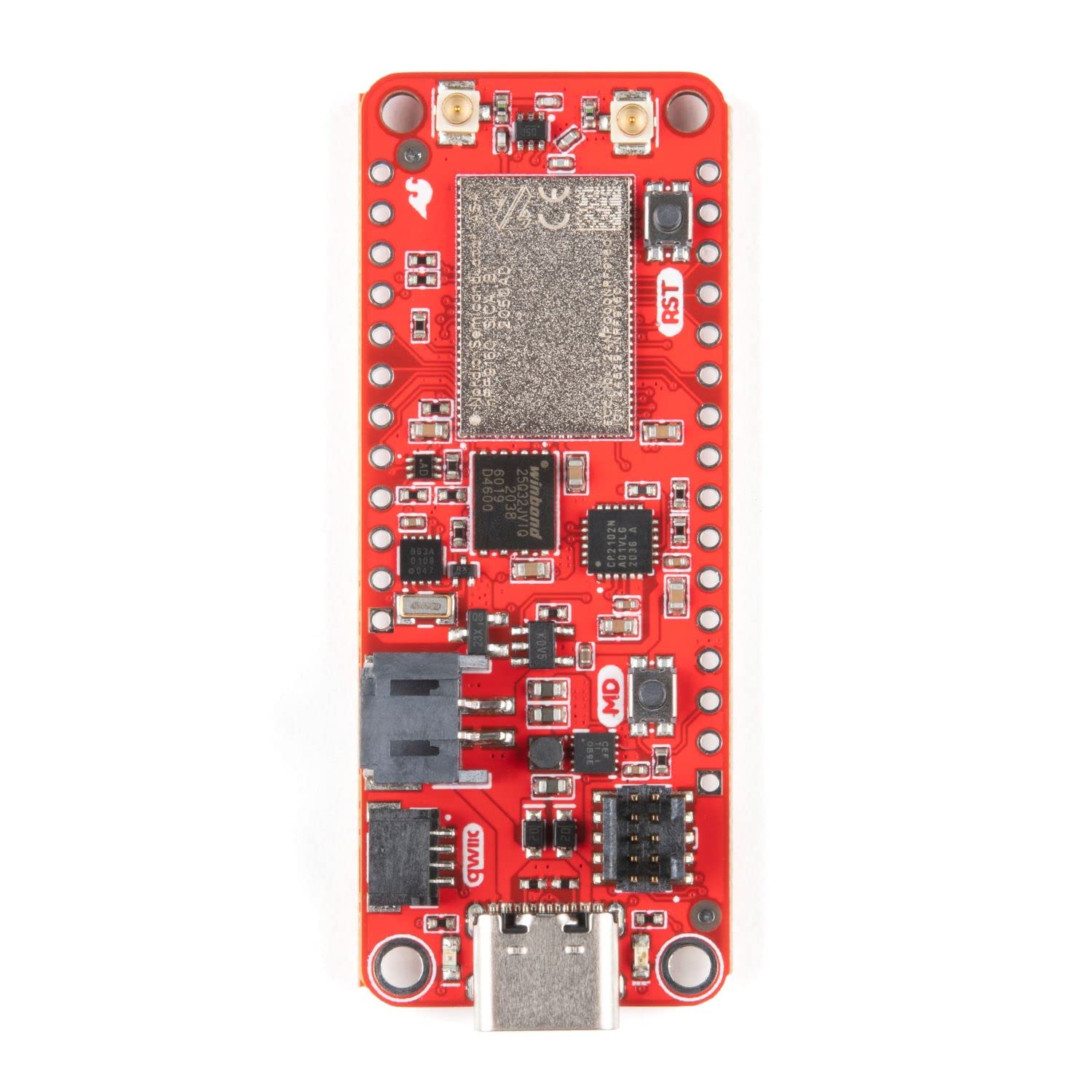

SparkFun Thing Plus - nRF9160 - Feather Compatible Footprint- CAT M1 LTE- NB-IoT Cellular Communication- Online Hookup Guide- 2.8V to 5.5V- Qwiic Connection- 4MB External Flash for Offline Storing
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

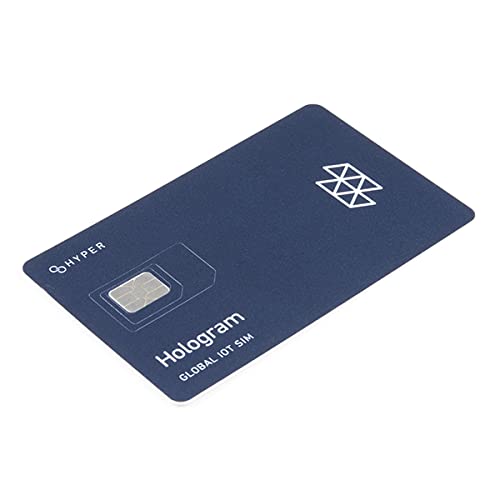

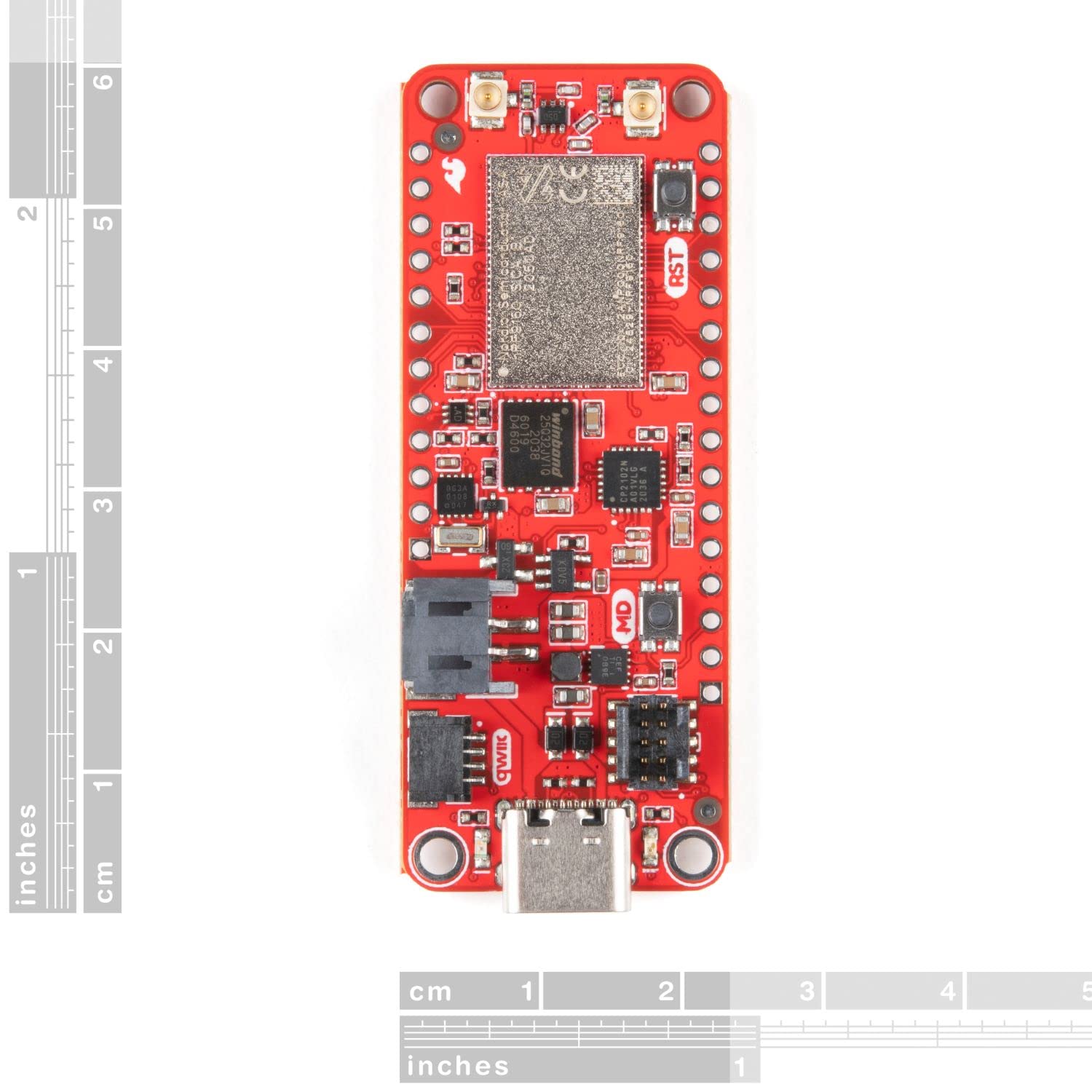

•Includes: 1x SparkFun Thing Plus - nRF9160 and 1x Hologram SIM Card; Antenna connections: 1x U.FL for LTE with matching network, 1x U.FL for active GPS antennas; Feather form factor: 58.42mm x 22.86mm (2.3" x 0.9")
•Nordic nRF9160 Microcontroller with ARM Cortex M33: 1MB Flash, 256kB RAM, ARM TrustZone, ARM Cryptocell 310, Up to 4x SPI, I2C and UART with Easy DMA, I2S w/ EasyDMA, 4x PWM with EasyDMA, 12bit SADC with EasyDMA, 2x RTC, PPI (Programmable peripheral interconnect) interface
•USB-C connection for USB-to-Serial and DFU; Pre-programmed MCUBoot bootloader; External NOR Flash by Winbond: 4MB of space, Max bus speed of 133MHz, Standard SPI; Power supply: 3.3V Buck/Boost up to 0.9A of current draw, Operating range 2.8 to 5.5V, External LiPoly battery connection (JST SPH type), Charge rate set to 300mA with LED indication
•Programmer: Capable of interfacing with J-Link and CMSIS-DAP based programmers; Low Power RTC on board for time keeping and as a low power wakeup source; User I/O: Standard feather form factor GPIOs (0.1" pitch), 2x buttons (1 Reset, 1 General Purpose), 1x Blue LED connected to D7
