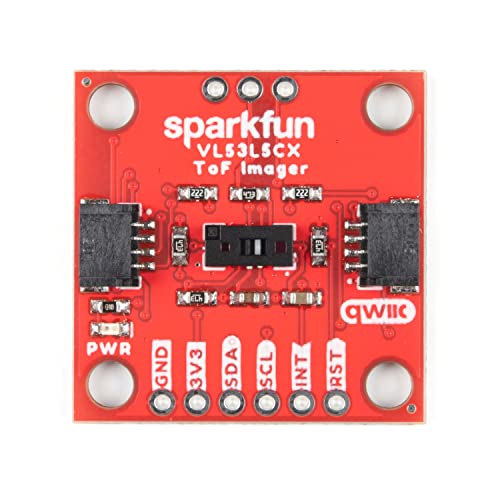

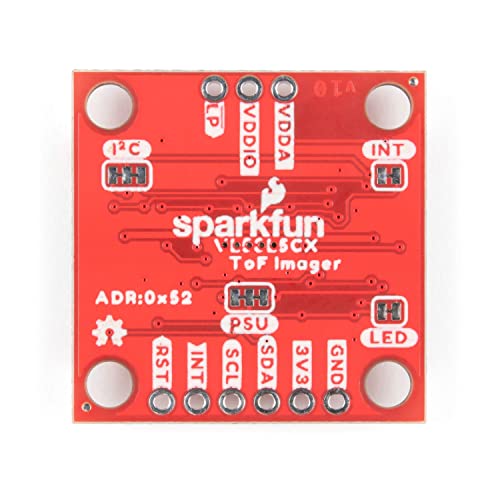

•The Qwiic ToF Imager - VL53L5CX is here! This little breakout board is built around ST Electronics' VL53L5CX; a state of the art, Time-of-Flight (ToF), multizone ranging sensor enhancing the ST FlightSense product family.

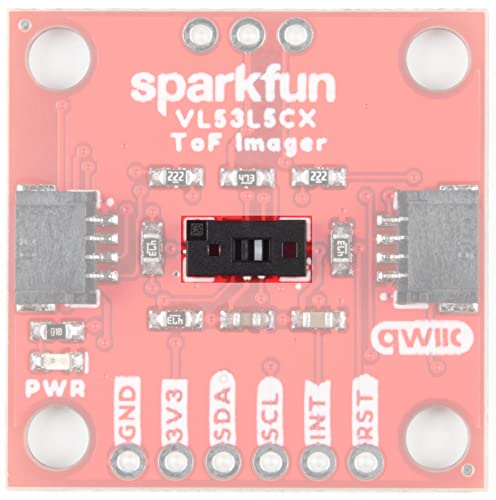

•This chip integrates a SPAD array, physical infrared filters, and diffractive optical elements (DOE) to achieve the best ranging performance in various ambient lighting conditions with a range of cover glass materials.
•Ideal for 3D room mapping, obstacle detection for robotics, gesture recognition, IoT, laser-assisted autofocus, and AR/VR enhancement, the Qwiic connector on this sensor makes integration easy.
•Multizone ranging output with either 4x4 or 8x8 separate zones; Autonomous Low-power mode with interrupt programmable threshold to wake up the host; Up to 400 cm ranging; 60 Hz frame rate capability
•Emitter: 940 nm invisible light vertical cavity surface emitting laser (VCSEL) and integrated analog driver; 63 ° diagonal square FoV using diffractive optical elements (DOE) on both transmitter and receiver; Operating Voltage: 3.3V; I2C Address: 0x52; 2x Qwiic Connectors
