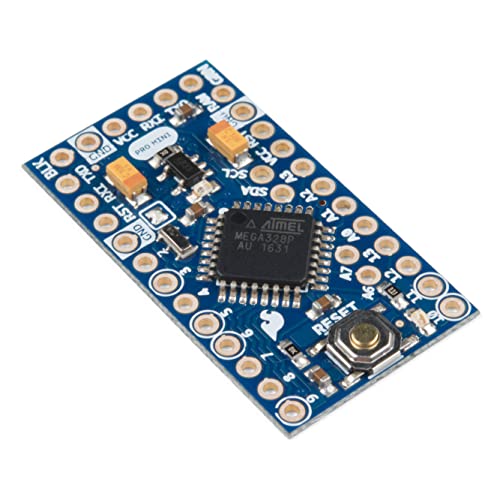

SparkFun Pro Mini ATmega328-3.3V/8MHz Development Board Compatible with Arduino Boards and IDE
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•ATmega328: 8MHz bootloader with external resonator (0.5% tolerance) Connects directly to the FTDI Basic Breakout board (sold separately) and also supports auto-reset
•No USB connection on board: This way you can solder in any connector or wire with any orientation you need
•Features: 3.3V regulator, Max 150mA output, Over current protected, DC input 3.3V up to 12V, On board Power and Status LEDs, Analog Pins: 8 Low voltage board need no interfacing circuitry to popular 3.3V devices and modules

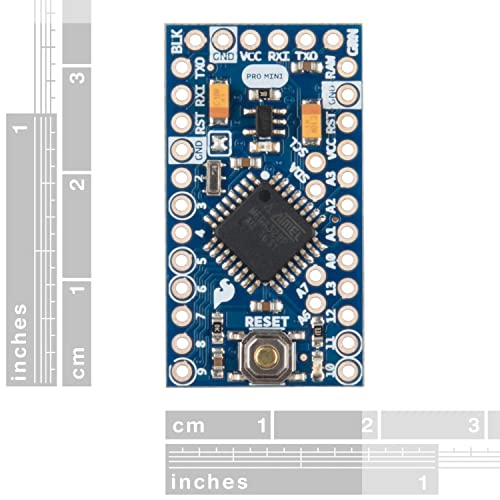

•On board voltage regulator: Supports DC input 3.3V up to 12V, Board dimensions 0.7x1.3" (18x33mm)
•Note: The latest and greatest version of this board uses the ADC6 and ADC7 pins as well as adds footprints for optional I2C pull-up resistors, if supplying unregulated power to the board connect the "RAW" pin on not VCC
