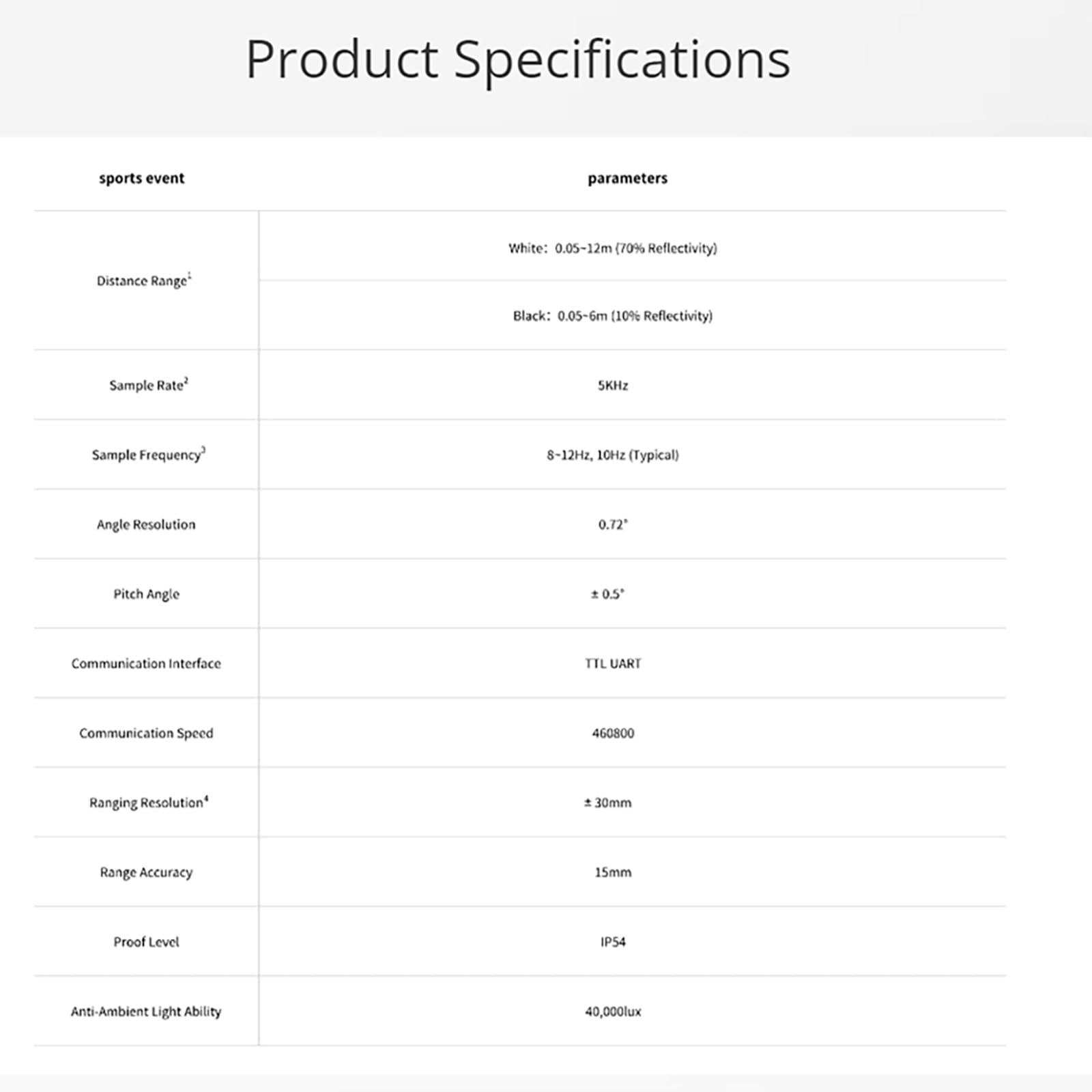

•【High-Performance 360° Scanning】: Experience precise environmental mapping with the RPLIDAR C1. It performs up to 5000 laser ranging samples per second with a high rotation speed, achieving a scanning frequency of 10Hz and an angular resolution of 0.72°, providing a dense and accurate point cloud for your applications
•【Long Range & Low Blind Zone】: Capable of measuring distances from 0.05 meters (2 inches) to 12 meters (39 feet) on a white object (70% reflectance), and up to 6 meters on low-reflectance objects. The ultra-low blind zone allows for effective detection of close-range obstacles.

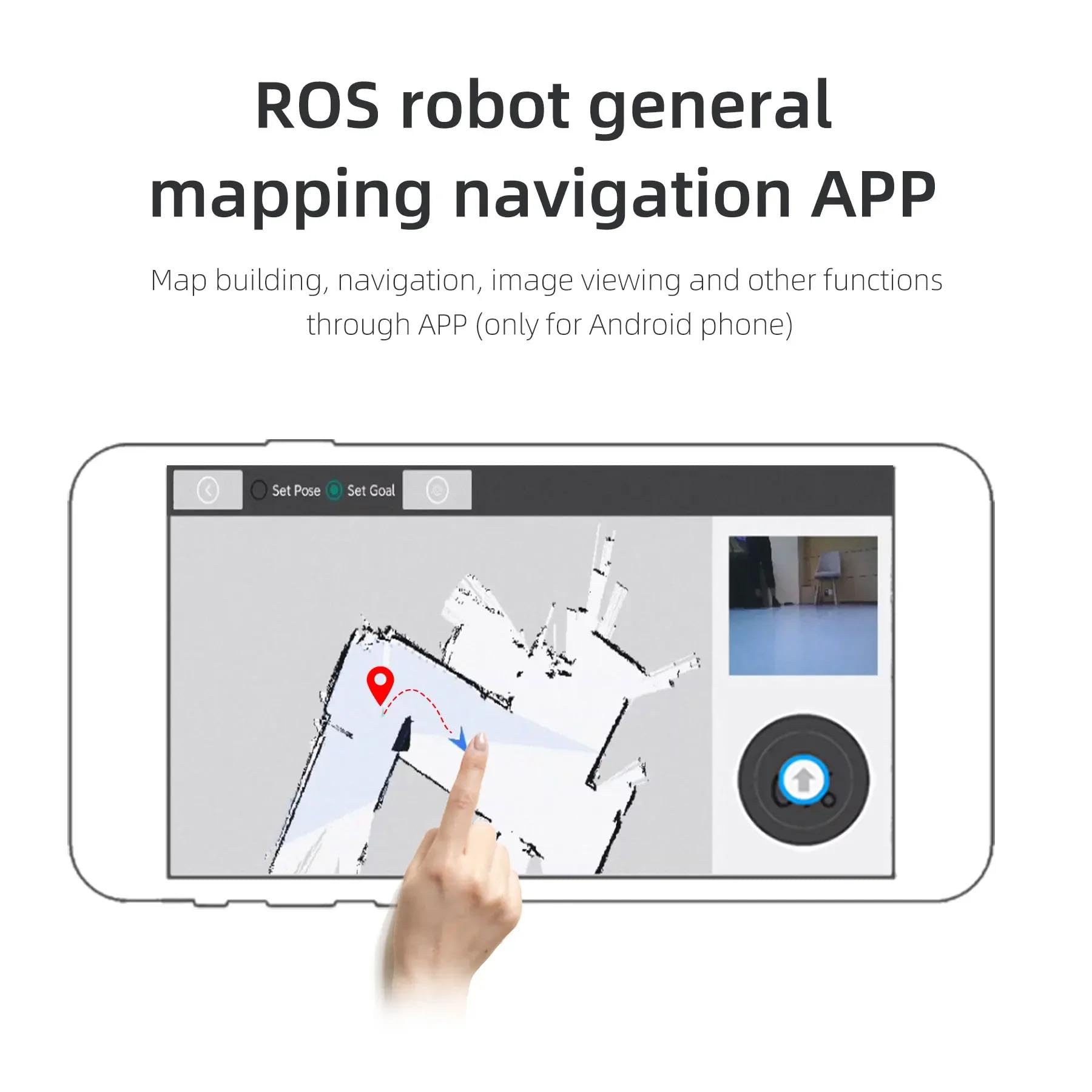

•【Wide Application Scenarios】: The ideal solution for robotics development, including ROS robots, autonomous navigation, SLAM mapping, obstacle avoidance for service/cleaning robots, smart toys, and educational platforms. SDK support is available for Windows, Linux, and MacOS.
•【Easy Integration & Protocol Compatibility】: Powered by a simple 5V DC source and communicates via a 3.3V TTL UART interface (baud rate 460800). It is fully compatible with the communication protocols of previous RPLIDAR A and S series, making it a perfect drop-in upgrade for existing projects.
•【Reliable & Safe Operation】: Features SLAMTEC's fusion ranging technology for stable data output. Built-in self-protection mechanisms guard against power instability and system errors.
