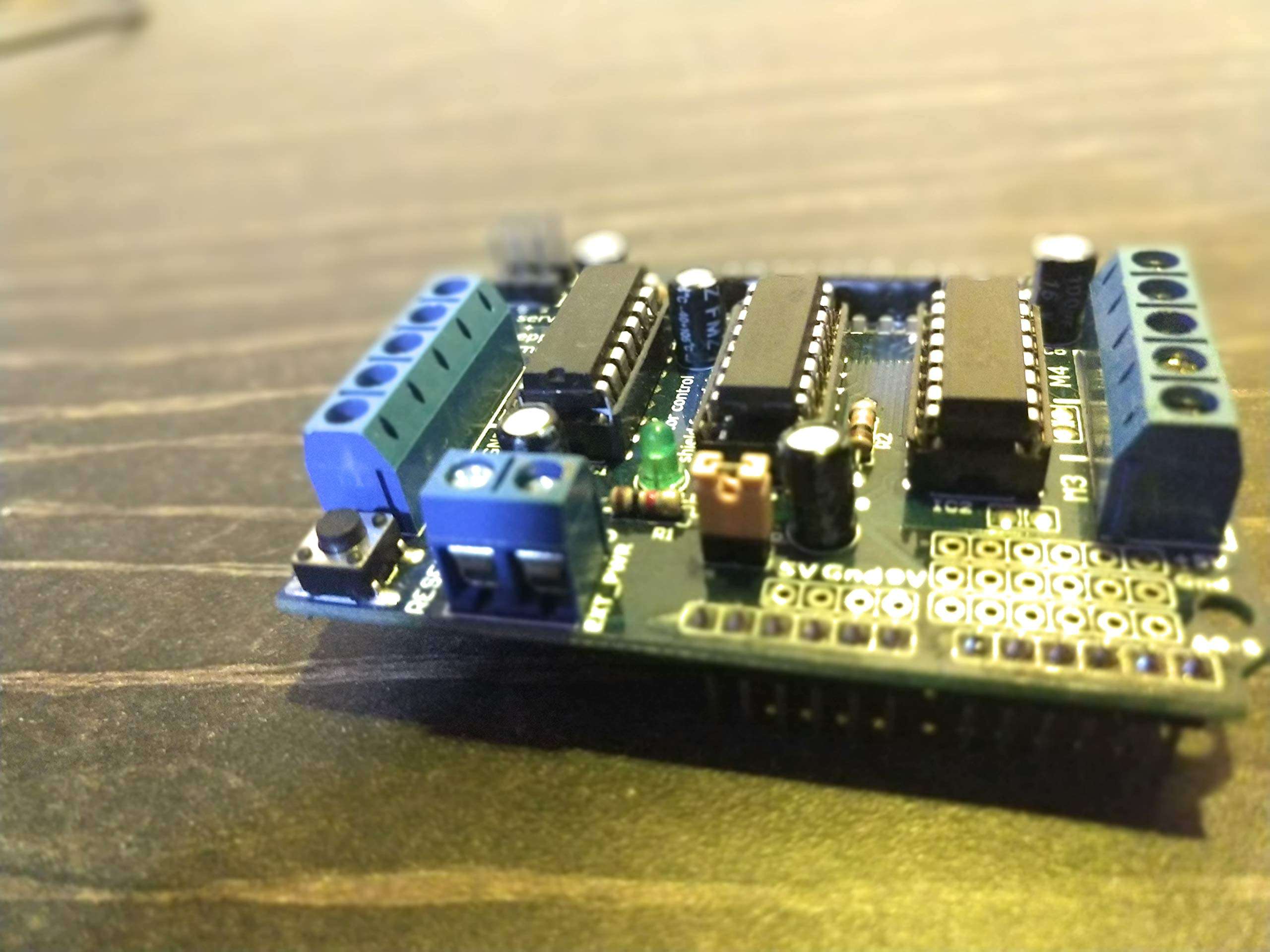

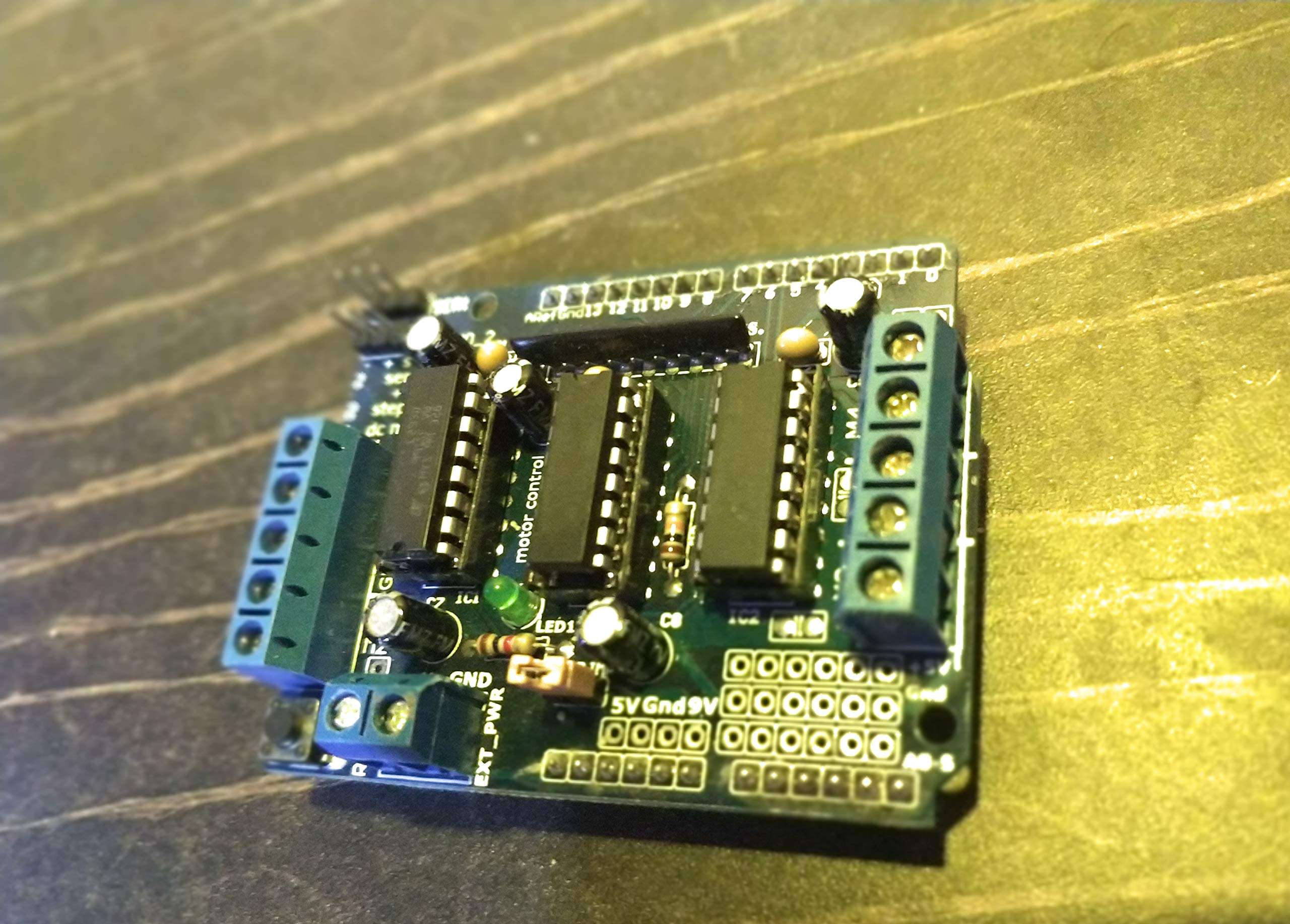

Simple Labs SLAEX039 L293D Motor Shield for Arduino
•Features: A monolithic integrated, high voltage, high current, 4-channel driver
•Using this chip you can use DC motors and power supplies of up to 36 V, so that some pretty big motors and the chip can supply a maximum current of 600mA per channel
•Also known as a type of H-Bridge, which is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor
•2 interface for 5V Servo connected to the Arduino's high-resolution dedicated timer no tremble can drive 4 DC motors or 2 stepper motors or 2 Servo
•Up to 4 bi-directional DC motors with individual 8-bit speed selection up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping
•4 H-Bridges: Per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC pull down resistors keep motors disabled during power-up
