SIM7600G-H 4G/3G/2G/GNSS Expansion Board Jetson Nano Supports | Shop The World
From USA
Newwaveshare

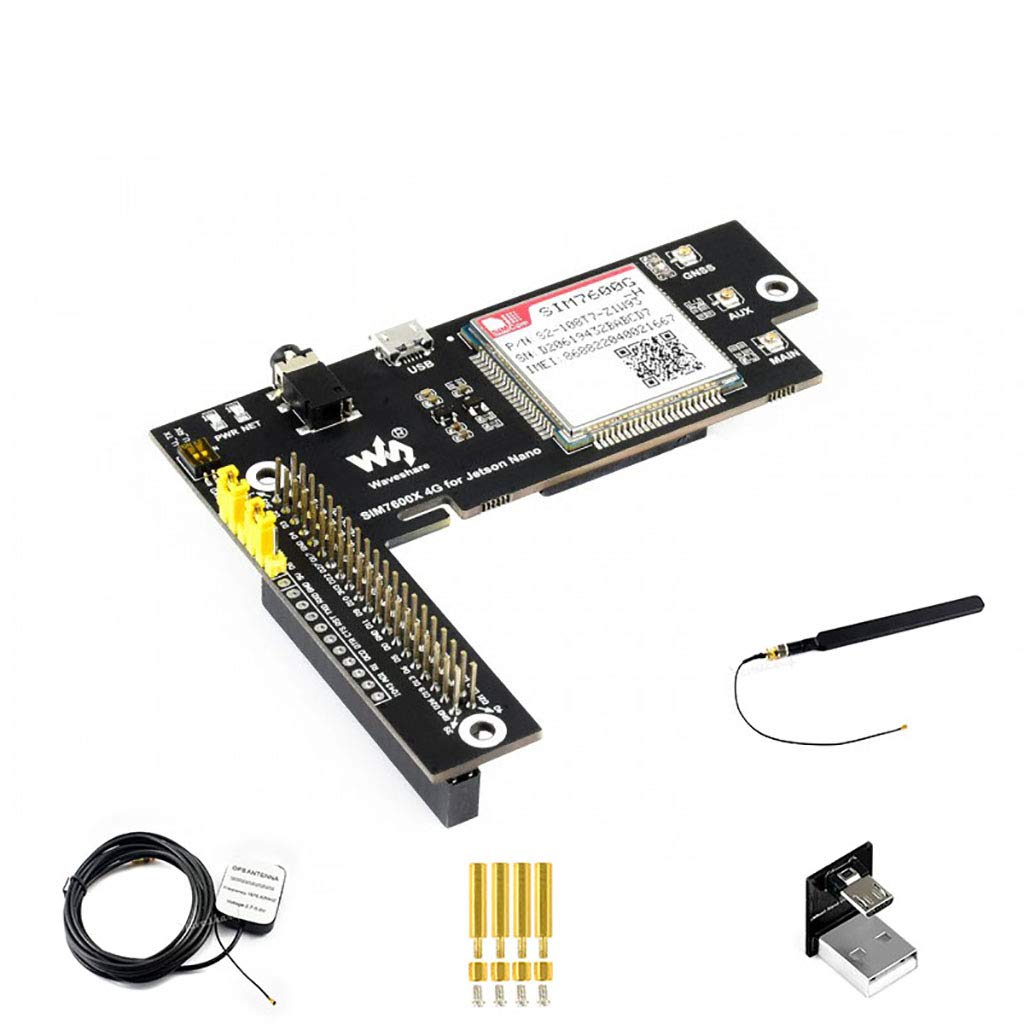

SIM7600G-H 4G/3G/2G/GNSS Expansion Board for Jetson Nano Supports LTE CAT4 up to 150Mbps Global Applicable for GPS, BeiDou, Glonass, LBS Base Station Positioning
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•40PIN GPIO extension header for connecting Jetson Nano; Onboard USB interface, to test AT Commands, get GPS positioning data, and so on;SIM card slot, supports 1.8V/3V SIM card;2x LED indicators, easy to monitor the working status
•Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.; Supports GPS, BeiDou, Glonass, LBS base station positioning; Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
•Breakout UART control pins, to connect with host boards like Arduino/STM32; Onboard 3.5mm audio jack with earphone and mic support, for making telephone call
•Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper; Baudrate: 300bps ~ 4Mbps (default: 115200bps); Autobauding baudrate: 9600bps ~ 115200bps
•Comes with development resources and manual (examples for Jetson Nano/Raspberry Pi/Arduino/STM32) : www.waveshare.com/wiki/SIM7600G-H_4G_for_Jetson_Nano
