Sanpyl Micro Controller Board, RP2040 Chip Development Board Dual Core Processor Microcontroller for Raspberry Pi
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

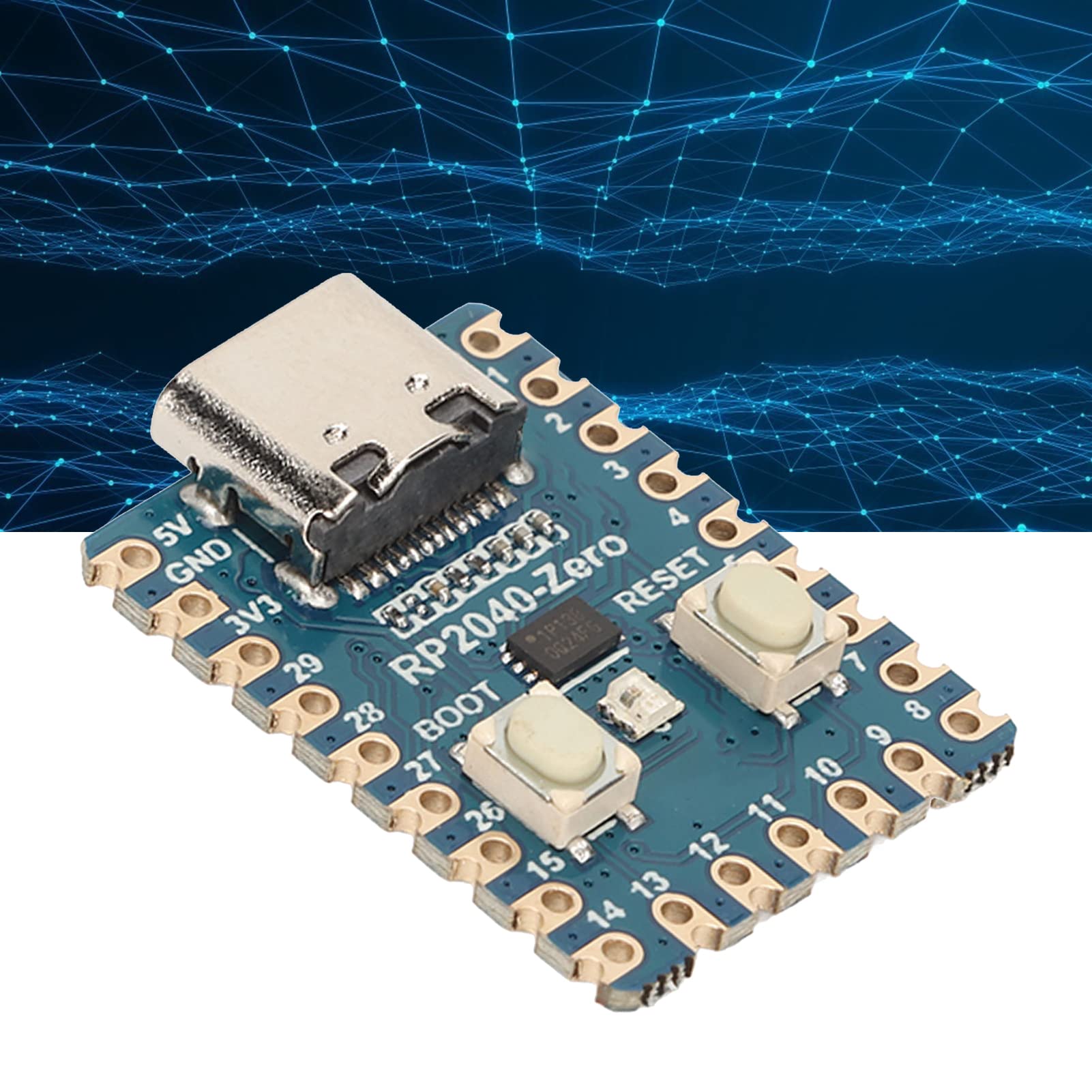

•RP2040 MINI DEVELOPMENT BOARD: Type C female port on board, using RP2040 developed by for Raspberry Pi as the core, and all unoccupied pins in a very small board type, using half hole process, can be soldered on your custom board.
•HIGH PERFORMANCE: The RP2040 microcontroller chip, officially designed by for Raspberry Pi, is equipped with a dual core ARM Cortex M0+ processor running at up to 133MHz flexible clock.
•SUPPORT: Built in 264KB of SRAM and 2MB of on board Flash, USB1.1 host and device support, low power sleep and hibernation modes.
•29 GPIO PINS: Can be recognized as mass memory for drag and drop program download via USB, 29 GPIO pins of RP2040 pin out (20 can be pin out via row pins, the rest can be solder pin out only).
•MULTIPLE HARDWARE PERIPHERALS: 2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, 16 controllable PWM channels; precise on chip clock and timer, temperature sensor, 8 programmable I/O (PIO) state machines for custom peripheral support.
