SAMENX Tools (H/V) ROTARY TABLE WITH 4 JAW SELF CENTERING LATHE CHUCK & BACK PLATE + FIXING TNUTS BOLTS (4" inch (100mm) Rotary Table & 65mm chuck)

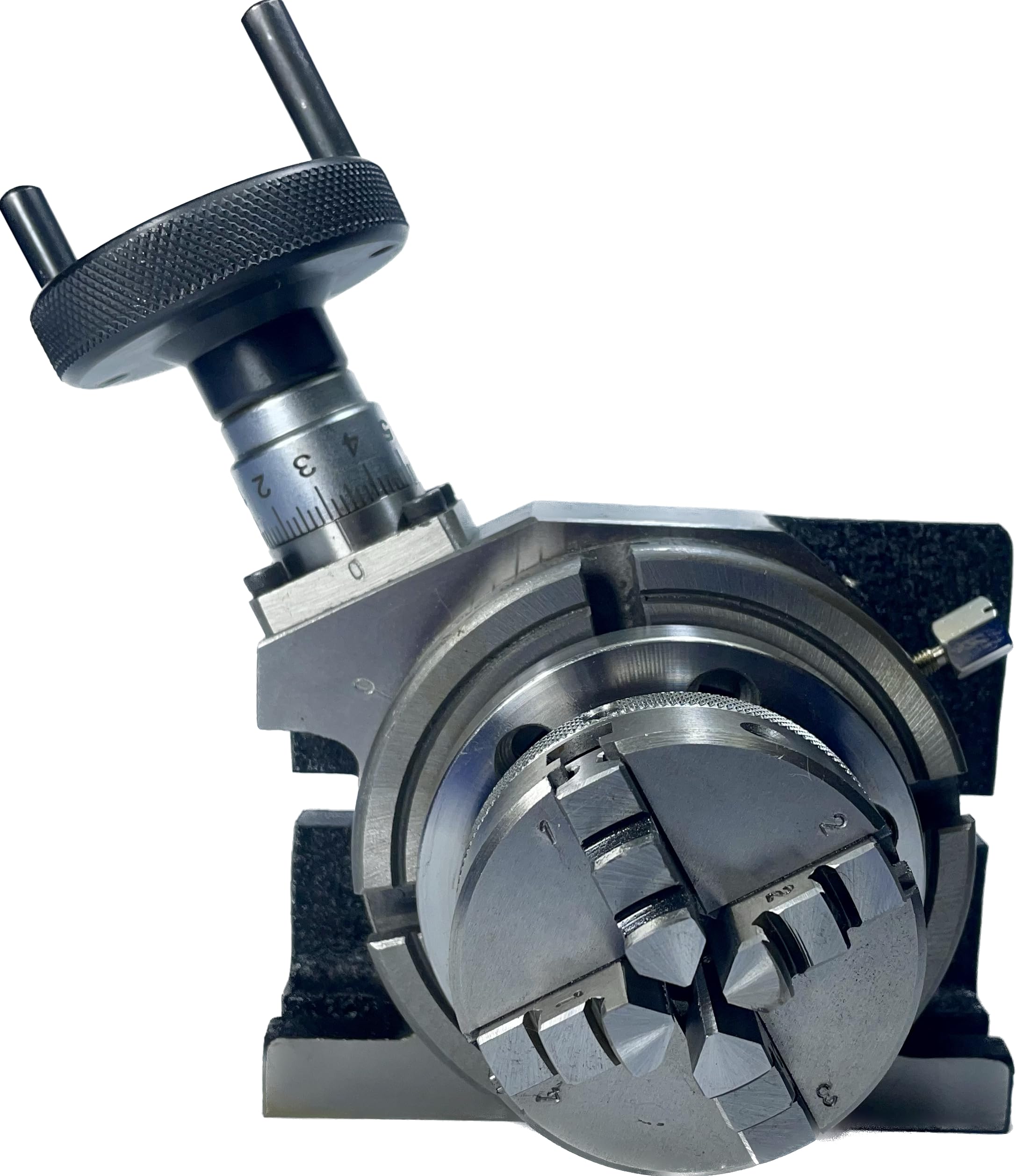

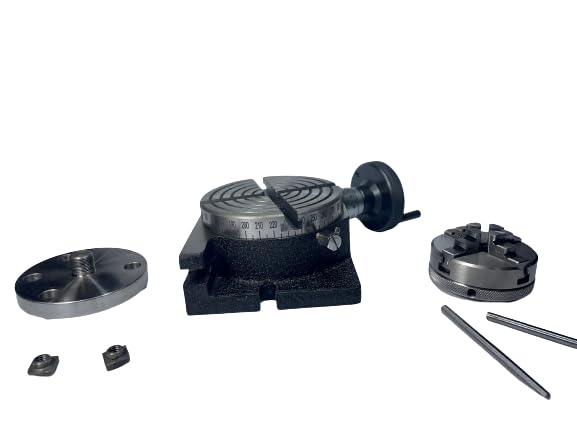

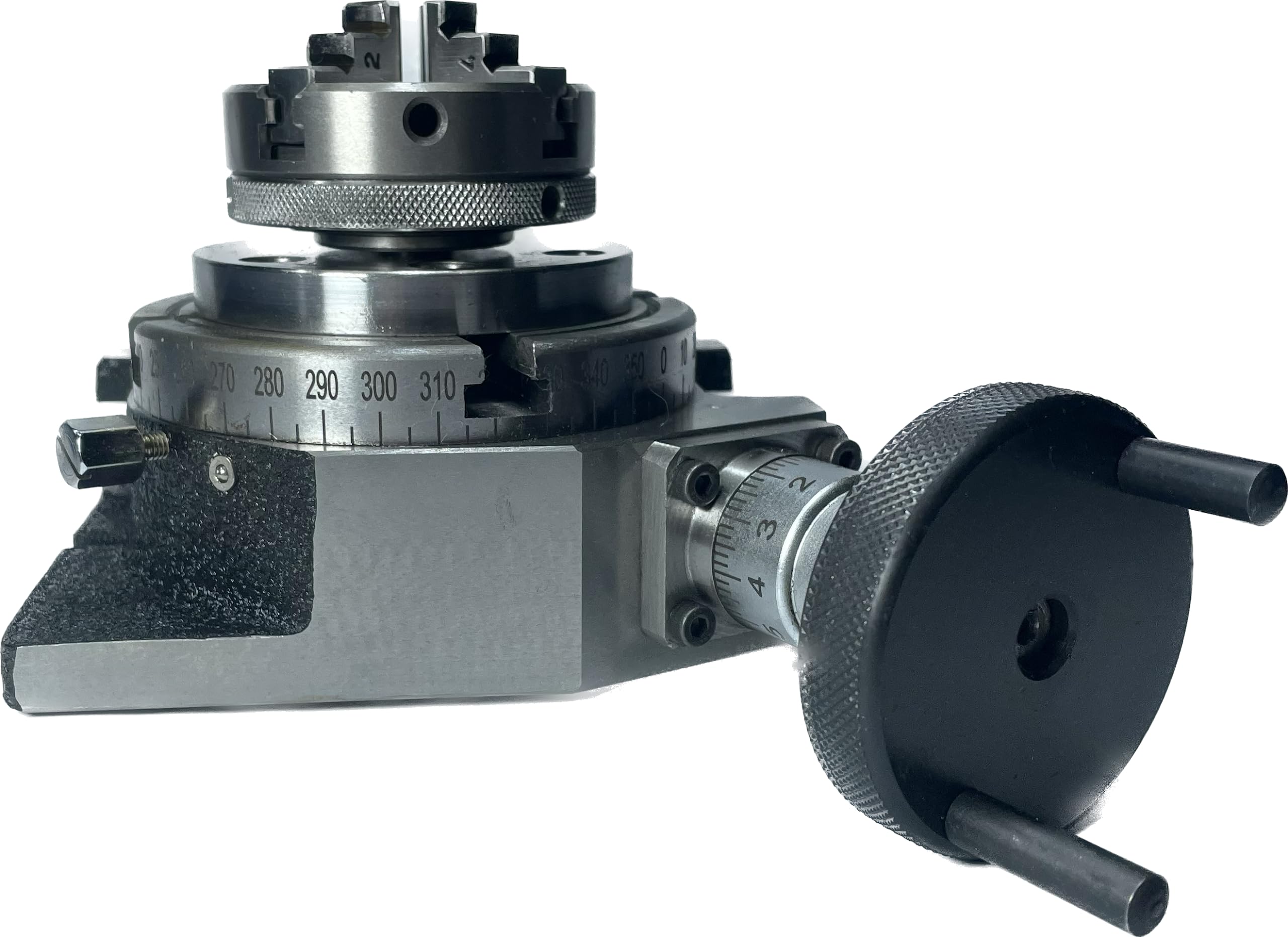

•A great combo of Rotary table (3"in 75mm & 4"in 100mm) with 4 jaws self centering chuck ( 65 & 50mm) with back plates & Tnuts

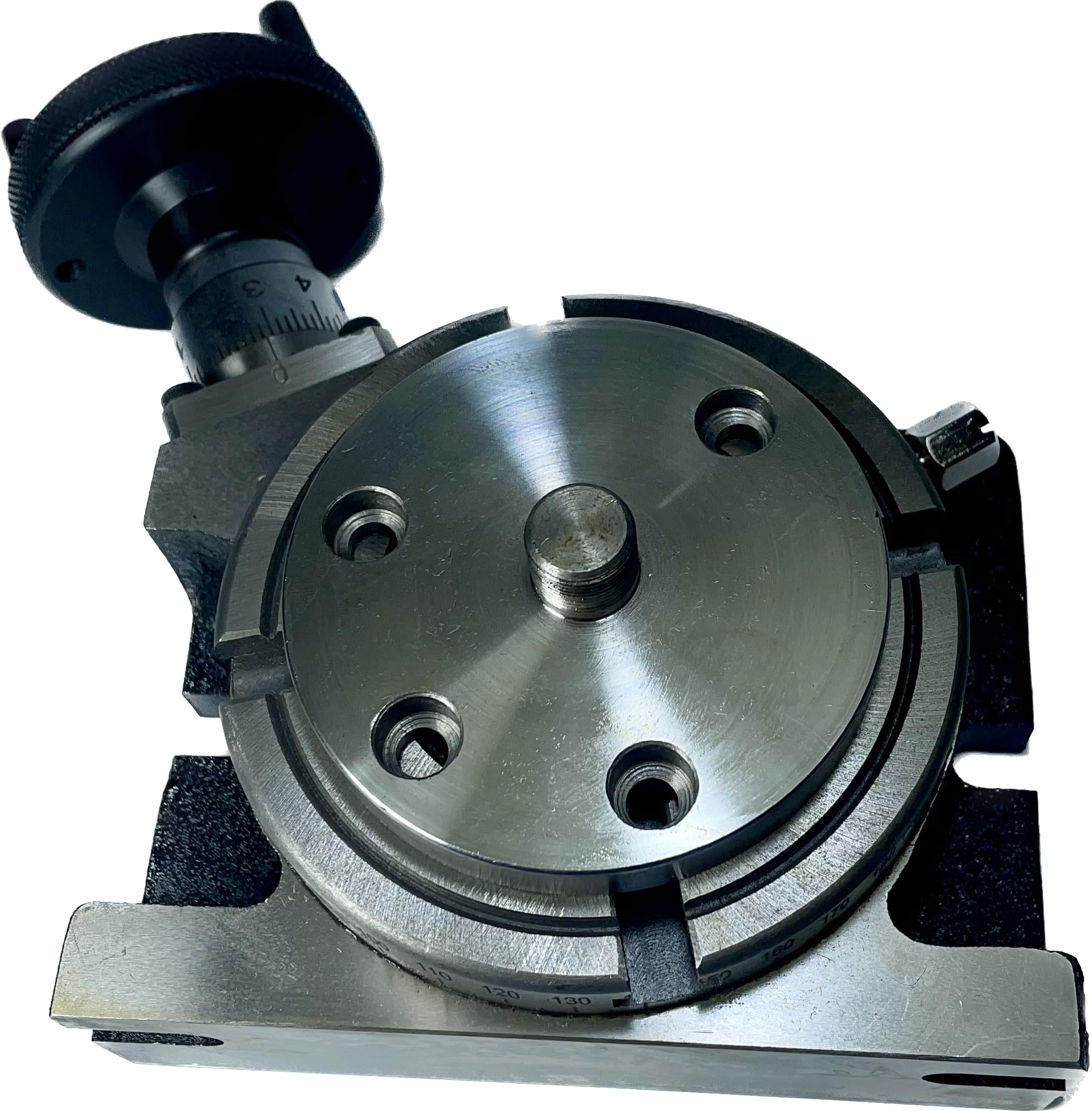

•Quality Low Profile Rotary Table. Table is graduated 360 Degrees
•Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees.
•Back Plate is drilled in a manner that it can be fitted ONLY to 4 Slot Rotary Table
•Suitable T -nuts are also supplied.
•4 Jaws Self Centering Chuck M14 x 1 mounting Thread
•Back Plate also has M14 x 1 thread Spigot to mount the Chuck on it.
•Chuck Body is High Grain SG Caste Iron & Jaws are of Tool Steel. Jaws are Hardened & Ground.
