RS485 to RJ45 Ethernet Industrial Serial Server, TCP/IP to Serial, 9~24V Power Supply, RS485 ETH Bi-Directional Data Transmission,Support Rail-Mount,Modbus Gateway/MQTT Gateway, RS485 to JSON, etc.
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc.

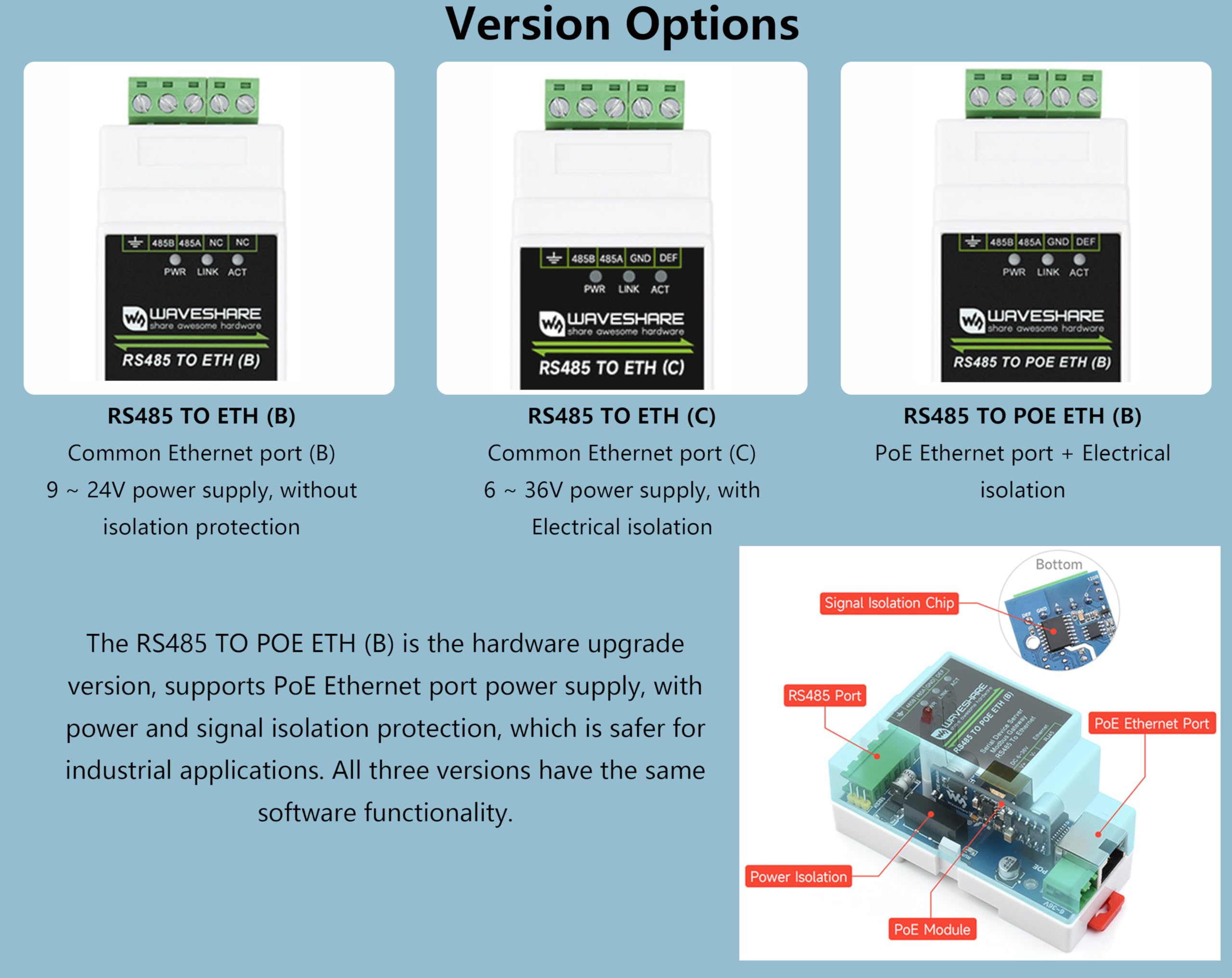

•The module features RS485 and Ethernet port (Version: RS485 TO ETH B: 9 ~ 24V power supply, without isolation protection), uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

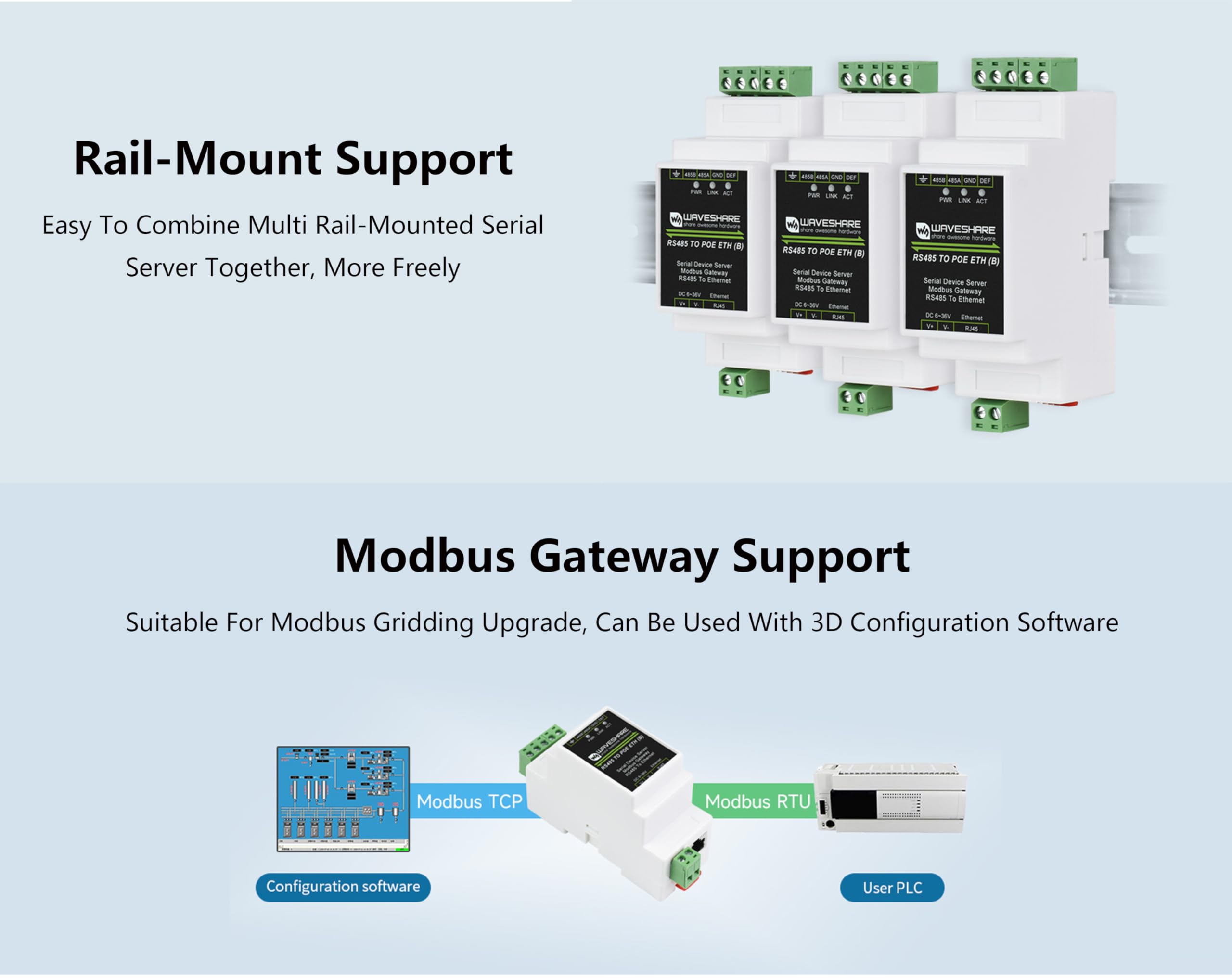

•Bi-directional transparent data transmission between RS485 and Ethernet. Support Rail-Mount, easy to combine multi rail-mounted serial server together, more freely. Support Modbus Gateway, suitable for Modbus gridding upgrade, can be used with 3D configuration software.
•Multi communication modes, supports TCP server / TCP client / UDP mode / UDP multicast. MQTT/JSON to Modbus, more flexible conversion between different protocols.
•Support Multi hosts roll-polling, different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices. Support NTP protocol, getting network time info for serial output or data upload.
•Multi configuration methods, supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address.
•Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/6fw8v
