new | RS485 Hub RS232 Repeater,Repeater Industrial Grade Photoelectric Isolation 4 Channel RS485 Hub Sharer Splitter
Brand : LIANGLIDE
new | RS485 Hub RS232 Repeater,Repeater Industrial Grade Photoelectric Isolation 4 Channel RS485 Hub Sharer Splitter
Brand : LIANGLIDE
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Conditionnew
AsinB0CC9WN1KD
CategoryElectronics
SubcategorySerial Adapters
LeafcategoryWIRELESS_SIGNAL_REPEATER
MPNLIANGLIDE7ckn3mgutr
OriginUSA
BrandnameLIANGLIDE
Weight2
Product Details
Multiple protection measures, plus or minus 15KV ESD protection, 600W dual‑channel TVS protection 2.5KV communication isolation.
Support multi‑machine communication, each channel can connect up to 128 nodes, and the longest transmission distance is 2500 meters.
The power supply has a wide range of 9-24VDC and has anti-reverse protection.
Data automatic control technology, automatically distinguish and control the data transmission direction.
Built‑in DC/DC isolated power supply module to achieve electrical isolation between ports.
Product Description
Specification:
Item Type: Repeater
Compatibility: Compatible with RS-232, RS-485TIA/EIA standards
Working Voltage: DC: 9-24V
Rated Power: 0.5-1.2W

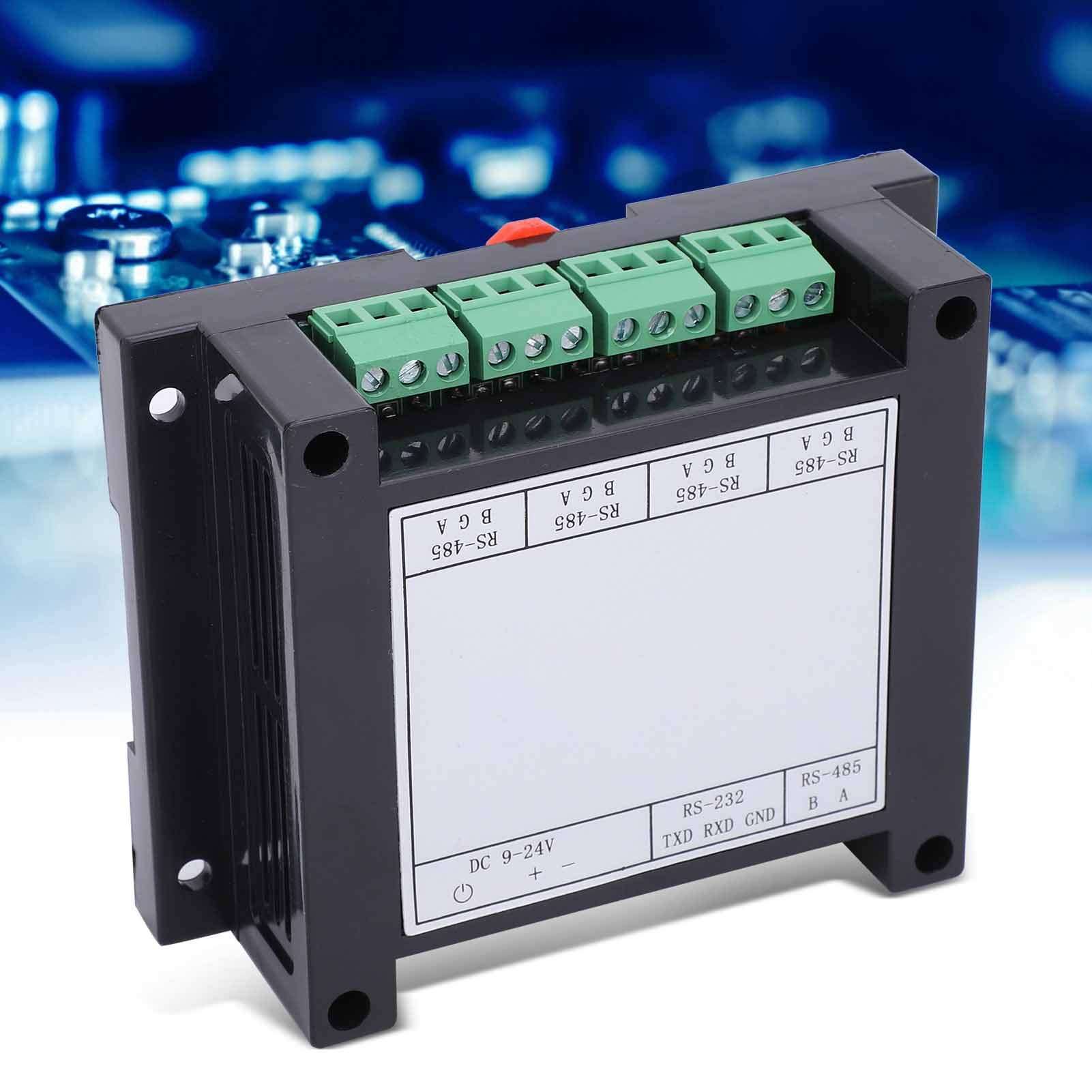

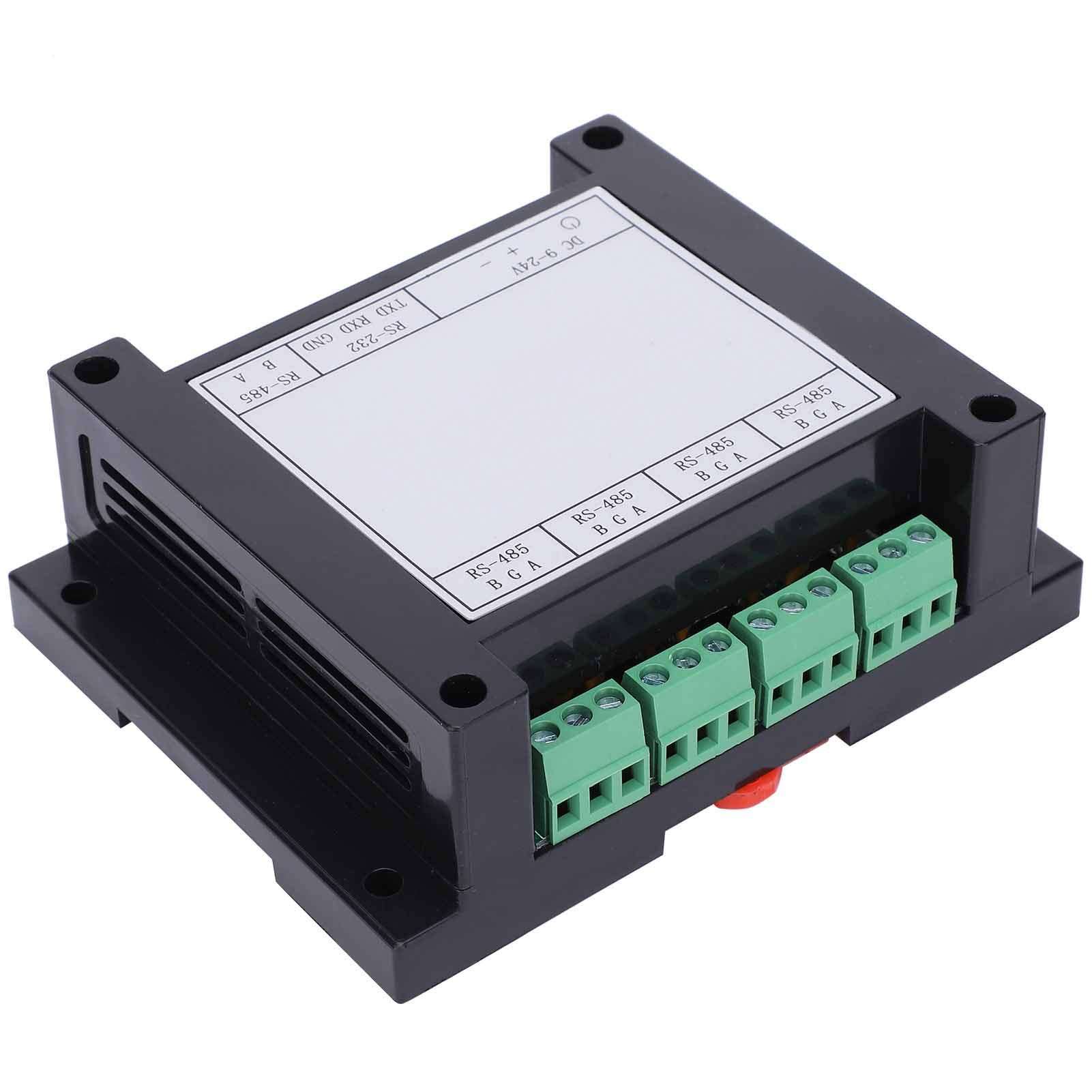

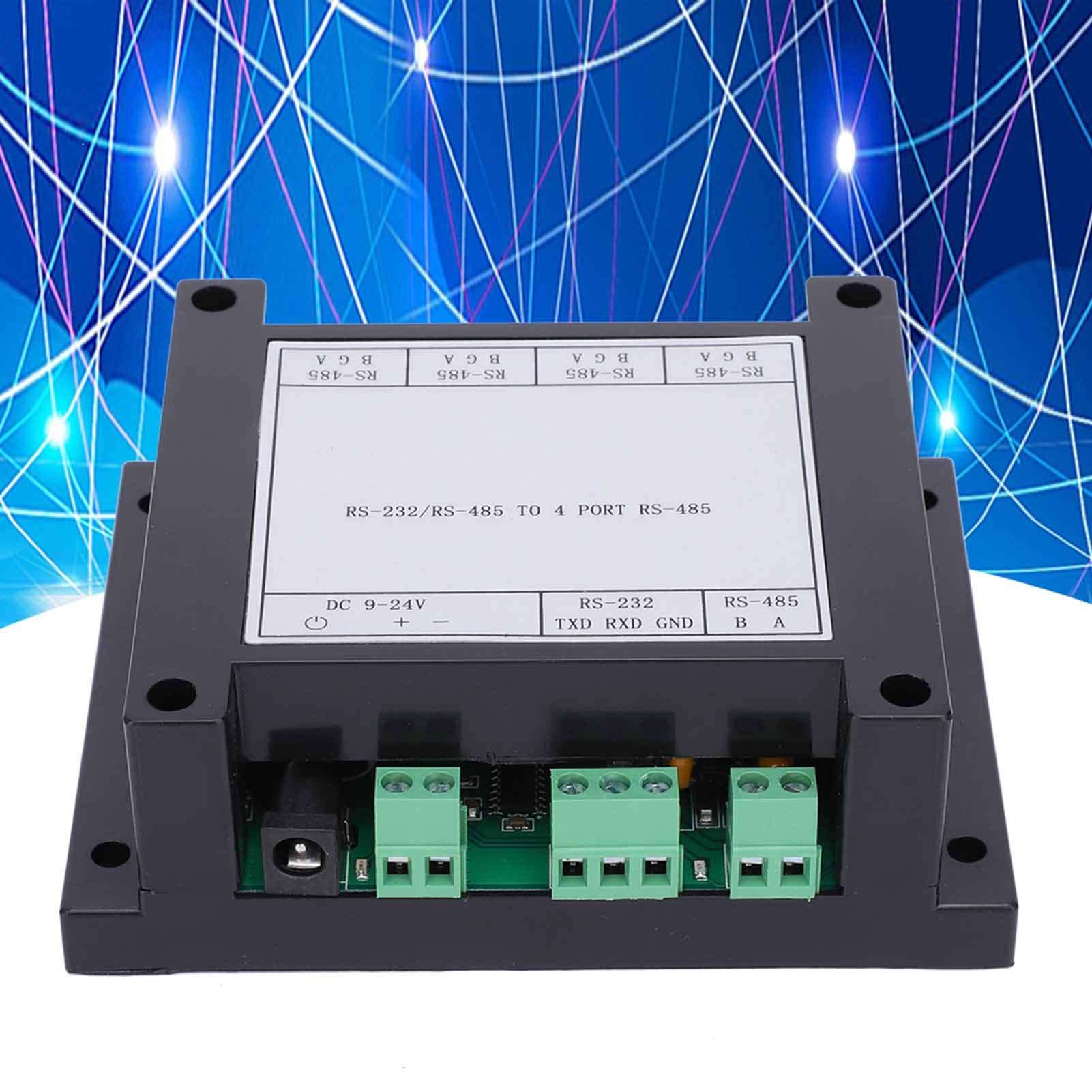

Input Interface: 1 RS-232/1 RS-485
Output Interface: 4 RS-485
Load Capacity: 128 nodes per interface
Communication Distance: 2500 meters shielded wire or twisted pair wire per interface
Communication Rate: 300bps-115.2Kbps

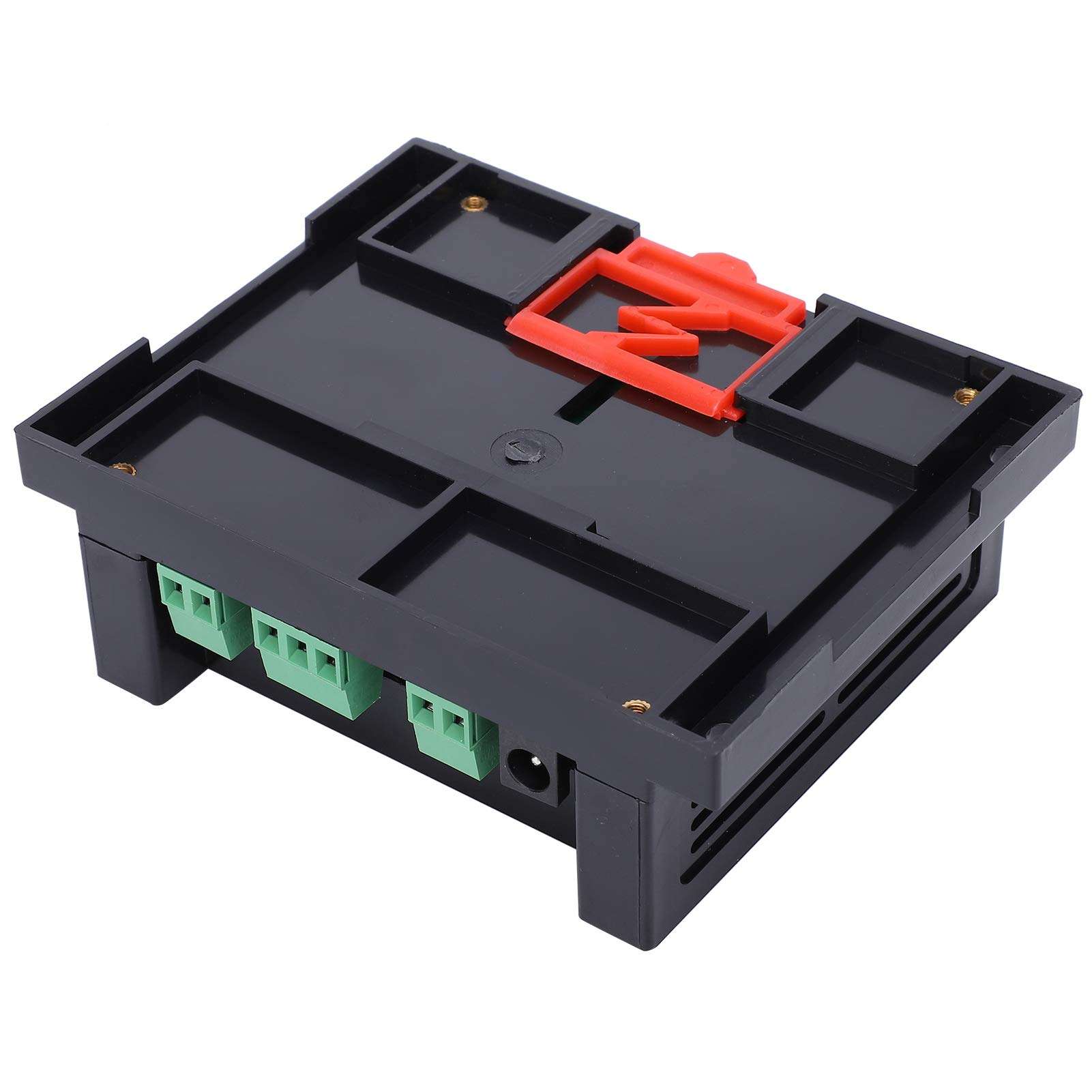

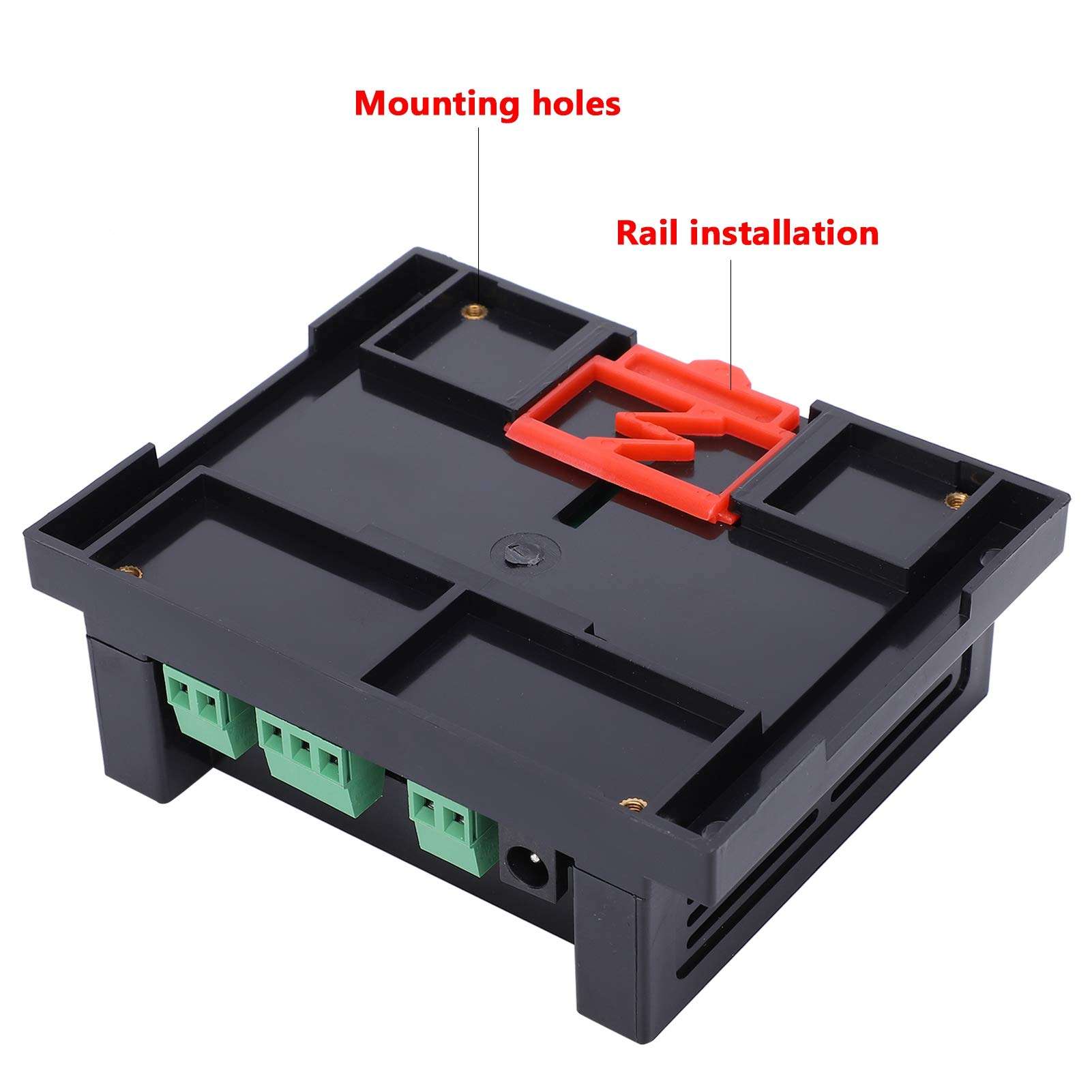

Installation Method: 35mm rail installation, 4-hole installation on the back plate
Structure Size: Approx. 115 x 90 x 40mm / 4.5 x 3.5 x 1.6in
Working Environment: -30℃ to 70℃ relative humidity>95%RH

PackageList:
1 x Repeater

Note:
The device is suitable for long‑term stable operation under the recommended value; the device will not be damaged when working under the limit value, but may cause performance degradation; do not exceed the limit value range at any time, otherwise it may cause damage to the device!
