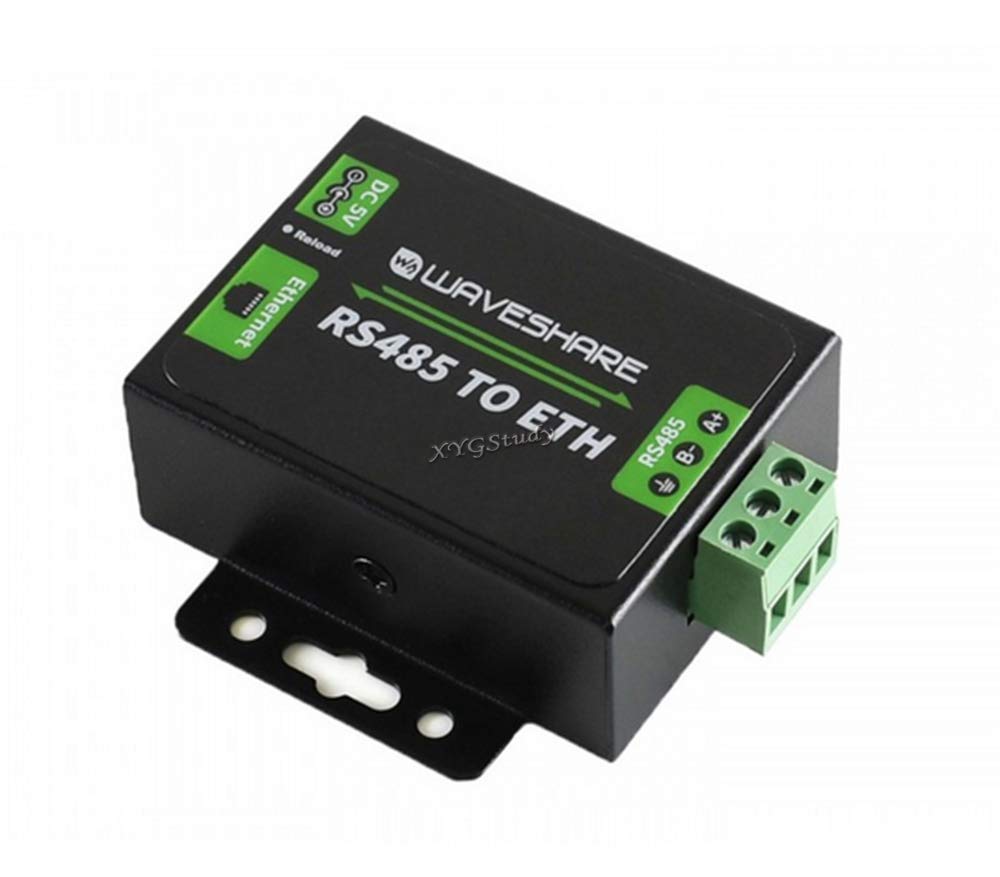

RS485 to Ethernet Converter Cortex-M0 4-pin RJ45 Port Ethernet Network 10/100Mbps High-Speed Low-Power High-Stability Upgradable Easy-to-use @XYGStudy
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Part Number: RS485 TO ETH
•RS485 to Ethernet Converter, Easy-to-use, High-speed, Low-power, High-stability, Upgradable
•The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet, it can be configured via webpage.
•M0 series 32-bit ARM processor, fast speed, high efficiency, 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
•Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space, Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
