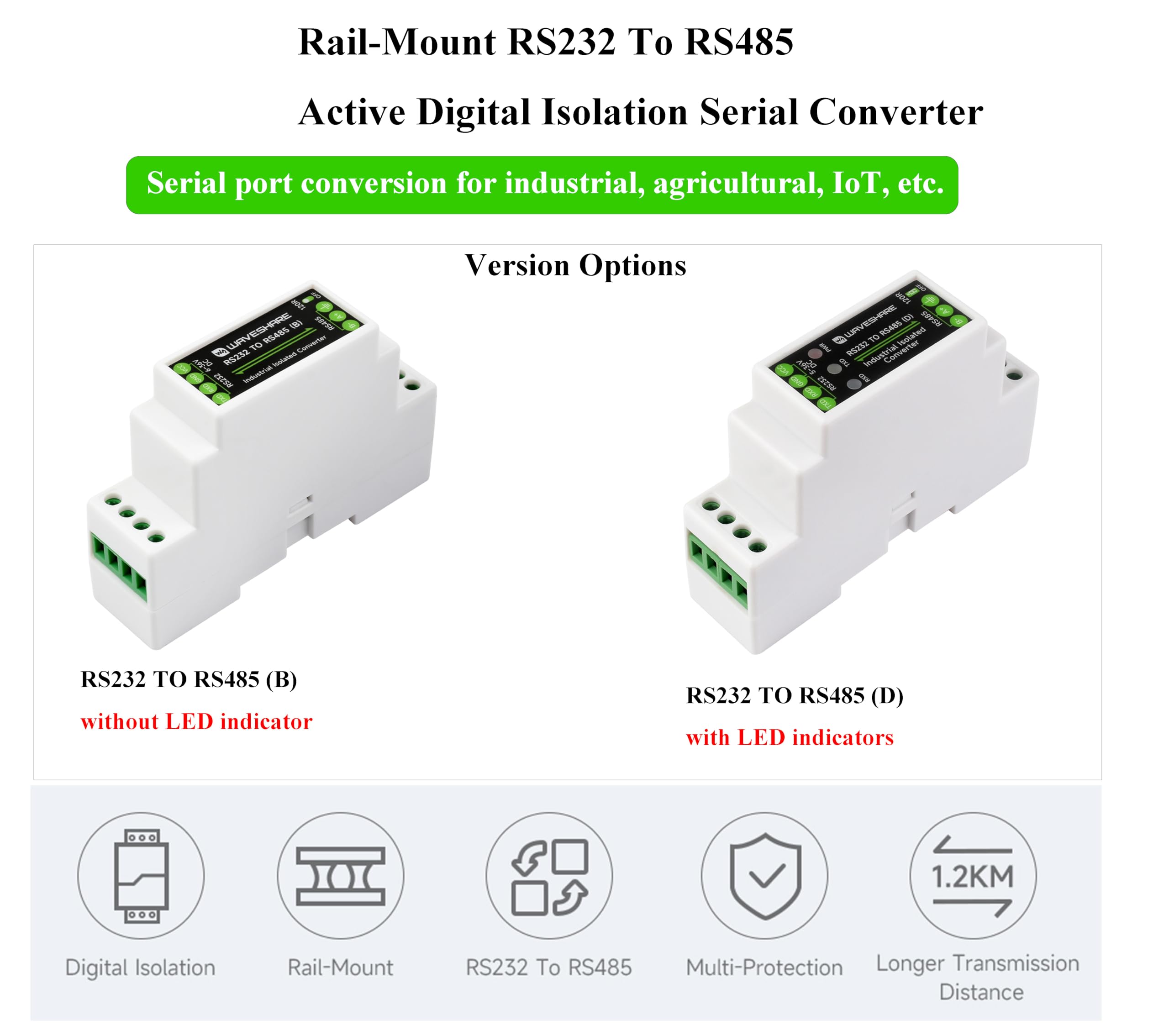

RS232 to RS485 Module Active Digital Isolation Asynchronous Bi-Directional Serial Converter Support Multi Rail-Mounted Serial Server, 1.2km Long Distance Transmission (with LED Indicators)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

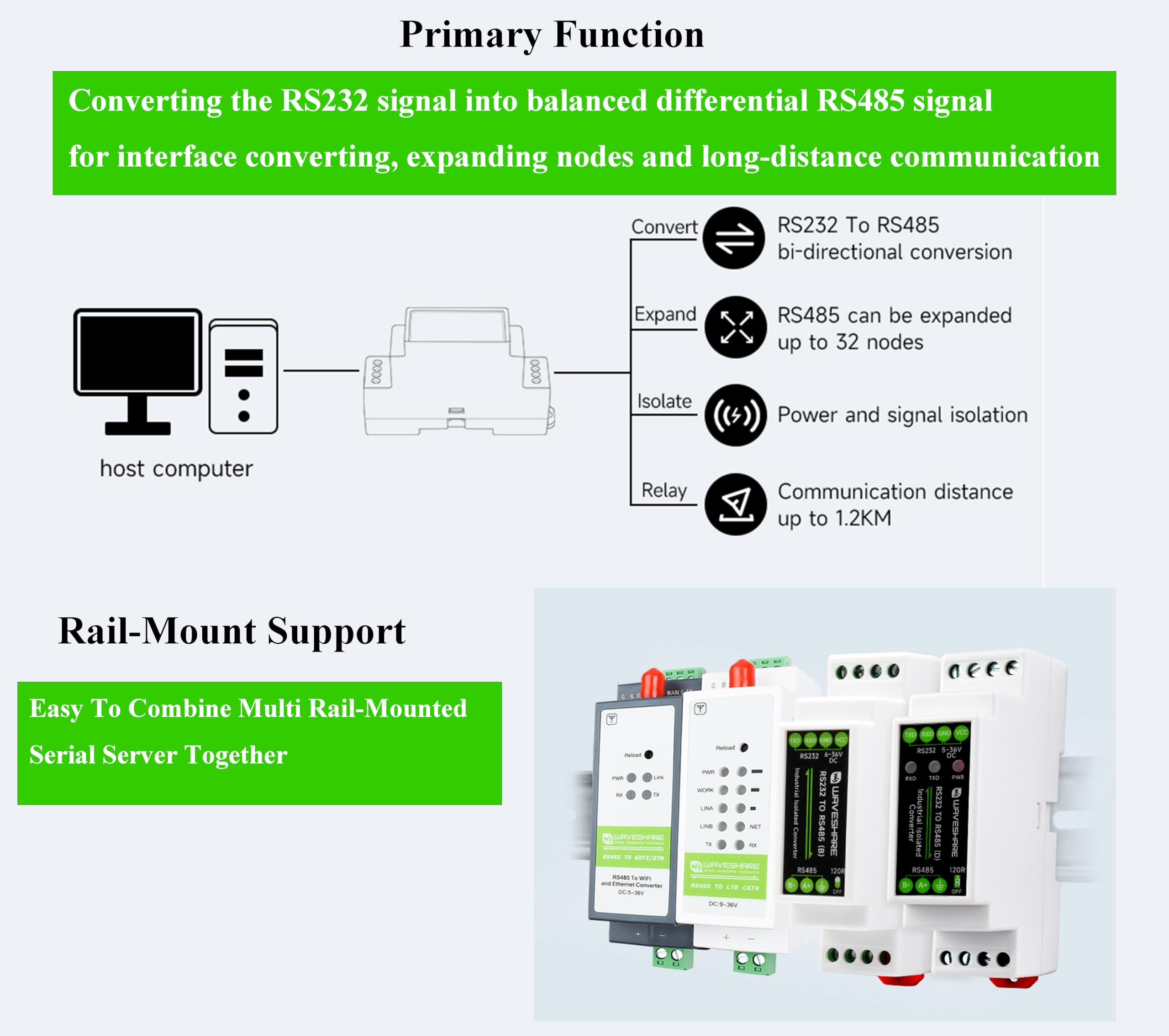

•RS232 To RS485 Converter--Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal.

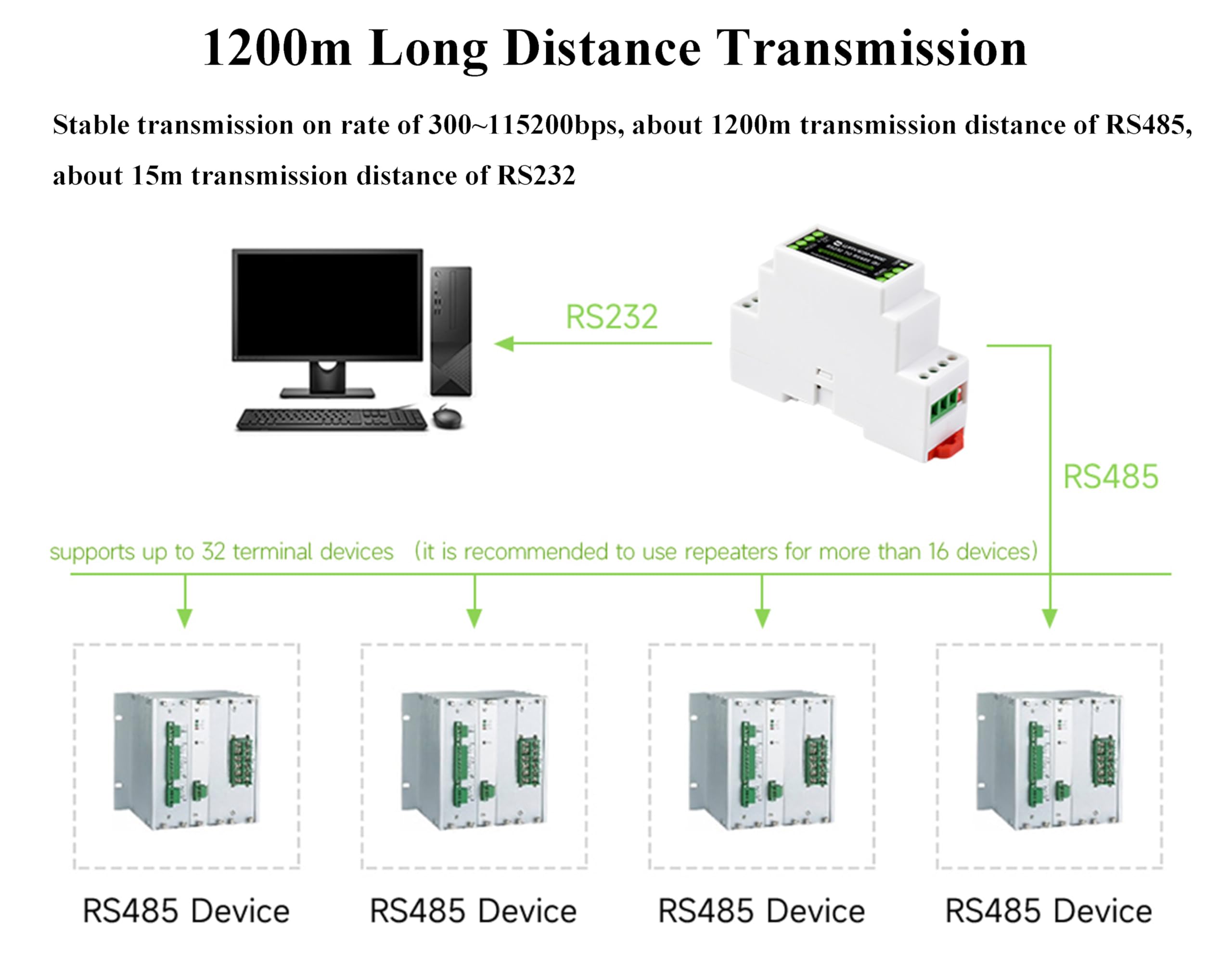

•1200m Long Distance Transmission--Stable transmission on rate of 300~115200bps, about 1200m transmission distance of RS485, about 15m transmission distance of RS232. 【Rail-Mount Support】Easy To Combine Multi Rail-Mounted Serial Server Together.
•Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.
•Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, light-n ingproof & anti-electrostatic.
•Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance.
•The RS232 TO RS485 converter can be widely used for point-to-point, point-to-multipoint, long distance cascaded communication network between two hosts, or between host and MCU/Peripheral. It also can be used in the application scenarios that require RS232 to RS485 conversion such as Industrial Automation and IoT.
•Rail-Mount Support--Easy To Combine Multi Rail-Mounted Serial Server Together.
•Provide Online Development Resources /User Manual: bit.ly/4d1Zjz4
