RPi0 USB HUB Expansion Board with 1.25mm 4Pin Cable 4 Ports Compatible
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

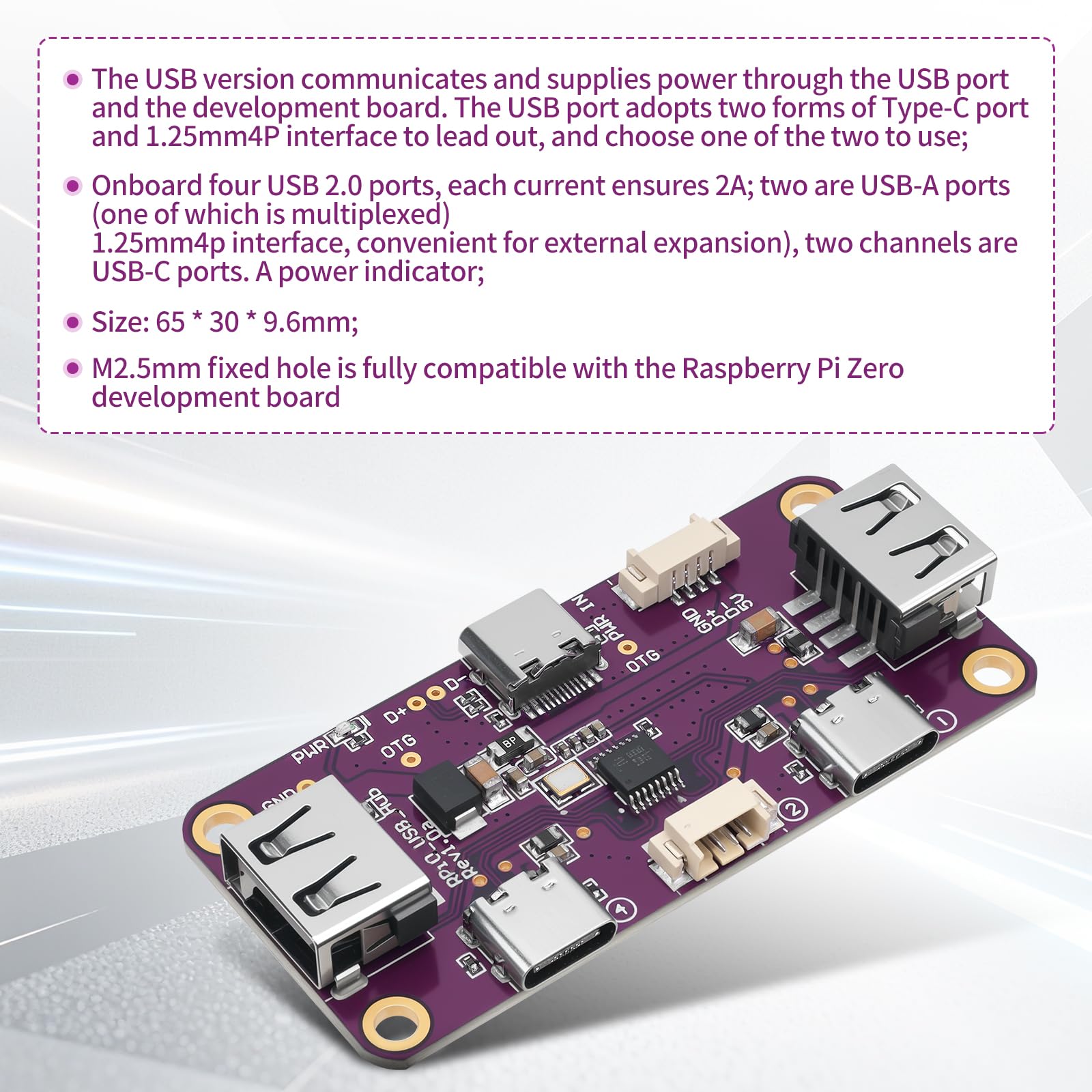

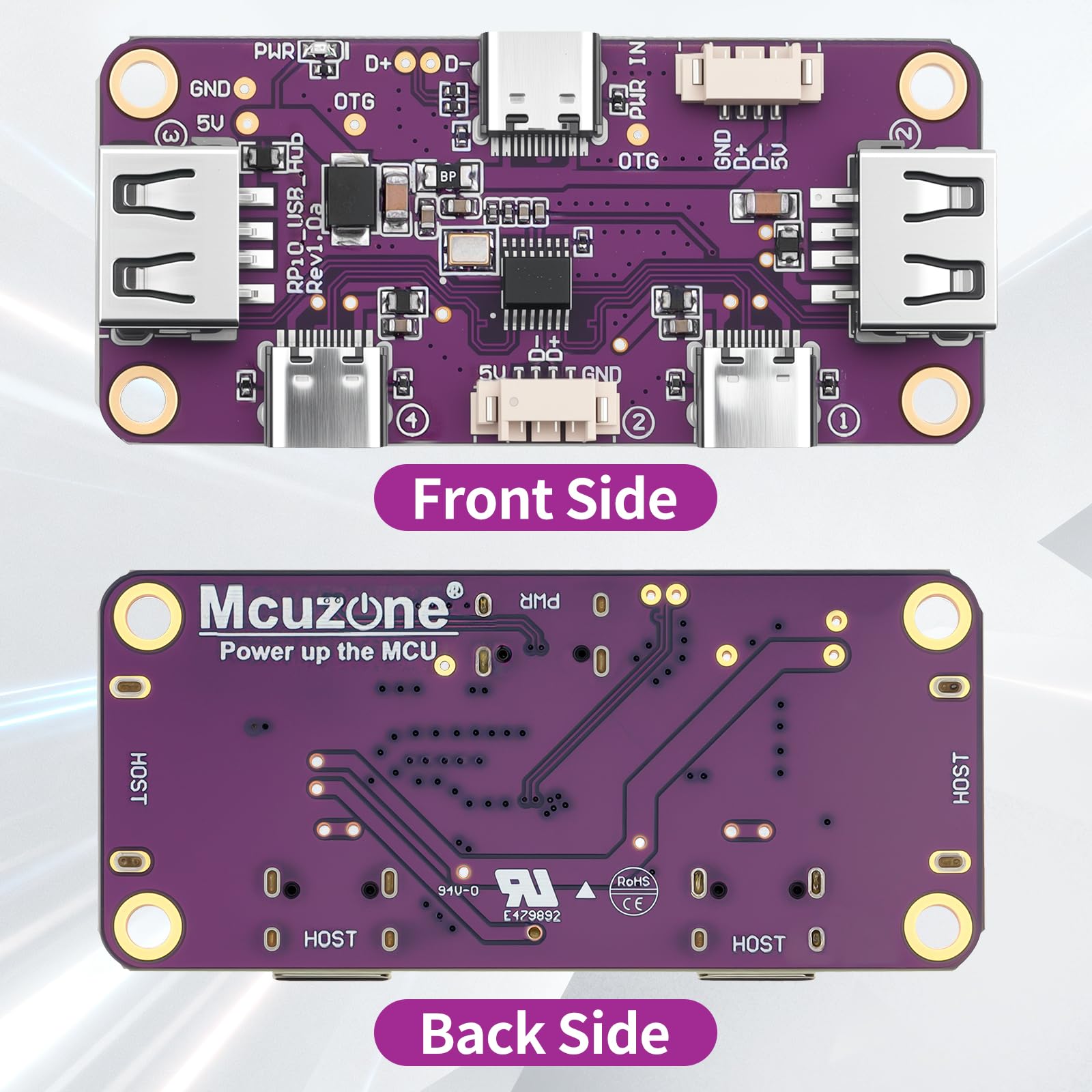

•for Raspberry Pi Zero USB HUB is a USB expansion board with a size of only 65*30*9.6mm. It is designed based on the size of for Raspberry Pi Zero series (including Zero, ZeroW (H) and Zero2W). It uses the gold-plated test points of the USB and power supply on the back of for Raspberry Pi Zero board to expand the USB HUB to realize 4-channel USB2.0, two of which are USB-A ports and two are USB-C ports
•The USB versioncan be used to provide 4-channel USB2.0 interfaces to computers, for Raspberry Pi 3B, 4B and 5 other devices. Expansion board without drive, plug and play
•USB version: Communication and power supply through USB port and development board. The USB port uses Type-C port and 1.25mm4P interface to introduce it. Choose one of two

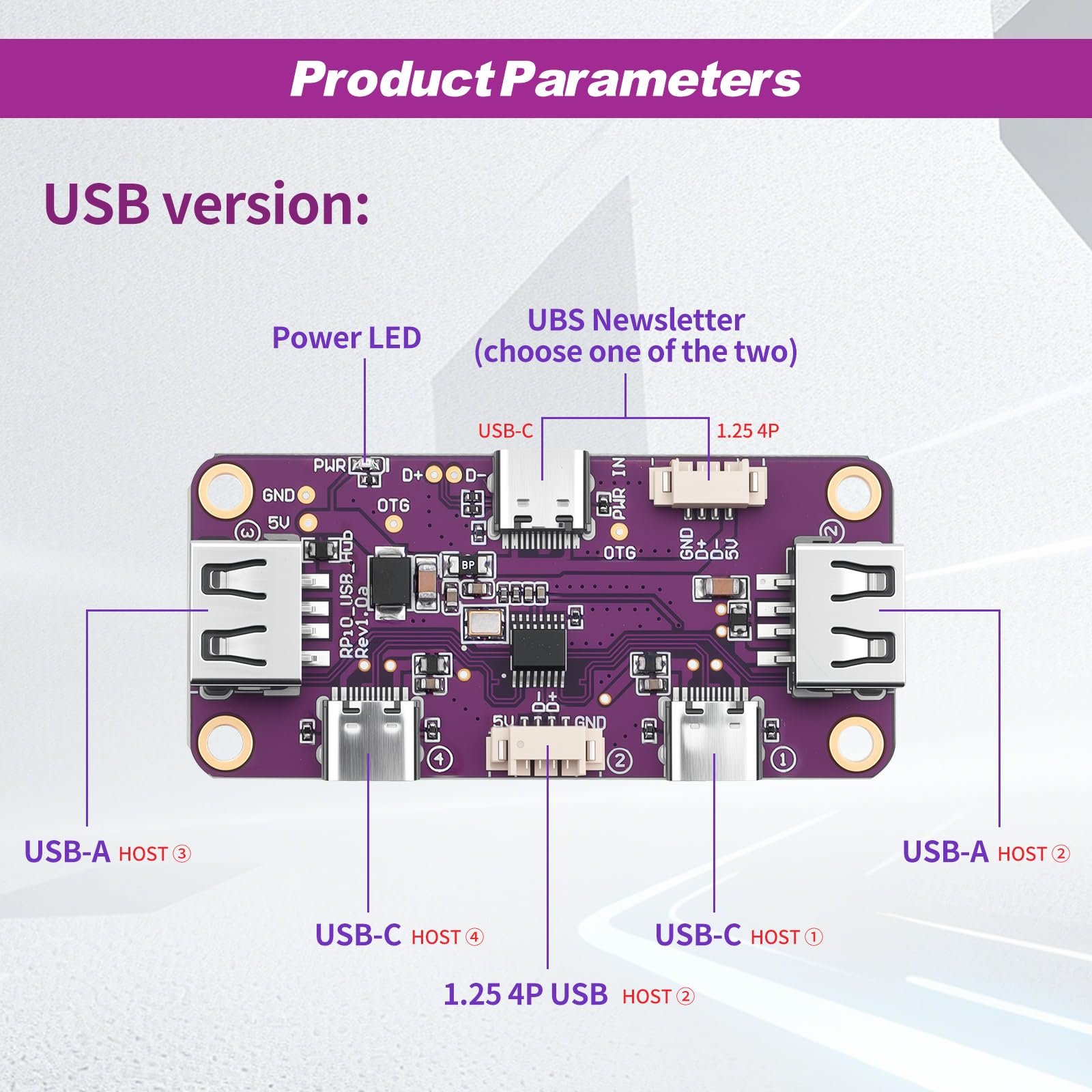

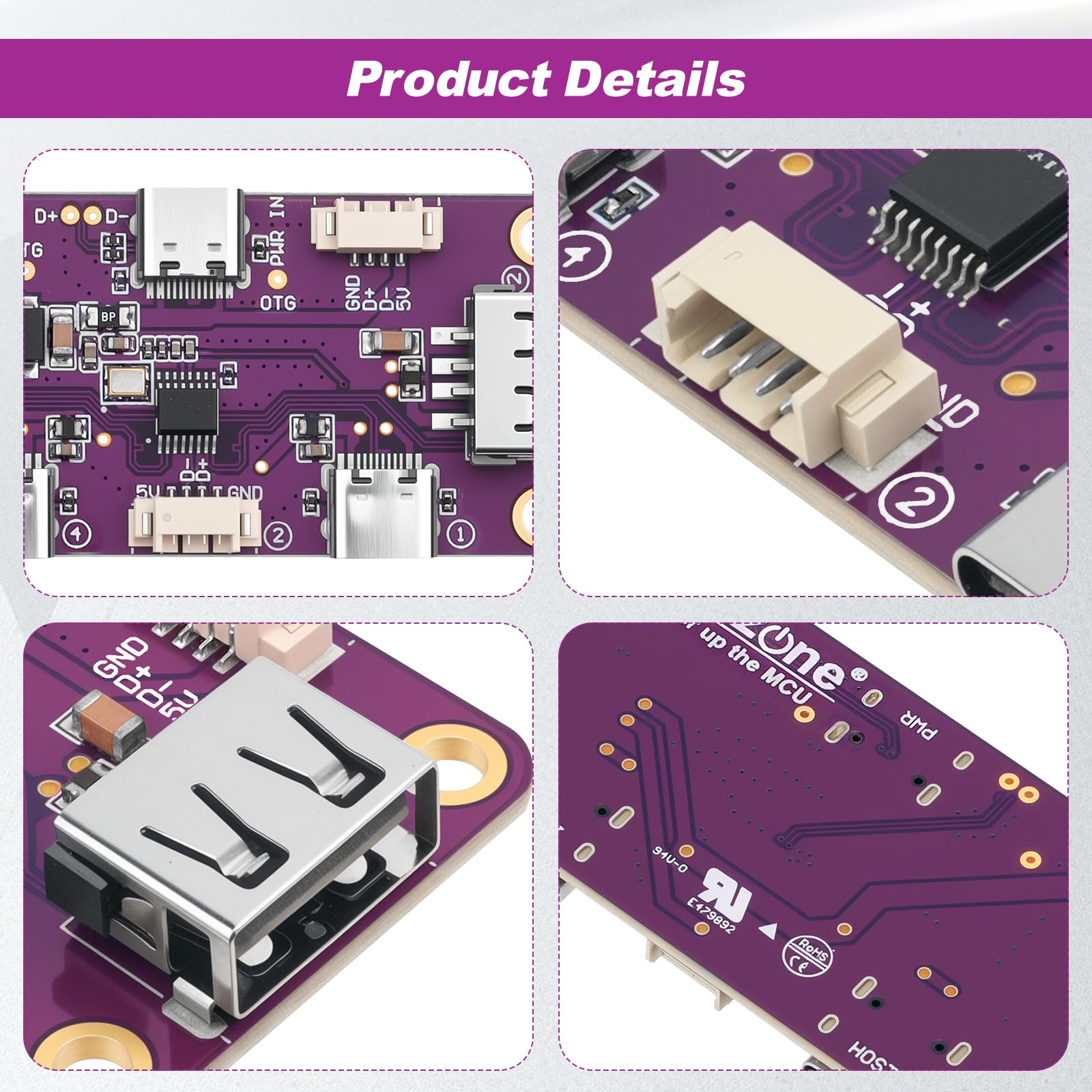

•Onboard four-channel USB 2.0 ports, each channel has 2A current; two channels are USB-A ports (one of which multiplexes 1.25mm4p interface, which facilitates external expansion), two channels are USB-C ports, one power indicator
•The M2.5mm fixed hole is exactly the same as for Raspberry Pi Zero development board. PCB board has passed UL and ROHS certification, and its fire resistance level is 94V-0
