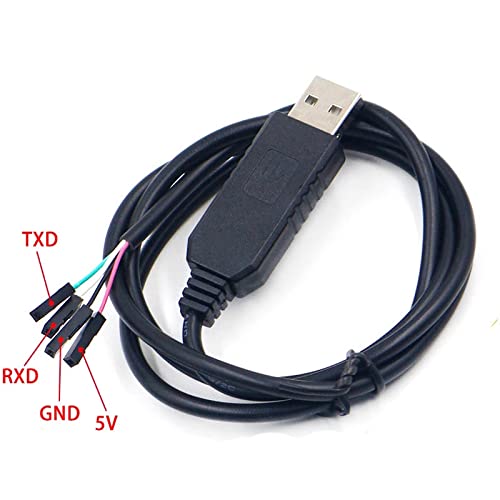

Robotbanao PL2303 HX Cable-USB to TTL to UART Converter-4 Pin-1 Meter-TTL COM PC-PL2303HX Chip
•Robotbanao PL2303 HX cable is used to connect to a microcontroller. The cable is divided into 4 separate wires at the end. The separate pin plugs make the cable ideal for powering and connecting to the debug/login console on the microcontroller.
•Built-in TTL COM PC-PL2303HX Chip
•Standard USB type
•Simple and easy
•Available for Linux, Mac, WinCE, and Windows (XP, 7), Win 8
•Single-chip USB to UART conversion
•No additional firmware programming required
•Receive and Transmit LED drive signals
•USB2.0 full speed compatible
•Low USB bandwidth consumption
•Dimensions: Cable length:1m (100cm)
•The PL2303 HX cable has separate pins at the end which makes it ideal for powering and connecting to the debug/login console on the microcontroller. It has a power pin which provides the 5V @ 500mA direct from the USB port and the RX/TX pins are 3.3V levels for interfacing with the most common 3.3V logic level chipsets.
•PL2303 HX Cable: Data transfer rate: from 300 baud to 3Mbaud (at TTL levels)
•Compatibility: USB2.0
•Bandwidth consumption: Low
•Operating temperature range: -40ºC to +85ºC
•Receive buffer: 128 bytes
•Transmit buffer: 256 bytes
•True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input
