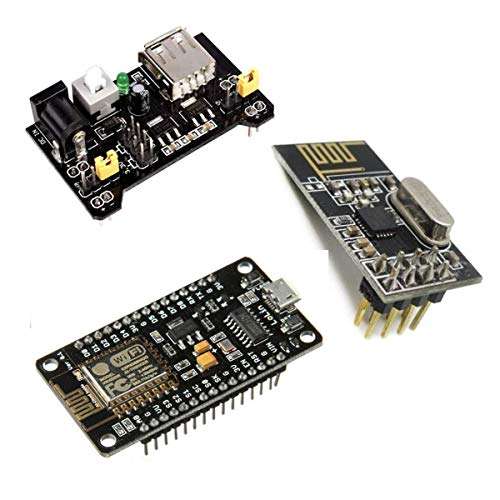

•This module is designed to fit the standard MB102 breadboard. NodeMCU is an IoT Module based on ESP8266 WiFi Module. NodeMCU is built on the ESP8266 technology to take advantage of the abundant resources available on the web. The NRF reat little solution's for wireless control capable of up to 2mbit communication with a range from 40 to 100m.

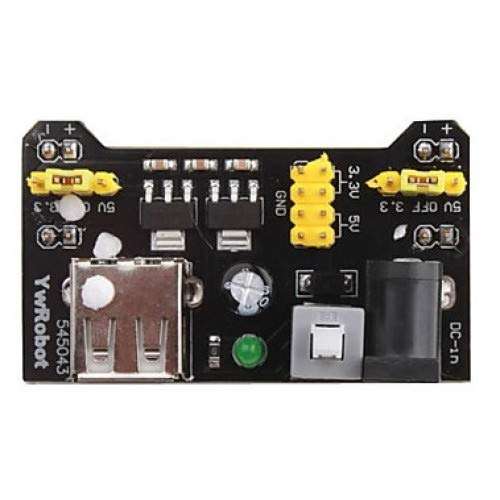

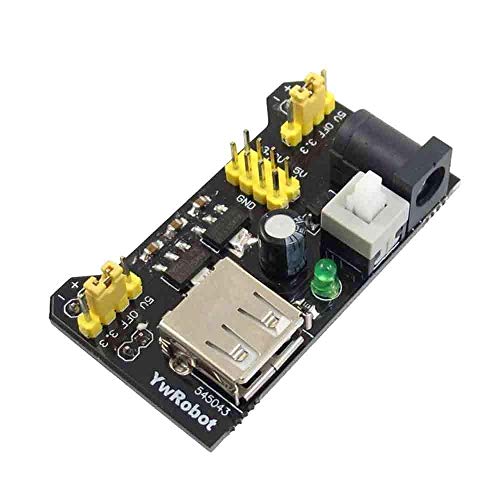

•MB102 : Power Supply comes with On/Off Switch
•Green LED power indication
•Built-in protection against short-circuit through power limiting circuitry

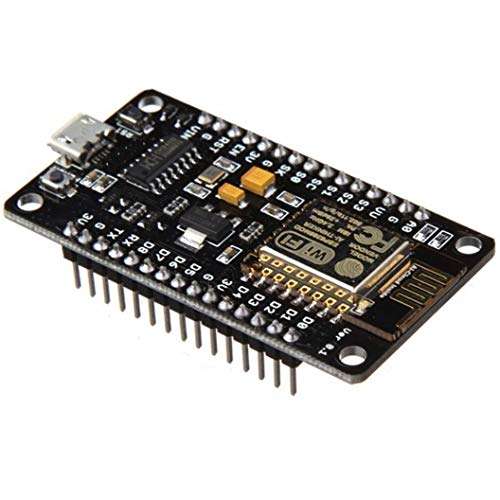

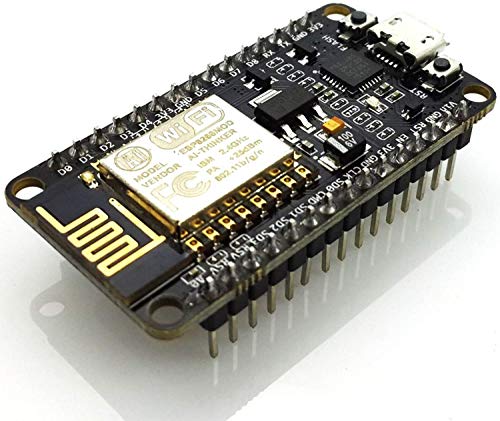

•Two way independent control NodeMCU Open source IoT platform
•Easily programmable
•Cost effective
•Simple to use

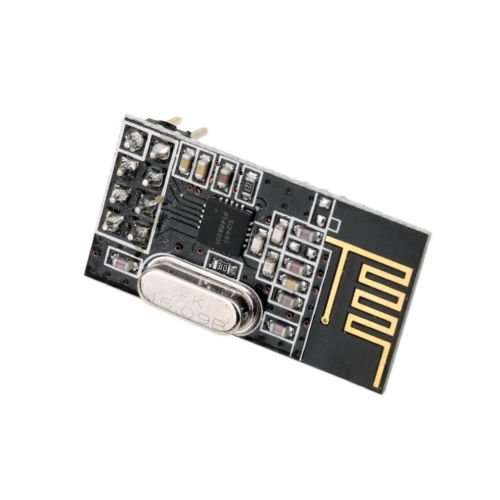

•Wi-Fi enabled NRF Maximum operating speed up to 2Mbps
•GFSK modulation efficiency
•Anti-interference ability
•Multi-point communication
•Multipoint communication address control
•Built-in hardware CRC error detection
•MB102 (LxWxH) : 53 x 32 x 23 mm NodeMCU (LxWxH) : 4 x 4 x 3 cm NRF (LxWxH) : 28 x 15 x 12 mm
•MB102 Power Regulation module can be used to provide 5V and 3V3 power supply to your breadboard based project. NodeMcu is an open-source firmware and development kit that helps you to prototype your IoT product with few Lua script lines. NRF24L01 module has several applications such as communication between two devices directly, home automation, wireless alarm systems, robot control and monitoring systems, remote sensing of temperatures and pressures or any sensor output, etc.
•MB102 Input Voltage : 6.5-12V (DC) or USB power Output voltage : 3.3V to 5V switchable Maximum Output Current : <700mA NodeMCU Output Power(dBm) : 19.5 @802.11b Mode Support : SDIO 1.1/2.0, SPI, UART IC : CH340g USB to TTL GPIO : 10 GPIO, every GPIO can be PWM NRF Low working voltage : 1.9 to 3.6 V I/O input voltage : 5V Wireless rate : 1 or 2 MBPS SPI interface rate : 0 to 8MBPS Transmission distance : 200 meters
