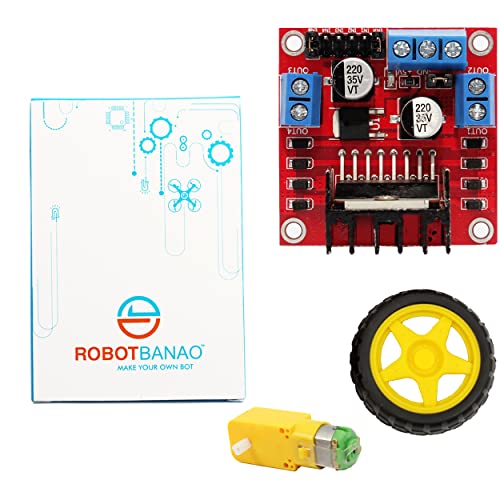

Robotbanao L298N Motor Drive Controller Kit - Includes BO Motor, BO Wheel and L298n Motor Driver Module
80+ customers visited this product in the past 30 days

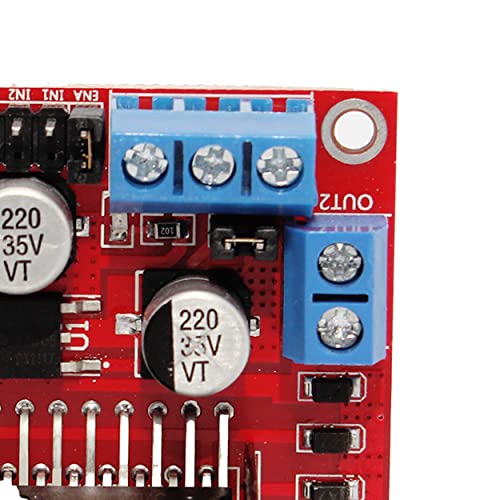

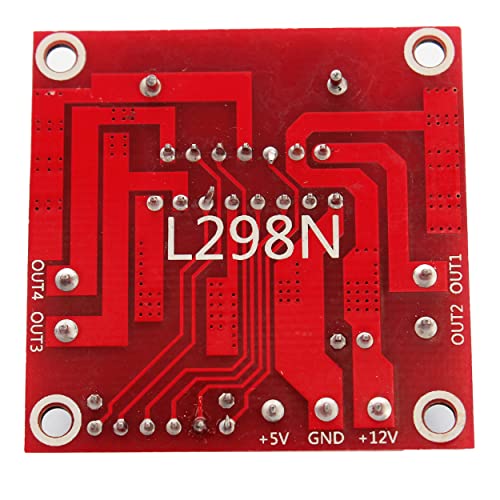

•Robotbanao L298N Motor Driver Controller Module is a high power motor driver for driving DC and Stepper motors. It can control upto 4 DC motors, or 2 DC motors with directional and speed control. This motor driver is for robotics and mechatronics projects. The 150 RPM Dual Shaft BO Motor is a straight motor which gives good torque and RPM at lower operating voltages. It is a geared DC Motor. It is an alternative to metal gear DC motors. The 65MM Wheel is made up of standard grade rubber.
•L298N: Current Sense for each motor
•Heatsink for better performance
•Power-On LED indicator
•Directional control
•Speed control
•High power motor
•BO motor: Low density and inertia
•Capability to absorb shock and vibration as a result of elastic compliance
•Ability to operate with minimum or no lubrication
•The L298N motor driver is perfect for robotics and mechatronics projects. It can also be used for controlling motors from microcontrollers, switches, relays, etc. It is capable of driving DC and Stepper motors for micro mouse, line following robots, robot arms, etc. The BO motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install and ideally suited for use in a mobile robot car. The 65mm wheel is only compatible with BO motor.
•L298N: Input Voltage:3.2V-40V DC
•L298N Dual H-Bridge DC Motor Driver
•Operating voltage:DC 5V-35V
•Peak Current:2Amps
•Speed Control:PWM
•Control Signal input voltage range:0.3V≤Vin≤1.5V (Low), 2.3≤Vin≤Vss (High)
•Max. power consumption:20W (when the temperature T=75℃)
