Robotbanao 16x2 Characters (1602) Alphanumeric LCD Display With IIC/I2C Serial Interface Adapter Module - Blue Backlight - White Text

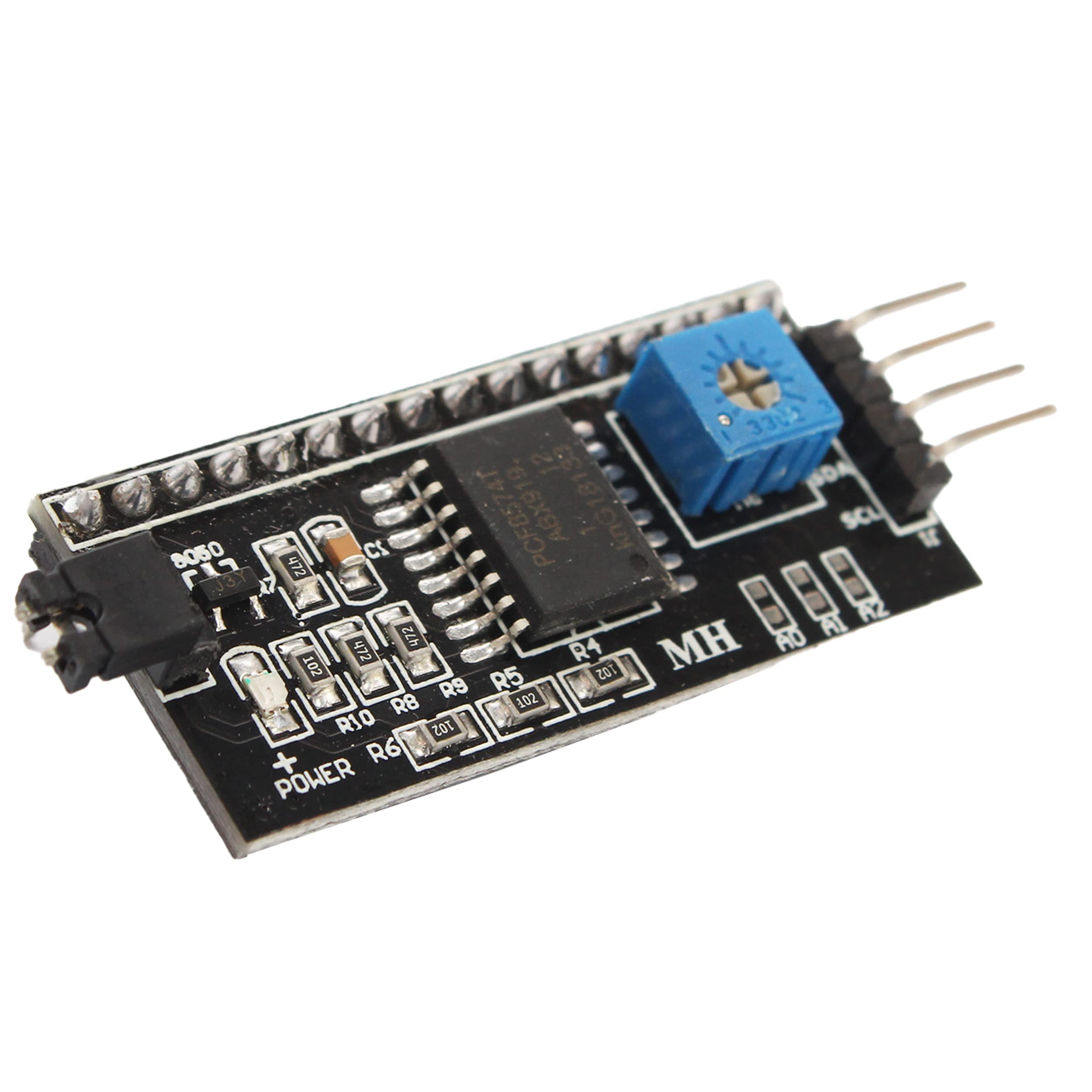

•The alphanumeric display is a simple 16 characters by 2 line display. It has white text on a blue background. The I2C module makes connection and programming a display easy. It translates the data received from the I2C Bus into parallel data that is required for the LCD Display. The I2C interface module will let you realize data display with only 2 wires.
•16x2 LCD display Alphanumeric display
•Blue backlight
•White Text
•Backlight and contrast adjustment
•Works with almost any microcontroller
•Single LED backlight
•Contrast control via a potentiometer I2C module Flexibility in connections
•Reduces overall wirings
•Can have 8 modules on a single I2C bus
•Backlight can be enabled or disabled
•Module dimension (LxWxH) : 80 x 36 x 15 mm Viewing area size (LxW) : 64.5 x 16 mm Display : 2 lines x 16 characters
•This module makes connection and programming a display quick and easy. The Inter-integrated Circuit (I2C/IIC) is a two-wire short distance communication protocol. It can be used with multiple slave devices in the same two wires with one or more master controllers. The LCD Alphanumeric display is to support the I2C. It is used to read or write data.
•Alphanumeric display Number of rows : 2 Number of characters : 16 Character colour : White Backlight : Blue Input Voltage (V) : 5 I2C module Operating Voltage : 5V Chip : PCF8574 I2C chip Compatibility : 16x2 LCD Wires required : 2
