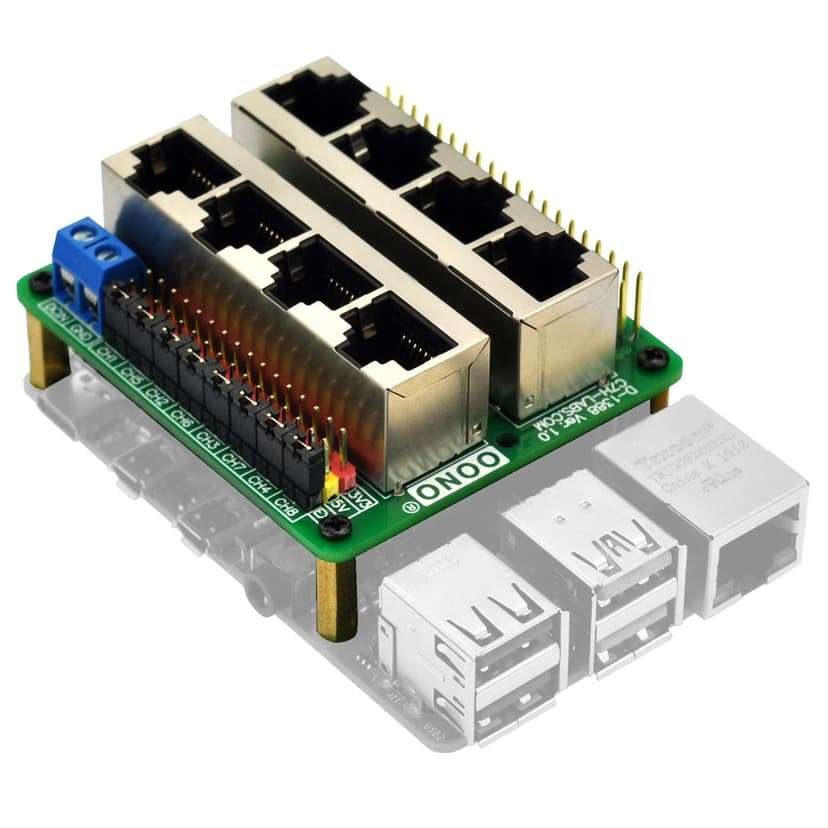

RJ45 GPIO Pinout Breakout Board for Raspberry Pi 1A+ 1B+ 2B 3B 3B+ 3A+ 4B Zero-W
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•8 port(2x4) RJ45 8P8C sockets, with the module you can easily connect Raspberry Pi GPIOs and Power supply to peripheral devices through the RJ45 connector. The module support all 40pin Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B Zero, Zero-W.
•Each RJ45 port is connected Power Supply and GND. Each RJ45 can independently choose from the Raspberry Pi 5V / 3.3V, or from blue terminal block, to supply power to external devices. The 4 5 pin of all RJ45 ports are connected to the power supply(VCC, V+), and 7 8 pin connected to GND(0V).
•RJ45 GPIO connects: Port 1: UART(RXD TXD) GPIO17 GPIO4. Port 2: SPI(SCLK CE0 MISO MOSI). Port 3: GPIO6 GPIO12 GPIO5 CE1. Port 4: GPIO21 GPIO26 GPIO20 GPIO19. Port 5: I2C(SDA, SCL) GPIO18 GPIO27. Port 6: I2C(SDA, SCL) GPIO23 GPIO22. Port 7: I2C(SDA, SCL) GPIO24 GPIO25. Port 8: I2C(SDA, SCL) GPIO13 GPIO16.
