RGB Full-Color LED Matrix Module for Raspberry Pi Pico, 16×10 Grid,with Embedded Controller IC and LED Chip,Programmed and Controlled by Pico,High Standard and Colorful Dot Matrix Visual Effects
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

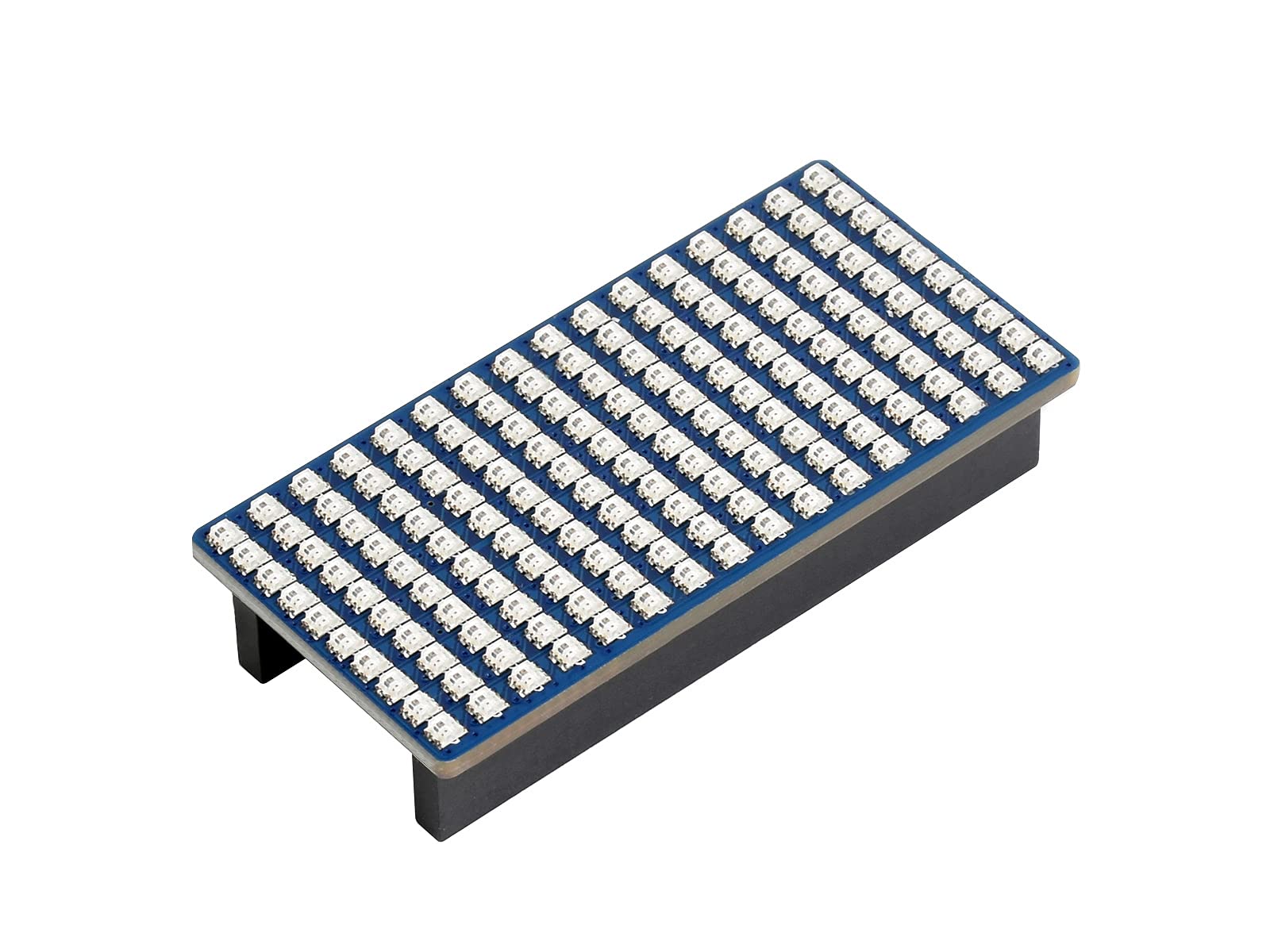

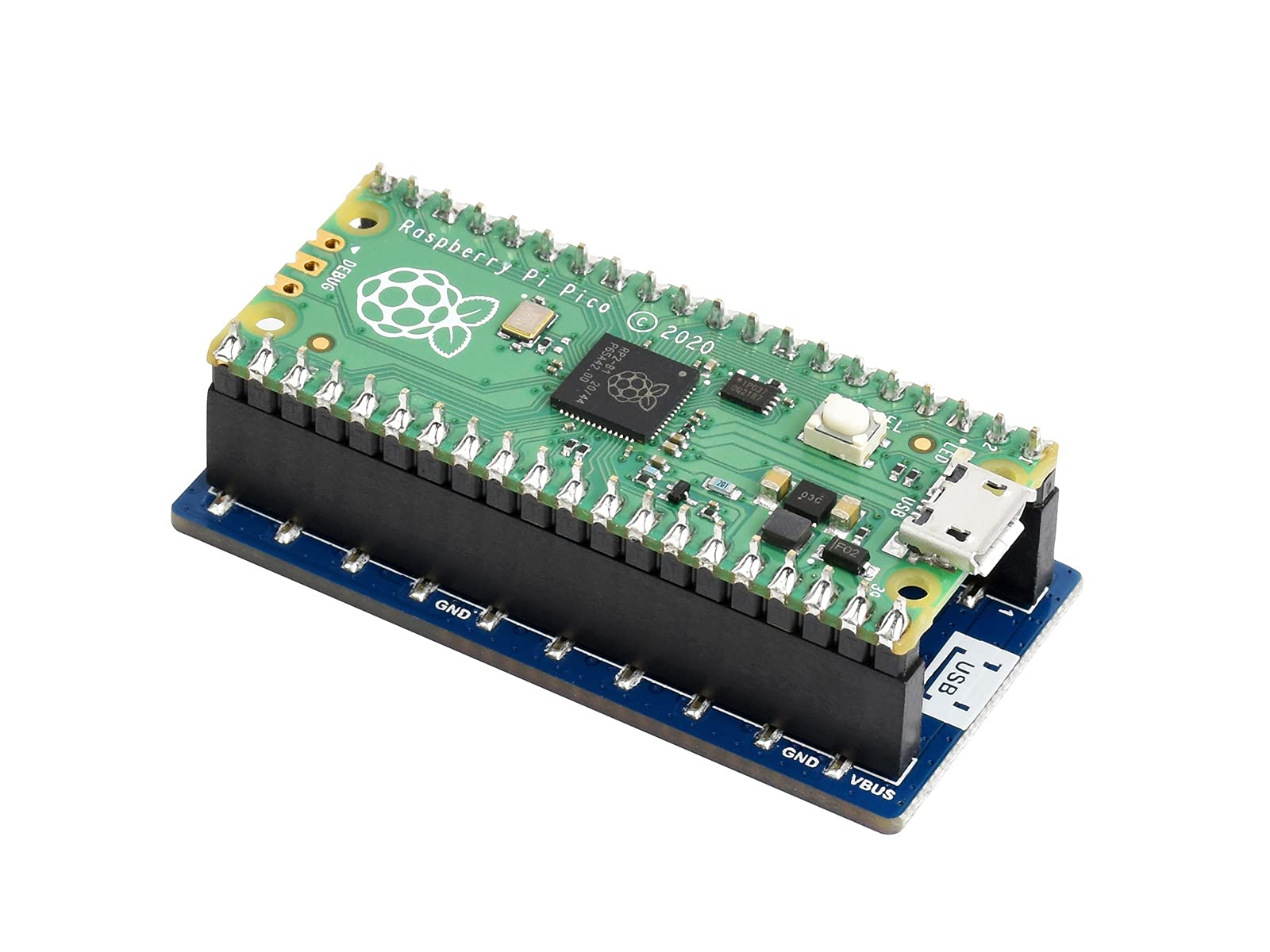

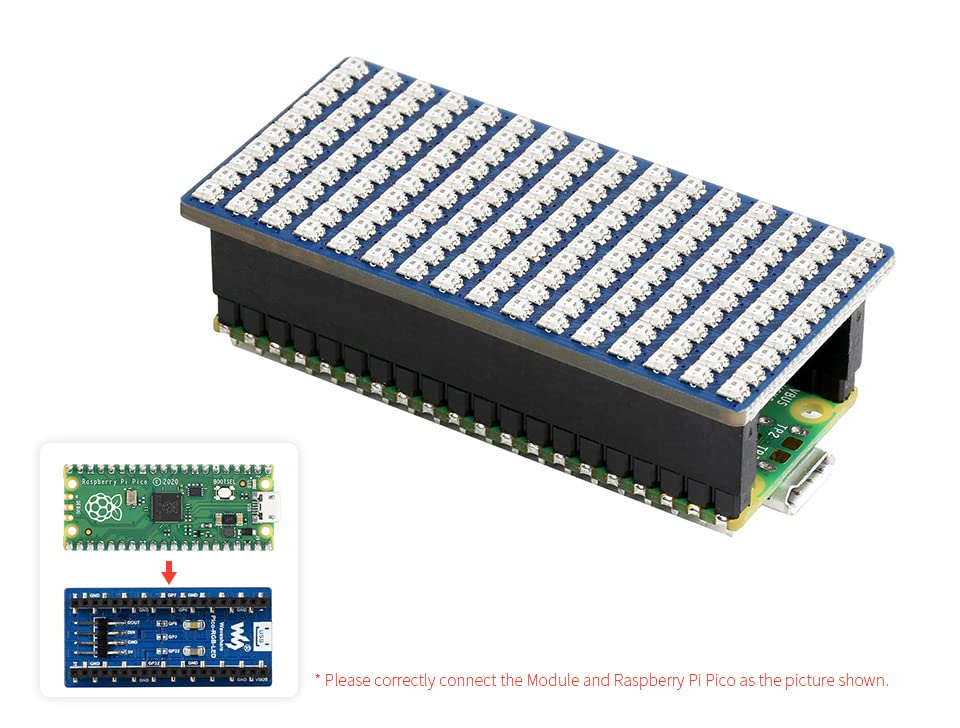

•The Pico-RGB-LED is an LED matrix module designed for Raspberry Pi Pico, which has 160 (16×10) RGB full-color external-controlled constant current integrated LEDs, with embedded quality controller IC and LED chip. It is small in size, uses very few peripheral components, and presents a clean-looking front panel. Controlled by a Raspberry Pi Pico, this LED panel is programable for high level, colorful matrix display.

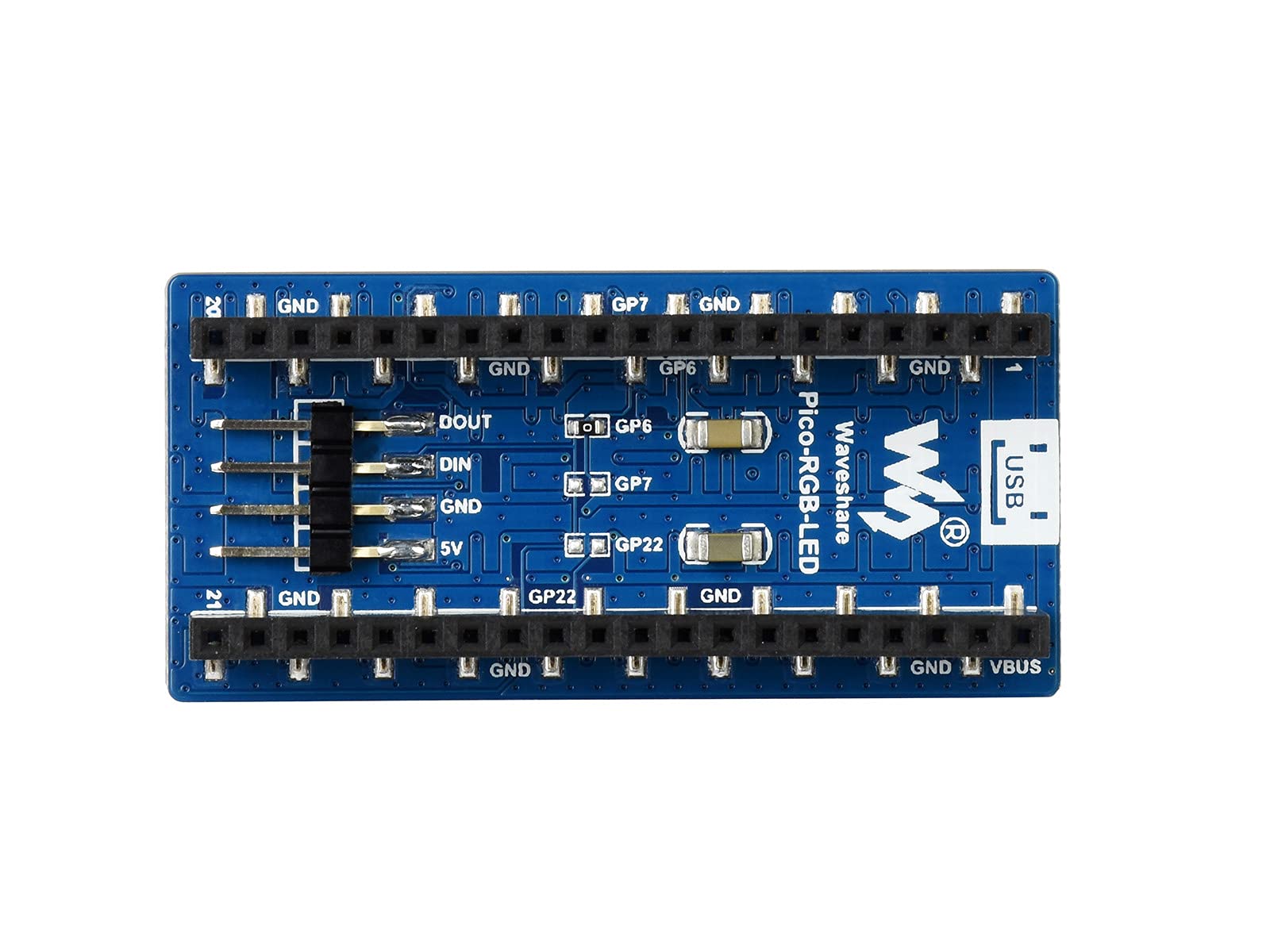

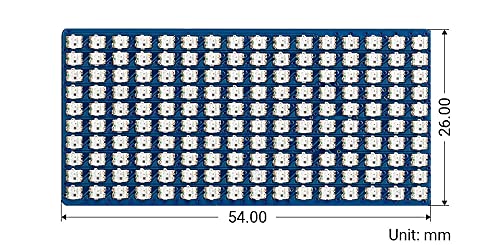

•160 RGB LEDs arranged in 16×10 grid, multiple IO selection. Right-angled 2.54mm pitch male pinheader on the bottom, for easy extension
•0807 colorful LEDs, integrating quality single wire cascading constant current driver IC and quality RGB LED chip, aka external-controlled constant current integrated LEDs
•Embedded controller IC, with features like high reliability, high anti-interference performance, high constant current accuracy, and low power consumption. Integrated quality LED chip, with high consistent brightness and pure white light effect, lower light degradation.
•Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples). Resources/User Manual:waveshare.com/wiki/Pico-RGB-LED
