Feature:

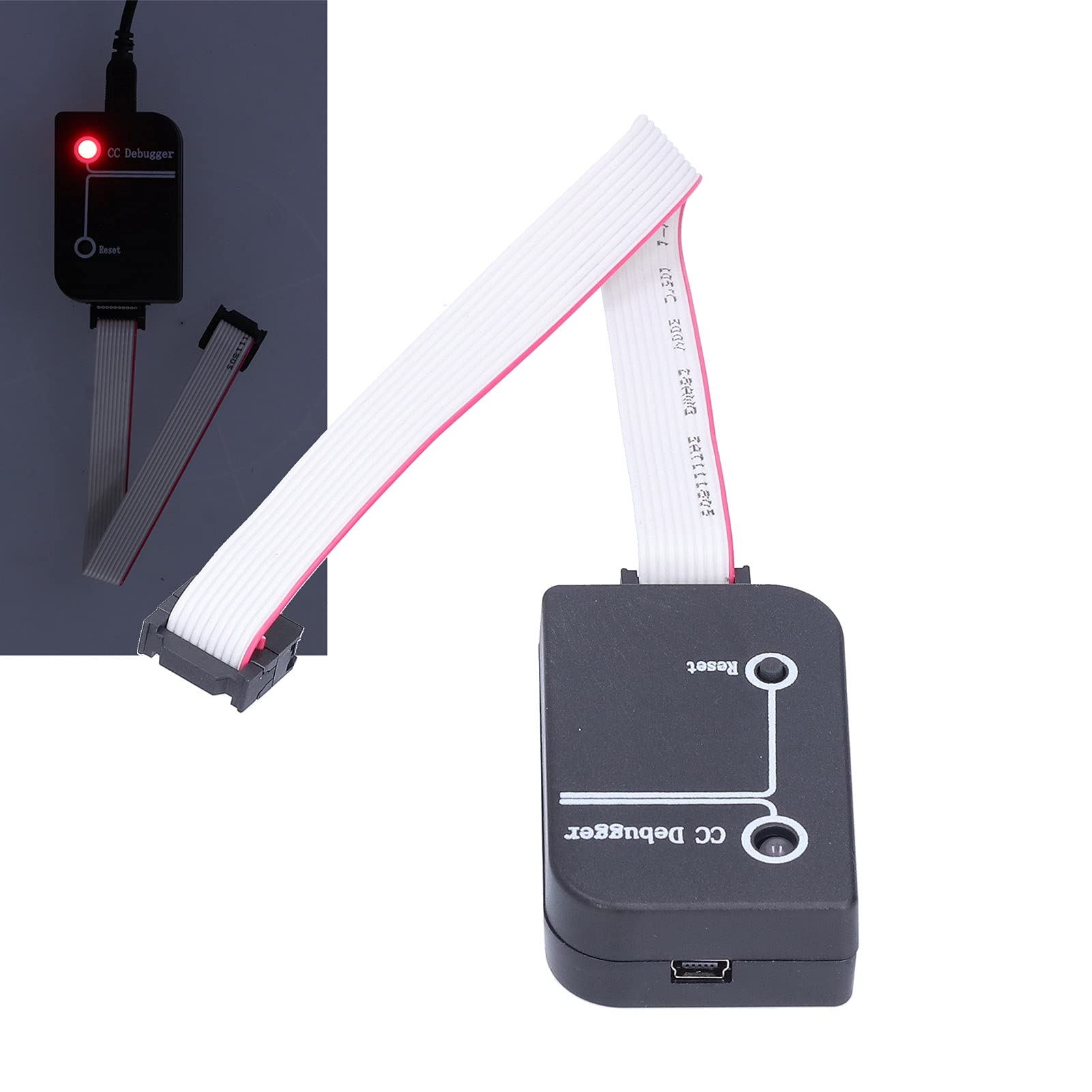

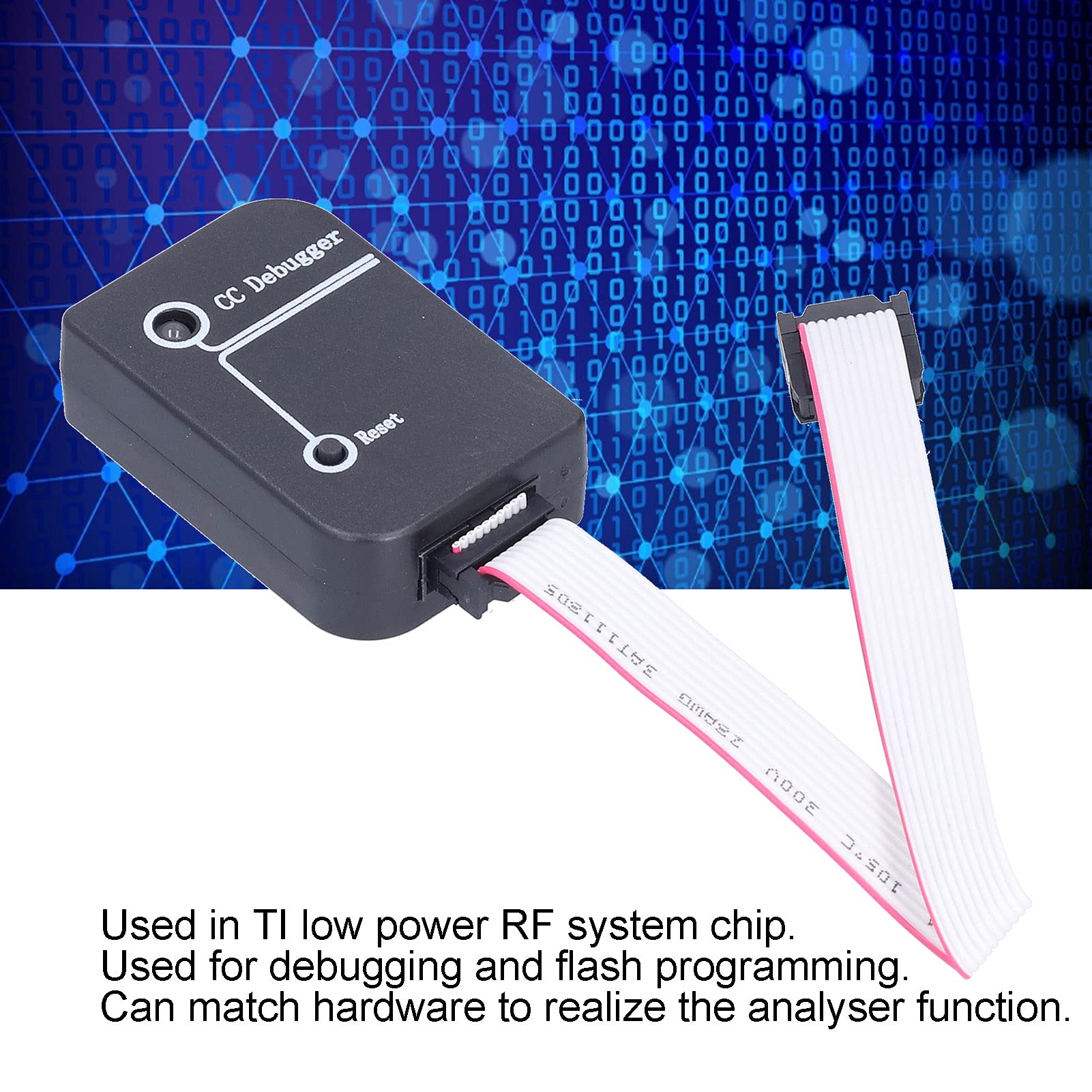

1. CC debugger is a small programmer and debugger for TI low power RF system chips.
2. Can also be used to control selected devices of for SmartRF Studio, very convenient.
3. Can be used with for IAR Embedded Workbench for 8051 (7.51A or higher) for debugging and for SmartRF Flash Programmer for flash memory programming.
4. You can match it with hardware to realize analyser function, and the sniffer board with shell is and anti static.
5. Can program and simulate a variety of chips, including CC1110, CC1111, CC2430, CC2431, CC2510, CC2511, CC2530, etc.
Specification:
Item Type: CC Debugger
Material: ABS + Printed Circuit Board
Function: Used for TI low power RF system chip.

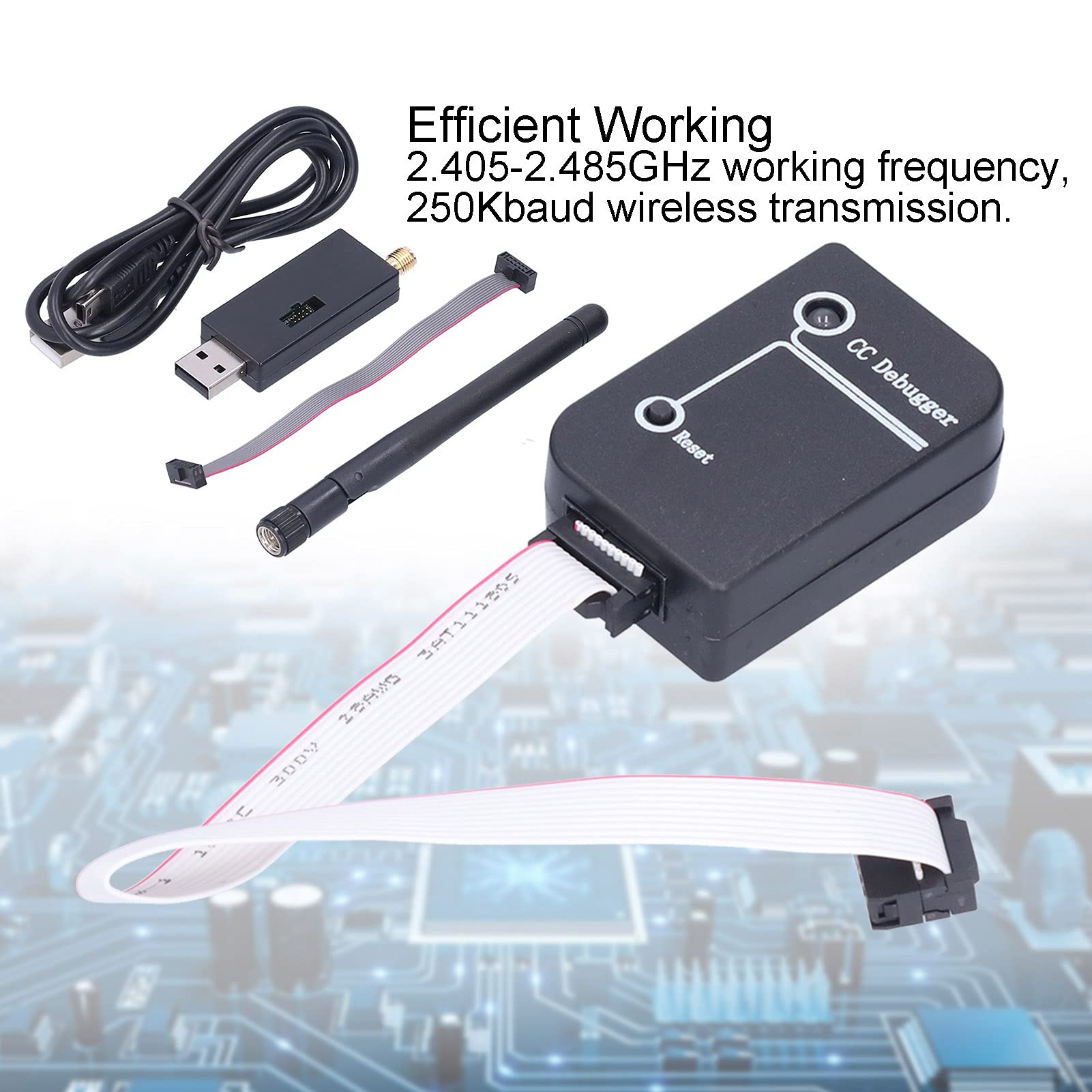

Working Frequency: 2.405-2.485GHz
Rate: 250Kbaud
Power Consumption: <20mA (receiving); <25mA (transmitting)
The Chips that the Programmer Can Program and Simulate are: CC1110, CC1111, CC2430, CC2431, CC2510, CC2511, CC2530, CC2531, CC2533, CC2540, CC2541, CC2543, CC2544, CC2545
The Same Device can be Controlled from for SmartRF Studio. Can Control the Following Transceivers from for SmartRF Studio: CC1120, CC1121, CC1125, CC1175, CC1100, CC1101, CC110L, CC113L, CC115L, CC2500, CC2520
Can Also be Used to Program for PurePath Devices: CC8520, CC8521, CC8530, CC8531
Working: Can work with 7.51A or higher version of for IAR EW8051.

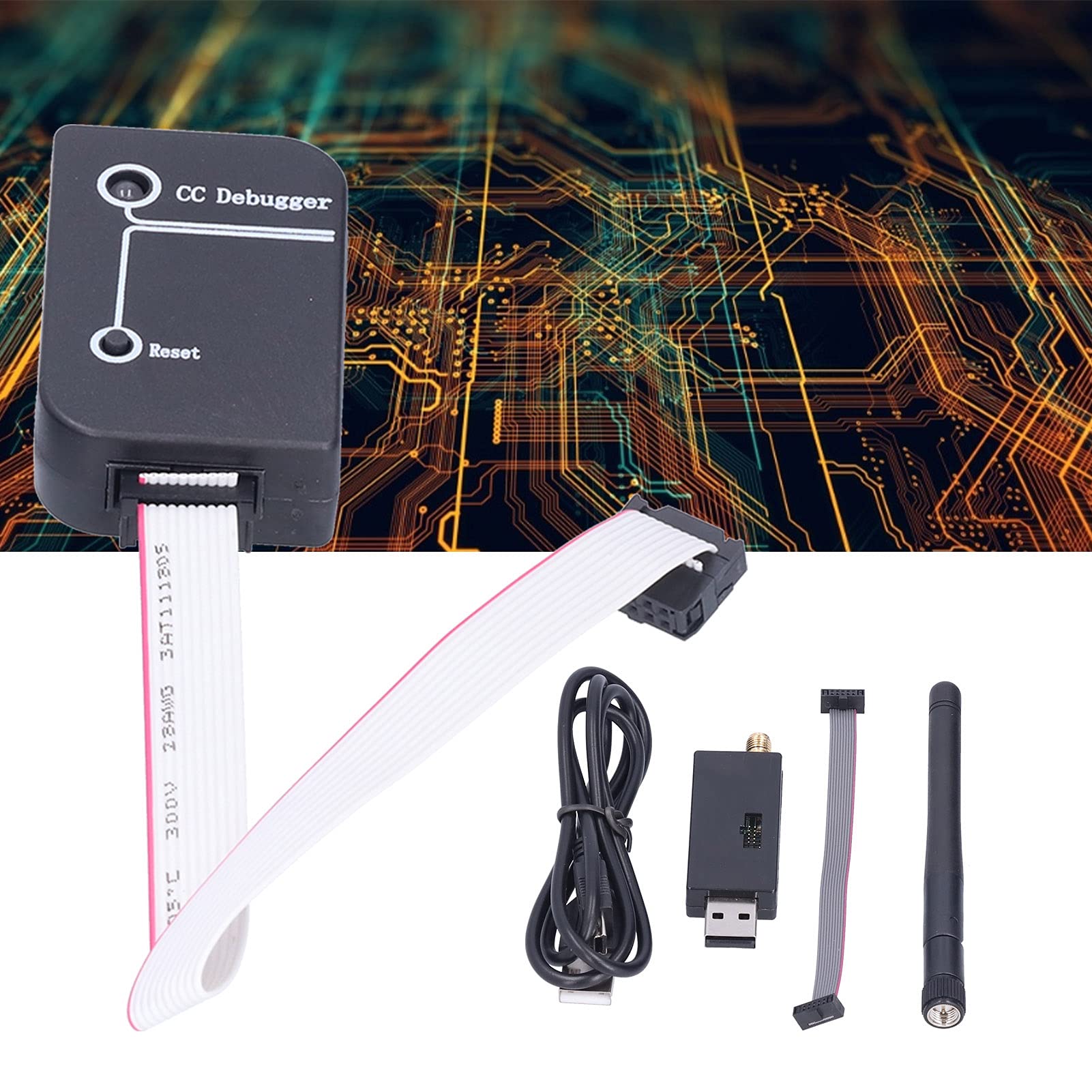

Package List:
1 x CC Debugger
1 x Sniffer Board
1 x Antenna
3 x Programming Line
1 x Adapter Board
1 x USB Cable
Note:
Do not place the product in an environment that is too corrosive, humid and high temperature.
