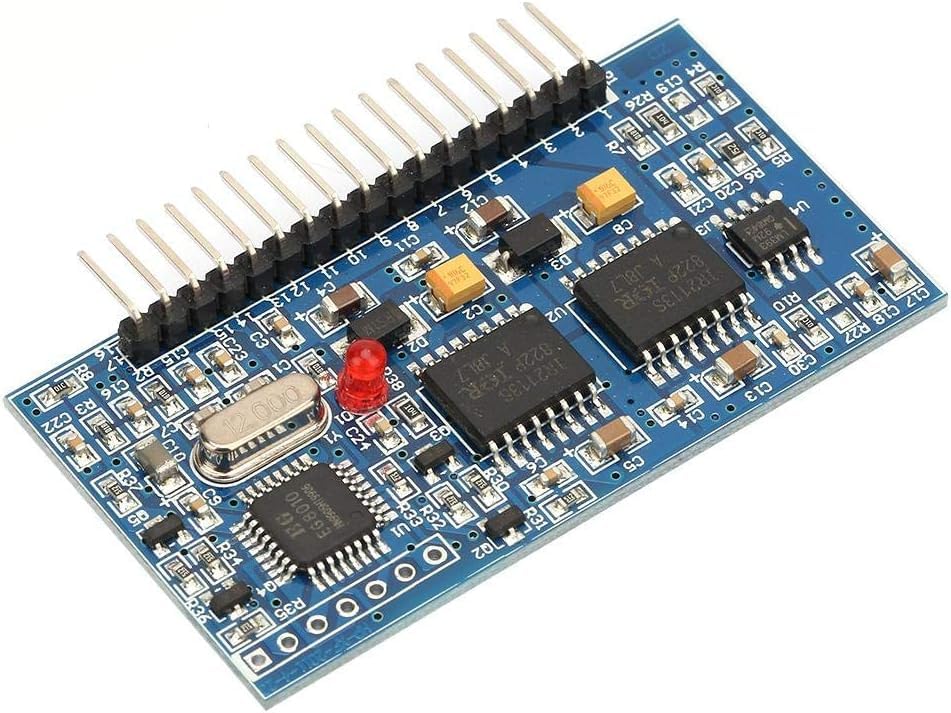

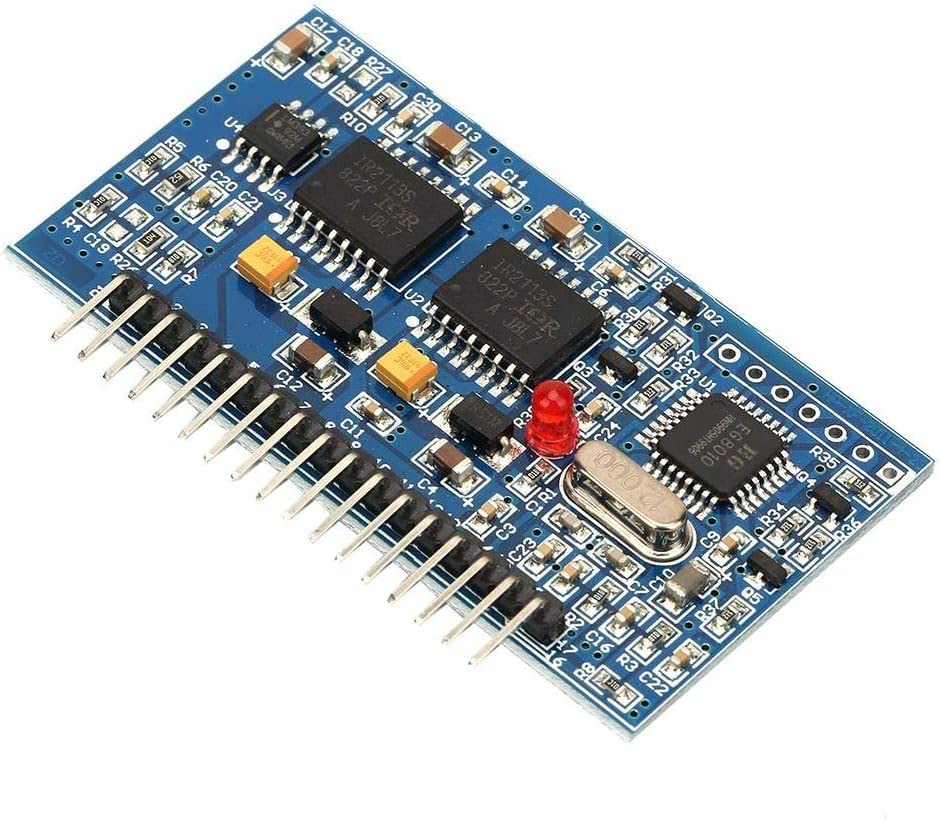

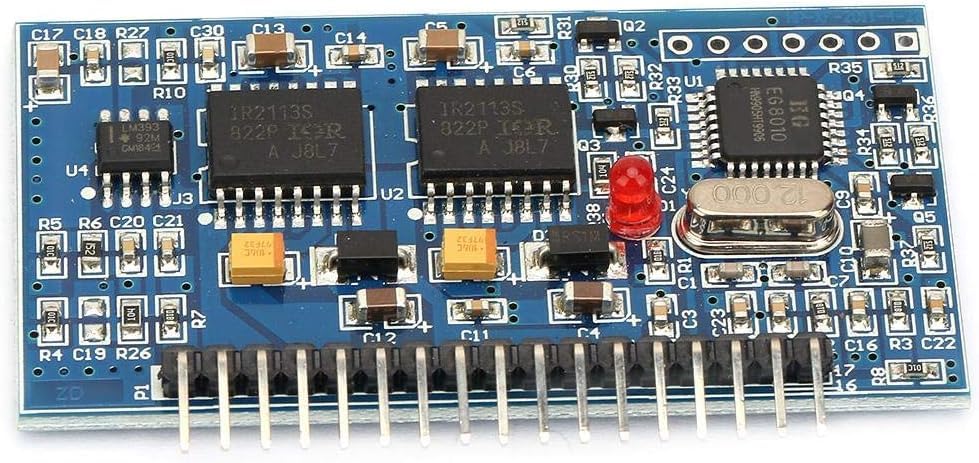

REES52 Pure Sine Driver, Inverter Driver Module EGS002 EG8010 IR2110 23.4KHZ PWM Carrier Frequency
•EG8010 is a digital, fully functional pure sine inverter generator chip with dead zone control. It is applied to DC-DC-AC two-stage power conversion architecture or DC-AC single-stage power frequency transformer boost converter. Architecture, external 12MHz crystal oscillator, can realize pure sine 50Hz or 60Hz inverter chip with high precision, distortion and harmonics.
•The chip adopts CMOS technology and integrates SPWM sine generator, dead time control circuit, amplitude factor multiplier, soft start circuit, protection circuit, RS232 serial communication interface and 12832 serial LCD driver module.
•Pure sine inverter driver board EGS002 EG8010 IR2110 driver module. Unipolar and bipolar modulation. Real-time processing of voltage, current and temperature feedback.
•With dead zone control, the pin sets 4 dead time: 300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time. Pin setting soft start mode 1S response time.
•Serial communication sets output voltage, frequency and other parameters. The external serial port 12832 liquid crystal display module displays the voltage, frequency, temperature and current of the inverter.
