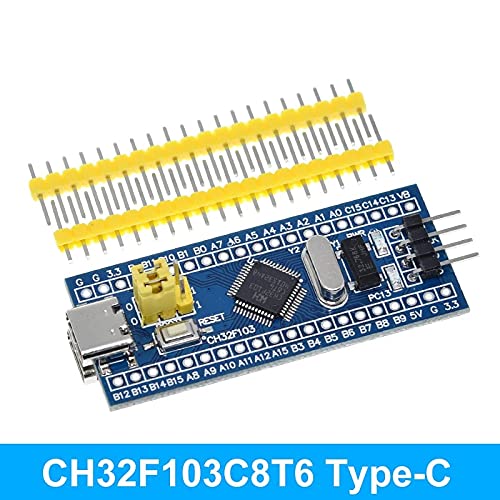

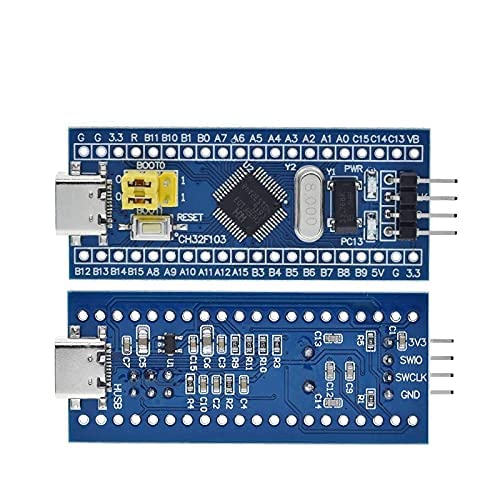

RedTagCanada STM32F103C8T6 ARM STM32 Minimum Development Board Module for Arduino DIY Kit CH32F103C8T6, USB Type-C Interface

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•★Storage resources: 64K Byte Flash, 20KByte SRAM
•★Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports
•★Analog-to-digital conversion: 2x ADC (12-bit / 16-channel)
•★2.768KHz Crystal: Available for built-in RTC, or for calibration
•★8M Crystal: The frequency can be set to make the system clocked at 72MHz
•★Reset button: reset chip for the user program
•★Start jumping choose programming mode: (1, the user flash memory 2, SRAM 3, system memory)
•★The user LED (PC13): to facilitate the I / O output test or indicate the program running
•★Power LED (PWR): Power indicator status, can determine whether the power supply is stable

RedTagCanada STM32F103C8T6 ARM STM32 Minimum Development Board Module for Arduino DIY Kit CH32F103C8T6, USB Type-C Interface

RedTagCanada STM32F103C8T6 ARM STM32 Minimum Development Board Module for Arduino DIY Kit CH32F103C8T6, USB Type-C Interface
