RATTMMOTOR DM800 3 Axis Standalone CNC Motion Offline Controller with MPG E-stop Handwheel Hand Control Support Ethernet, G-code
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•The DM800 is a PC-less CNC control. By simply installing a USB stick inside the G-CODE file, the DM800 can read G-files and run G-files.

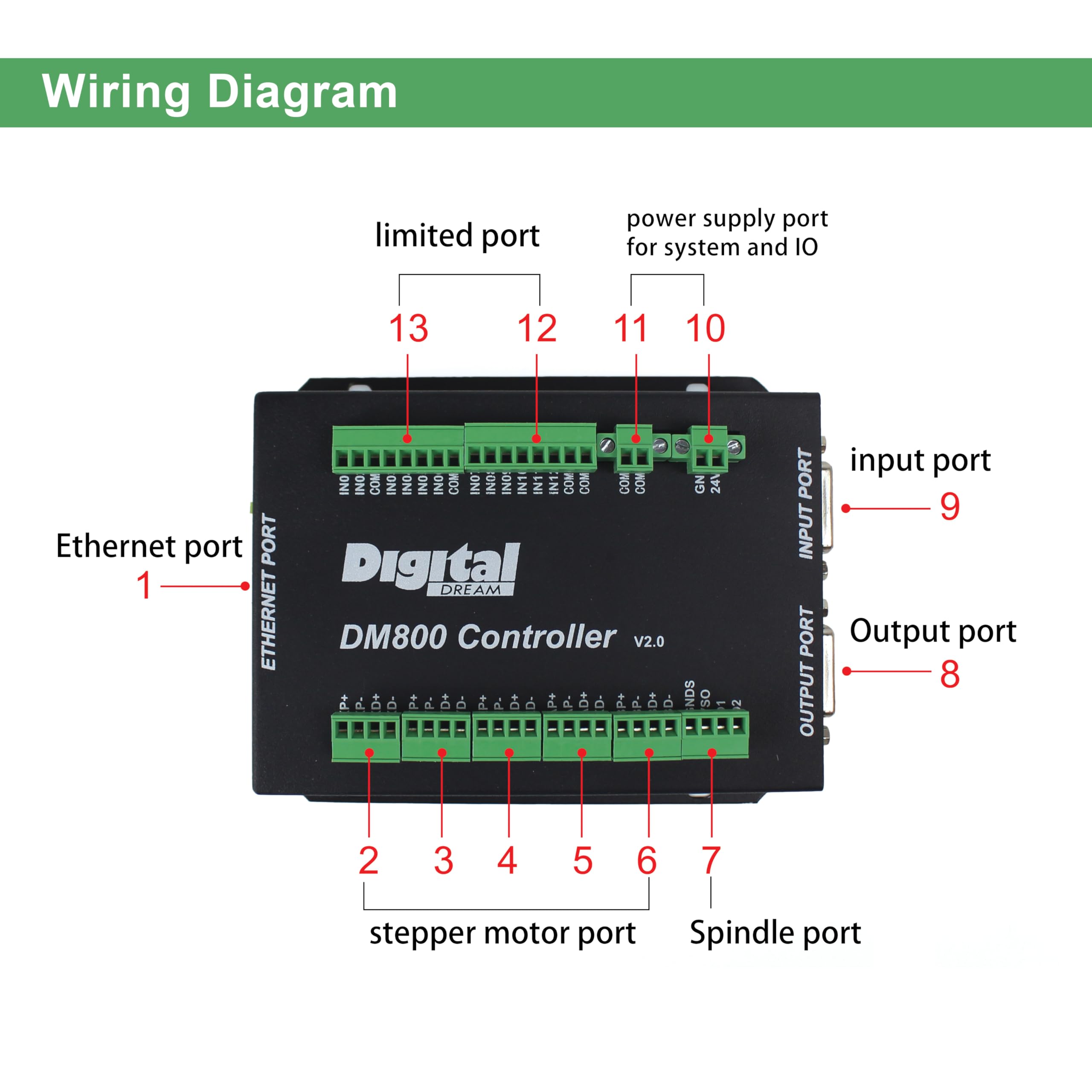

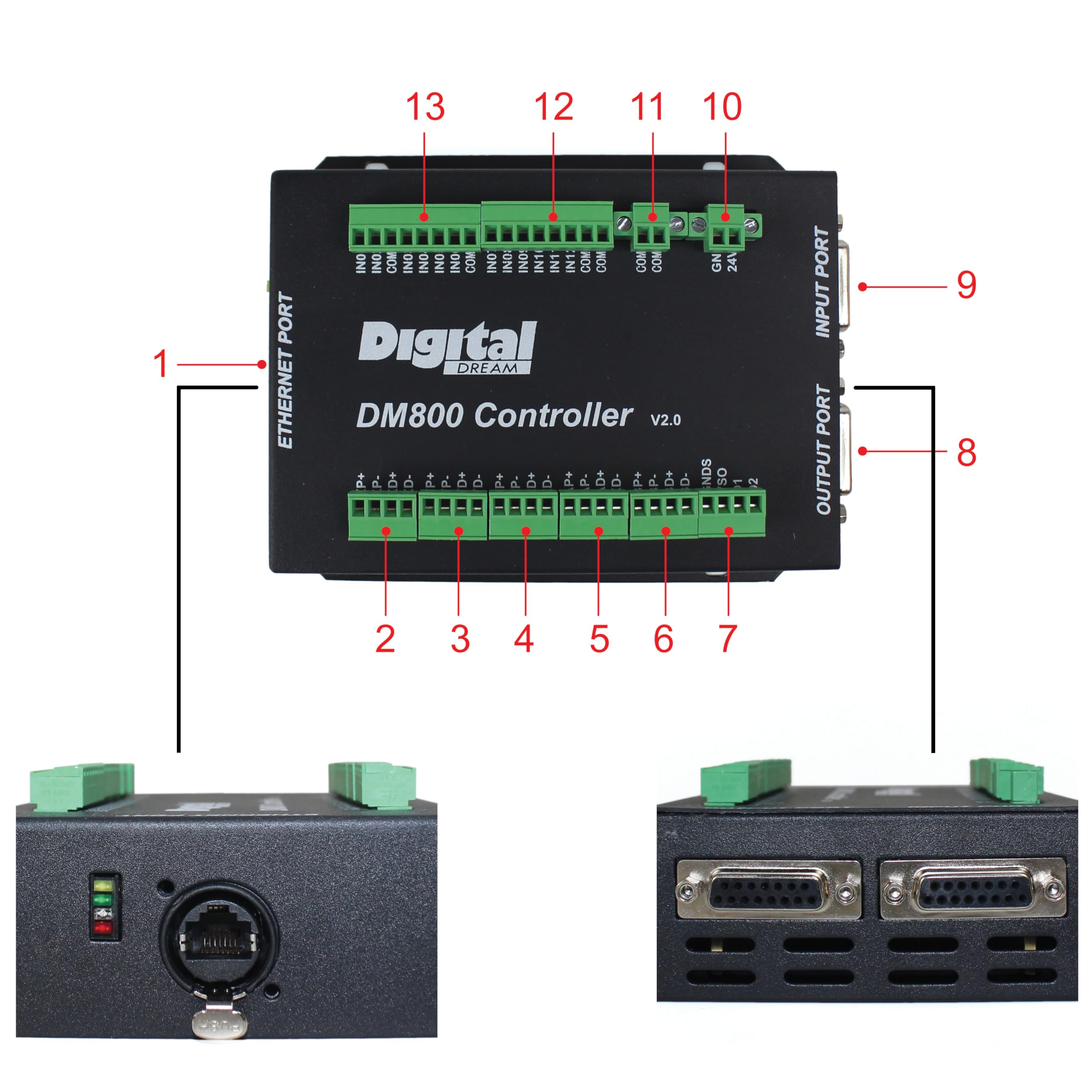

•Ethernet communication from the joystick to the motherboard; 20-port optically isolated input interface; 12-port optically isolated output interface; Supports 3-axis stepping system with 460KHz pulse output per axis.
•Support 3-axis stepping system, 460KHz pulse output per axis; ARM motion control chip; 24VDC power input for main device, current should be more than 1A.

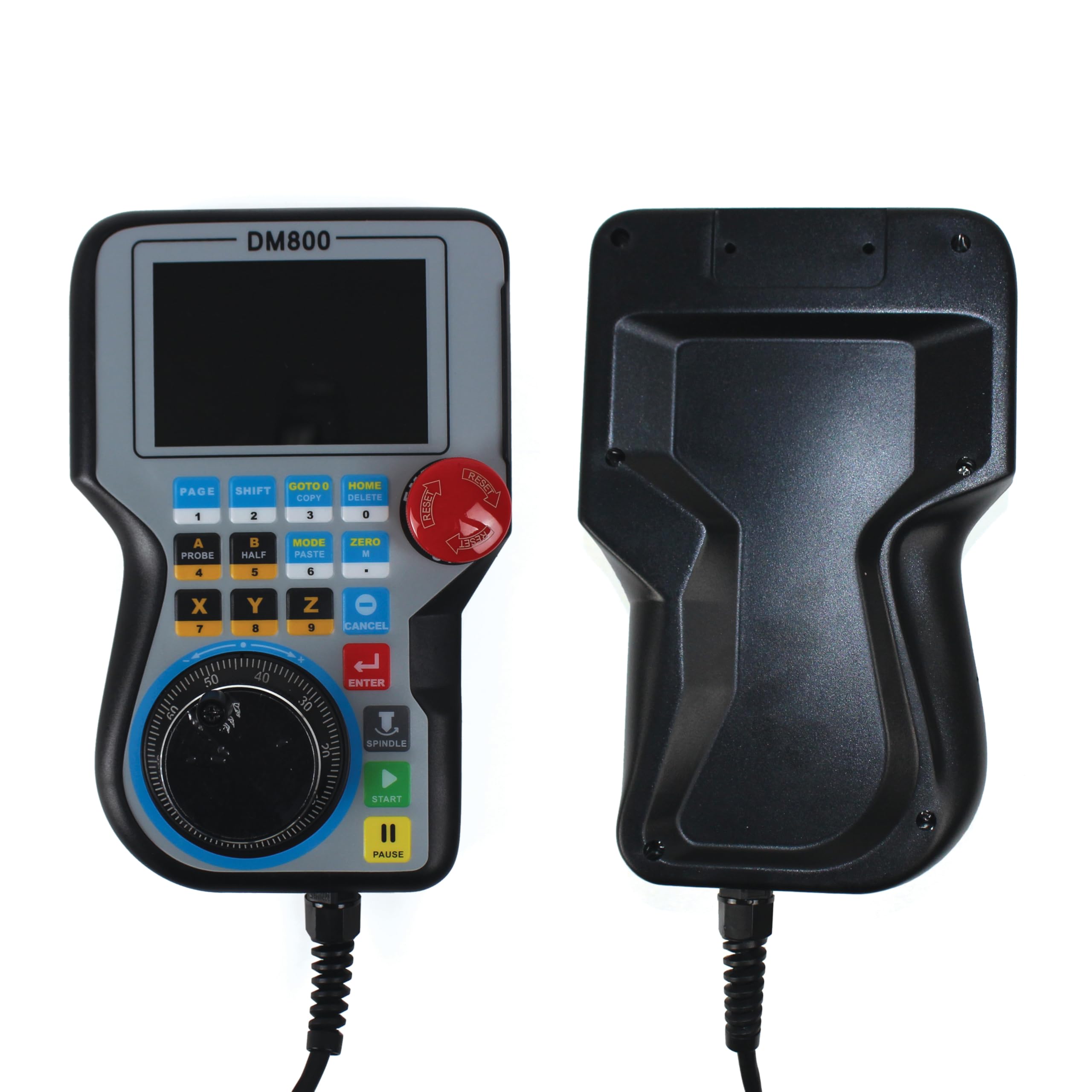

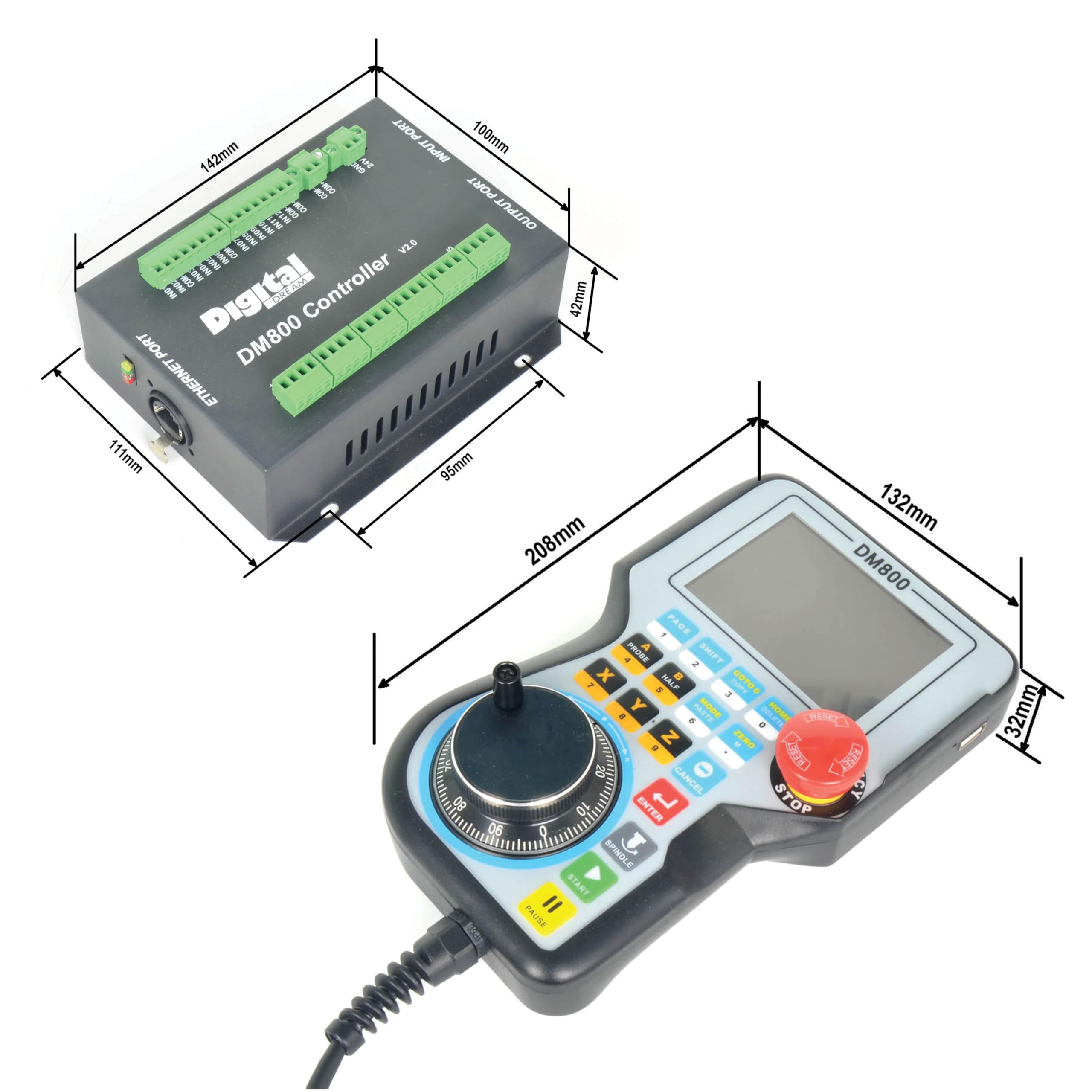

•Built-in SD card; Built-in hand pulse; 3.8-inch TFT screen; 16 user keys; Total size of hand control system DM800 is 208mm*132mm*32mm; Total size of host system DM800 is 142mm*100mm*42mm.
•Support a variety of CNC equipment, such as plasma, flame and other CNC engraving machines, woodworking jigs, advertising, stone and other engraving machines, CNC carving and milling machines, automation equipment, automated welding, etc.
