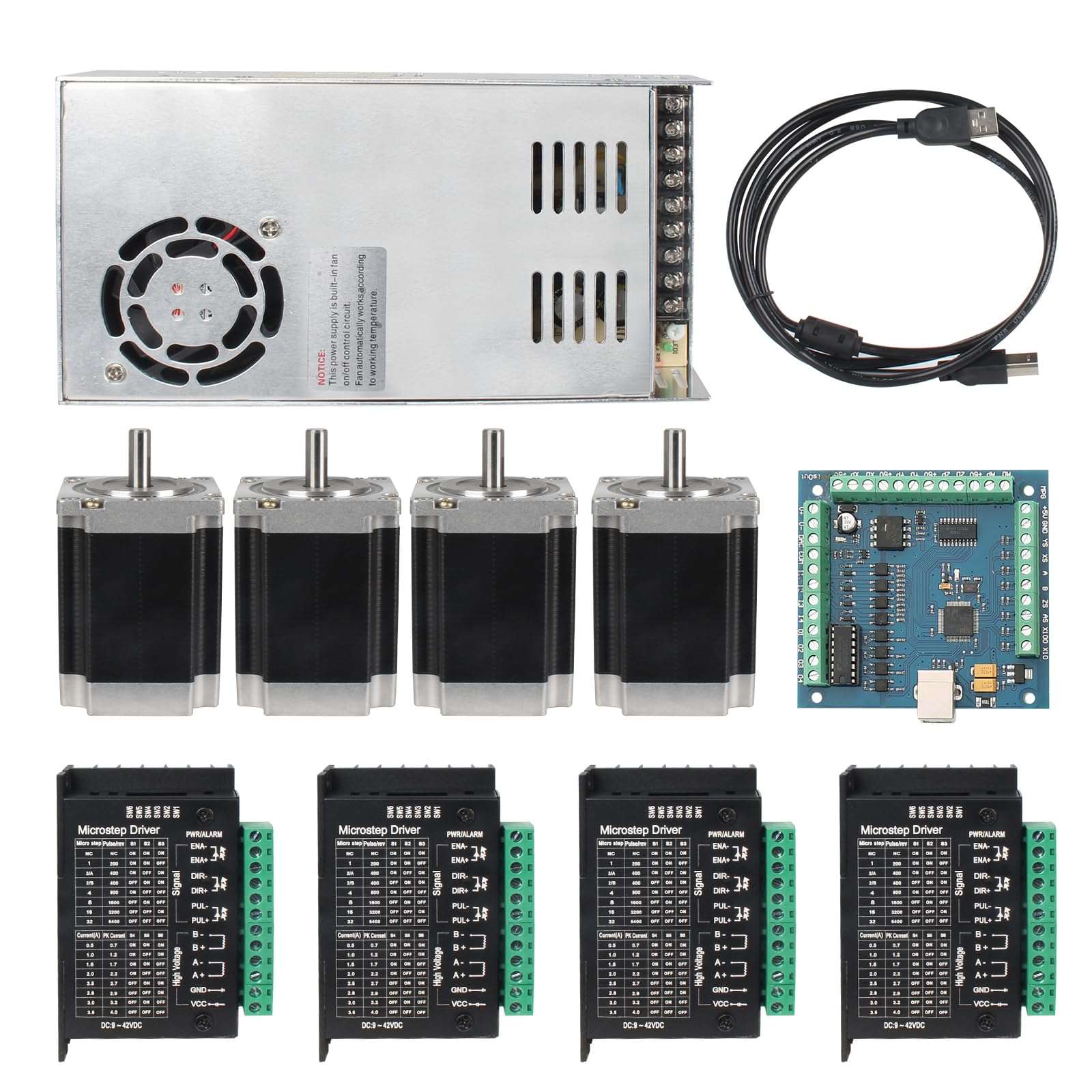

RATTMMOTOR CNC Controller Kit, 4 Axis CNC Kit with Nema23 Stepper Motor 57*76mm 270Oz-in 3A 1.8Nm, TB6600 Driver 4A, USB Mach3 CNC Motion Control Card Breakout Board, 24V Power Supply for CNC Machine

From USA

NewRATTMMOTOR

RATTMMOTOR CNC Controller Kit, 4 Axis CNC Kit with Nema23 Stepper Motor 57*76mm 270Oz-in 3A 1.8Nm, TB6600 Driver 4A, USB Mach3 CNC Motion Control Card Breakout Board, 24V Power Supply for CNC Machine

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

Shop with confidence

Google

4.7/5

Reviews & profile

Trustpilot

4.5/5

Customer reviews

RATTMMOTOR CNC Controller Kit, 4 Axis CNC Kit Nema23 Stepper M | Shop The World

From USA

NewRATTMMOTOR

RATTMMOTOR CNC Controller Kit, 4 Axis CNC Kit with Nema23 Stepper Motor 57*76mm 270Oz-in 3A 1.8Nm, TB6600 Driver 4A, USB Mach3 CNC Motion Control Card Breakout Board, 24V Power Supply for CNC Machine

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•【Motor and TB6600 Driver wiring】Stepper motor's RED wire connects to driver's A+ port. Stepper motor's GREEN wire connects to driver's A- port. Stepper motor's YELLOW wire connects to driver's B+ port. Stepper motor's BLUE wire connects to driver's B- port.

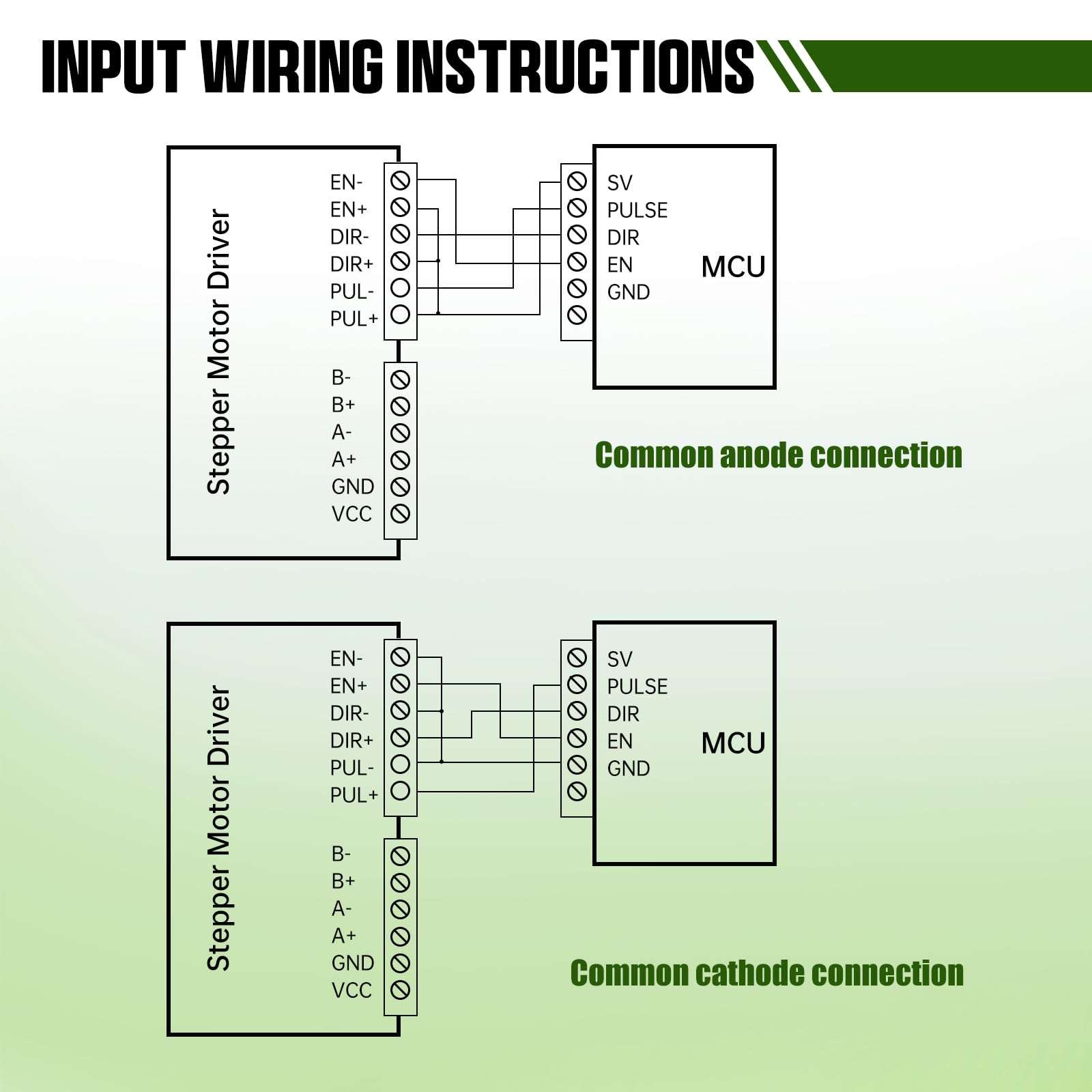

•【Control Card and TB6600 Driver wiring (X-axis as an example) 】Driver's "Pul+" connects to control card's XP+ pin , Driver's "DIR+" connects to control card's XD+ pin , Driver's " PUL- " pin and " DIR- " connection to USB Mach3 control card's " 5V "".

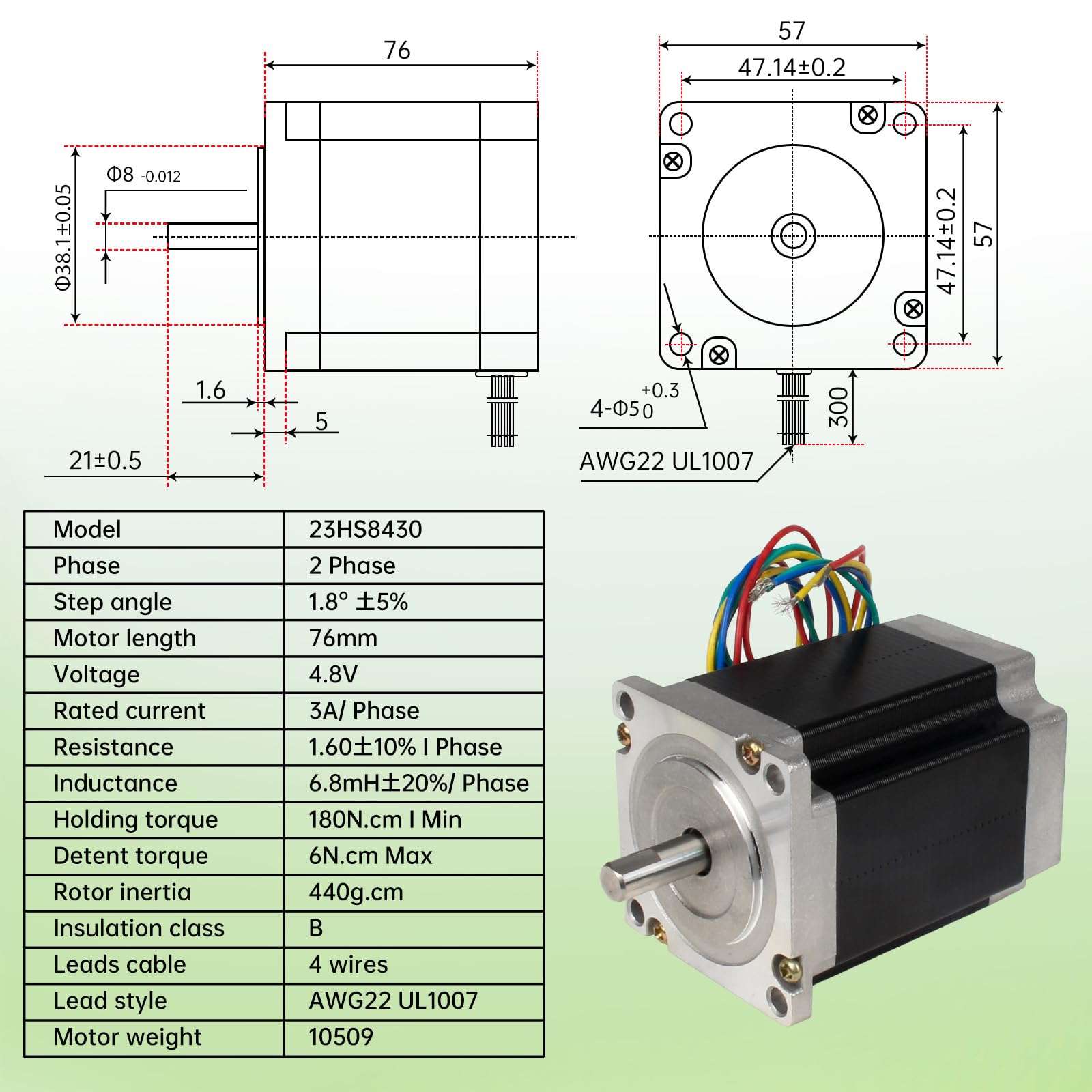

•【Low Noise/High Torque Hybrid Stepper Motor】23HS8430 2-phase stepper motor with a shaft diameter of 8mm, a current of 3A and an angle of 1.8°, is made of durable metal on the outside, and the perfect combination of rubber and rotor fills up the inner space and stabilizes the overall structure of the motor. The coils are made of pure copper enameled wire and the torque is up to 270oz-in (180N.cm/18kg-cm). The motor runs quietly and doesn't cause the generator to become too hot over a long time.

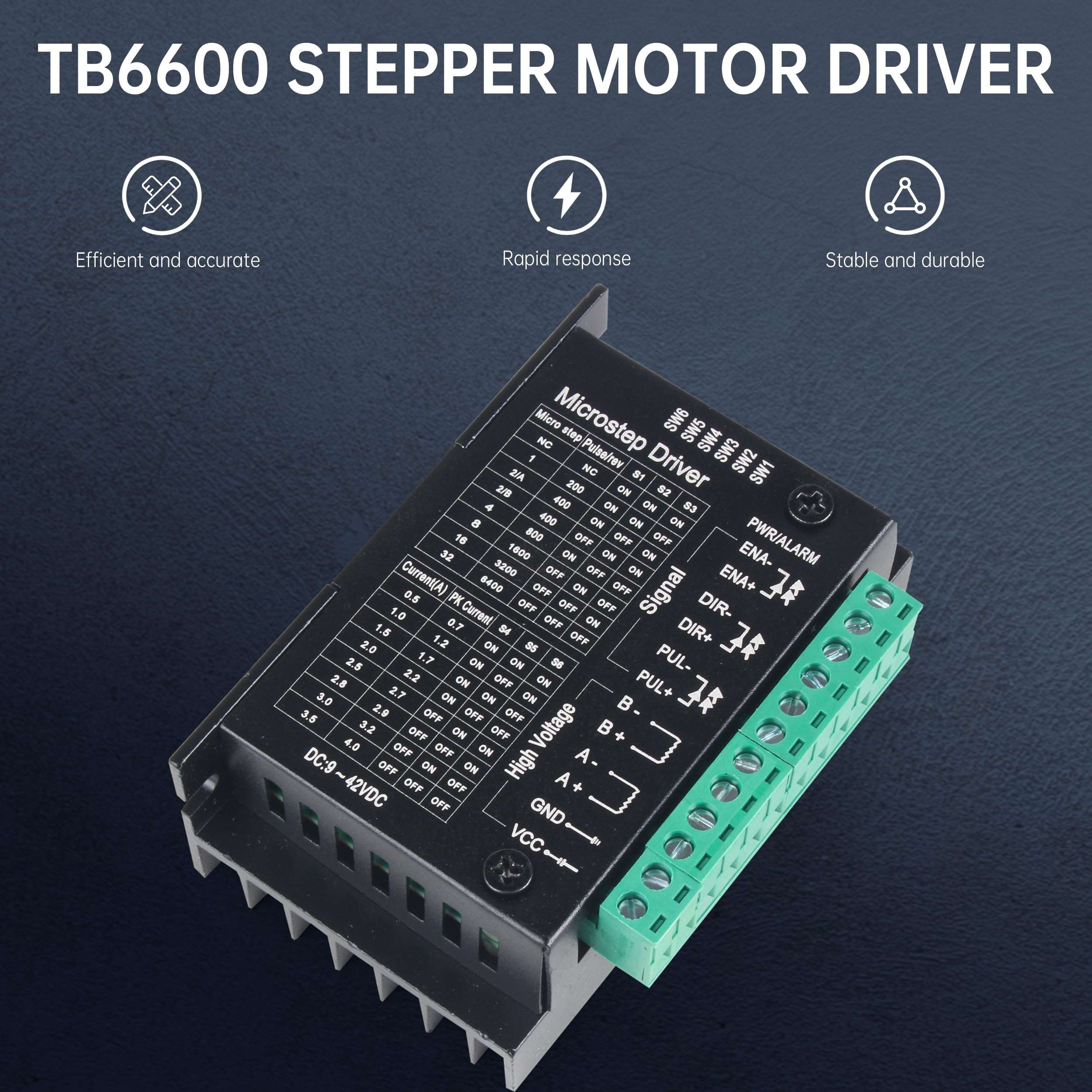

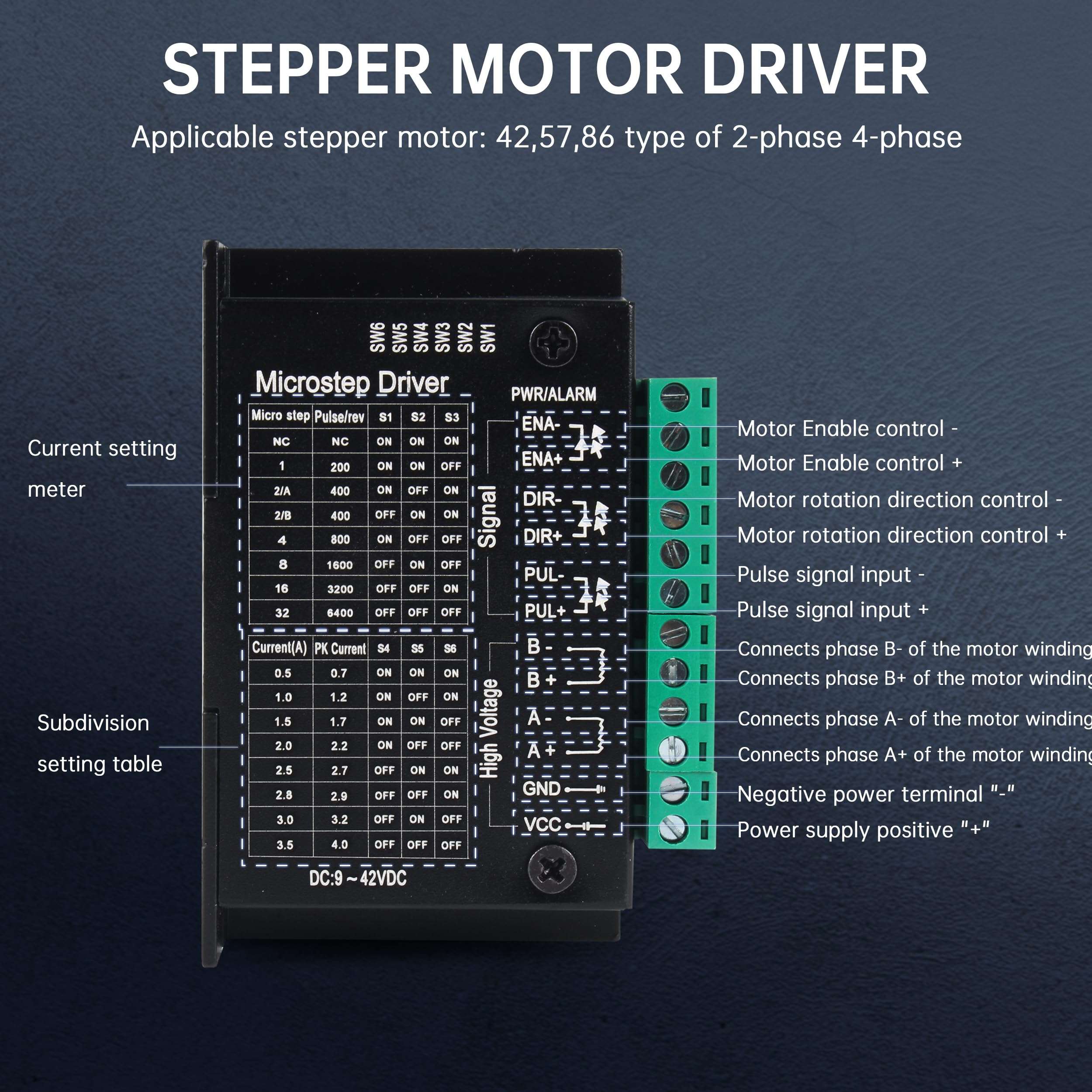

•【Support Forward and Reverse Control Stepper Motor Driver】42/57 TB6600 stepper motor driver with input voltage anti-reverse connection and overheat/overcurrent short circuit protection, equipped with red warning light. through the 3-digit DIP switch, you can choose 7 subdivisions (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 subdivisions (0.5A, 1.0A 1.5A, 2.0A, 2.5A, 3.0A, 3.5A) current control.
•【USB Interface, Drive-free Design 4-Axis Linkage Control Card】Output pulse frequency of 100KHz, using the minimum error interpolation algorithm, high processing accuracy. Supports up to 4 axes of linkage control, of which the 4th axis can be set as the slave axis. The control card can be connected to PC-compatible computers such as laptops, desktops, tablets and other computers with a USB interface. As long as Mach3 is running, the control card can be used without installing any drivers.
•【Multi-function control card】General-purpose opto-couplers isolation input : can support the limit switch, emergency stop switch, auto tool zero, home switch etc, electronic handwheel; Have 0-10V signal output , you can use mach3 software to control the spindle motor speed; 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device.

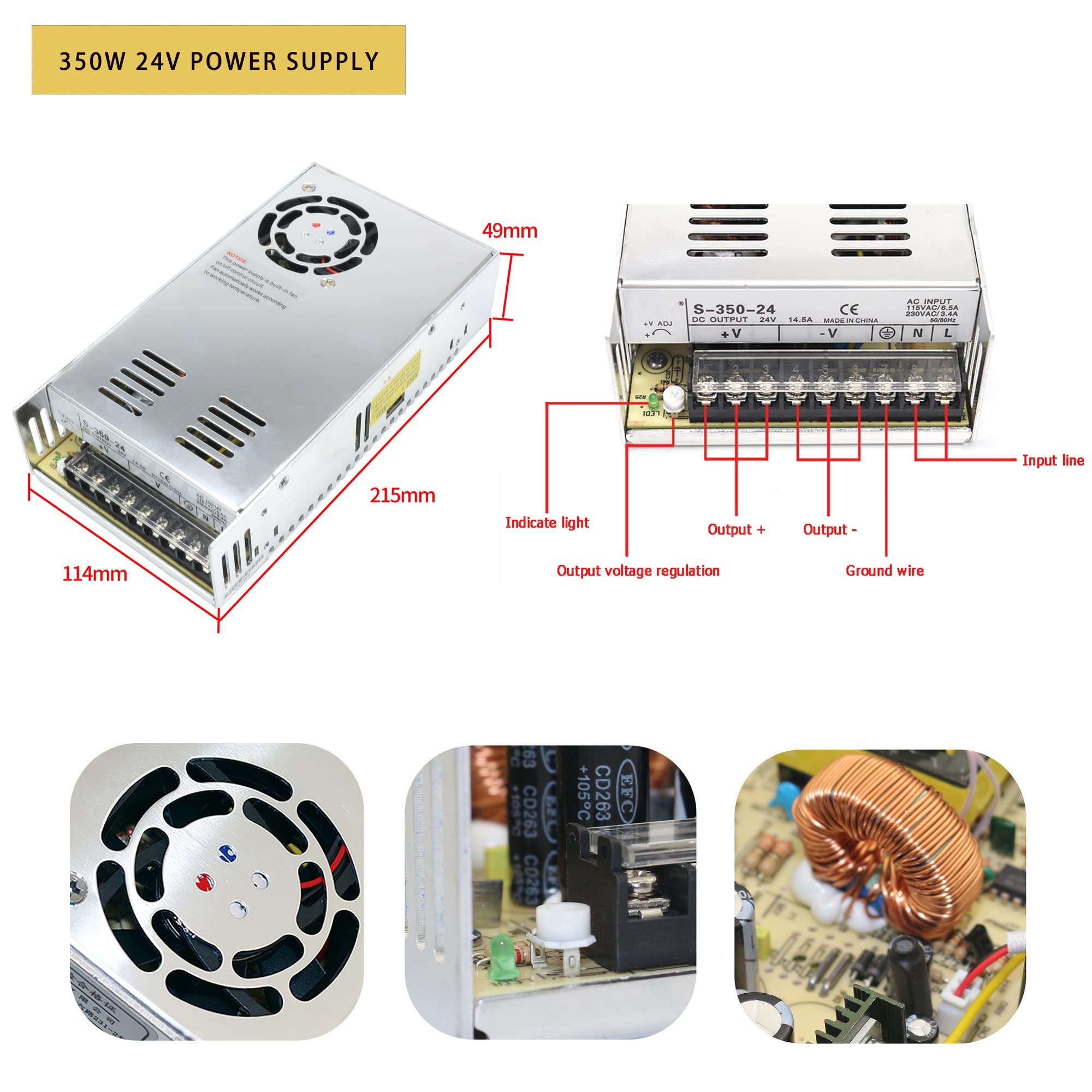

•【Stable output 24V DC power supply】Over-current, over-voltage and overload protection, power supply stable power supply, electrical energy conversion rate of up to 90%, higher efficiency. Together with the heat dissipation fan design, shell hollow design, heat dissipation ability faster and stronger, more durable performance.

•【Motor and TB6600 Driver wiring】Stepper motor's RED wire connects to driver's A+ port. Stepper motor's GREEN wire connects to driver's A- port. Stepper motor's YELLOW wire connects to driver's B+ port. Stepper motor's BLUE wire connects to driver's B- port.
•【Control Card and TB6600 Driver wiring (X-axis as an example) 】Driver's "Pul+" connects to control card's XP+ pin , Driver's "DIR+" connects to control card's XD+ pin , Driver's " PUL- " pin and " DIR- " connection to USB Mach3 control card's " 5V "".
•【Low Noise/High Torque Hybrid Stepper Motor】23HS8430 2-phase stepper motor with a shaft diameter of 8mm, a current of 3A and an angle of 1.8°, is made of durable metal on the outside, and the perfect combination of rubber and rotor fills up the inner space and stabilizes the overall structure of the motor. The coils are made of pure copper enameled wire and the torque is up to 270oz-in (180N.cm/18kg-cm). The motor runs quietly and doesn't cause the generator to become too hot over a long time.
•【Support Forward and Reverse Control Stepper Motor Driver】42/57 TB6600 stepper motor driver with input voltage anti-reverse connection and overheat/overcurrent short circuit protection, equipped with red warning light. through the 3-digit DIP switch, you can choose 7 subdivisions (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 subdivisions (0.5A, 1.0A 1.5A, 2.0A, 2.5A, 3.0A, 3.5A) current control.
•【USB Interface, Drive-free Design 4-Axis Linkage Control Card】Output pulse frequency of 100KHz, using the minimum error interpolation algorithm, high processing accuracy. Supports up to 4 axes of linkage control, of which the 4th axis can be set as the slave axis. The control card can be connected to PC-compatible computers such as laptops, desktops, tablets and other computers with a USB interface. As long as Mach3 is running, the control card can be used without installing any drivers.
•【Multi-function control card】General-purpose opto-couplers isolation input : can support the limit switch, emergency stop switch, auto tool zero, home switch etc, electronic handwheel; Have 0-10V signal output , you can use mach3 software to control the spindle motor speed; 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device.
•【Stable output 24V DC power supply】Over-current, over-voltage and overload protection, power supply stable power supply, electrical energy conversion rate of up to 90%, higher efficiency. Together with the heat dissipation fan design, shell hollow design, heat dissipation ability faster and stronger, more durable performance.

RATTMMOTOR CNC Controller Kit, 4 Axis CNC Kit with Nema23 Stepper Motor 57*76mm 270Oz-in 3A 1.8Nm, TB6600 Driver 4A, USB Mach3 CNC Motion Control Card Breakout Board, 24V Power Supply for CNC Machine

RATTMMOTOR CNC Controller Kit, 4 Axis CNC Kit with Nema23 Stepper Motor 57*76mm 270Oz-in 3A 1.8Nm, TB6600 Driver 4A, USB Mach3 CNC Motion Control Card Breakout Board, 24V Power Supply for CNC Machine
