Raspberry Pi Expansion Board for Raspberry Pi 3 Model B / 2B /B+/A+/ Raspberry Pi Zero W.
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

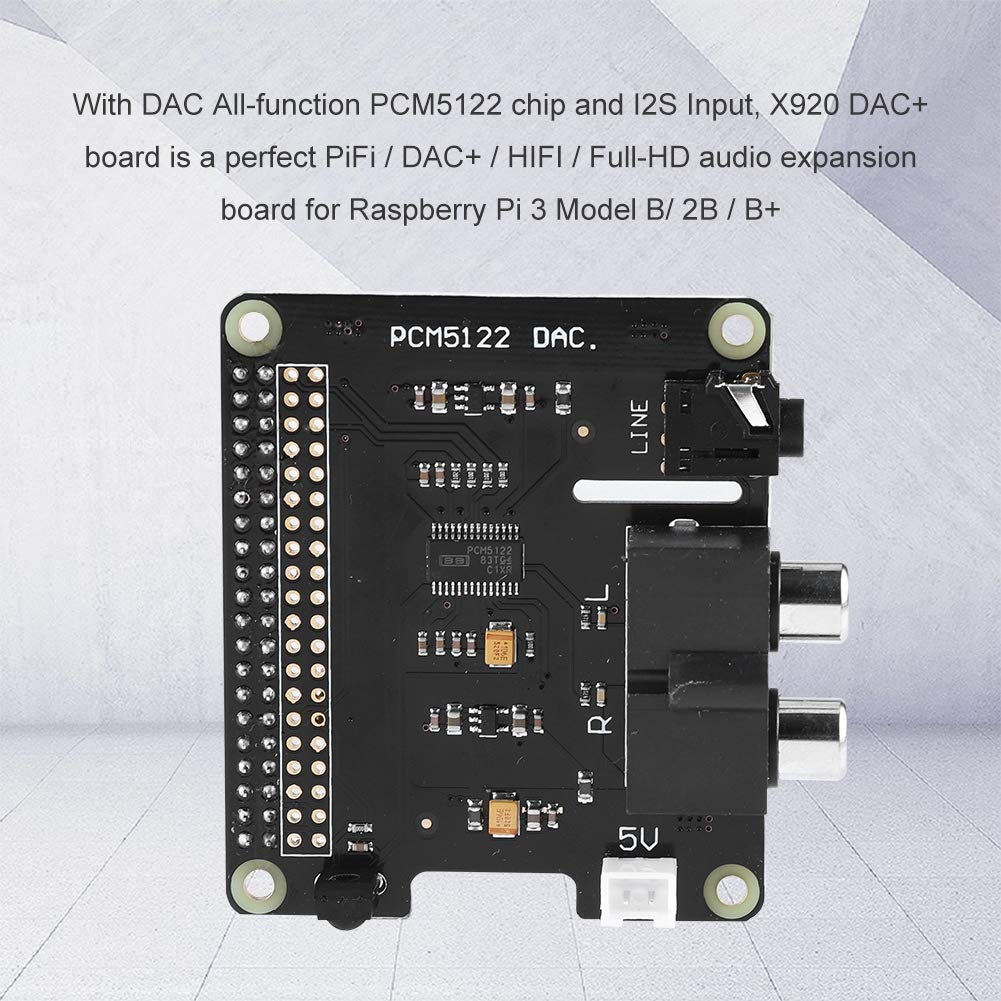

•With DAC All-function PCM5122 chip and I2S Input, X920 DAC+ board is a perfect PiFi / DAC+ / HIFI / Full-HD audio expansion board for Raspberry Pi 3 Model B/ 2B / B+;
•After using X920 board, User can coordinate with the broadcast system (such as Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.) to set up your own HIFI player network.
•X920 is available with RCA, 3.5mm phone jack output connectors and built in IR receiver (Vishay TSOP34838);
•Full-HD audio – up to 24-bit/192kHz playback and Class leading audio (112db SNR, and -93db THD) function, Integrated hardware volume control with TI's LP5907 Ultralow-Noise voltage regulator for optimal audio performance.
•Powered by Raspberry Pi, no external power requirements, Conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification.
