Raspberry Pi Audio Expansion Board, X400 V3.0 High Fidelity Hi | Shop The World
From USA
NewPUSOKEI

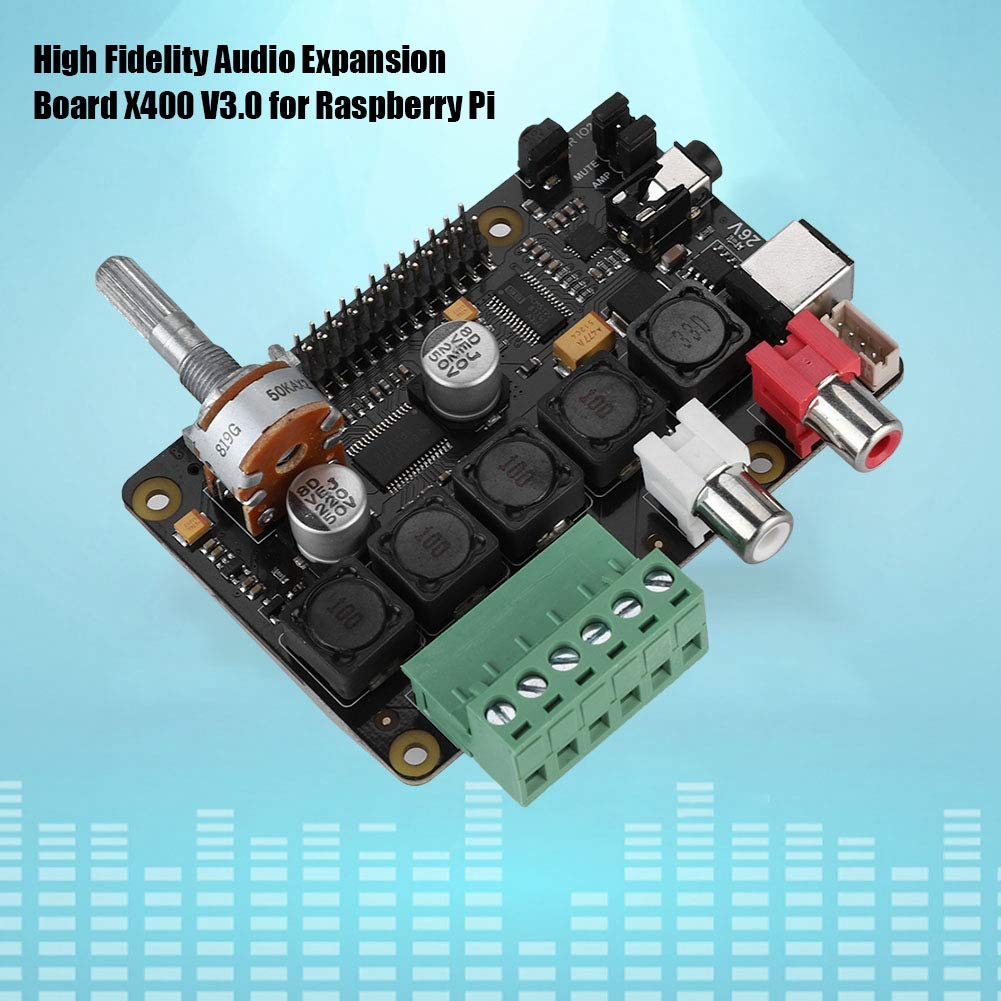

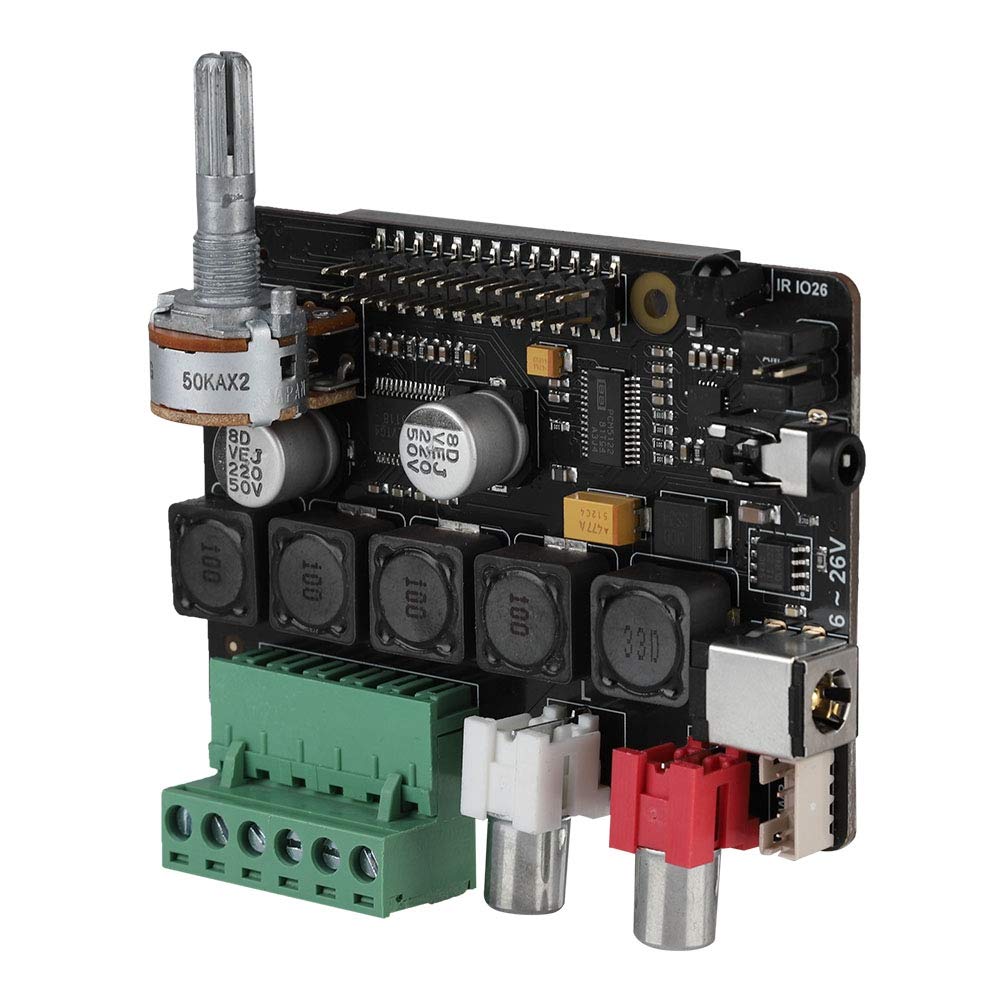

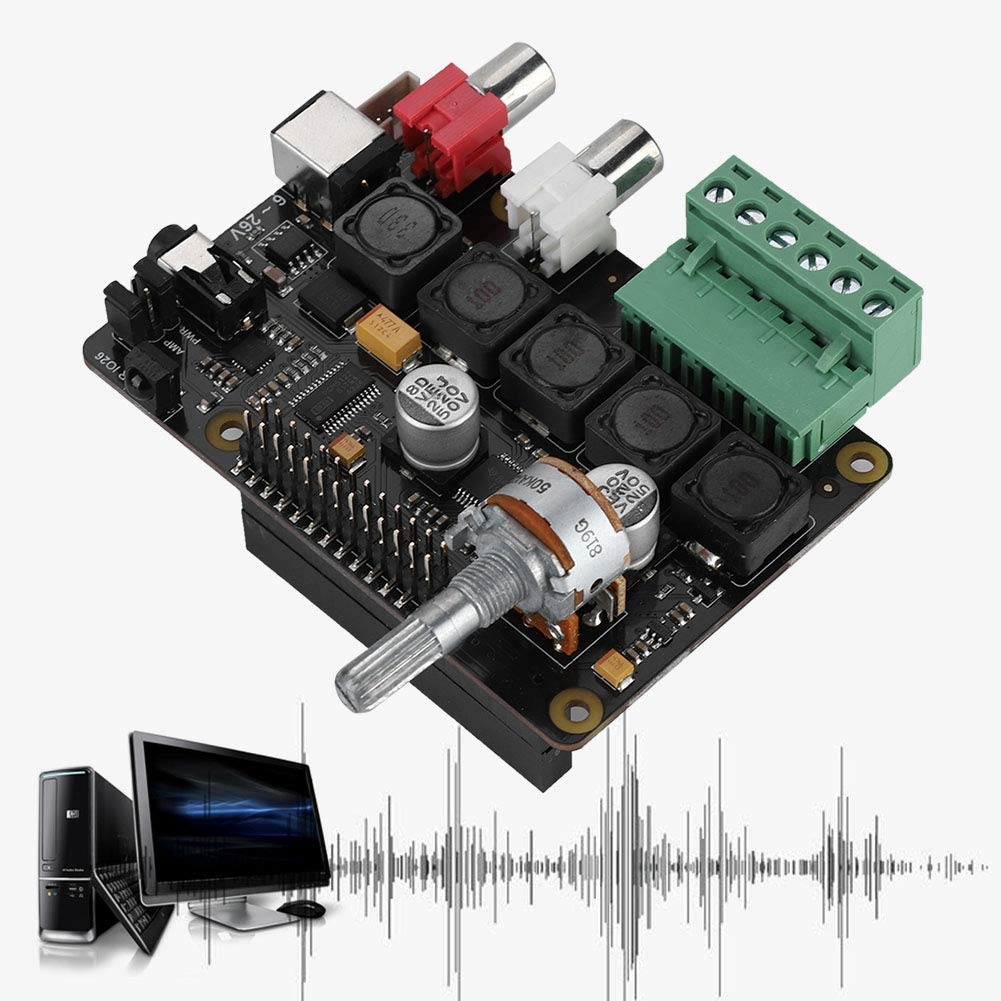

for Raspberry Pi Audio Expansion Board, X400 V3.0 High Fidelity HiFi DAC Chip Stereo Audio Expansion Board for Raspberry Pi Model 3 b&, Raspberry PI 3 Model B
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•【High Quality Chip】Adopts TI Original high-quality audio stereo DAC chip (Ti PCM5122), adopts TI Texas Instrument Digital Amplifier chip (TPA3116D2). Dynamic range signal-to-noise ratio (SNR) up to 112db, maximum distortion is less than 0.0019%.Adopts TI Original high-quality headphone amplifier chip (Ti TPA6133A).
•【High Power Amplifier】Audio amplifier maximum power up to 2 x 30W (24VDC power supply, horn impedance 8 ohm).Adopts high-sensitivity infrared receiver (38KHZ). High-efficiency pressure-relief/DC switch converter supply stable power to the motherboard, 6-26VDC input, 5.1V maximum 3A output.
•【High Definition】High-definition audio processing capacity up to 192khz/24bit, up to 93dB of SNR and high-fidelity headphone amplifier.Adopts TI extremely low noise Ldo for DAC power supply (Output noise < 10μVRMS), adopts I2S audio interface to reduce CPU load, With RCA output socket, 3.5mm ear socket and horn terminal.
•【Fitment】X400 V3.0 is a cost-effective sound card for Raspberry Pi Model 3 b+, Raspberry PI 3 model B and Raspberry Pi 2 model b+. It makes it easier for players to raspberry pie to create non-destructive music systems or network radio radios. Recommended use of operating systems such as Volumio, Runeaudio, Pimusicbox, etc.
•【Customer Satisfaction】Please contact our customer service department if you are not satisfied with the product or have any questions or comments. we will surely find a solution that will satisfy you.
