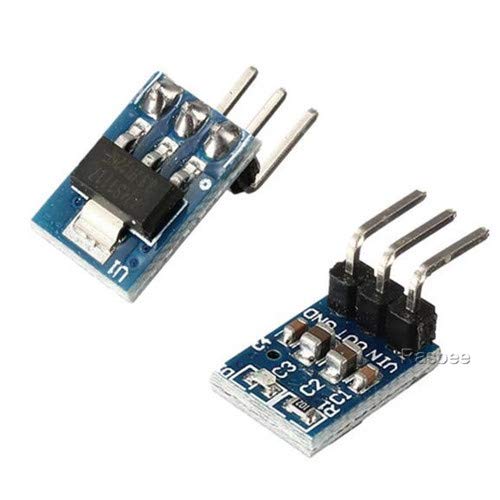

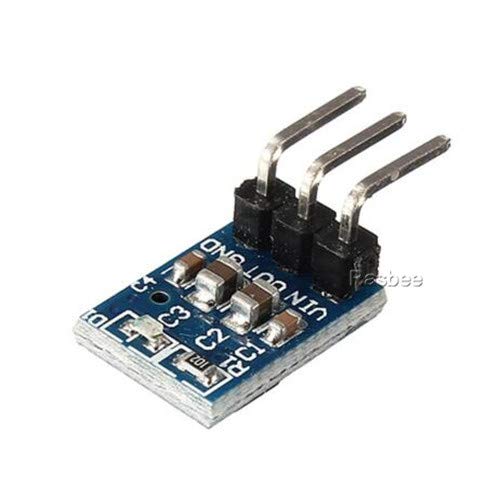

Rasbee 5V To 3.3V DC-DC Step-Down Power Supply Buck Module AMS1117 800MA
Output current: 1A
Line adjustment rate: 0.2% (maximum)
Load regulation: 0.4% (max.)
Operating junction temperature range: -40 to 125°C
Welding temperature (25 seconds): 265°C
Storage temperature: - 65~150°C
Output voltage: 3.267 to 3.333V (IOUT: 0 to 1A, VIN :4.75V to 12V)
Line adjustment (maximum): 10mV (VIN :4.75V to 12V)
Load regulation (maximum): 15mV (VIN = 5V, IOUT: 0 to 1A)
Voltage difference (maximum): 1.3V
Current limit: 900 ~ 1500mA
Quiescent Current (Max): 10mA
Ripple suppression (minimum): 60dB
Please Attention:
1.Please do not exceed operating voltage, or it will be damaged easily!
2.Exceeding the maximum allowable power consumption will result in excessive chip temperature
3.Can not reverse polarity , or it will result in short circuit!
Package Contents

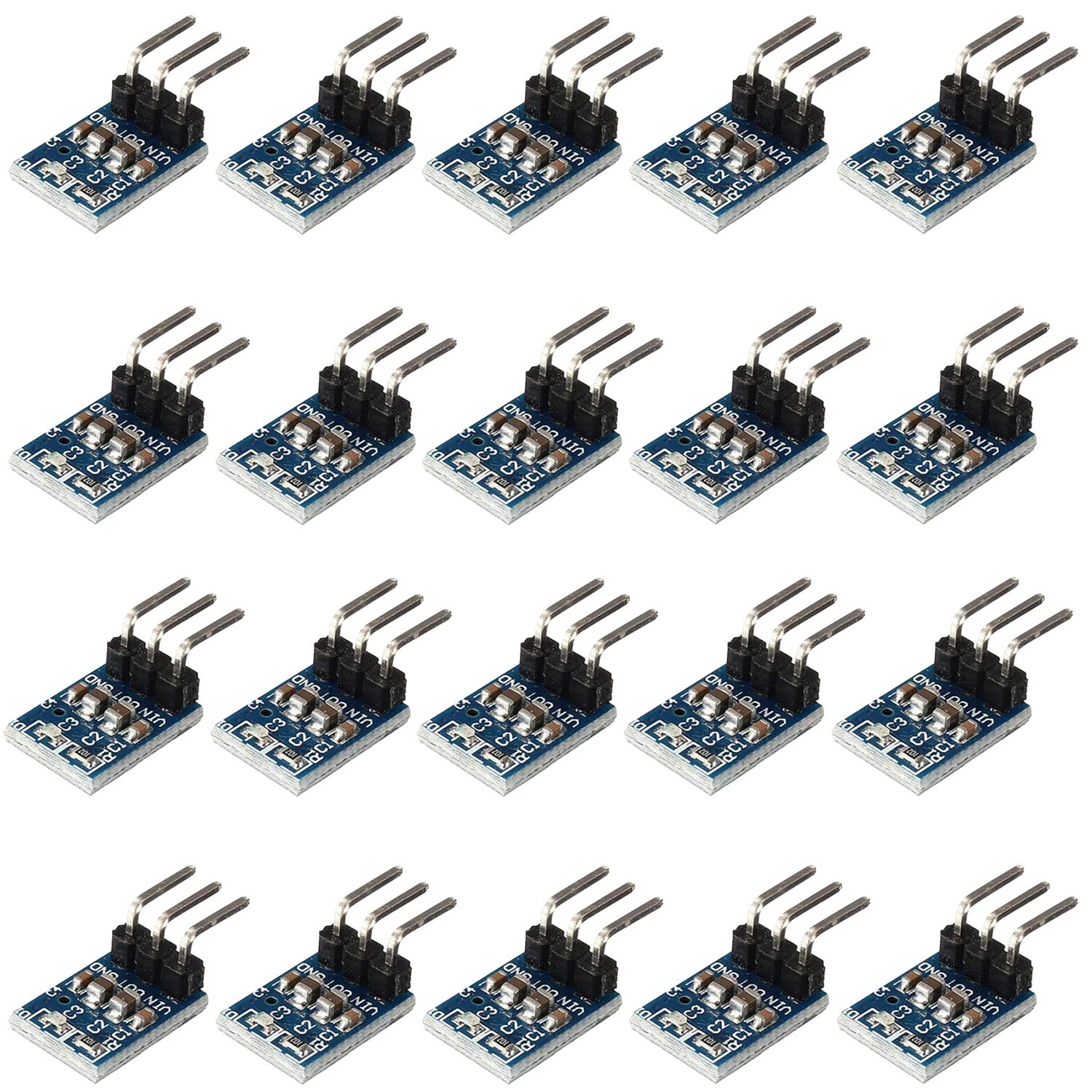

20 x 5V To 3.3V DC-DC Step-Down Power Supply Buck Module AMS1117
