Ramp Soak Temperature Controller Kiln SSR Thermocouple Programmable Control 60 Segment
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

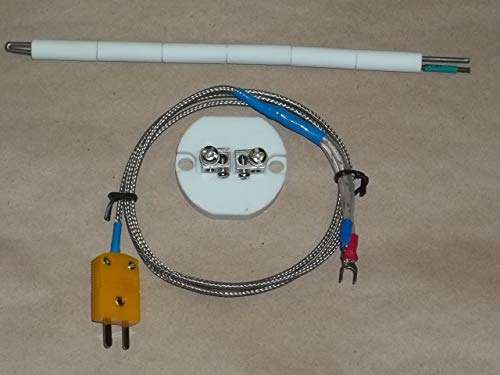

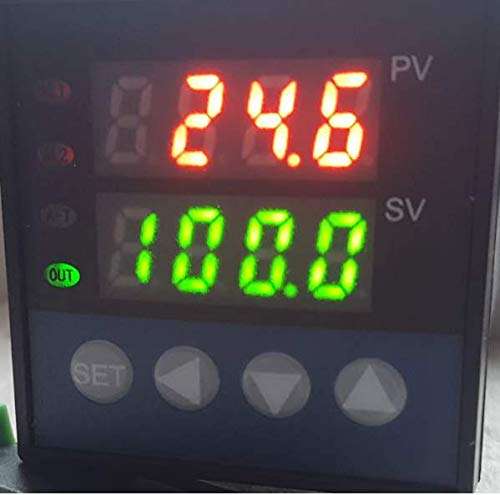

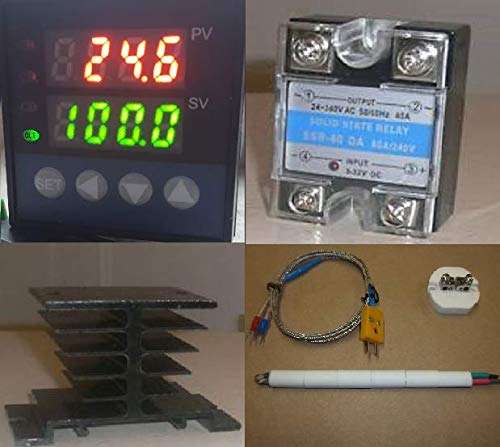

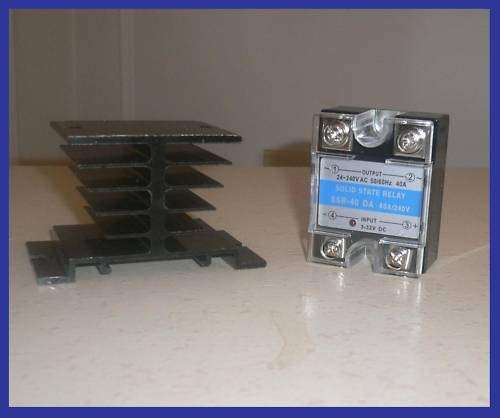

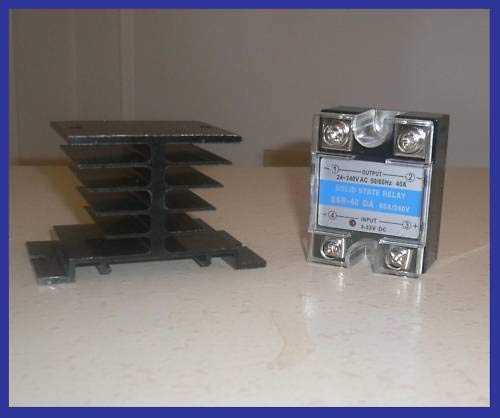

•A Complete Applicable Package include of Programable Digital PID Temperature Controller Ramp and Soak with Fahrenheit and Celsius display , Kiln Probe Thermocouple/Sensor & Solid State Relay (SSR) and Heatsink for 220V kiln
•Up to 60 segments (programmable steps for 30 ramp, 30 soak and other logic actions) available for program and temperature range -200 to 1800 °C (depends on input type) With soft-start function Output: Voltage pulse to drive SSR, Universal Input
•Power Supply: 90~260VAC , Dimension: 48mm*48mm*90mm panel mount (DIN 1/16)
•Display in either Fahrenheit or Celsius temperature unit and Decimal points:Configurable for all inputs, Control Method: ON/OFF AI MPT with auto tuning, adopting fuzzy logic PID algorithm, Alarm Mode:Absolute value high limit, Absolute value low limit, Deviation high limit alarm, Deviation low limit alarm
•The time configurable between minute and second, decimal point for all input, Auto/Manual control switch from front panel, Configurable time-dominate or value-dominate controls
