Quarton Red Line Laser Module 635nm Class 1, 3~6VDC, 60° Fan Angle, 1~20 meters working distance, VLM-635-55 LPT, APC Control – Industrial Alignment for Wood, Metal, Machine Vision
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Direct Red Line Laser - Industrial-Grade Accuracy: This 635nm red diode laser module provides stable, bright, and highly accurate line projection for professional alignment and measurement. Designed for industrial use, specially in low-light environment, it delivers consistent results in demanding production and calibration environments.
•Stable Performance Across Environments - Fast, Reliable, Precise: Operates reliably from –4°F to 140°F (–20°C to +60°C) with quick startup, low power loss, and consistent output. Suitable for continuous use in various industrial conditions such as woodworking, metal fabrication, textile production, food processing, and automation systems - ensuring precise and stable laser guidance over long working hours.

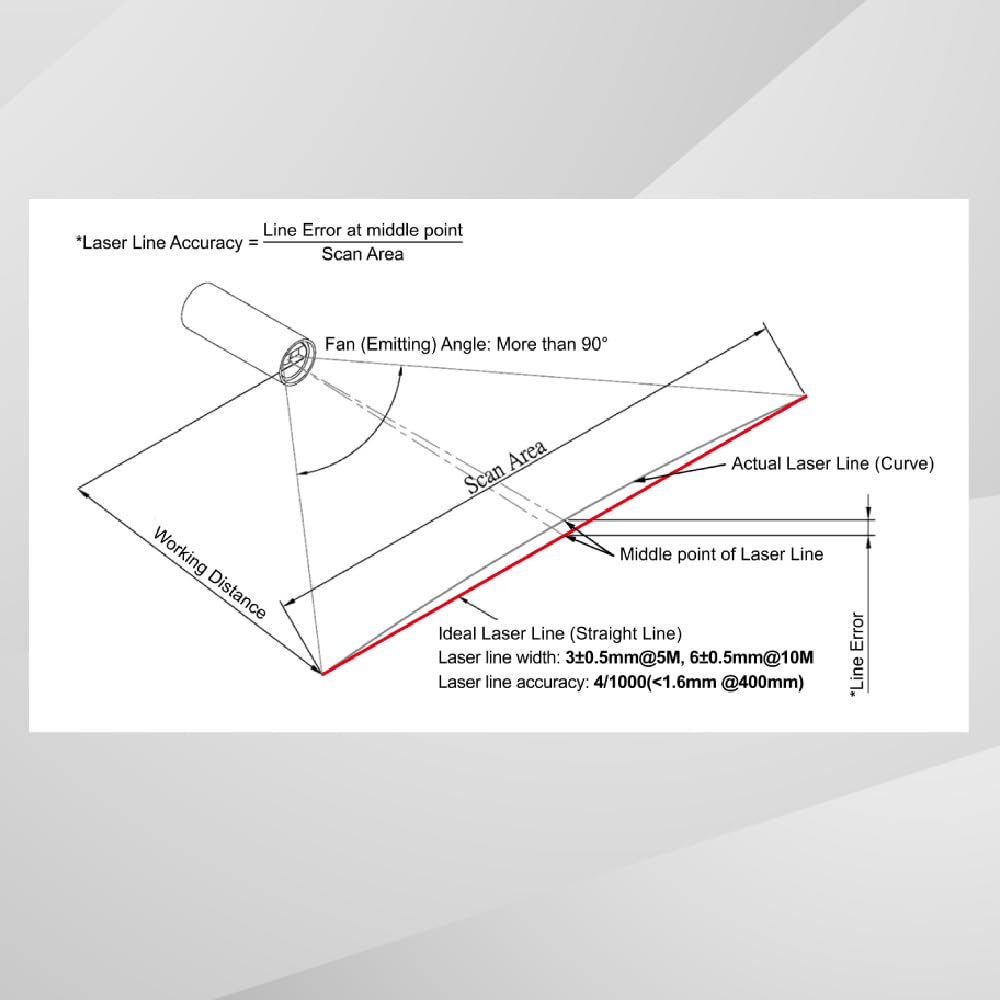

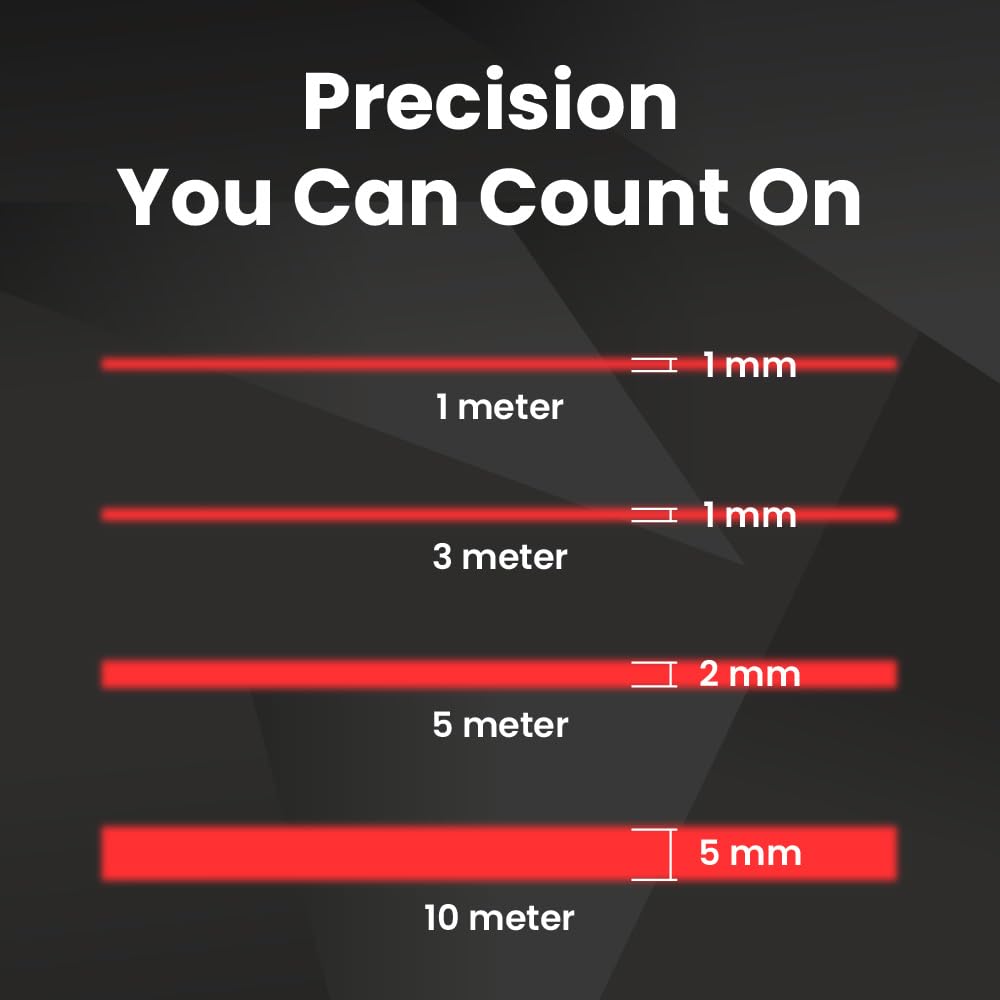

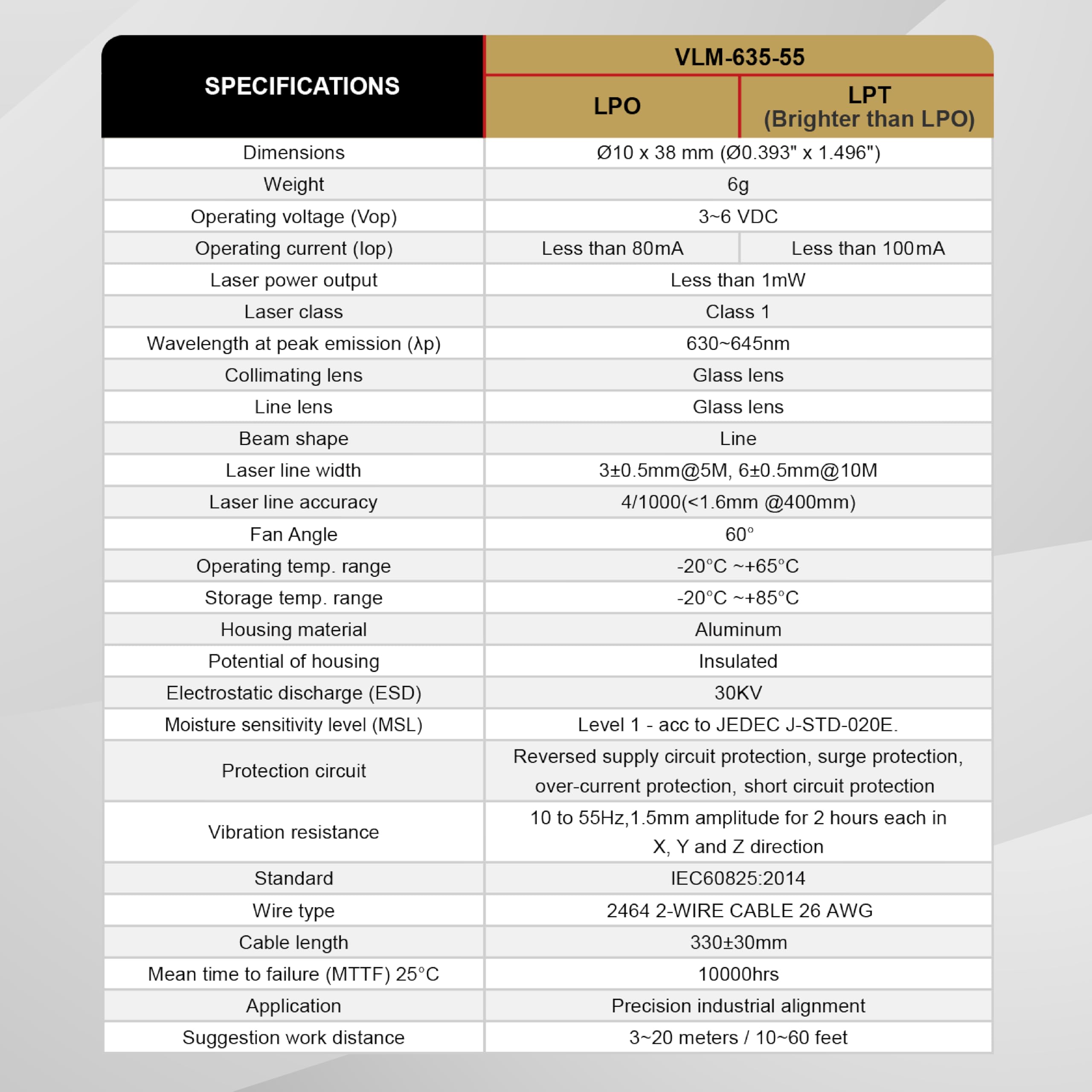

•Optical Precision with Glass Lens - Clear and Uniform Line: Equipped with a high-quality glass optical lens for enhanced clarity and long-term stability. Laser output is Class 1 (eye-safe) and focused at 10m for sharp lines between 3~20m. Line width: 3±0.5mm @5m, 6±0.5mm @10m. Fan angle 60° ensures wide coverage and uniform brightness. Optical power output: 9~10 mW.
•Durable Aluminum Alloy Housing - Anti-Wear & Heat-Resistant: Built with a hard anodized aluminum alloy shell (antize finish) that offers abrasion resistance, heat resistance, and effective heat dissipation. Compact body (Ø10×38mm) operates on 3~6VDC with a built-in APC driver circuit for constant output power and safe, stable performance.
•Long Lifespan & Made in Taiwan - Reliable Quality Assurance: Designed and manufactured in Taiwan with strict industrial standards. Features a Mean Time To Failure (MTTF) of 10,000 hours at 25°C, ensuring long-lasting precision, reliability, and performance for professional alignment applications. Power source, power supply, base, or wiring terminals are not included.
•Wide Industrial Applications, General-purpose, Industrial-grade red line laser module: Ideal for alignment and positioning in industrial environments, including wood processing, metal fabrication, textile production, food industry, stone cutting, automation systems, and medical or optical equipment calibration. Provides precise, reliable laser guidance from 1~20 m working distance.
•Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
