QEBIDUM DC DC Boost Converter, 0.9V-3V 3.3V, 0.9V-4.5V 5V Sync | Shop The World
From USA
NewQEBIDUM
QEBIDUM DC DC Boost Converter, 0.9V-3V to 3.3V, 0.9V-4.5V to 5V Synchronous Switching Regulator Mini DIY Adjustable Ultra Low Voltage Step Up Booster Converter Board Module for Arduino (3 Packs)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Support Ultra Low Voltage Startup: Input Voltage Range 0.9V to 5.5V, the dc to dc step up converter is suited for alkaline battery Li-ion or Lipolymer battery powered systems.
•Programmable Output Voltage: The boost converter module default output voltage is boost converter 3.3v, and boost converter’s 5V output voltage can be obtained by shorting the two pads of CN1.

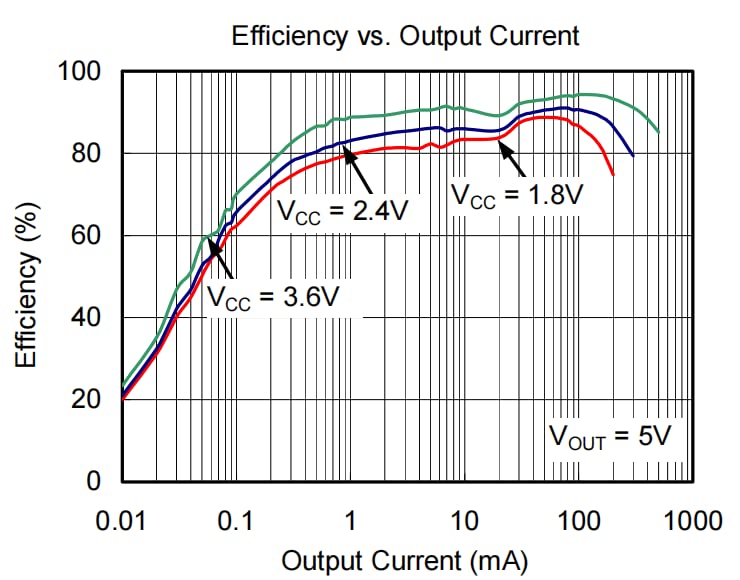

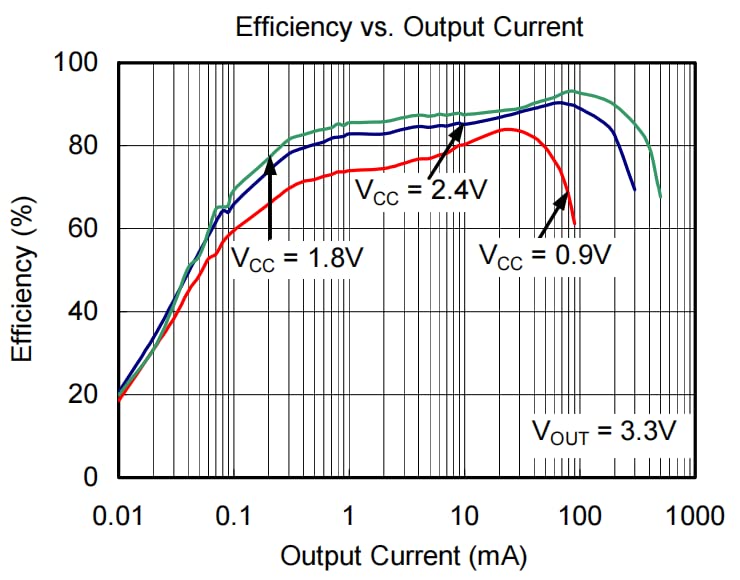

•Ultra Low Quiescent Current and High Efficiency: The low power dc to dc voltage booster consumes 30µA+ quiescent current, the convert efficiency up to 90%.
•Multiple Protection Functions: The dc voltage booster is Integrated with overcurrent protection, anti surge protection and output short circuit protection.

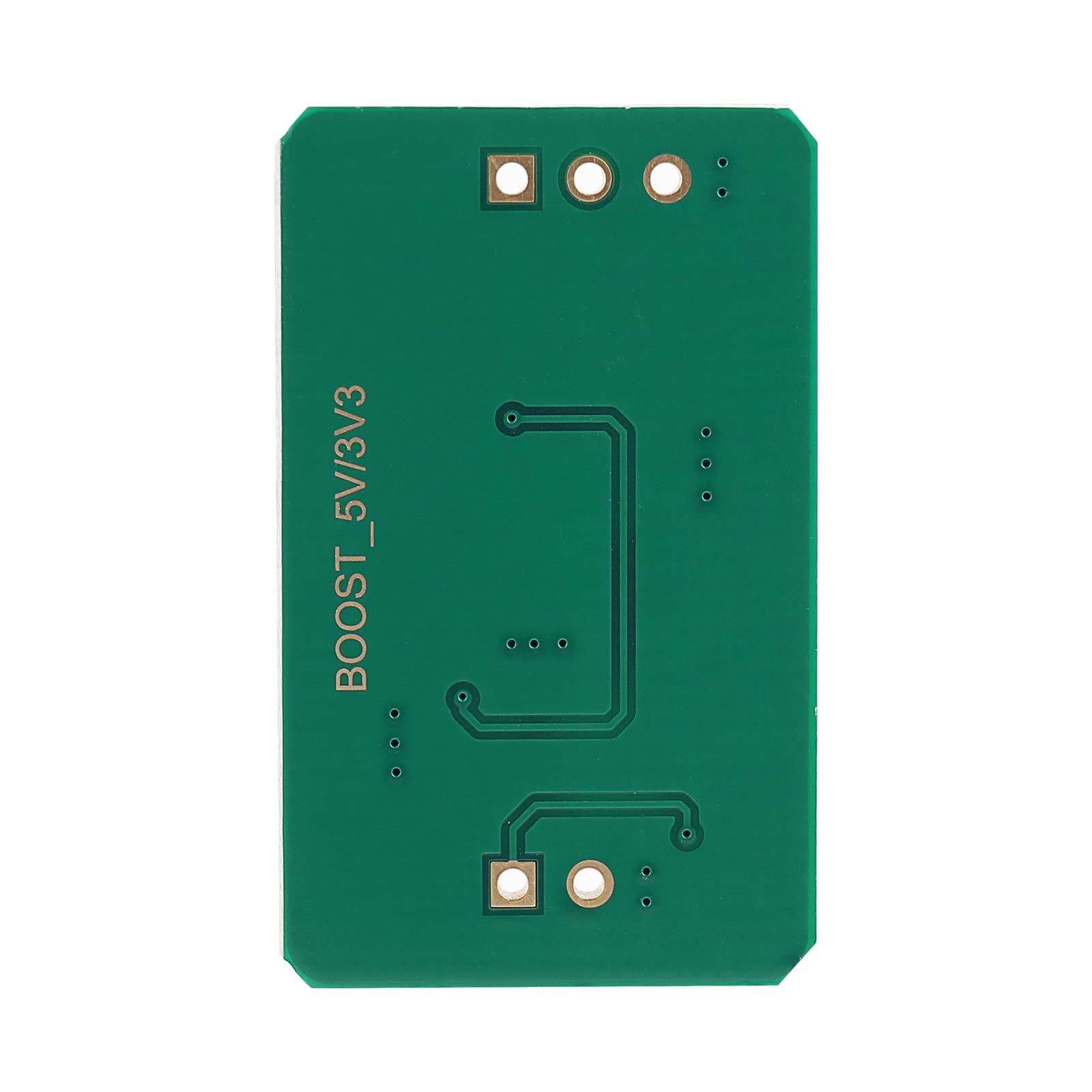

•Pin 2.54mm Pitch:The pin pitch of input and output ports is 2.54mm, the boost converter module dc to dc pads are gold-plated.
