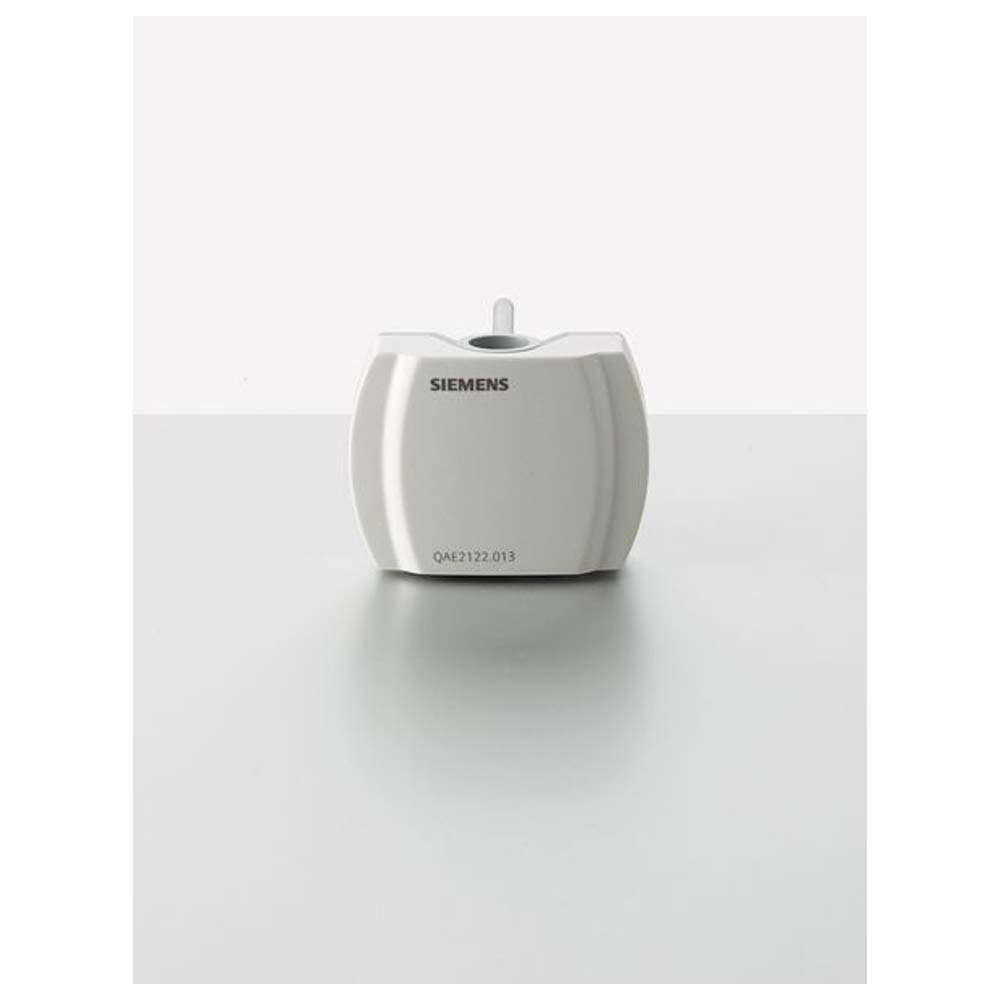

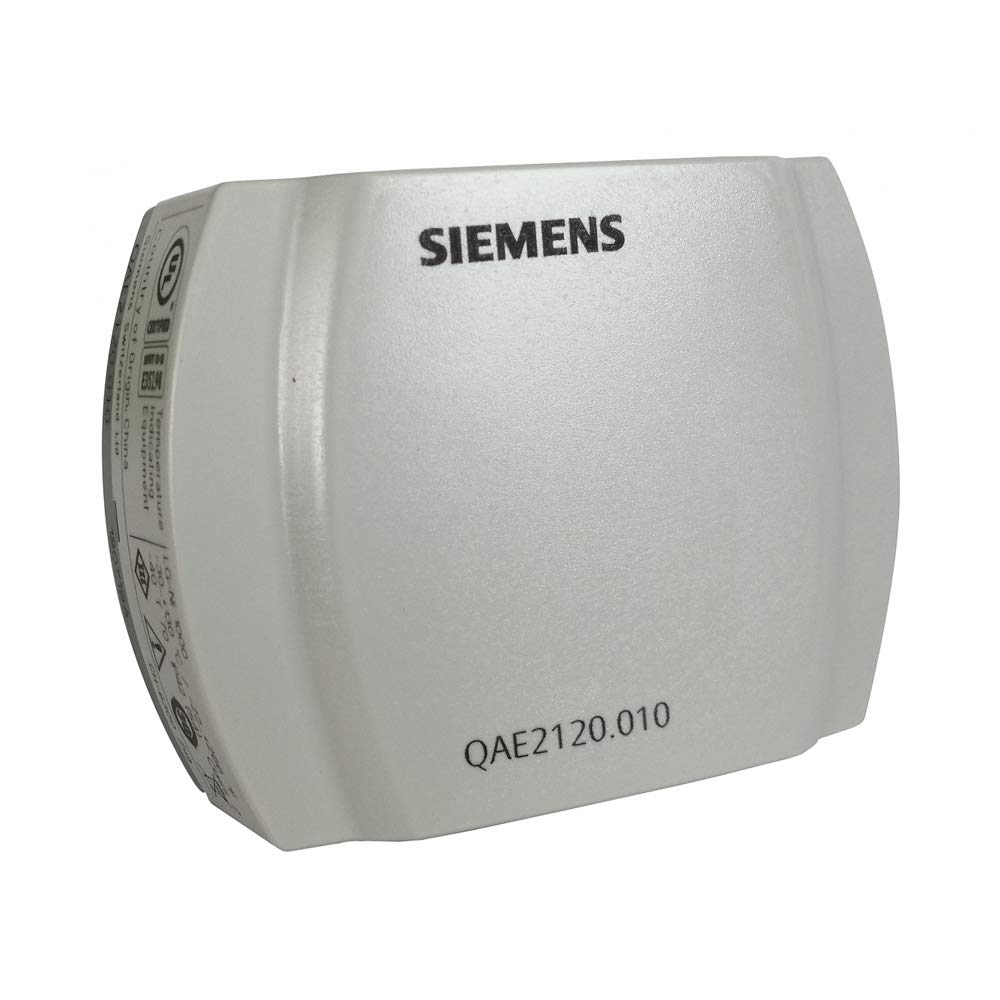

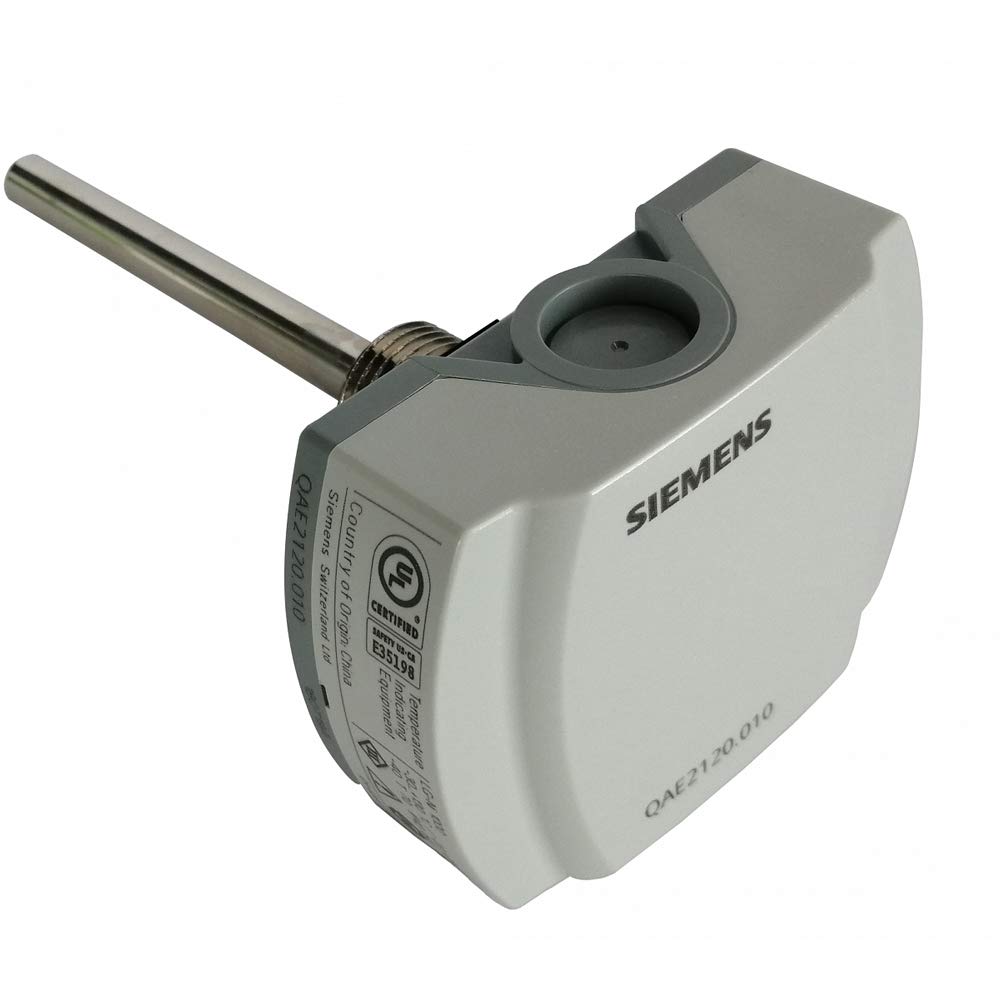

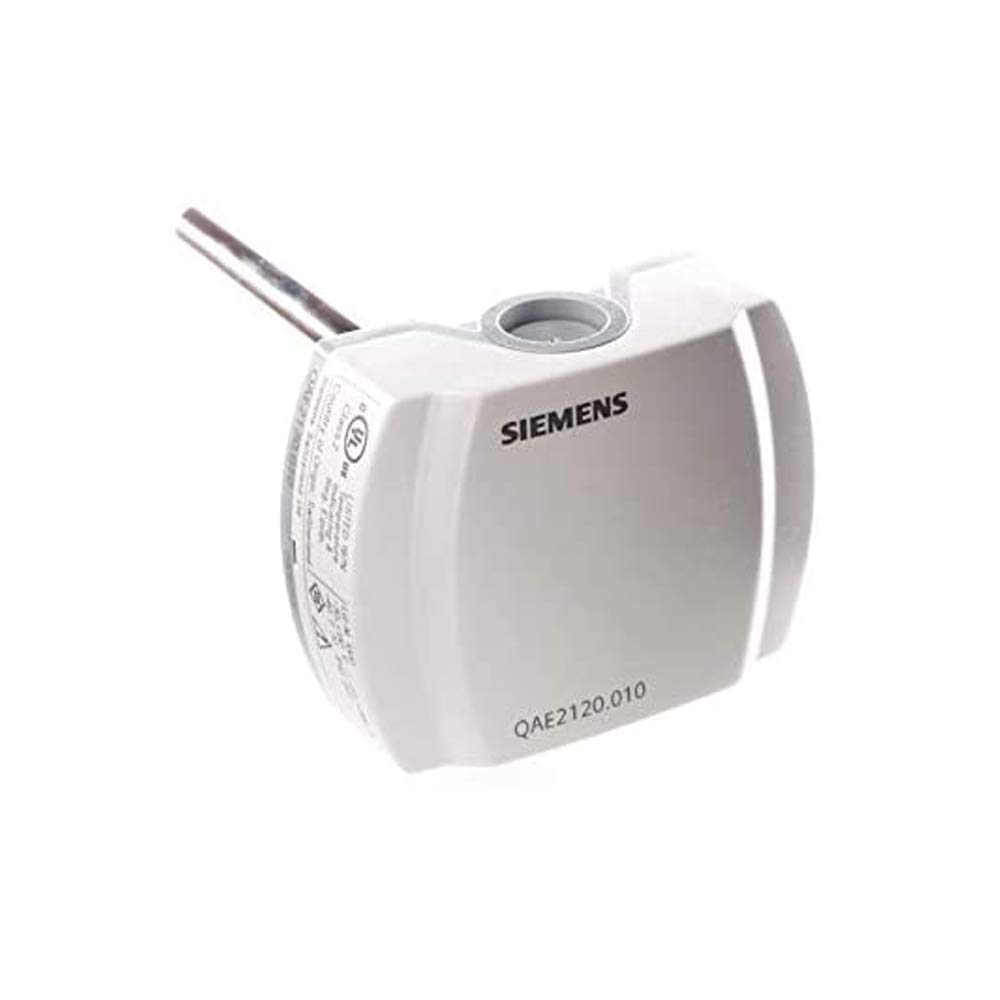

QAE2120.010 Immersion Temperature Sensor for HVAC, Hospitals, Laboratories, Cleanrooms
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•The QAE21… immersion temperature sensors are for use in ventilation and air conditioning plants for: Controlling or limiting the flow temperature
•Limiting the return temperature
•Controlling the DHW temperature
•Measuring range: -30...+125 °C for NTC-Type
•Outfit: Including protection pocket with threaded nipple G ½ A
•Immersion length: 100 mm
•Nominal pressure: PN 10
•Sensing element: LG-Ni 1000
•Transport: To EC 721-3-2
•Climatic condition: class 2K3
•Temperature: –25...+70 °C
•Mechanical environmental conditions: Class 2M2
•Base: Polycarbonate, RAL 7001
•Cover: Polycarbonate, RAL 7035
•Immersion rod: Stainless steel to DIN 17 440, steel 1.4571
