PoE Powered Ethernet Extender Over 2-Wire or Coax | Master Side PD – No Local Power Needed | Up to 800 m (500 m PoE) | LAN & PoE Repeater Booster Bridge | DIN-Rail or Wall Mount
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

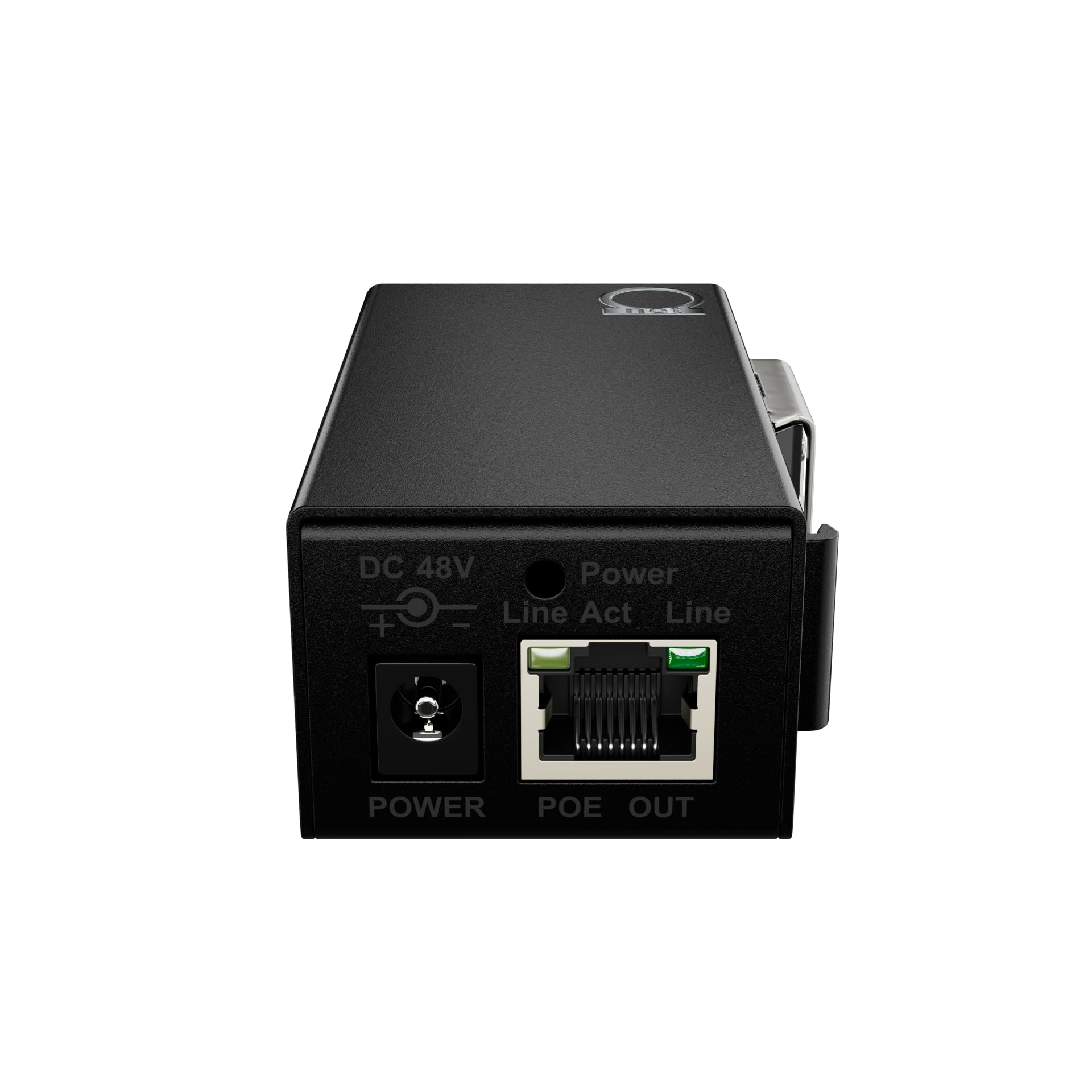

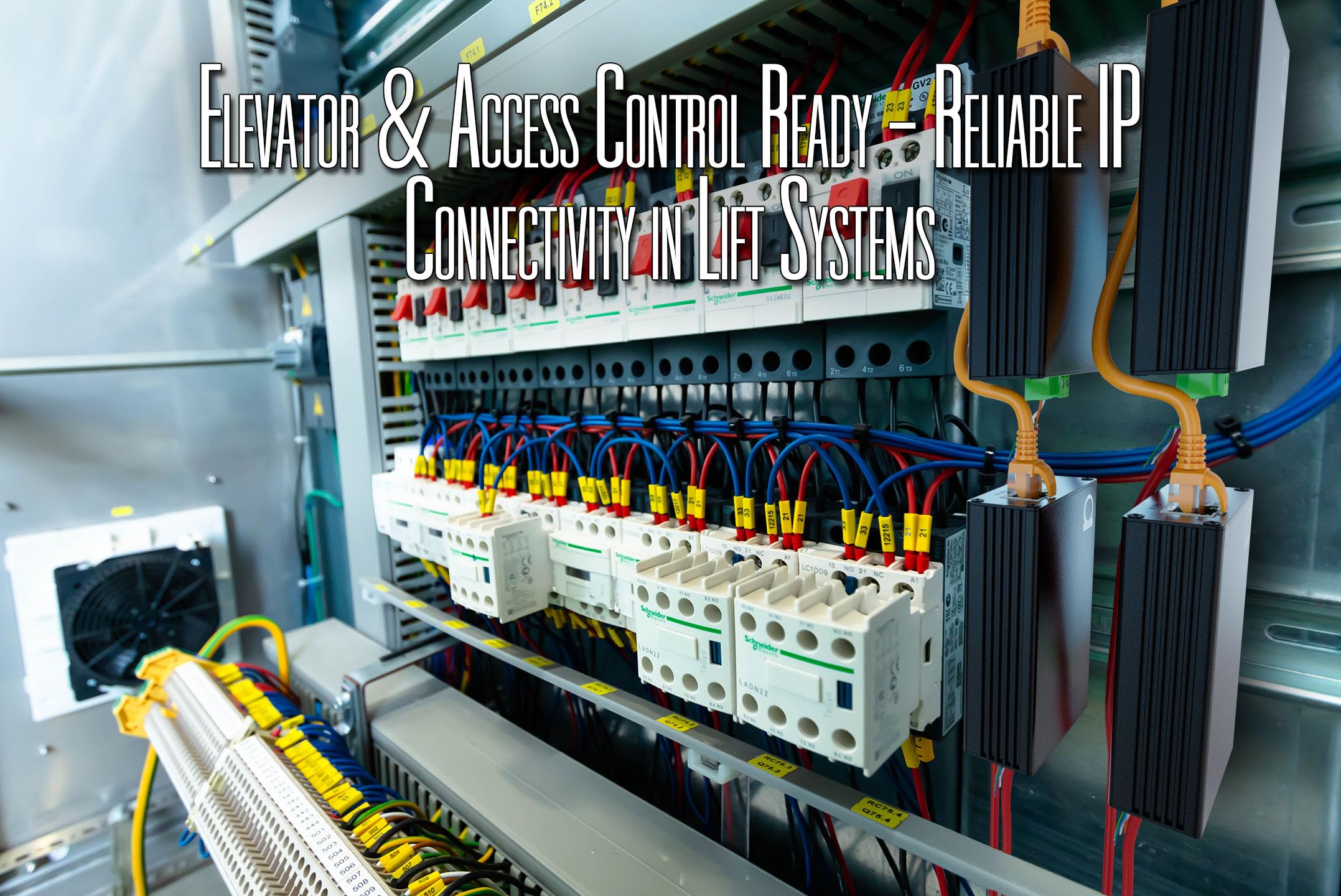

•PoE-Powered Master Side – No Local Power Needed: The master unit operates directly from your PoE switch or injector (IEEE 802.3af/at). No AC outlet required — ideal for elevators, ceilings, or control cabinets where power is unavailable.
•Extend LAN & PoE Up to 800 m (2600 ft): Transmit Ethernet and PoE over 2-wire, twisted pair, or coax cabling. Supports up to 500 m (1600 ft) with PoE and up to 800 m (2600 ft) for data-only operation.

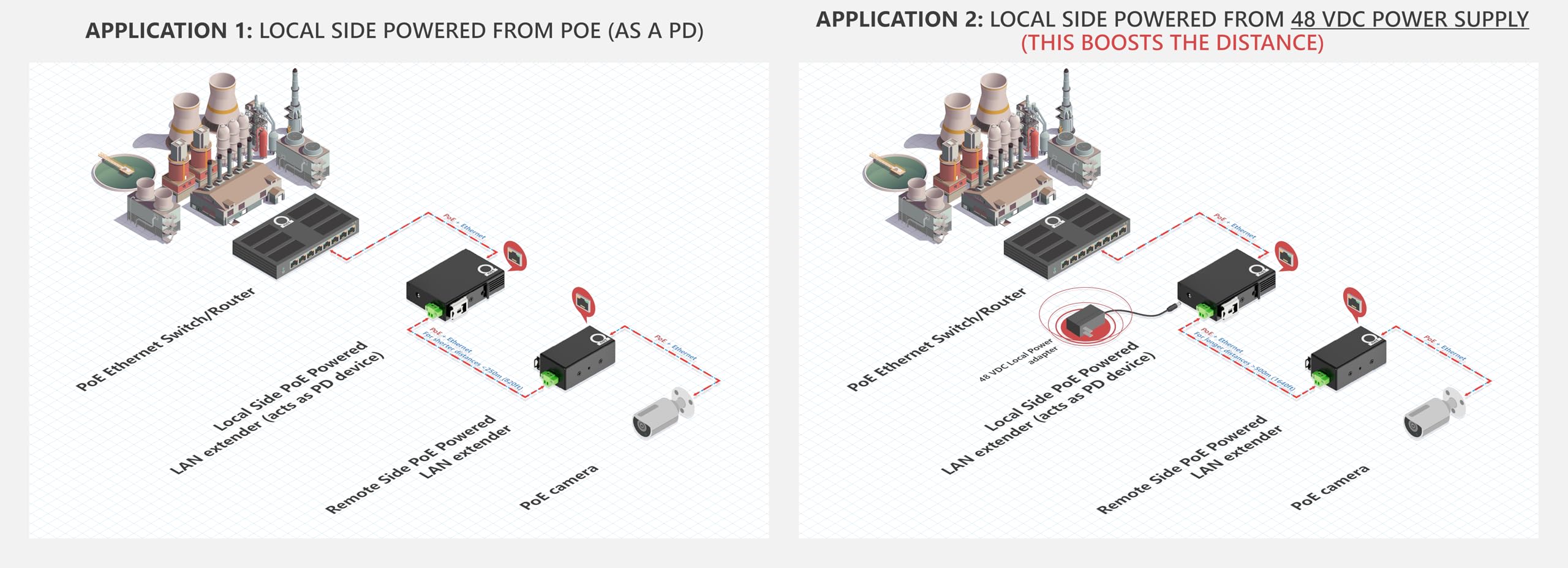

•Optional 48 VDC Power Supply Unit for Long Runs Included: For extended distances or high-power PDs, connect a 48 V DC source at the master side for maximum voltage stability. Fully compatible with IEEE 802.3af/at powered devices.
•Transparent PoE Pass-Through with PD Support: Delivers real PoE output at the remote side with minimal loss. Performance verified under full data and power load to ensure stable throughput and true end-to-end power delivery.

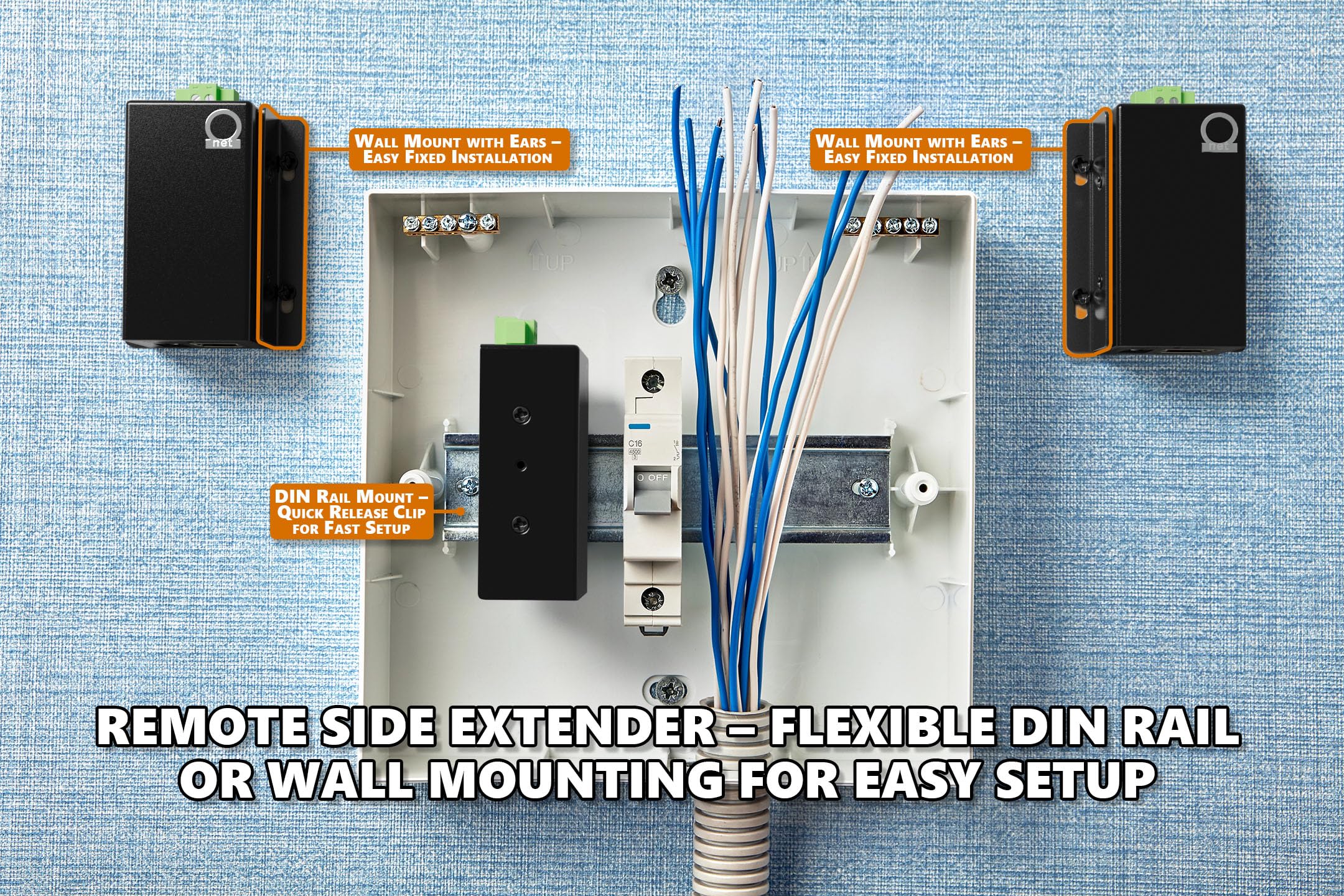

•Industrial-Grade Design – DIN-Rail or Wall Mount: Durable aluminum housing supports both DIN-rail and wall installation. Operating temperature –20 °C to +60 °C. Fully plug-and-play — no setup or drivers required.
•Part of the ADnet Long-Range PoE Extender Family: Each model in this series operates as its own matched pair, designed for specific applications — from compact mini kits to this PoE-powered master version for advanced installations.
