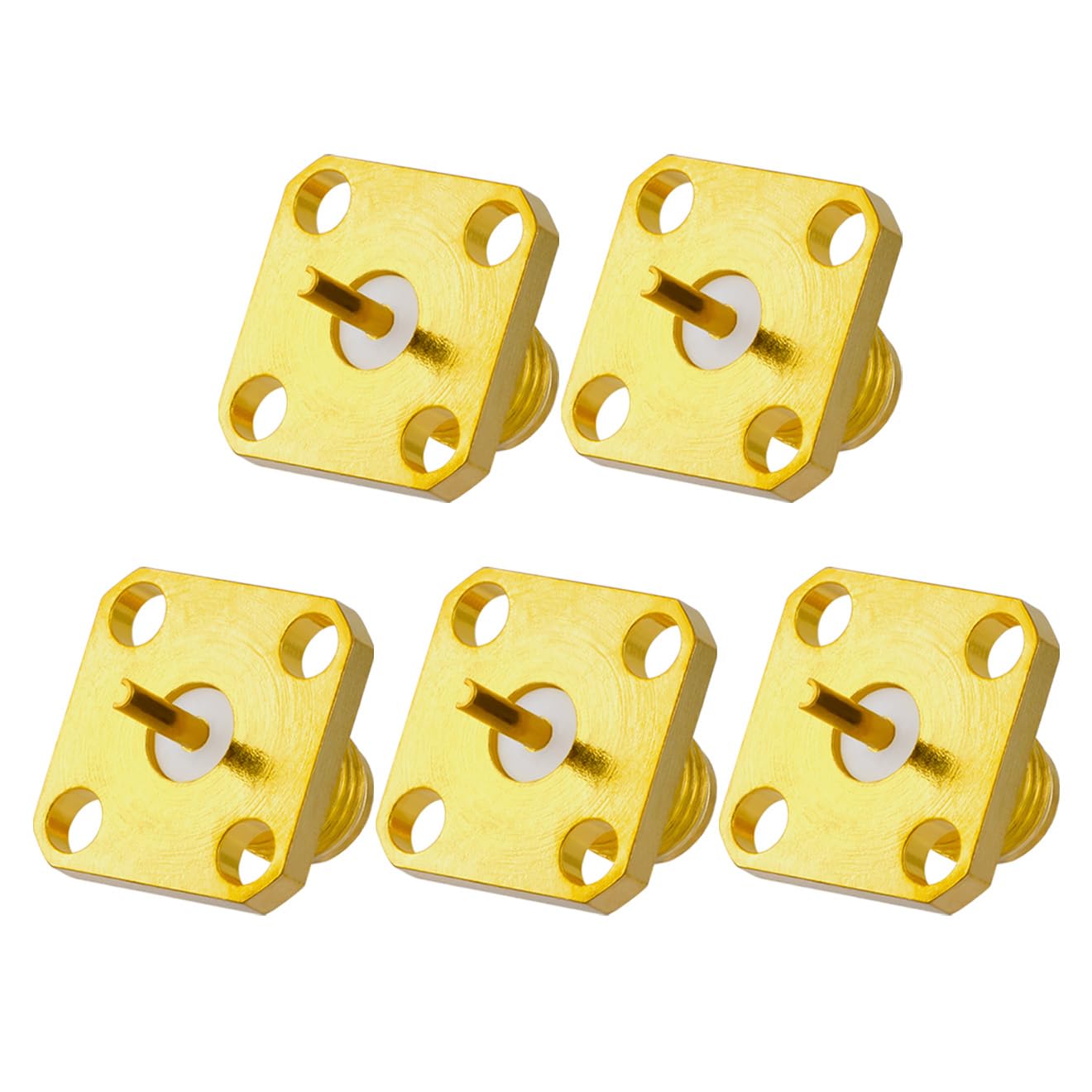

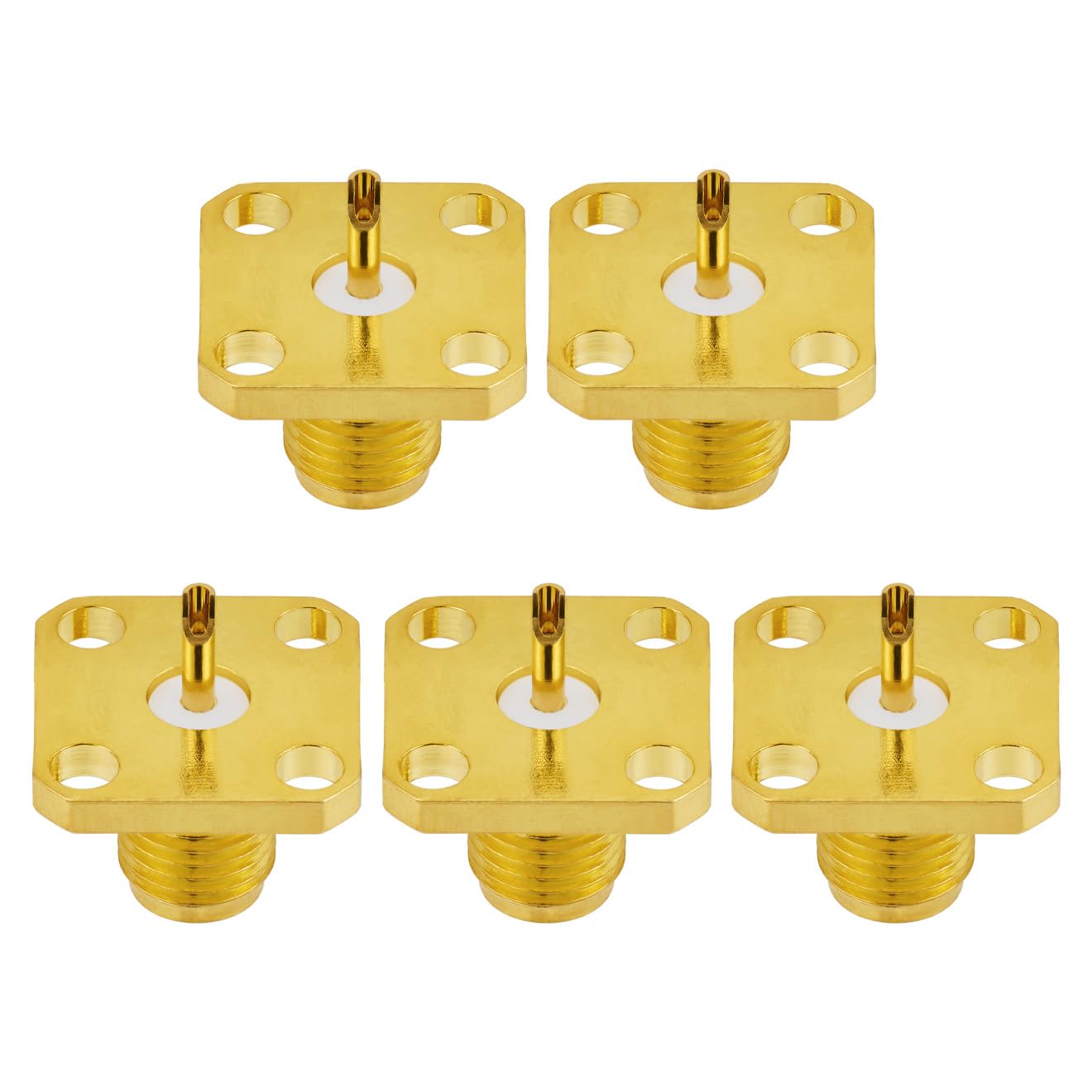

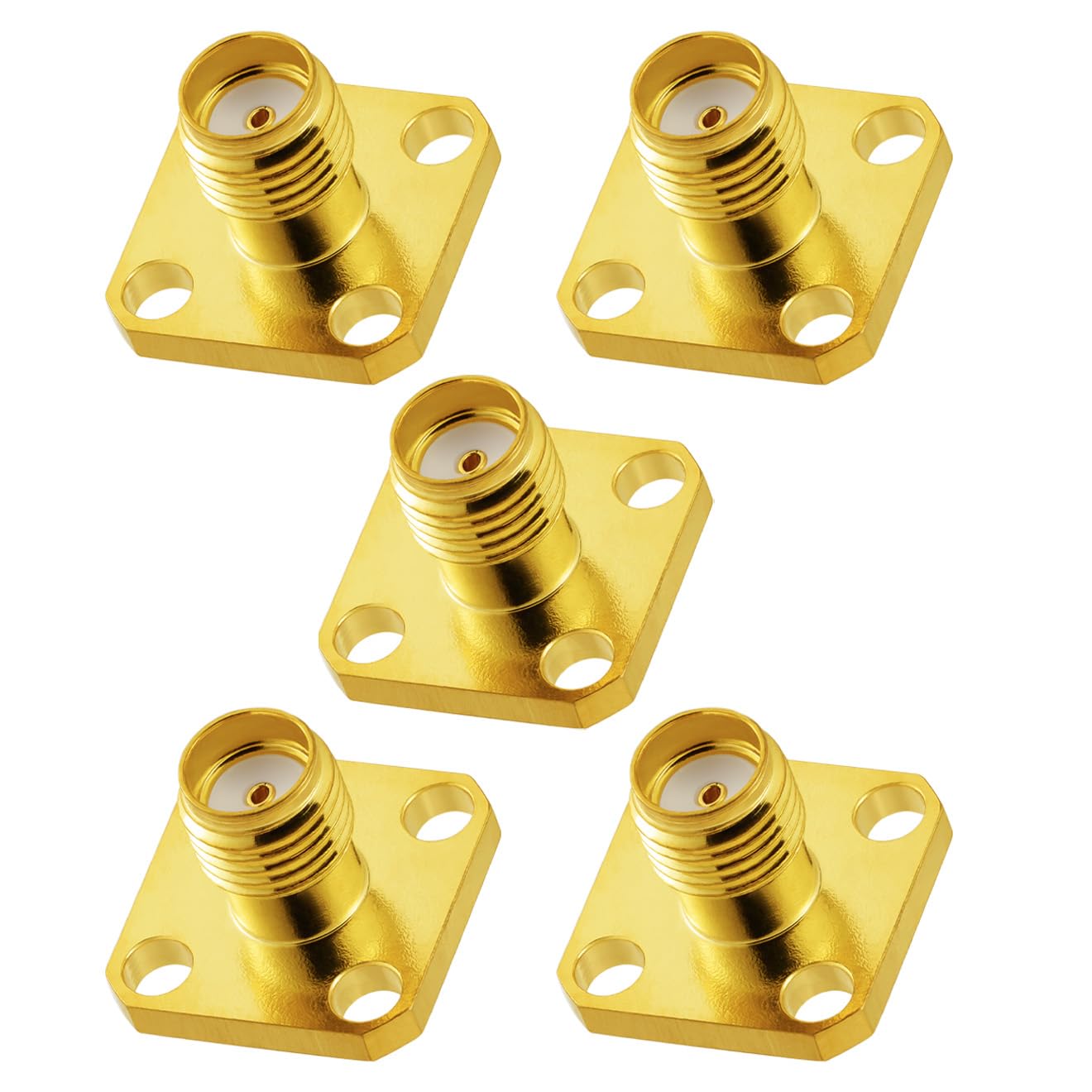

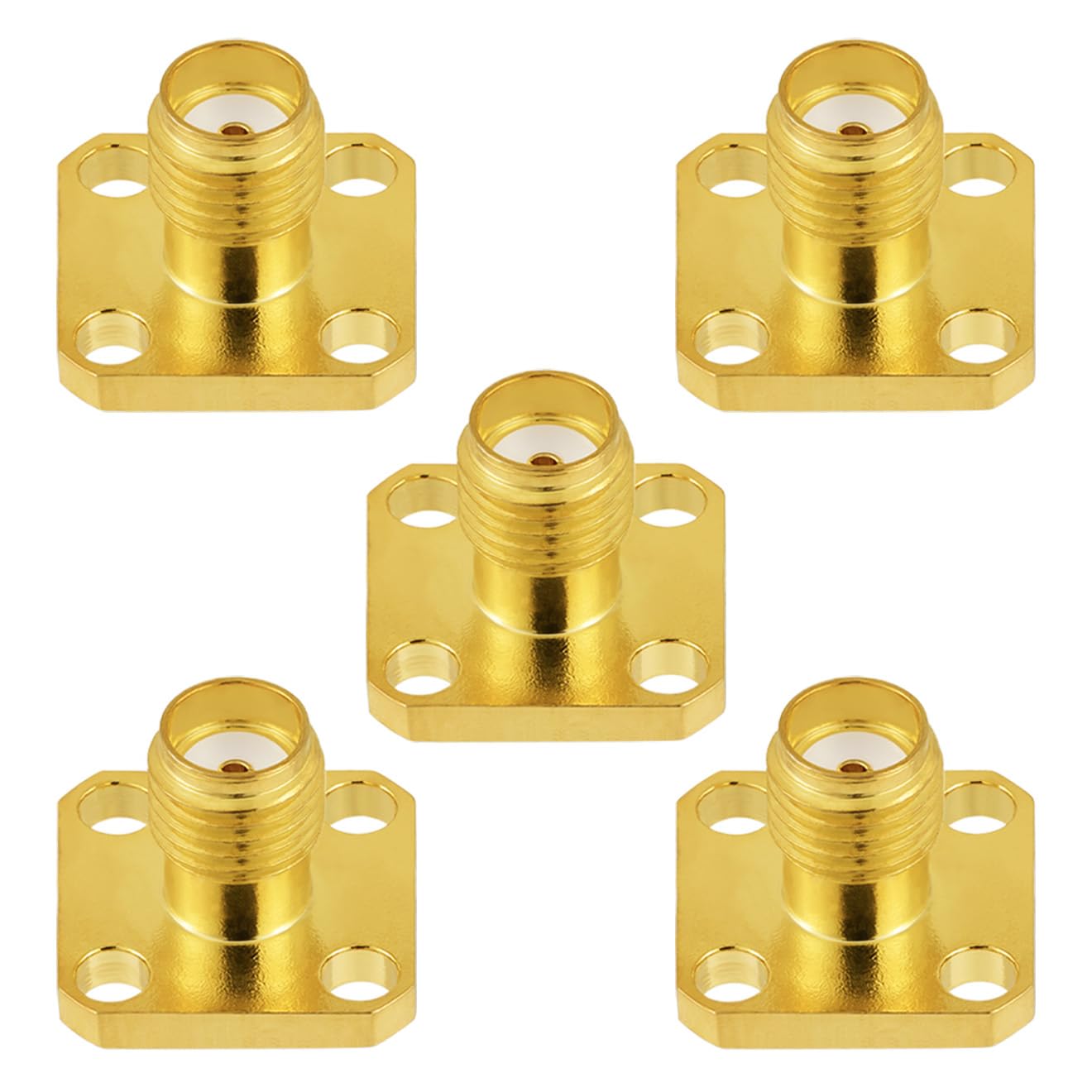

POBADY 5PCS SMA Female 4 Hole Panel Mount RF Coax Connector 50 Ohm SMA Female Flange Chassis Mount Solder Connector Gold Plating Adapter for Radio Antenna Coaxial Cable
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Product name: SMA female four hole flange chassis mount RF coaxial connector;
•Connector type: SMA female
•Shell material: Brass, gold plated
•Contact pin material: Brass, gold plated
•Socket material: Beryllium, gold plated
•Body style: Four hole panel;
•Impedance: 50 Ohm
•Insulator: PTFE
•VSWR: ≤1.2
•Frequency Range: DC～12.4 GHz
•Withstand voltage: 1000V rms
•Insulation resistance ≥ 5000 MΩ
•Center contact resistance: ≤ 3 mΩ
•Outer contact resistance: ≤ 2 mΩ
•Temperature range: -65～165°C (PE Cable -40～+85°C)
•Insertion loss ≤0.15 dB/6GHz
•Working Voltage: ≤ 335V
•Vibration MIL-STD-202, method 213
•Durability: ≥500 cycles;
•Applications: Widely used for WiFi radio antenna coaxial cable;
•Package: 5 x SMA female 4 hole panel mount connectors
