pobady 4pcs sma rp sma 4 types adapter kit 50 ohm rf coaxial P | Shop The World
From USA
NewPOBADY

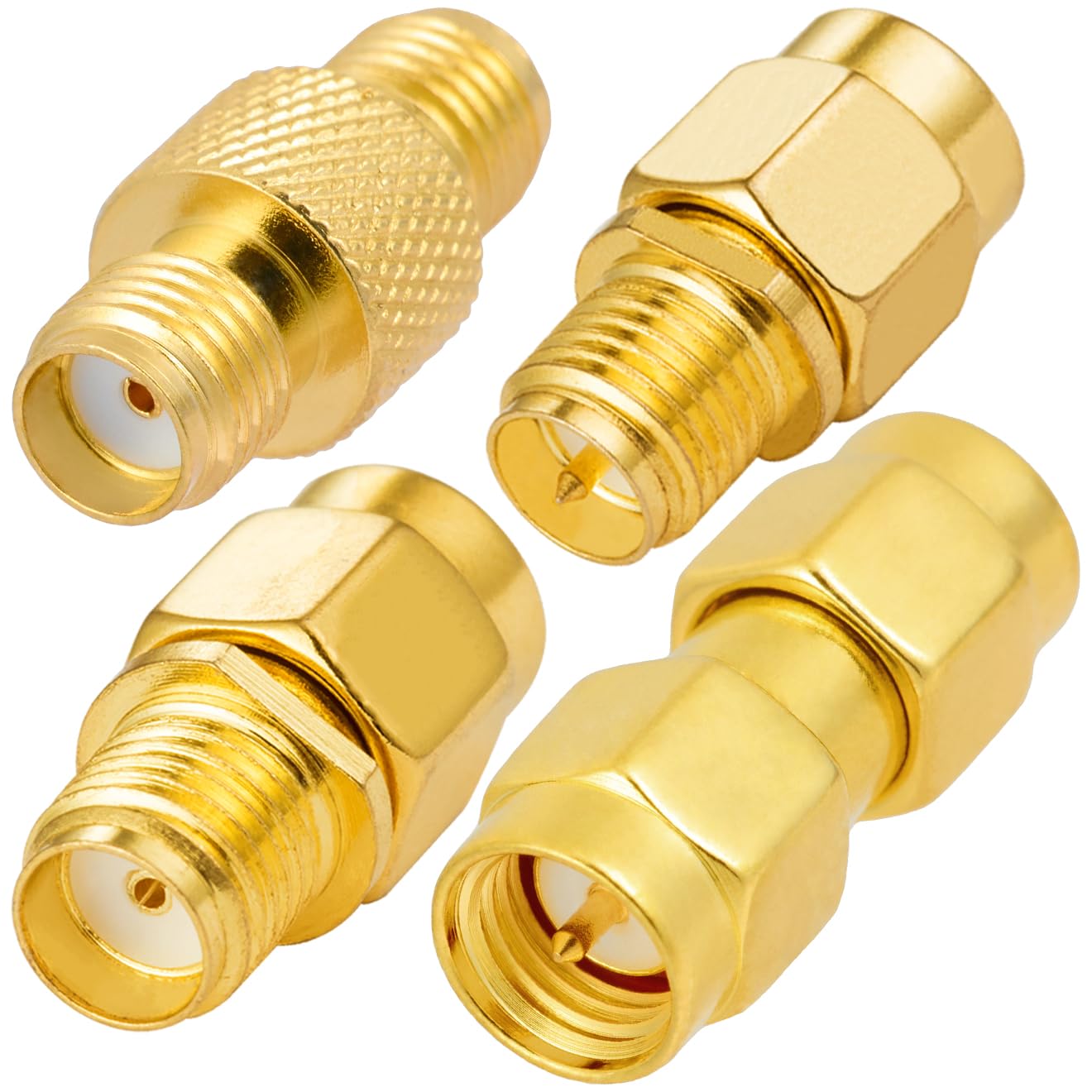

POBADY 4PCS SMA to RP-SMA 4 Types Adapter Kit 50 Ohm RF Coaxial Adapter Converter for Antenna Router Coax Cable
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Product name: 50 ohm SMA to RP-SMA RF coaxial adapter kit 4 types;
•Adapter type: Adapter 1: SMA female to RP-SMA male adapter
•Adapter 2: SMA male to RP-SMA female adapter
•Adapter 3: SMA male to RP-SMA male adapter

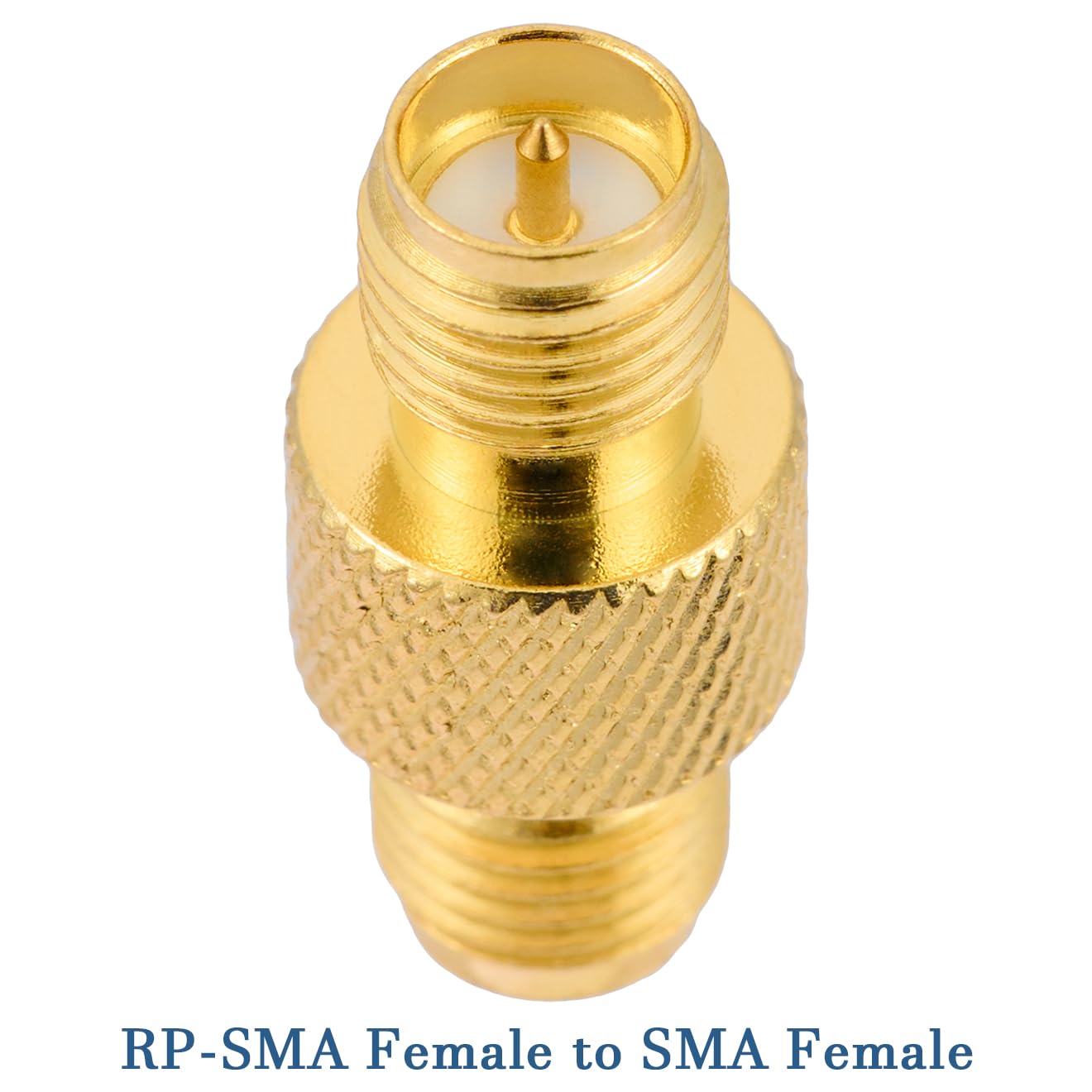

•Adapter 4: SMA female to RP-SMA female adapter
•Shell material: Copper
•Inner conductor material: Brass gold plated
•Body style: Straight;
•Parameters: Impedance: 50 ohm
•Insulator: PTFE
•VSWR: ≤1.2
•Frequency range: 0~3GHZ
•Withstand voltage: 1000V rms
•Insulation resistance ≥ 5000 MΩ
•Center contact resistance: ≤ 3 mΩ
•Outer contact resistance: ≤ 2 mΩ
•Temperature range: -45～125°C
•Insertion loss ≤0.15 dB/6GHz
•Working voltage: ≤ 335V
•Vibration MIL-STD-202, method 213
•Durability: ≥500 cycles;
•Applications: Widely used for antenna router coaxial cable and so on;
•Package: 1 x SMA female to RP-SMA male adapter, 1 x SMA male to RP-SMA female adapter, 1 x SMA male to RP-SMA male adapter, 1 x SMA female to RP-SMA female adapter
