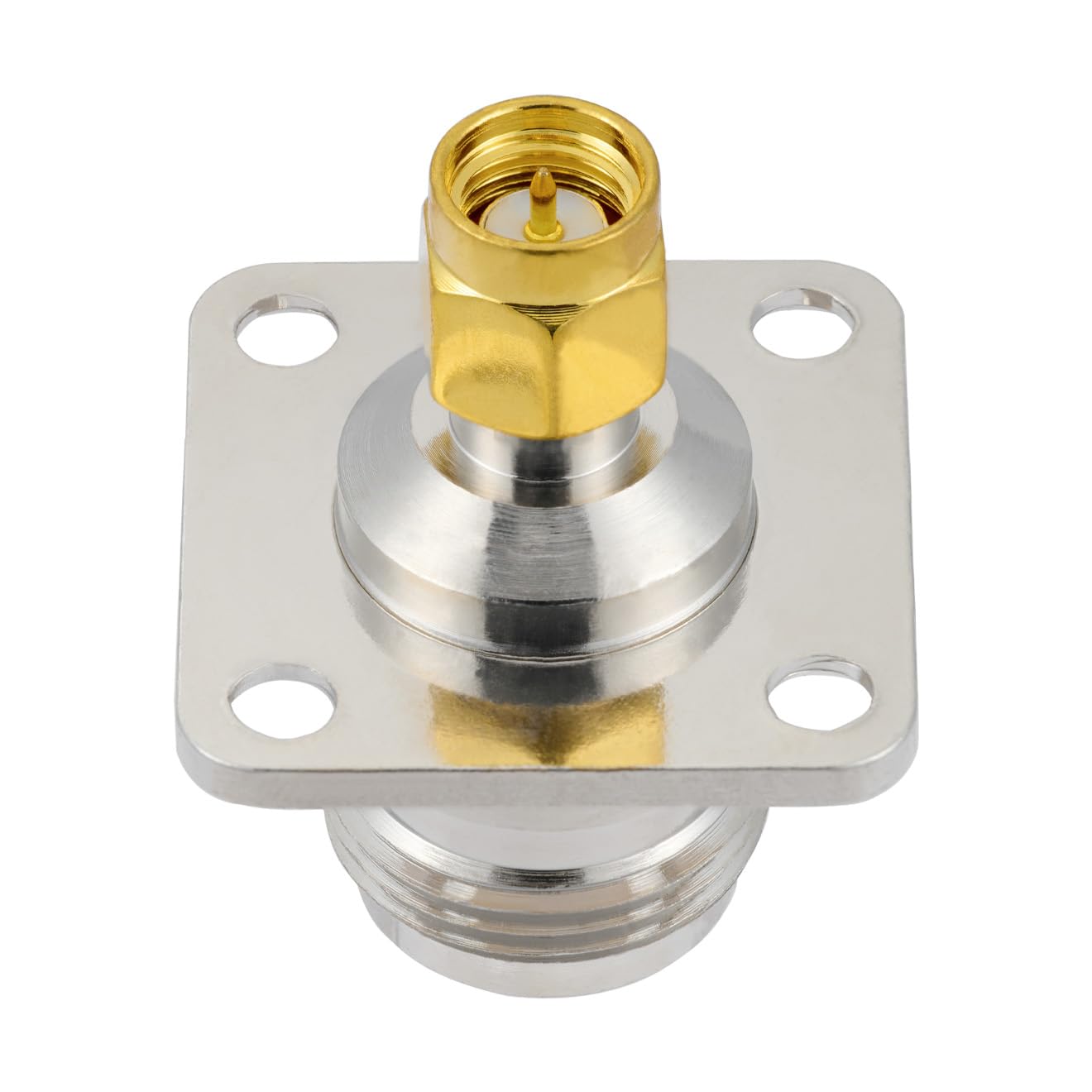

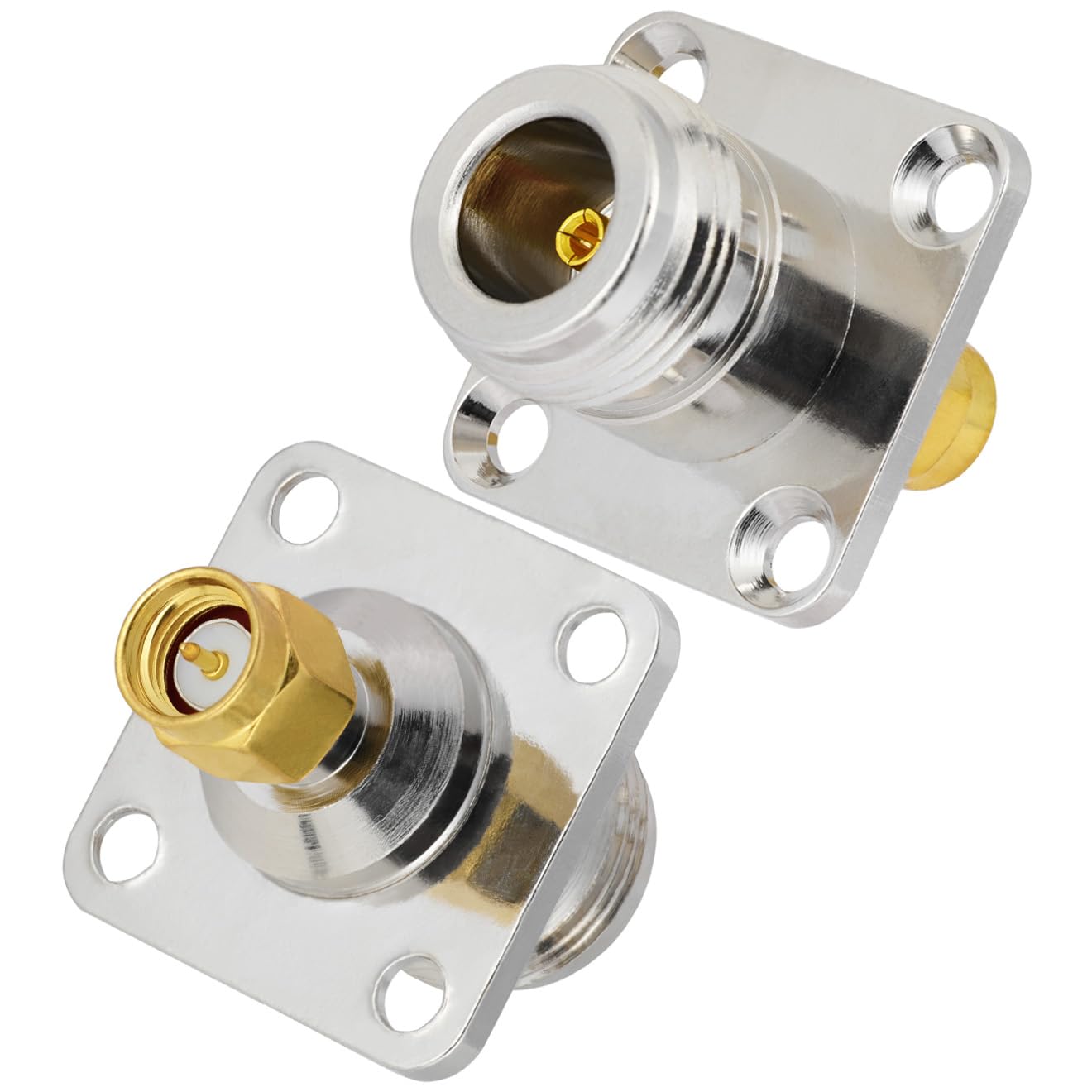

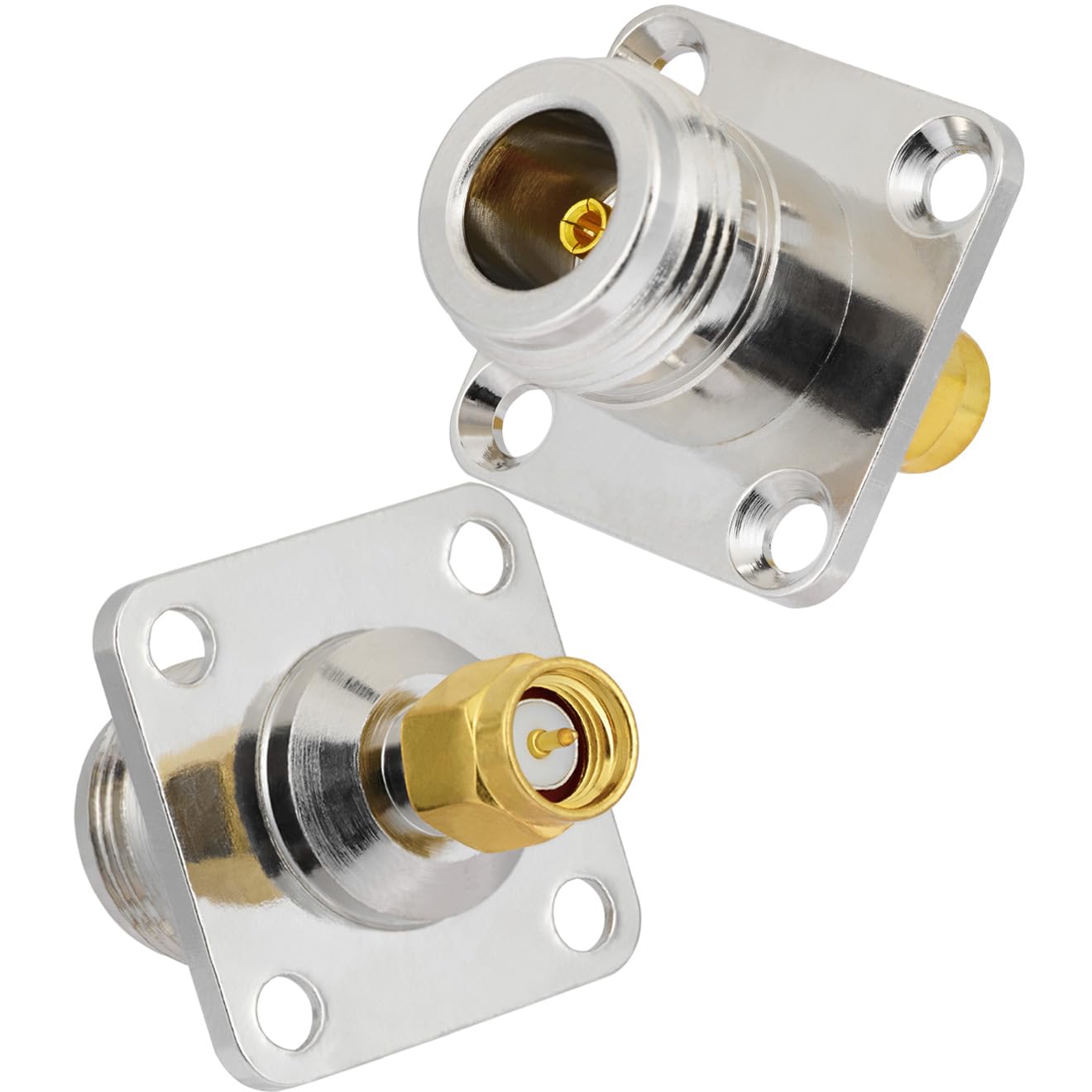

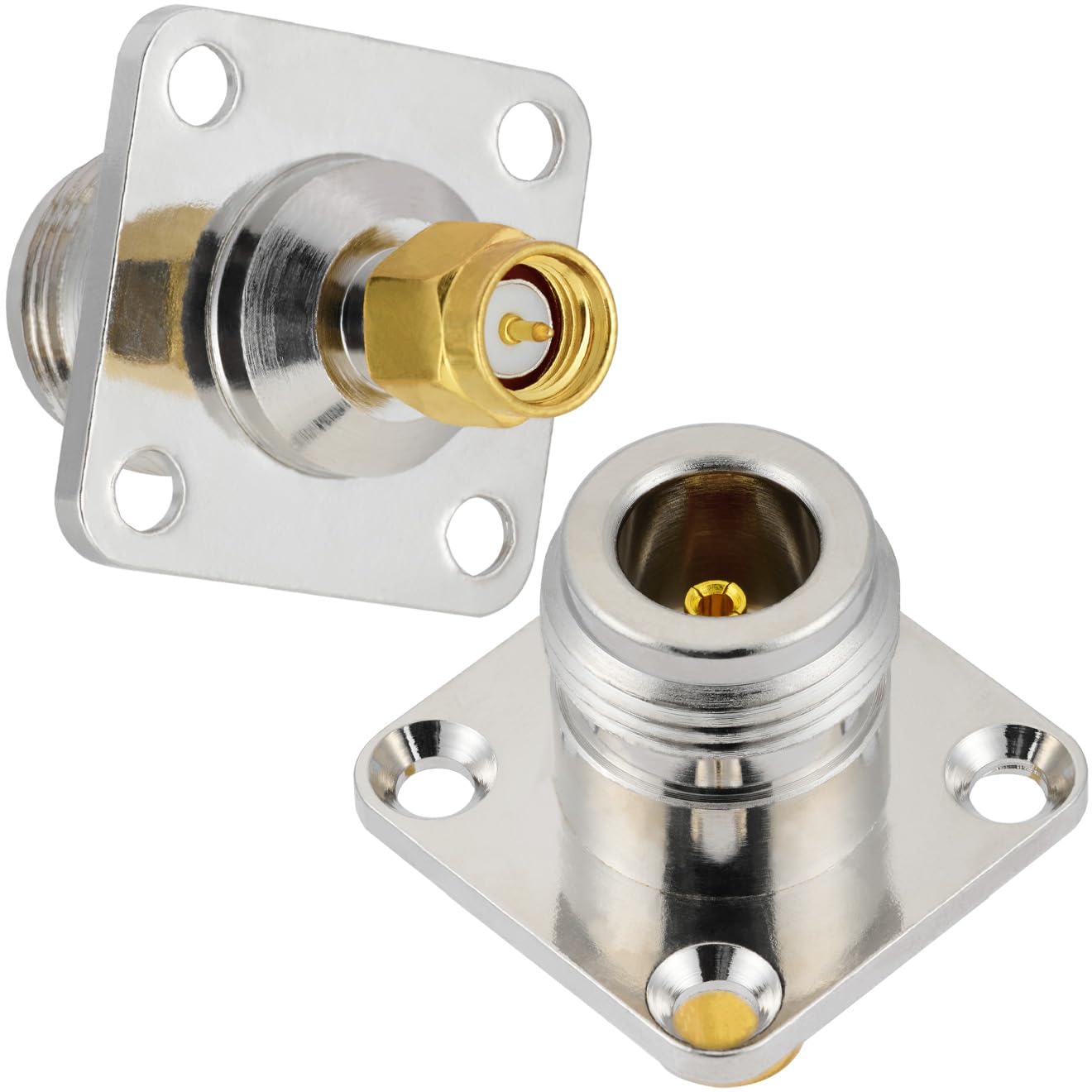

POBADY 2PCS N Female to SMA Male 4 Holes Flange Panel Mount Connector 50 Ohm N Type to SMA 4 Holes Flange Chassis Mount Solder Adapter for Radio Antenna Coax Cable
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Product name: N female to SMA male 4 holes flange panel mount RF coaxial adapter;
•Connector type: Connector 1: N female; Connector 2: SMA male
•Shell material: Copper
•Inner conductor material: Brass gold plated
•Body style: Four hole panel;
•Parameters: Impedance: 50 ohm
•Insulator: PTFE
•VSWR: ≤1.2
•Frequency range: 0~3GHZ
•Withstand voltage: 1000V rms
•Insulation resistance ≥ 5000 MΩ
•Center contact resistance: ≤ 3 mΩ
•Outer contact resistance: ≤ 2 mΩ
•Temperature range: -45～125°C
•Insertion loss ≤0.15 dB/6GHz
•Working voltage: ≤ 335V
•Vibration MIL-STD-202, method 213
•Durability: ≥500 cycles;
•Applications: Widely used for radio antenna coax cable and so on;
•Package: 2 x N female to SMA male 4 holes flange chassis mount connectors
